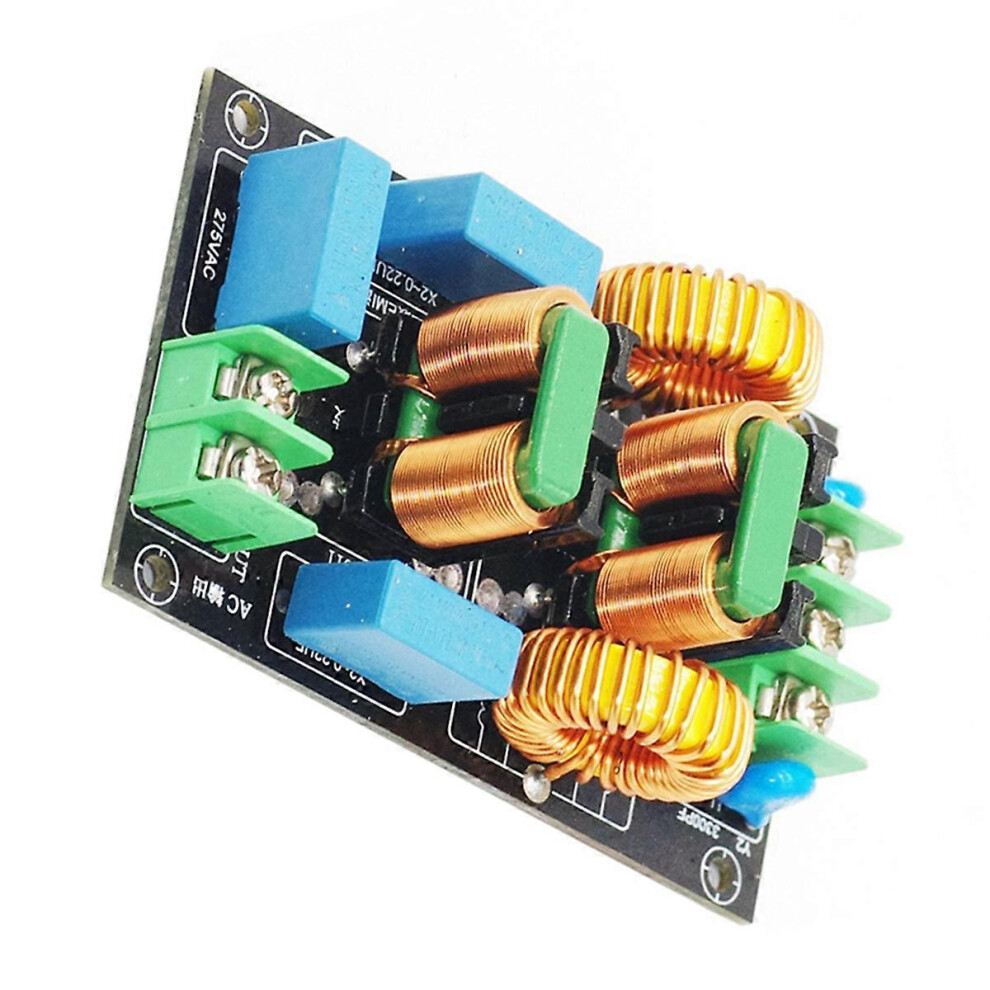

EMI Power Filter Board Audio Amplifier Power Supply Filter Common Mode High Current Electromagnetic

EMI Power Filter Board Audio Amplifier Power Supply Filter Common Mode High Current Electromagnetic Description

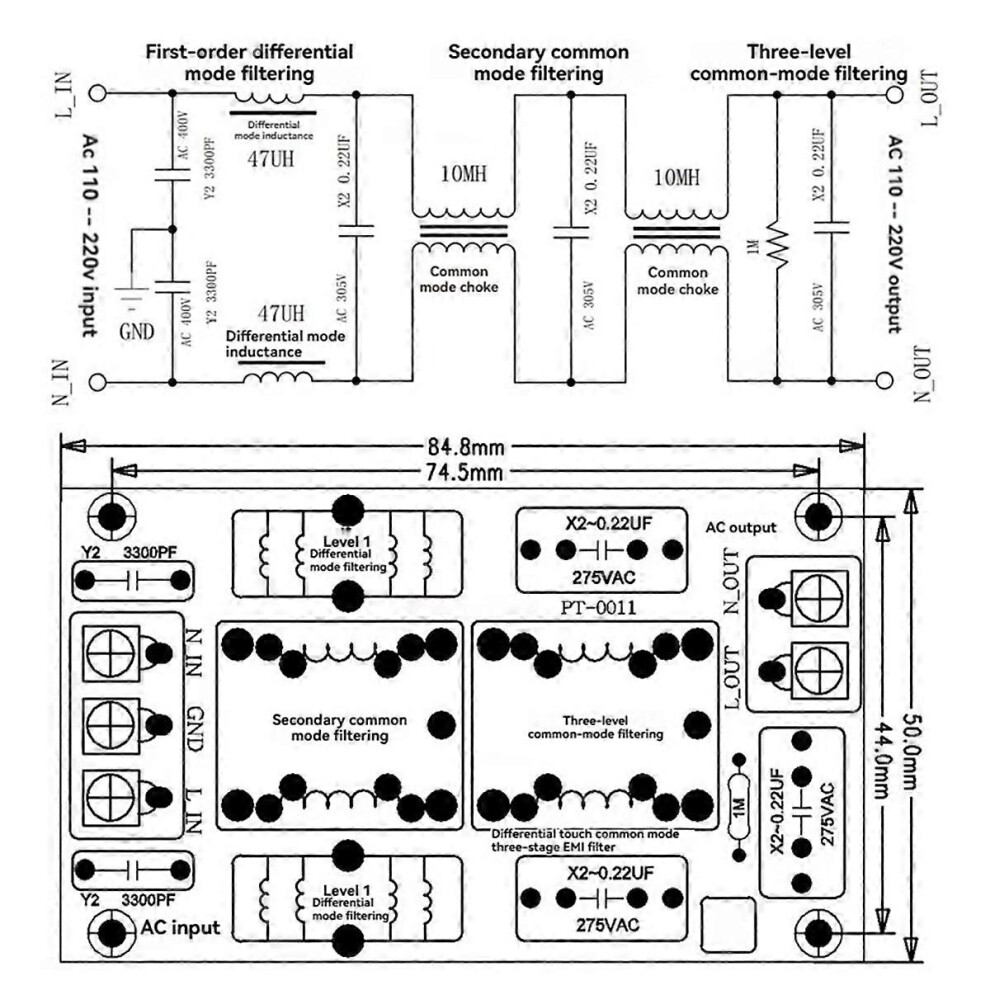

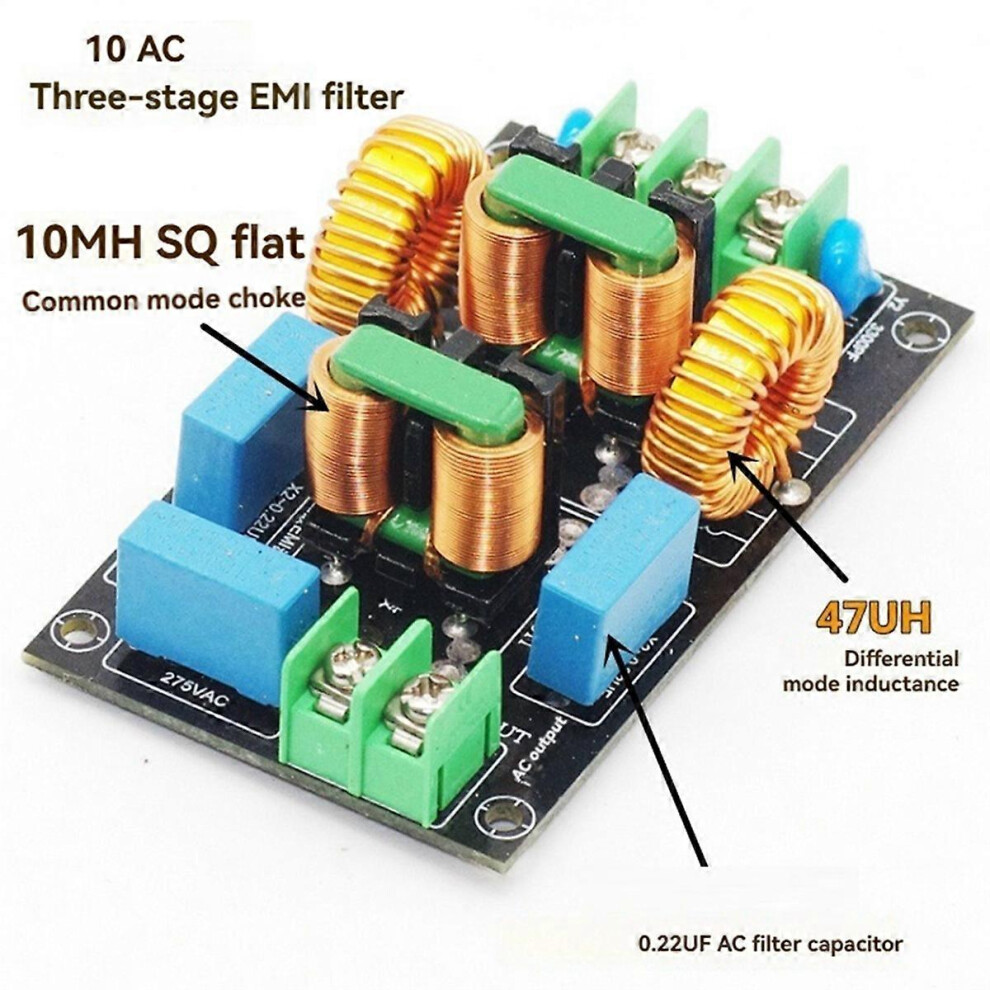

1. First level differential mode filtering with two differential inductors for differential mode filtering of AC power supply to suppress mid to high frequency interference
2. The first level common mode filter is composed of X2 capacitors and common mode inductors to form a common mode filter.
3. Three stage common mode filtering, due to the use of two-stage (also known as two-stage) filtering, has a better effect on filtering noise. It can effectively suppress the problem of rapid ient group pulse interference with a repetition frequency of several thousand hertz in certain user sites.
4. The three-level composite (1-level differential mode+2-level common mode) EMI electromagnetic interference filter circuit, due to the use of three-level (also known as three-level) filtering, has a better filtering effect on noise.
5. It can effectively suppress the problem of rapid ient group pulse interference with a repetition frequency of several thousand hertz in certain user sites.
6.This module, when used in conjunction with a decoder or power amplifier, can filter the DC component of the power supply, eliminate and suppress former buzzing, high-frequency noise in the power supply, purify the power supply, significantly improve the sound quality of the power amplifier, enhance resolution, and make the background quiet.
7.The input GND needs to be connected to the ground wire of the power cord, and can also be connected to the chassis casing, depending on the specific situation.
Parameters:
Name: Level 3 audio amplifier EMI power filter.
Input voltage: single-phase AC 110-250V
Output voltage: single-phase AC 110-250V
Rated current of load: 4A / 10A / 20A
Input port: 3-wire 7.62 socket input
Output port: 2-wire 7.62 socket output
Colour:black
Material:PCB+Components
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Package Contents:
1 * EMI Power Filter
Only the above package content, other products
