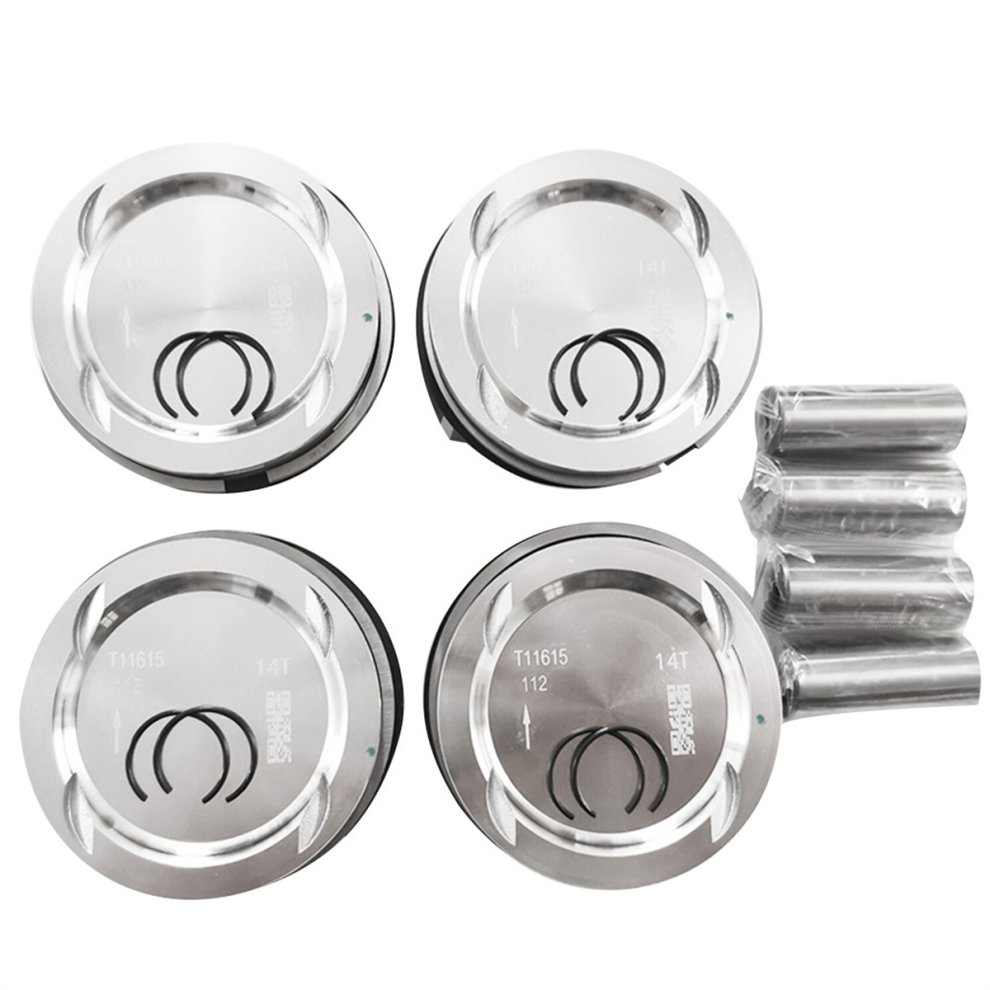

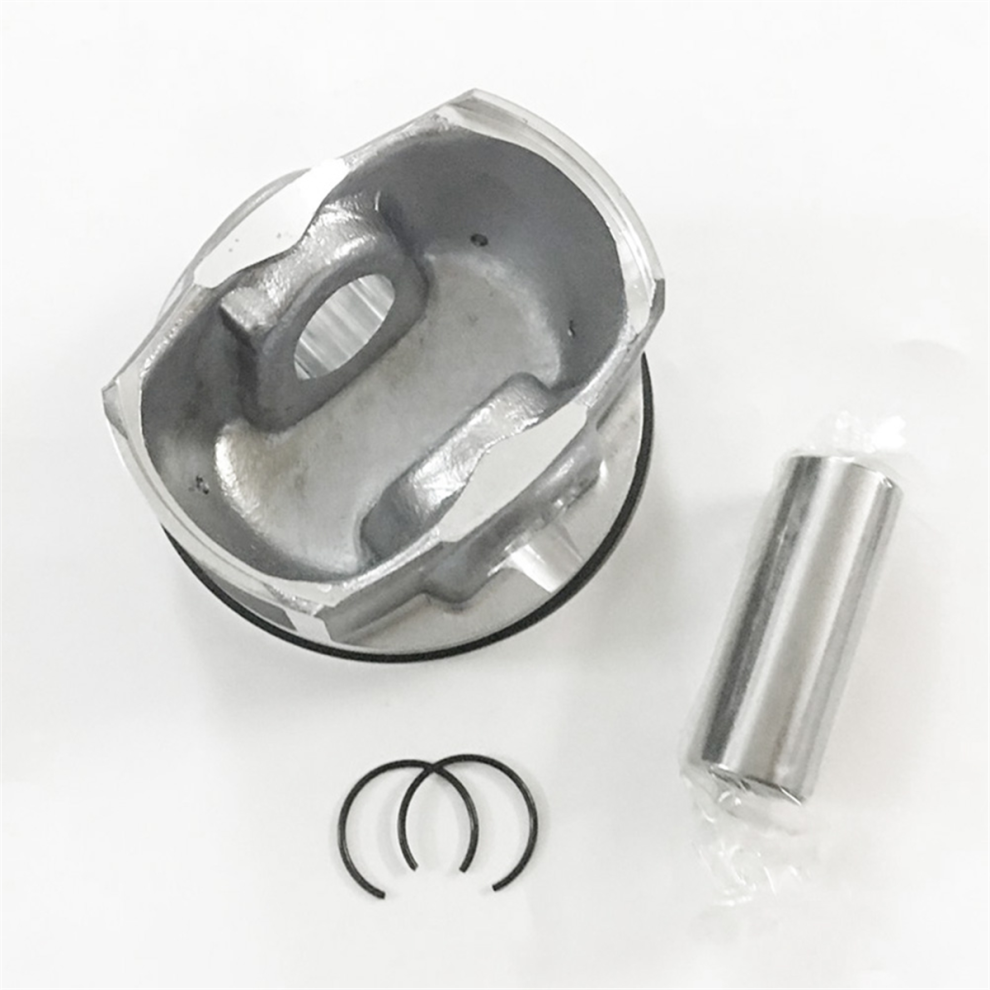

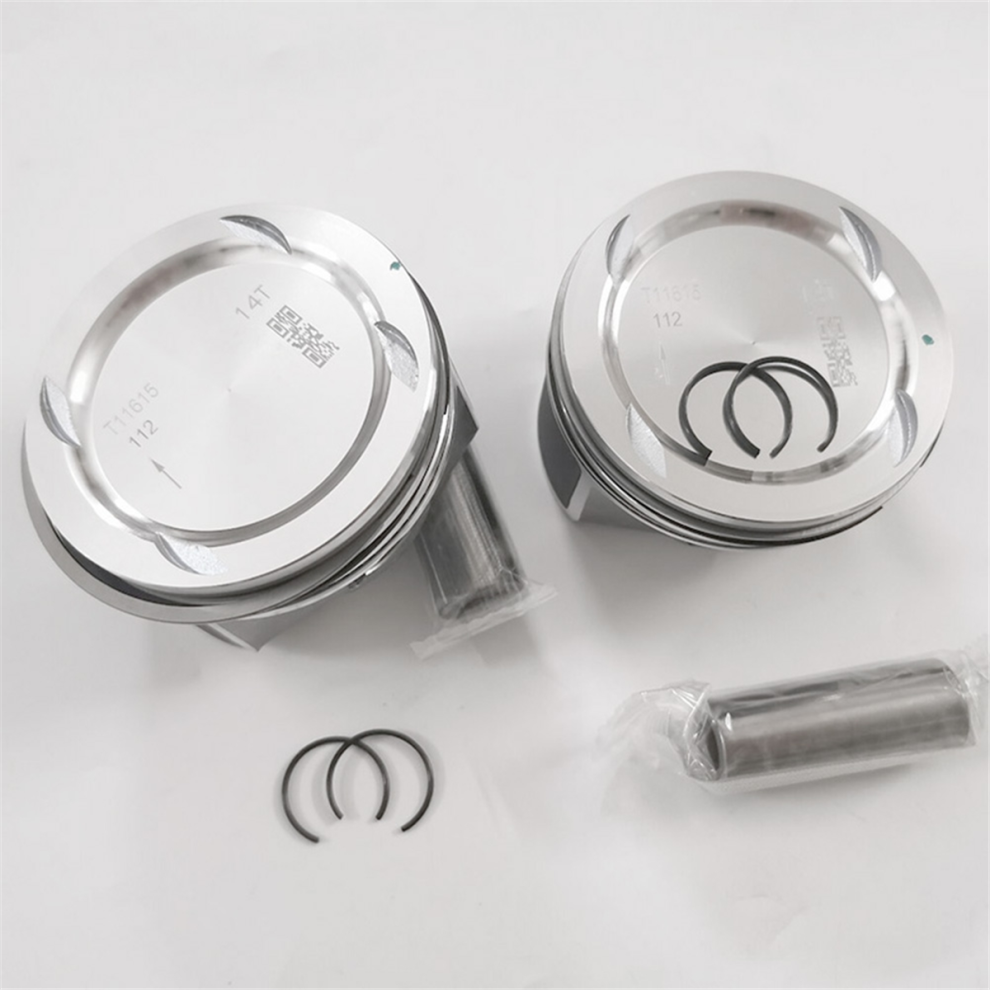

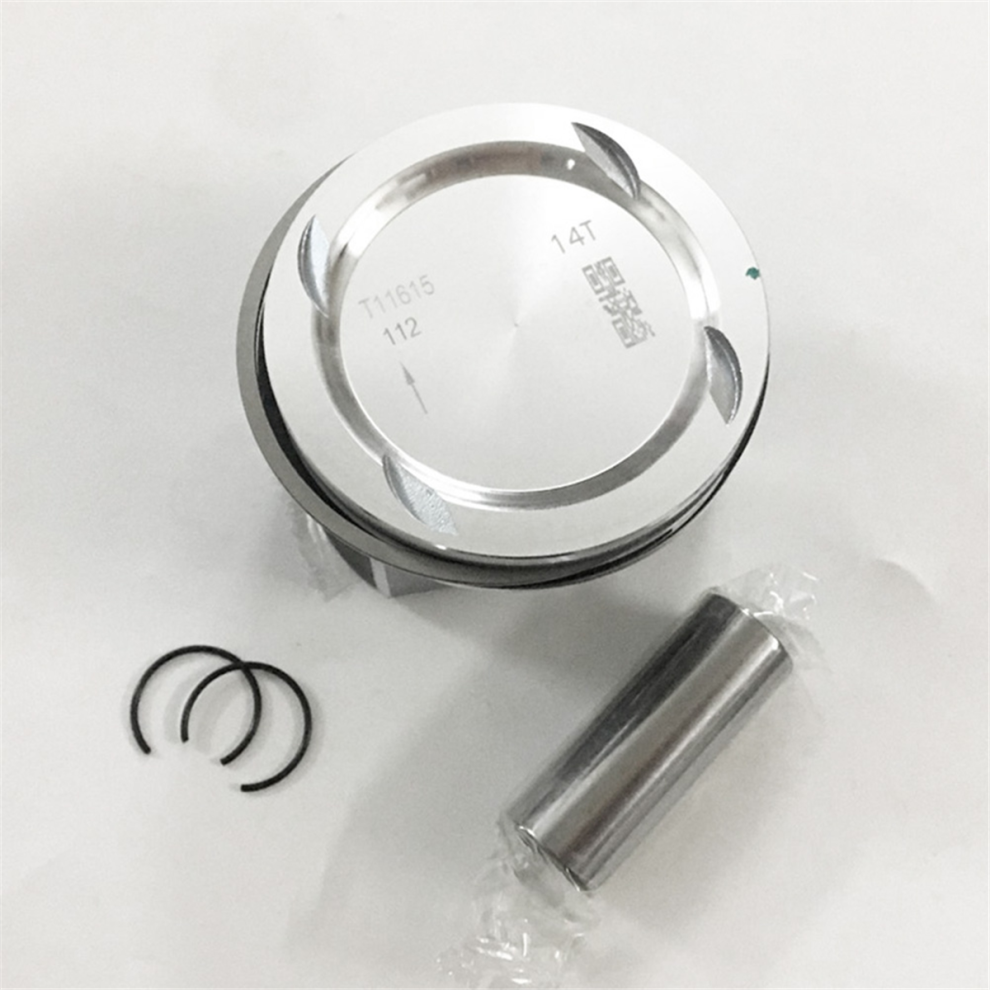

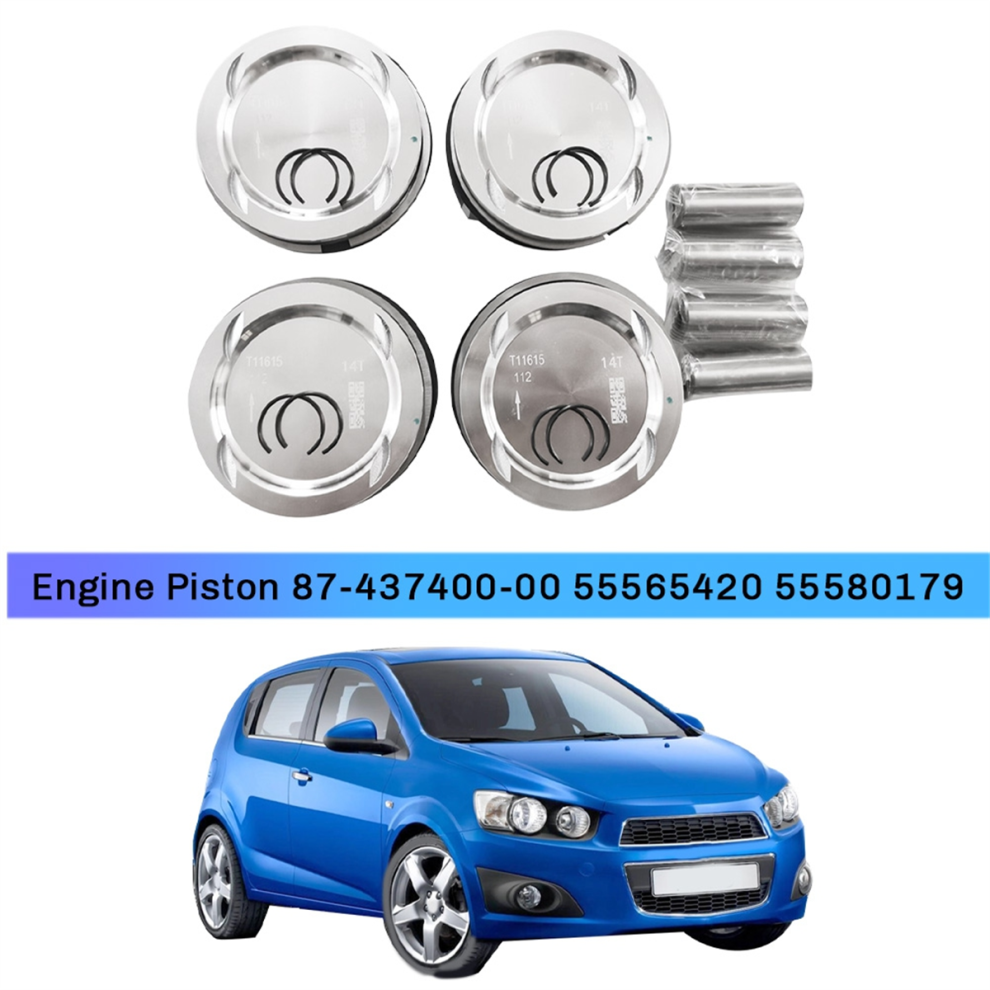

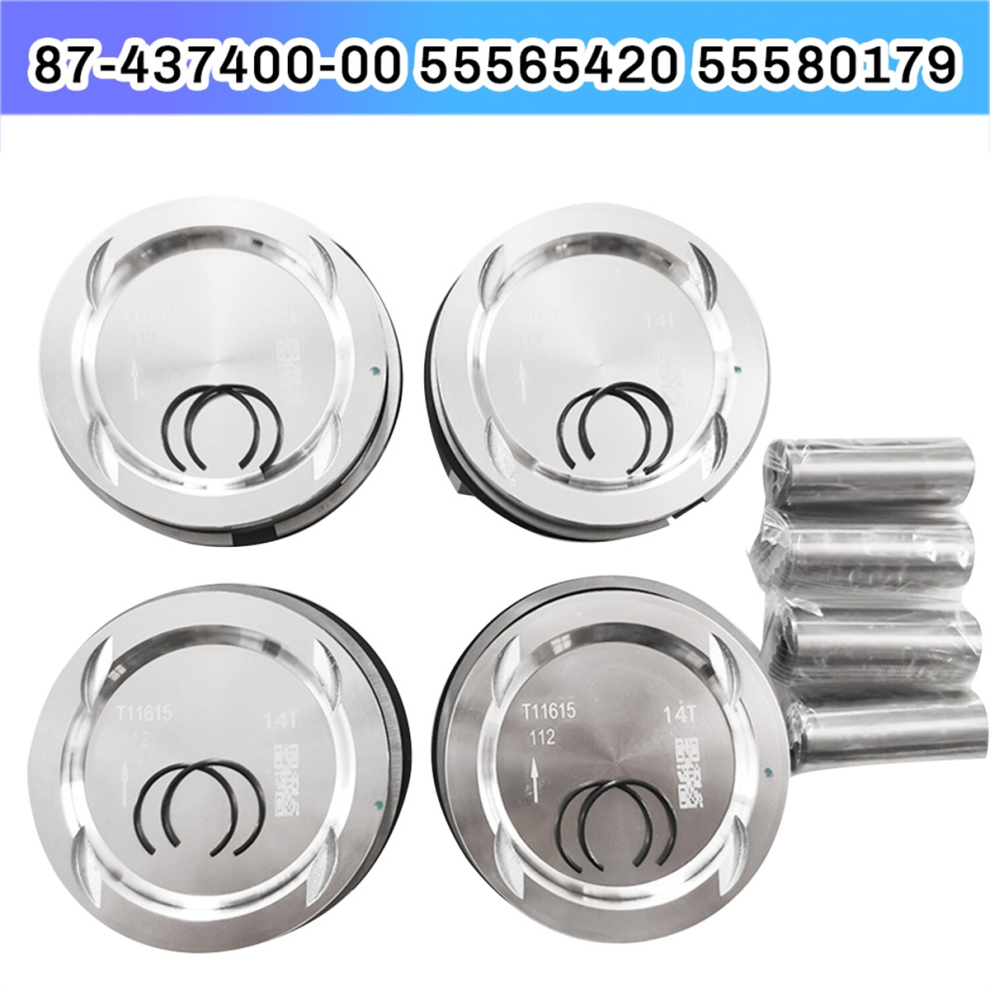

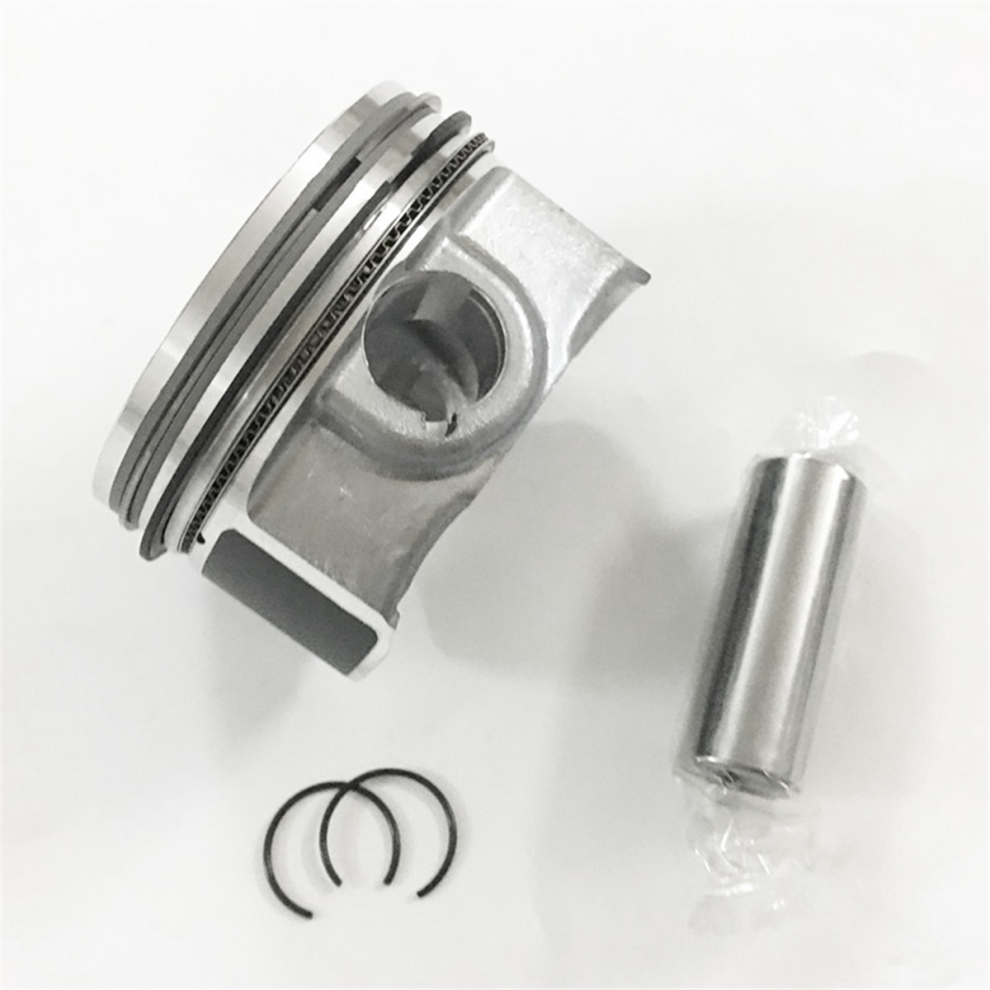

Engine Piston For J A 1.4 A14NET

Engine Piston For J A 1.4 A14NET Description

ENGINES For Petrol Engine 1364 ccm 4 cylinders 103 kW / 140 ;For LUJ Petrol Engine 1364 ccm 4 cylinders 103 kW / 140 ;For A 14 NET Petrol Engine 1364 ccm 4 cylinders 103 kW / 140 ; For B 14 NET Petrol Engine 1364 ccm 4 cylinders 103 kW / 140 ;For LUJ Petrol Engine 1364 ccm 4 cylinders 103 kW / 140 ;For Petrol Engine 1364 ccm 4 cylinders 103 kW / 140 ;For A 14 NET Petrol Engine 1364 ccm 4 cylinders 103 kW / 140
For A 14 NEL Petrol Engine 1364 ccm 4 cylinders 88 kW / 120 ; For A 14 NET Petrol Engine 1364 ccm 4 cylinders 103 kW / 140 ; For B 14 NEJ Petrol Engine 1364 ccm 4 cylinders 74 kW / 101 ; For B 14 NEL Petrol Engine 1364 ccm 4 cylinders 88 kW / 120 ; For B 14 NET Petrol Engine 1364 ccm 4 cylinders 103 kW / 140 ; For D 14 NET Petrol Engine 1364 ccm 4 cylinders 103 kW / 140
For A 14 NEL Petrol Engine 1364 ccm 4 cylinders 88 kW / 120 ; For A 14 NET Petrol Engine 1364 ccm 4 cylinders 103 kW
Reference Part Numbers:87-437400-00; 55565420; 55580179; For # 55565420; # 87-437400-00; For # 55580179; For # 55580184; For # 6 23 449; For # 6 25 017; For # 6 25 072
Bolt Ø [mm]: 18 mm; Bolt length [mm]: 48 mm; Bore Ø [mm]: 72,5 mm; Compression Height [mm]: 25,87 mm; Length [mm]: 44,18 mm; Recess Depth 1 [mm]: 2,9 mm; Valve pocket depth 1 [mm]: 1,87 mm; Valve pocket depth 2 [mm]: 2,1 mm; Recess Diameter [mm]: 56,2 mm; Standard Size [STD]; Application for:Piston Diameter 72.5mm; Comp Height 25.9mm; Length 44.2mm; Pin Dia 18mm; Pin Length 48mm

VEHICLES:
For
AVEO HATCHBACK (T300) (2011/03 - X)
HATCHBACK (J305) (2010/12 - X)
(J300) (2009/05 - X)
STATION WAGON (J308) (2012/08 - X)
(2012/12 - X)
For
J (2011/10 - X)
J (P10) (2009/09 - 2015/10)
J SALOON (2012/06 - X)
J SPORTS TOURER (P10) (2010/10 - 2015/10)
D (S07) (2006/07 - 2014/08)
A SALOON (G09) (2008/07 - 2017/03)
MOKKA / MOKKA X (J13) (2012/06 - X)
TOURER C (P12) (2011/10 - X)
For
VI (J) ESTATE (P10) (2010/10 - 2015/10)
VI (J) (P10) (2009/12 - 2015/10)
VI (J) SALOON (P10) (2012/06 - 2015/10)
III (D) (S07) (2006/07 - 2014/08)
IV (E) (X15) (2014/08 - X)
I (A) HATCHBACK (G09) (2008/07 - 2017/05)
MERIVA II (B) (S10) (2010/06 - X)
MOKKA / MOKKA X (J13) (2012/06 - X)
III (P12) (2011/10 - 2018/08)
Material: Metal
colour: silver

Package Contents:
4 x Engine Piston

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
