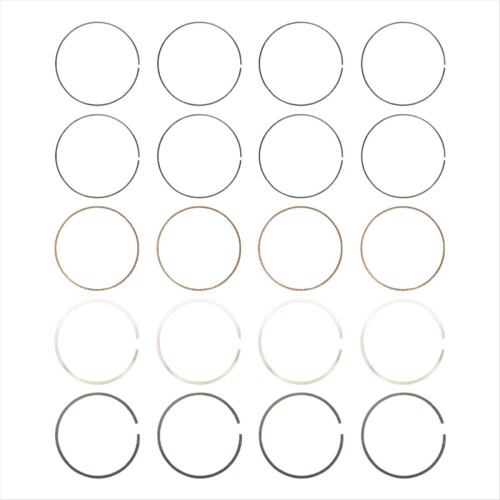

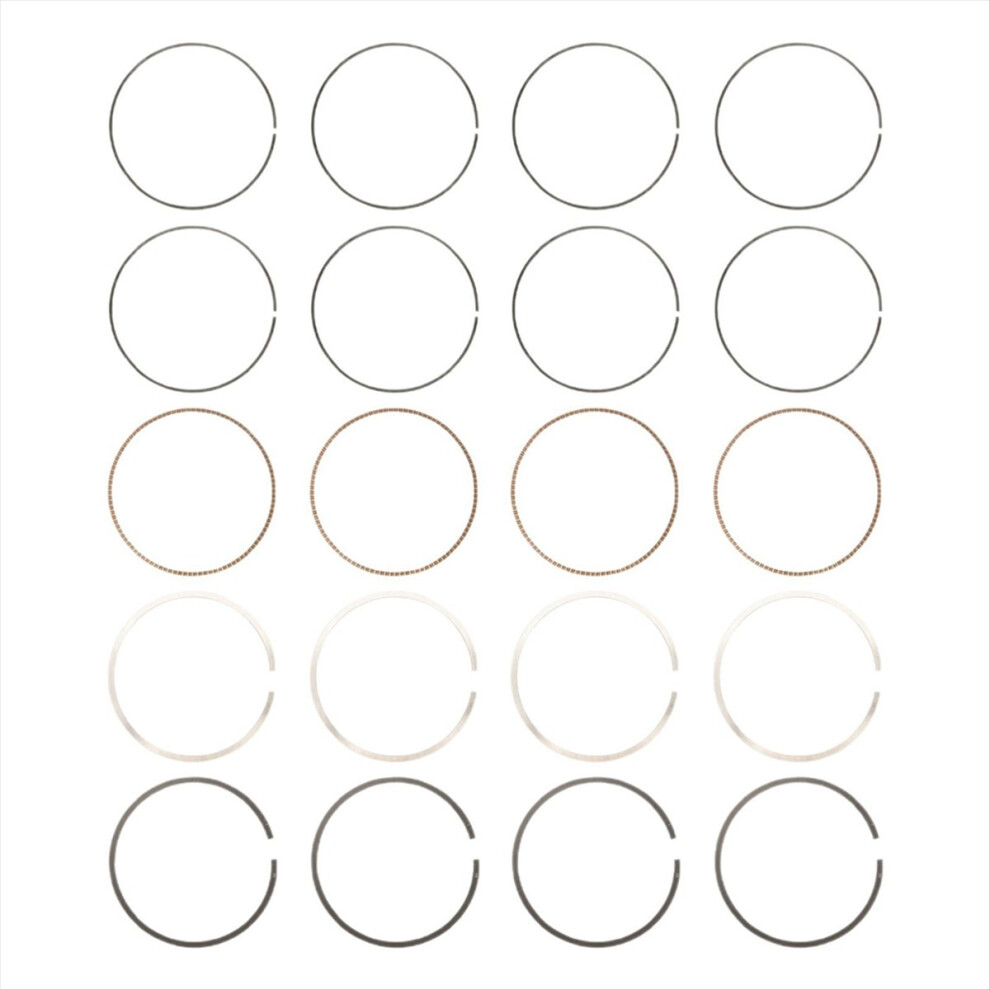

Engine Piston Ring Set 230402G510 23040-2G510 for

Engine Piston Ring Set 230402G510 23040-2G510 for Description

The main function of the engine piston ring is to seal the between the piston and the cylinder wall, to that the high-pressure gas in the combustion chamber not leak to other parts of the engine.
It is made of metal, which is strong, heat-resistant, pressure-resistant and has good elasticity.
Part Number: 230402G510 23040-2G510 23040 2G510
name:Engine piston rings

Fitment:
for 2.4L L4 2014-2015
for 2.4L L4 2018-2021
for 2.4L L4 2019-2020
for 2.4L L4 2014-2019
for Sport 2.4L L4 2013-2018
for 2.4L L4 2014-2021
for 2.4L L4 2013-2020
for 2.0L L4 2016-2018
for Sorento 2.4L L4 2014-2020
Product Size:
Top Ring Outer Diameter: 9.1cm / 3.58inch (D)
Top Ring Inner Diameter: 8.6cm / 3.39inch (D)
Top Ring Opening Distance: 1cm / 0.39inch (W)
Second Ring Outer Diameter: 9.2cm / 3.62inch (D)
Second Ring Inner Diameter: 8.6cm / 3.39inch (D)
Second Ring Opening Distance: 1.4cm / 0.55inch (W)
Oil Ring Outer Diameter: 8.9cm / 3.50inch (D)
Oil Ring Inner Diameter: 8.5cm / 3.35inch (D)
Oil Ring Opening Distance: 0.6cm / 0.24inch (W)
Material: Metal
Color: As Shown

Package Contents:
1 set * Engine piston rings

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
