Engine Support Beam with Cross Beam - 500kg Weight Limit - Engine Maintenance

Engine Support Beam with Cross Beam - 500kg Weight Limit - Engine Maintenance Description

Engine Support Beam with Cross Beam - 500kg Weight Limit - Engine Maintenance

Overview:

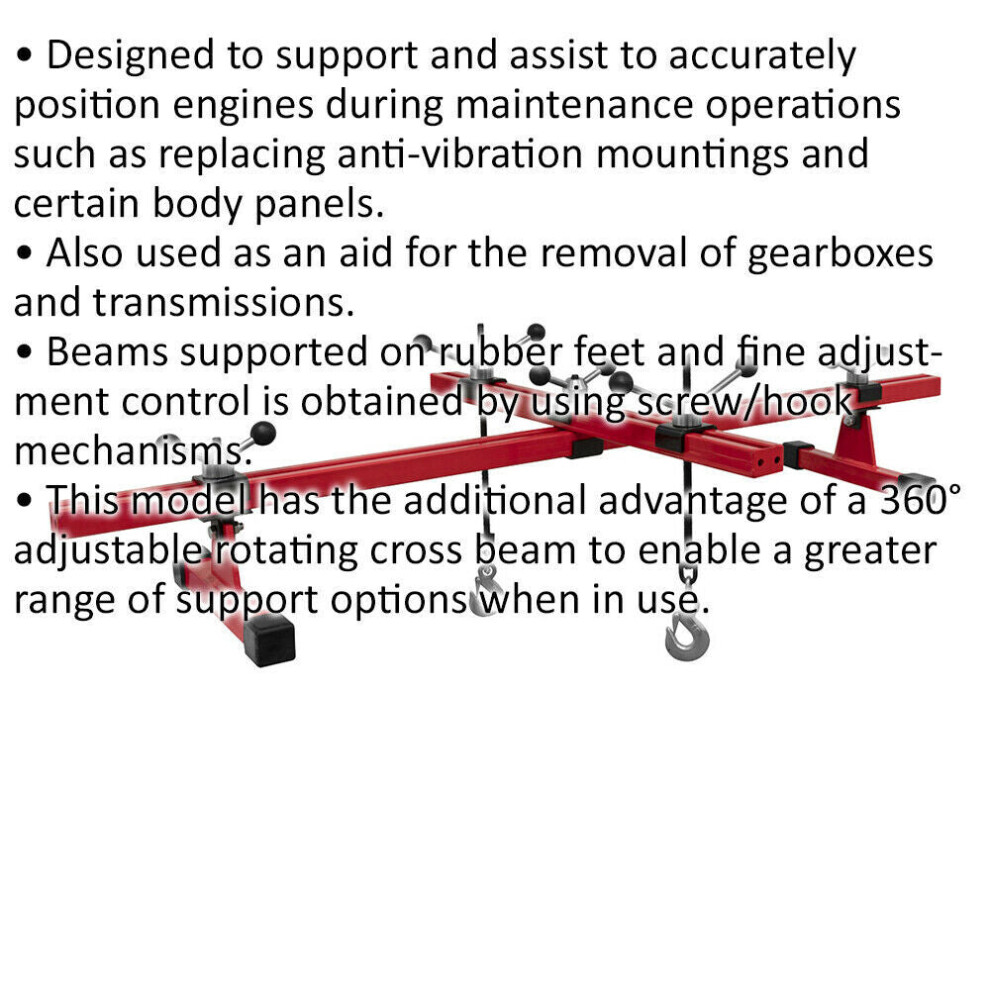

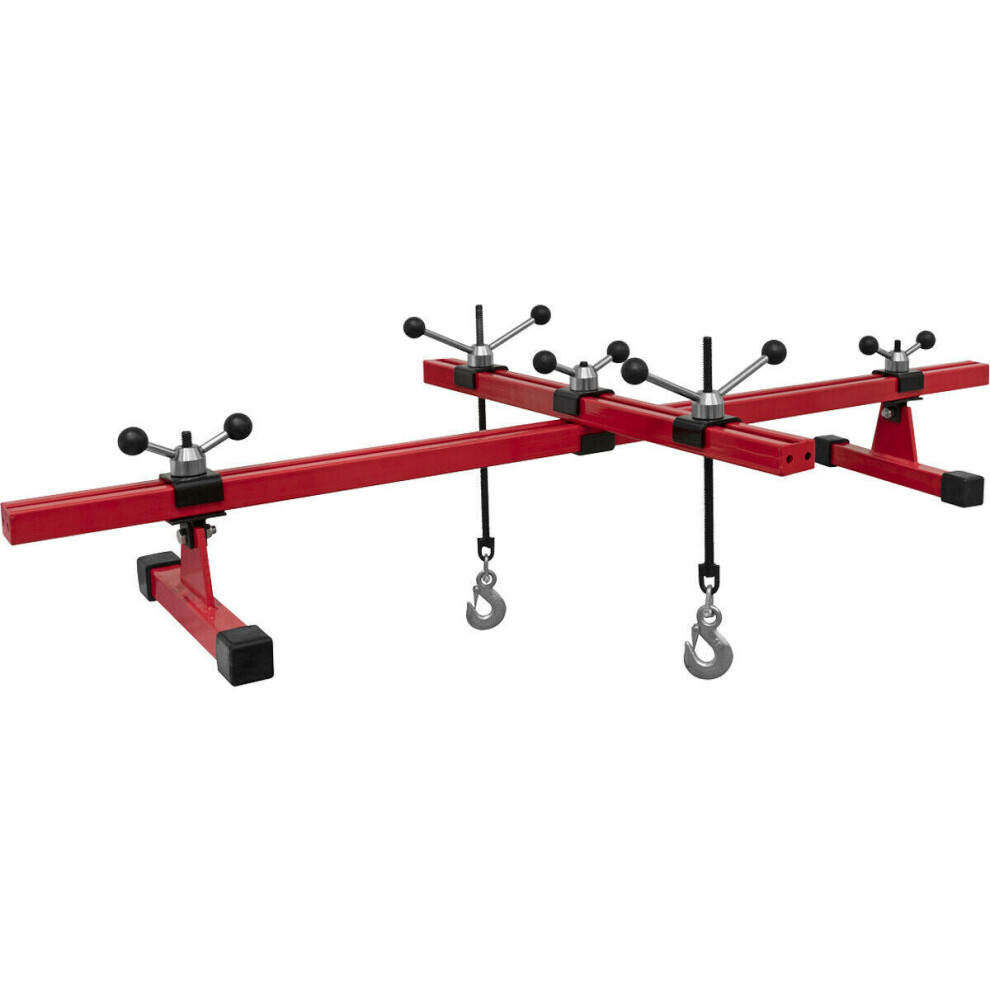

Designed to support and assist to accurately position engines during maintenance operations such as replacing anti-vibration mountings and certain body panels. Also used as an aid for the removal of gearboxes and transmissions. Beams supported on rubber feet and fine adjustment control is obtained by using screw/hook mechanisms. This model has the additional advantage of a 360Â adjustable rotating cross beam to enable a greater range of support options when in use.

Features:

• Capacity: 500kg.
• Designed to support and assist to accurately position engines during maintenance operations.
• Ideal for supporting the engine whilst replacing anti-vibration mountings and certain body panels.
• This model has the additional advantage of a 360Â adjustable rotating cross beam to enable a greater range of support options when in use.
• Aids with the removal of gearboxes and transmissions.
• Supplied with two screw hook mechanisms: Lengths - 350/450mm.

Specification:

• Capacity - 500kg
• Cross Beam Maximum Width - 860mm
• Cross Beam Minimum Width - 60mm
• Main Beam Maximum Width - 1680mm
• Main Beam Minimum Width - 60mm
• Net Weight - 23kg
• Screw Hook Lengths - 450/350mm

Further Information:

We sell a wide variety of tools & workshop equipment for both the DIY and Professional markets. With well over 10,000 lines of equipment suiting all jobs big or small, our online store has it all. If you canât quite find what you are looking for, please feel free to contact us and weâll be more than happy to help.

Alias: ys04205
