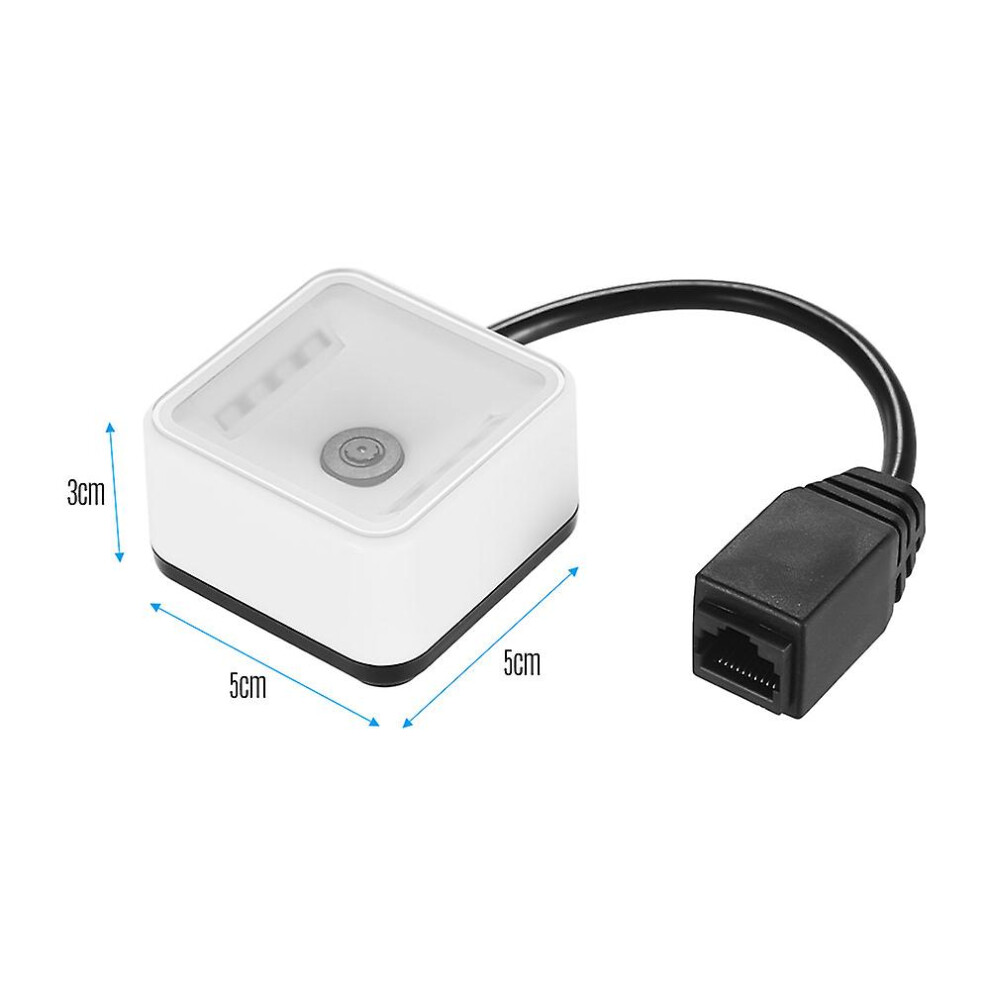

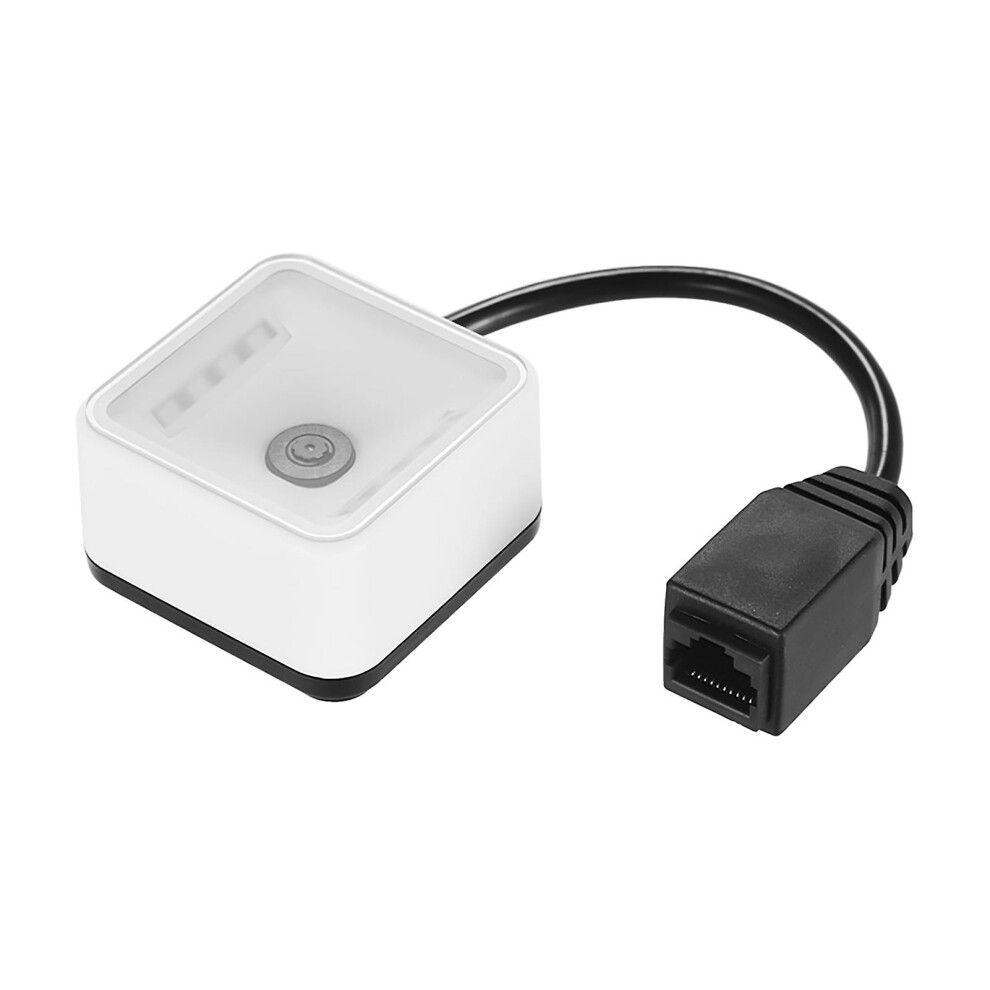

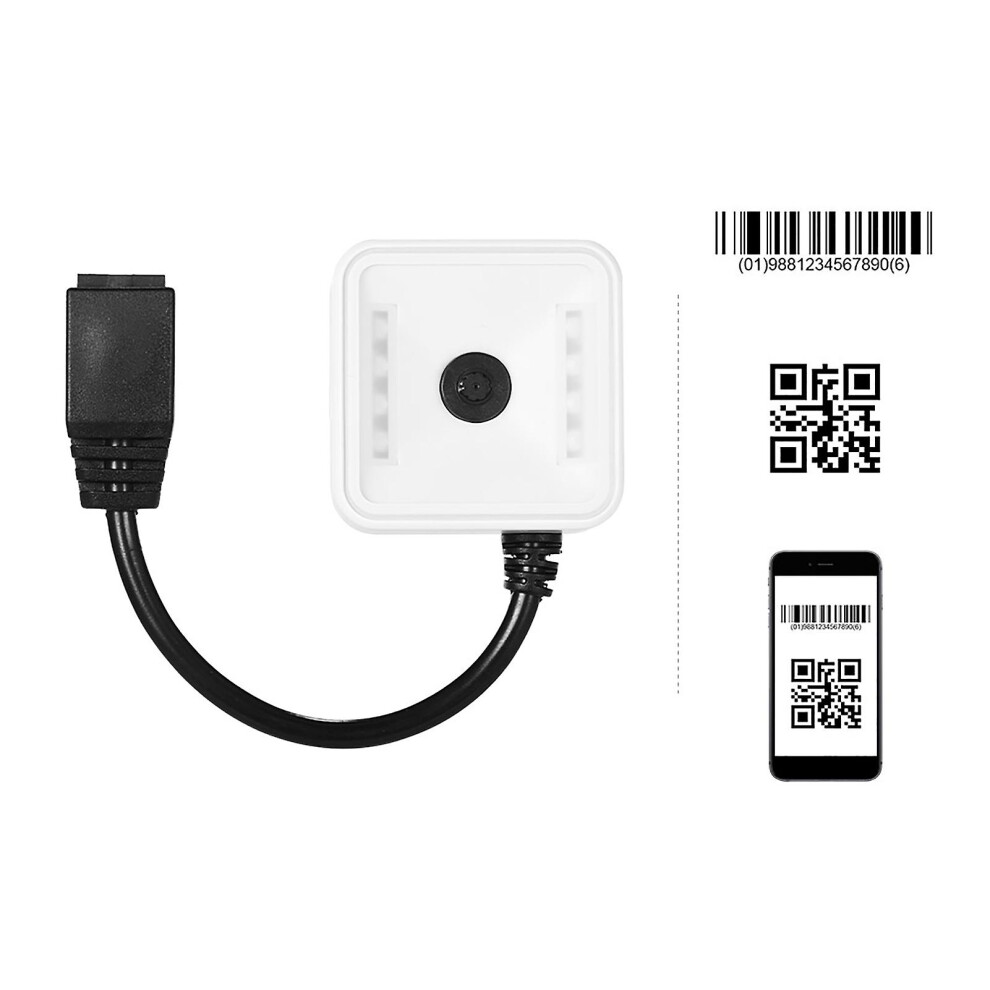

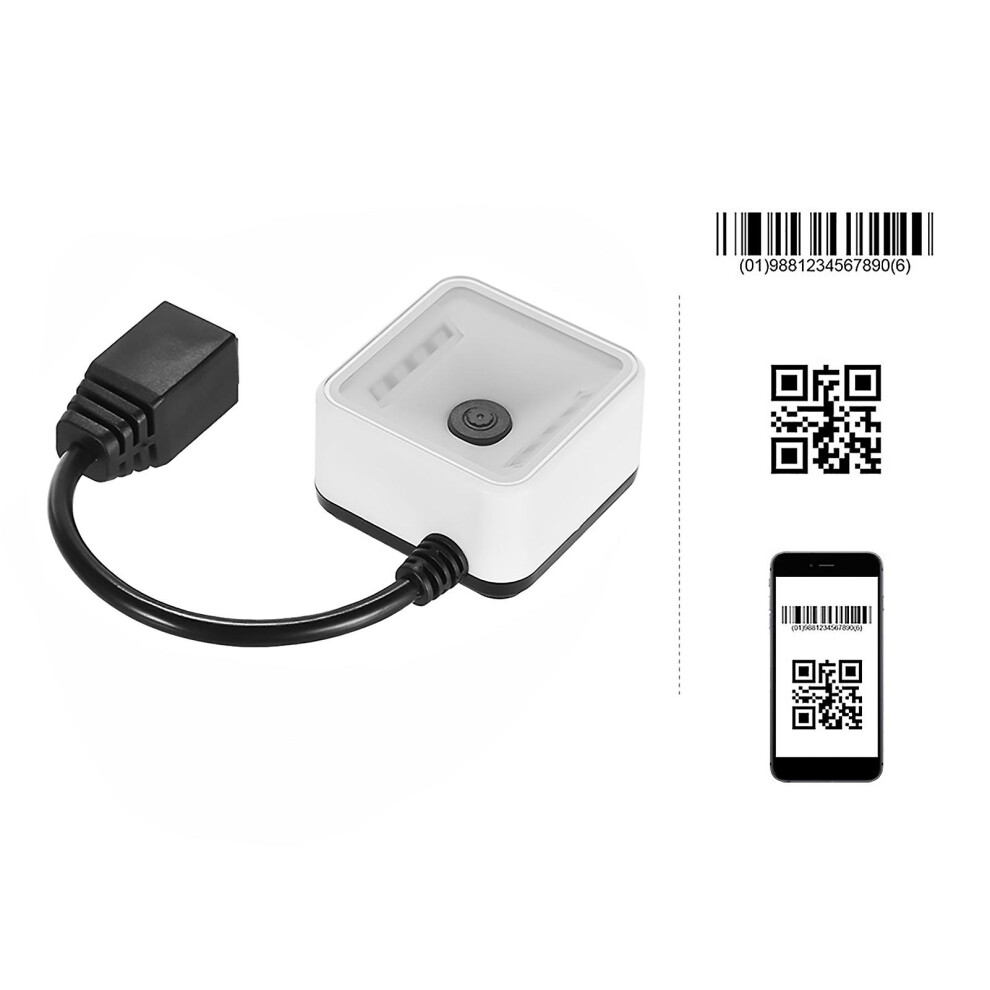

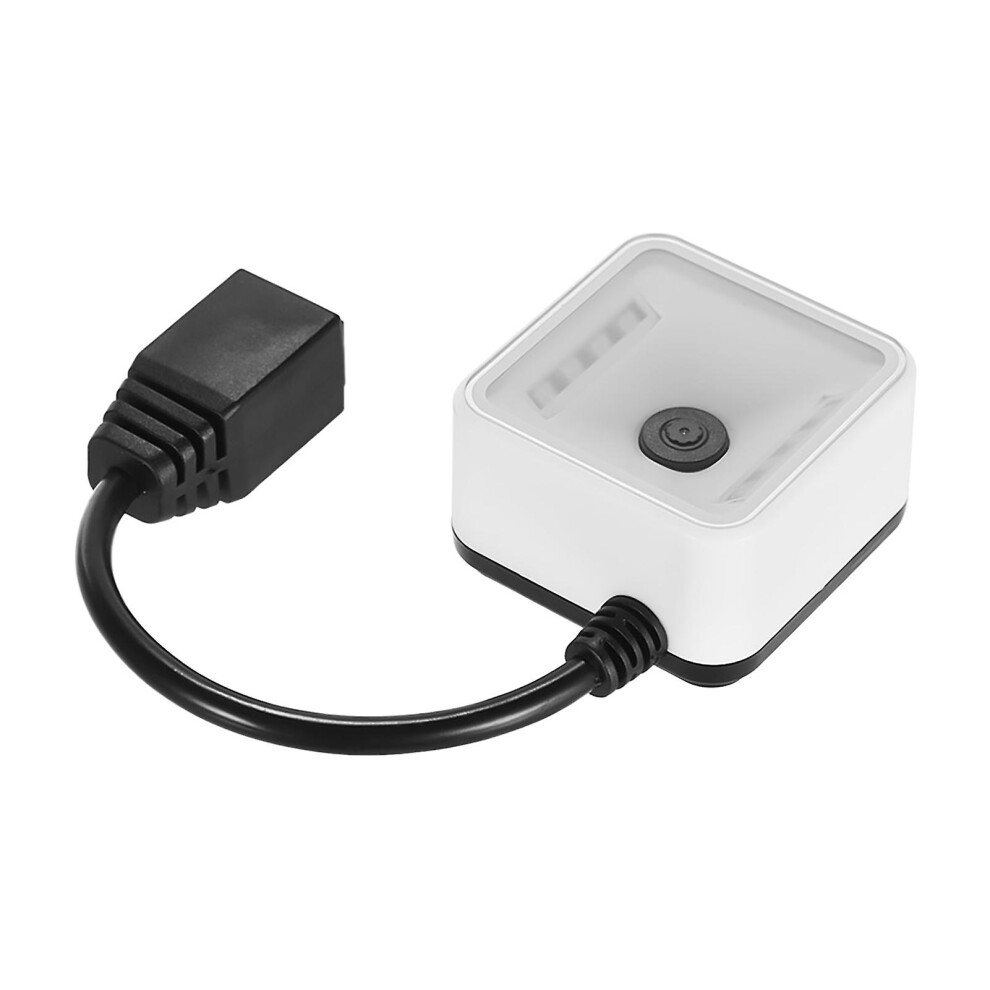

Ep7000 Mini 1d/2d/qr Barcode Scanner Cmos Image Scanning Module For Various Embedded Device Access Control Office Electronic Scanners Usb Interface

Features: Image barcode scanner module, fast scan speed on mobile screen, easy to read 1D and 2D barcode, plug to use, compatible to many OS such as Linux, Android, Windows XP,7,8,10, Mac, wider scanning range comparing with traditional scanning. Small size and embedded design, especial for self-help device, kiosk device, access control machine, gates, bus tolls and other equipment. Adopting high sensitivity CMOS sensor, the scanner has strong decoding ability to effectively identify fuzzy, color or anomalous barcodes; paper or film 1D 2D barcodes; high reflective screen or low brightness screen barcodes and so on. Auto-sensing scanning saves power and time -- when the product barcode passes through the scanning window, the platform wakes up to read the barcode instantly. Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand. Specifications: Model: EP7000 Communication Interface: USB / serial port (optional) Exercise Tolerance: 2.2m/s Decoding Types: 1D barcode: EAN-8,EAN-13,EAN-13 2 add-on,EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded. 2D barcode: PDF417,QRcode,MicroQR,Aztec,Datamatrix OS Compatibility: Linux,Android,Windows XP,7,8,10,Mac Scanning Mode: automatically scanning Language: English / Chinese Minimum Identification Accuracy: Code 39yard 5mil Print Contrast Signal: 35% Secondary Development: support (through serial port instruction to achieve) Scanning Angle: Roll 360, Pitch 65, Yaw 75 Drop Resistance: Can withstand free fall 5 times (less than 2m) Waterproof and Dustproof: Meet the IP54 Standard Working Temperature: -20-55 Storage Temperature: -20-60 Working Humidity: 5-95% Storage Humidity: 5-95% Indicator Light: red light: light on when power on; light flash when decode Buzzer: starting, decoding, successful sending Working Voltage: 5V USB Interface Auto-induction -- Standby Power: 118mA/0.59W Operating Power: 149mA/0.745W Maximum Working Power: 151mA/0.755W Serial Port Auto-induction -- Standby Power: 118mA/0.59W Operating Power: 149mA/0.745W Maximum Working Power: 151mA/0.755W Scanner Size: 5 * 5 * 3cm / 1.97 * 1.97 * 1.18in Scanner Weight: 64g / 2.26oz Cable Length: 180cm3cm Package Size: 18.5 * 10.1 * 5.2cm / 7.28 * 3.98 * 2.05in Package Weight: (USB interface): 195g / 6.88oz; (serial port): 270g / 9.52oz Package List: 1 * scanner Note: Serial port supports secondary development, please ask our customer service for interface protocol. 1. The material of high-quality goods is good. 2. The style is novel and unique, and is deeply loved by consumers. 3. It is practical and can stand the test. There are many repeat customers. 4. Will ship within 48 hours 5. Delivery within 4-10 working days
