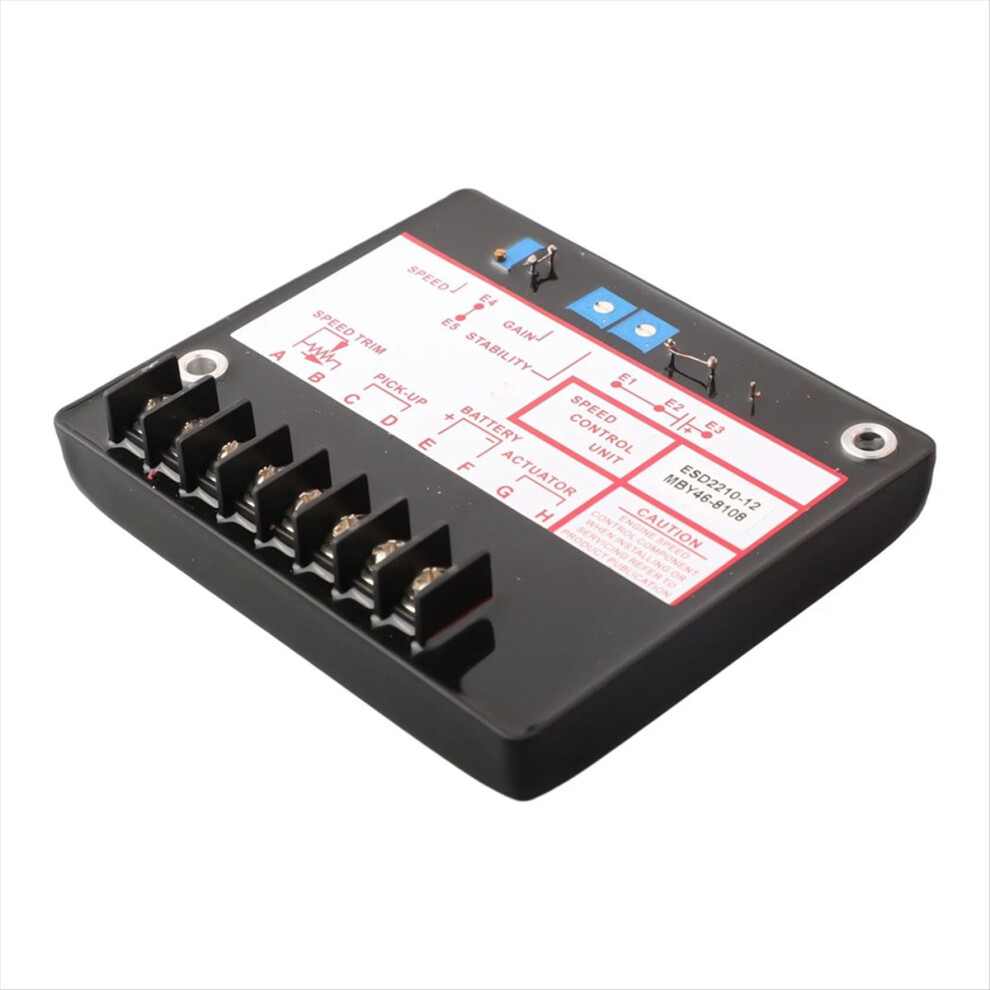

ESD2210-12 Generator Governor Control Panel Genset Speed Controller Regulator Power Tool Parts

ESD2210-12 Generator Governor Control Panel Genset Speed Controller Regulator Power Tool Parts Description

new and high quality
Made of high-quality materials and
Primary Purpose: The speed control unit is a fully electronic device designed to control generator speed to respond quickly and accurately to transient load changes.
Closed Loop Control: When connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, the engine be controlled in or droop mode.
Well protected: Protection against reverse battery voltage, transient voltages, accidental actuator short circuit, speed sensor signal or loss of battery charge.

Working range: power supply voltage is DC12V, frequency setting range is 1000-7000Hz, speed sensor signal range is AC1-50V, 85-8500Hz.
Plastic shell: The generator controller shell is made of plastic, which has toughness, wear resistance, aging resistance and .
Project Type: Generator Speed Regulator
Model: ESD2210-12
Power supply voltage: DC12V
Maximum output current: DC 4A
Frequency setting range: 1000-7000Hz
Speed sensor signal range: AC1-50V, 85-8500Hz
External frequency adjustment range: 300Hz
Idle speed adjustment range: set speed -3800Hz to -1300Hz
Colour:Black
Material:plastic

Package Contents:
1 x Generator Governor Control Panel

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
