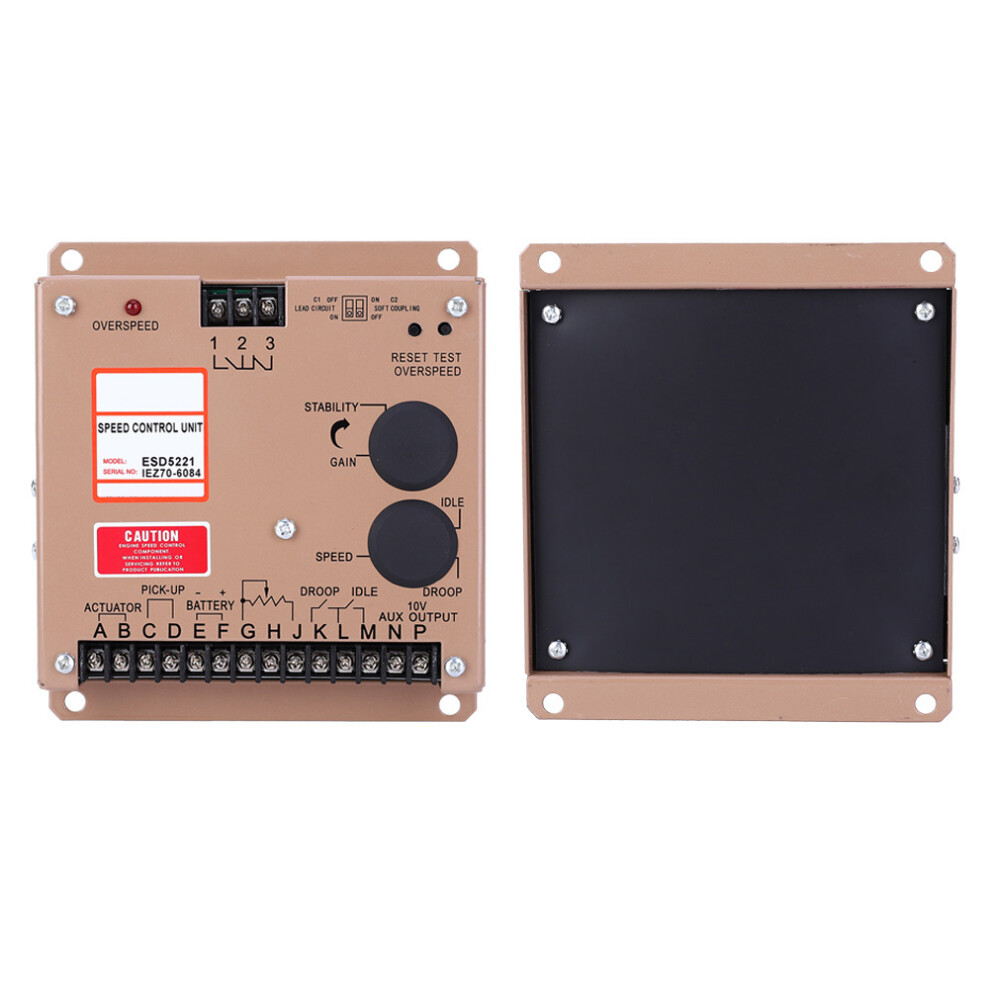

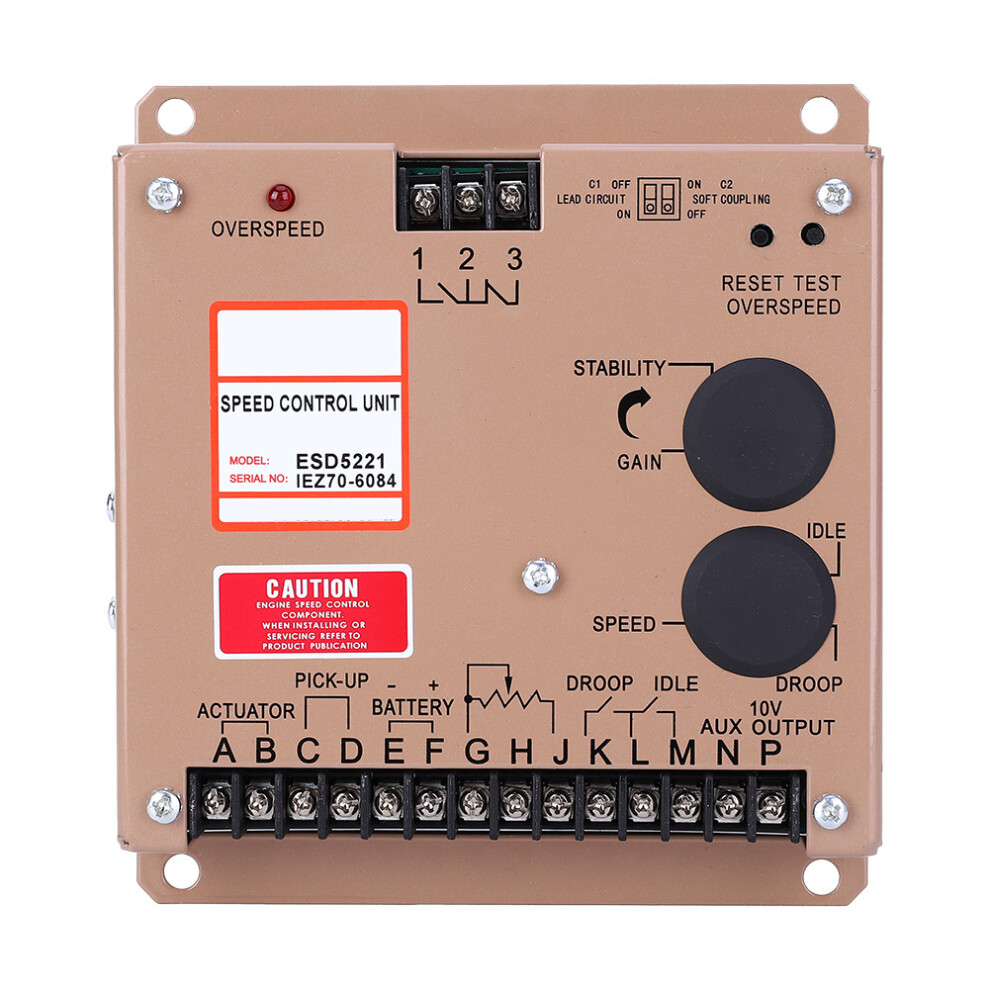

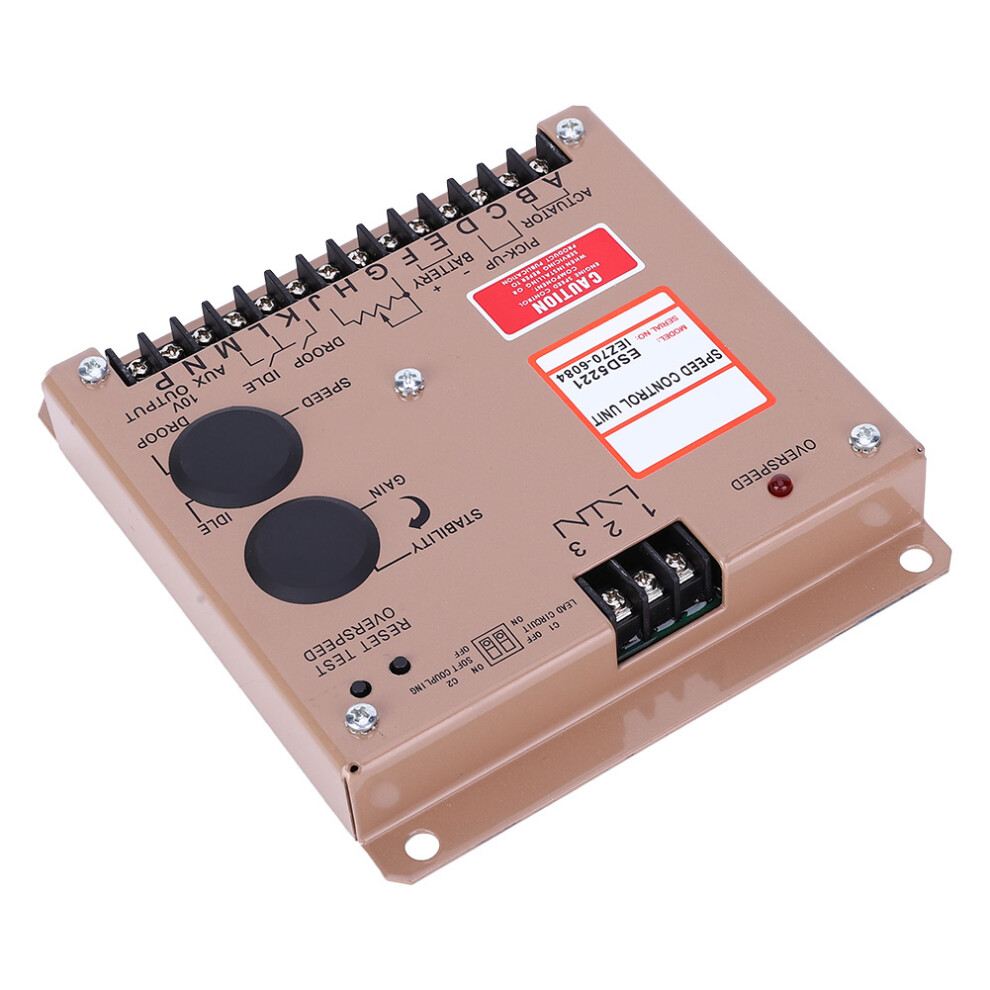

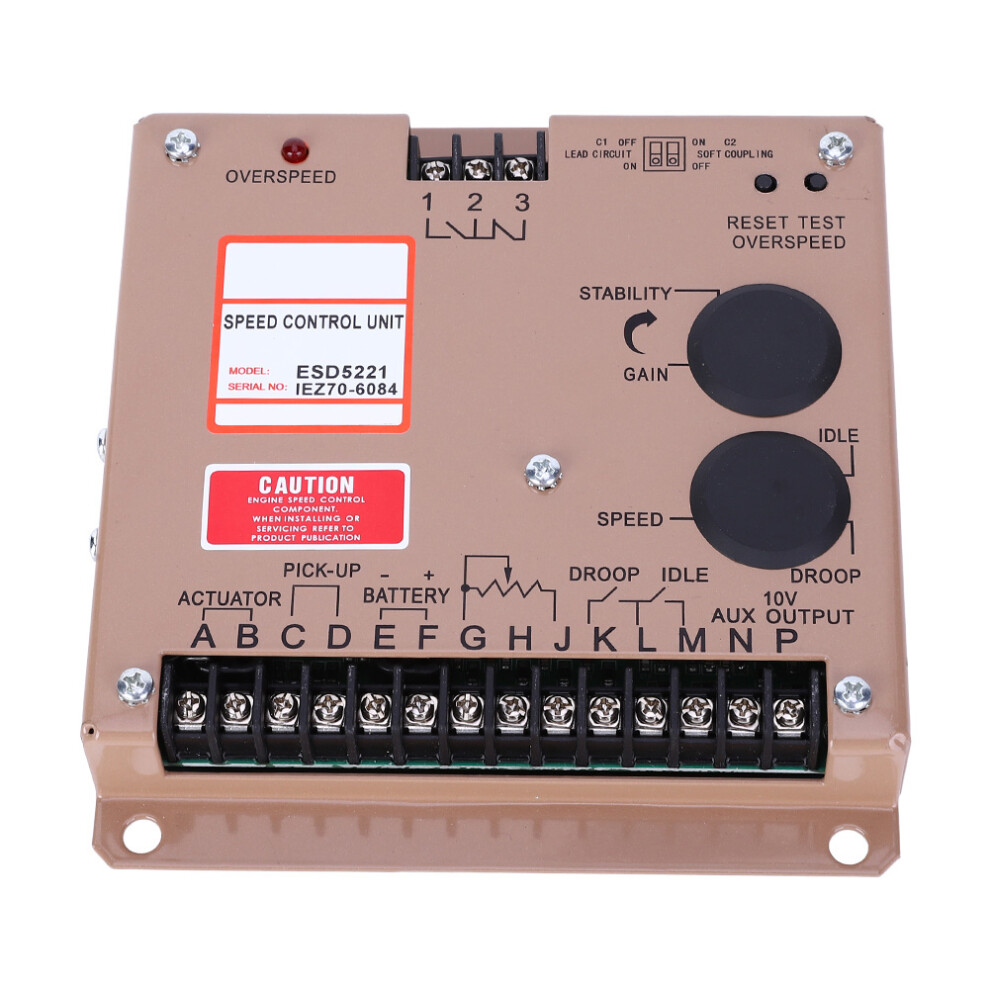

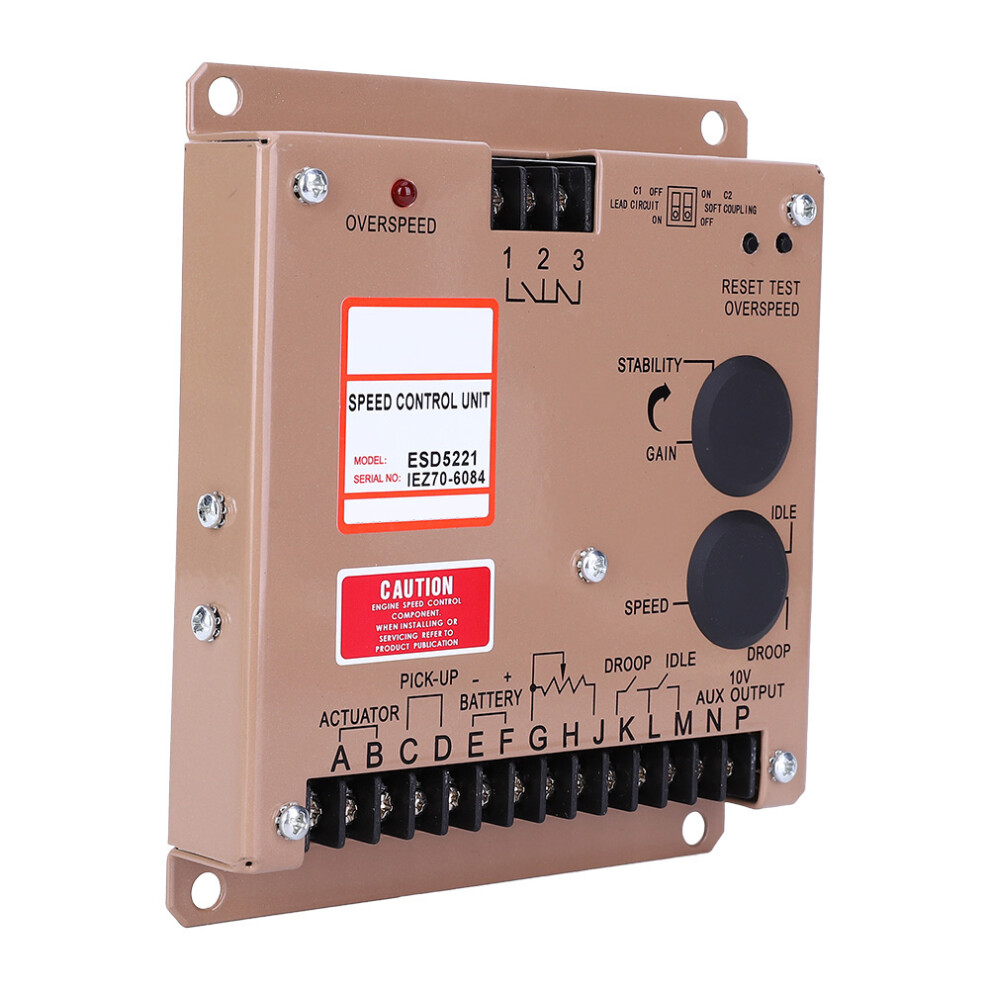

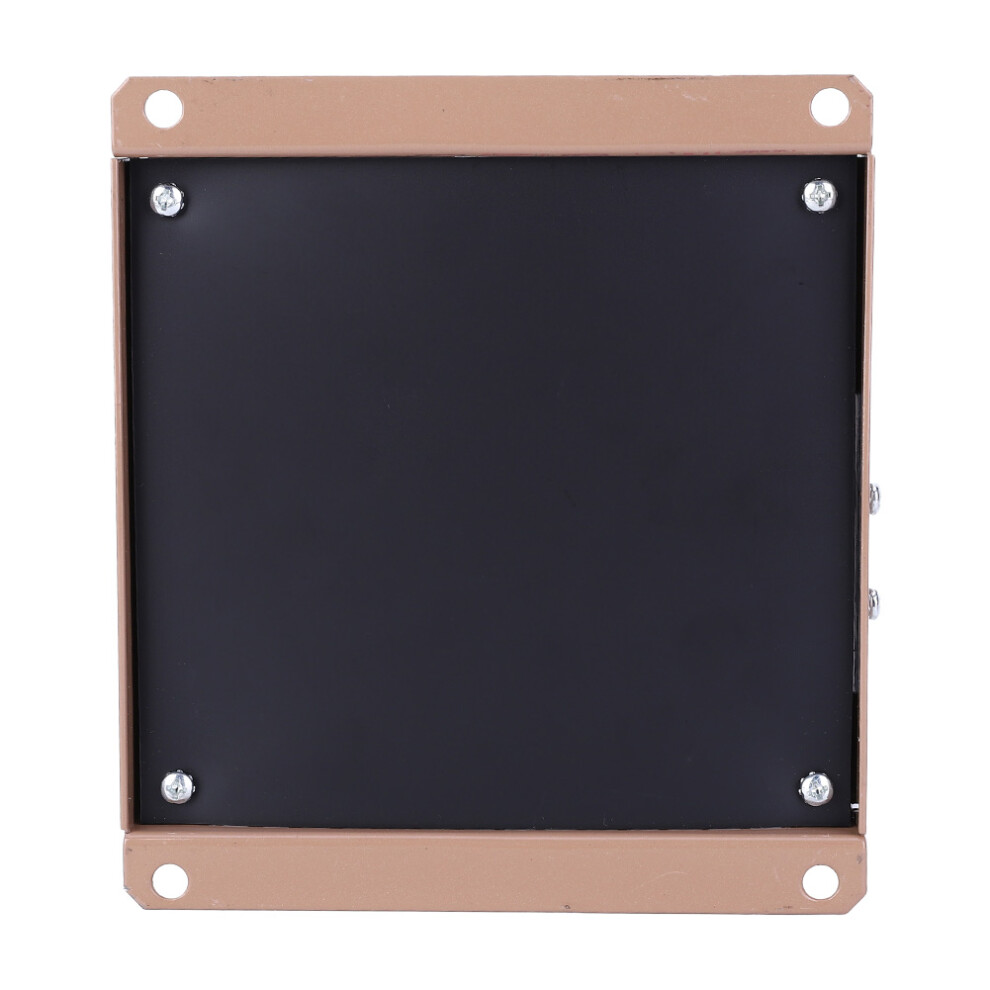

ESD5221 Speed Controller Universal Board Motor

ESD5221 Speed Controller Universal Board Motor Description

ESD5221 Speed Controller Universal Board Motor Control Governor Electric Components

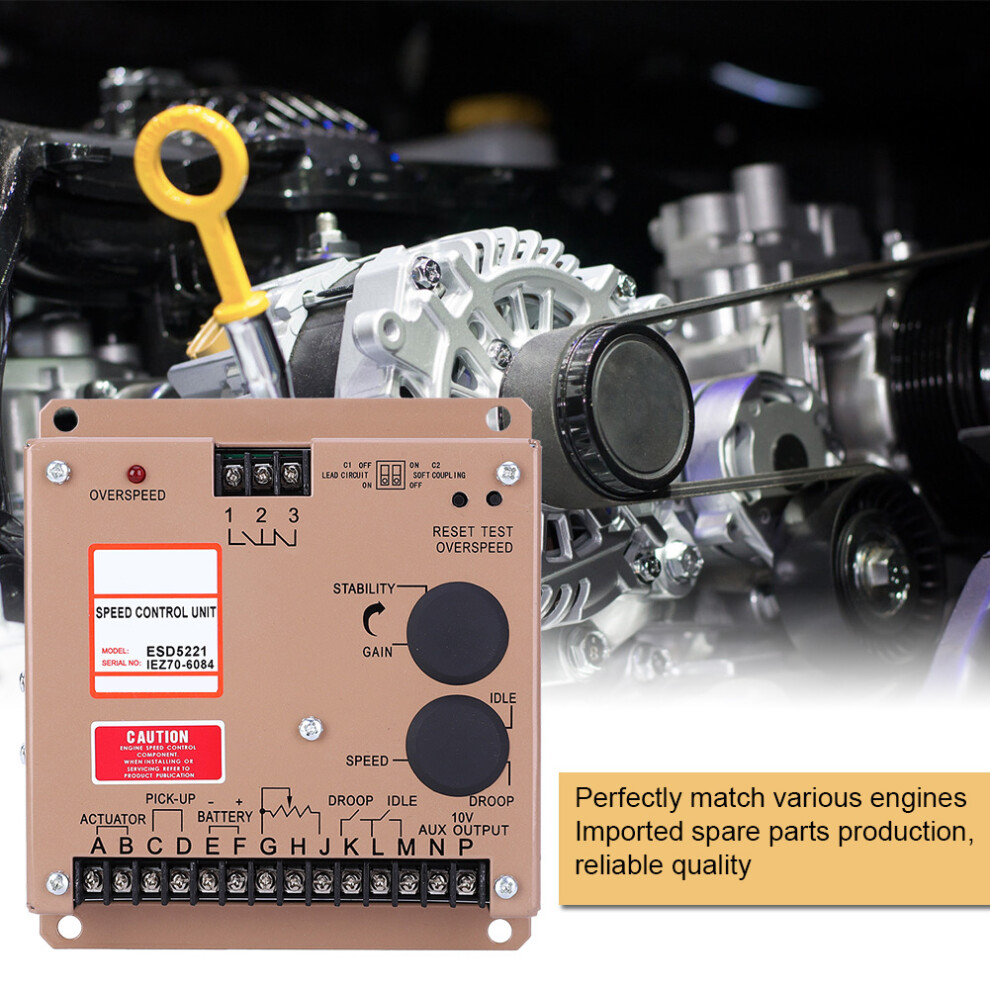

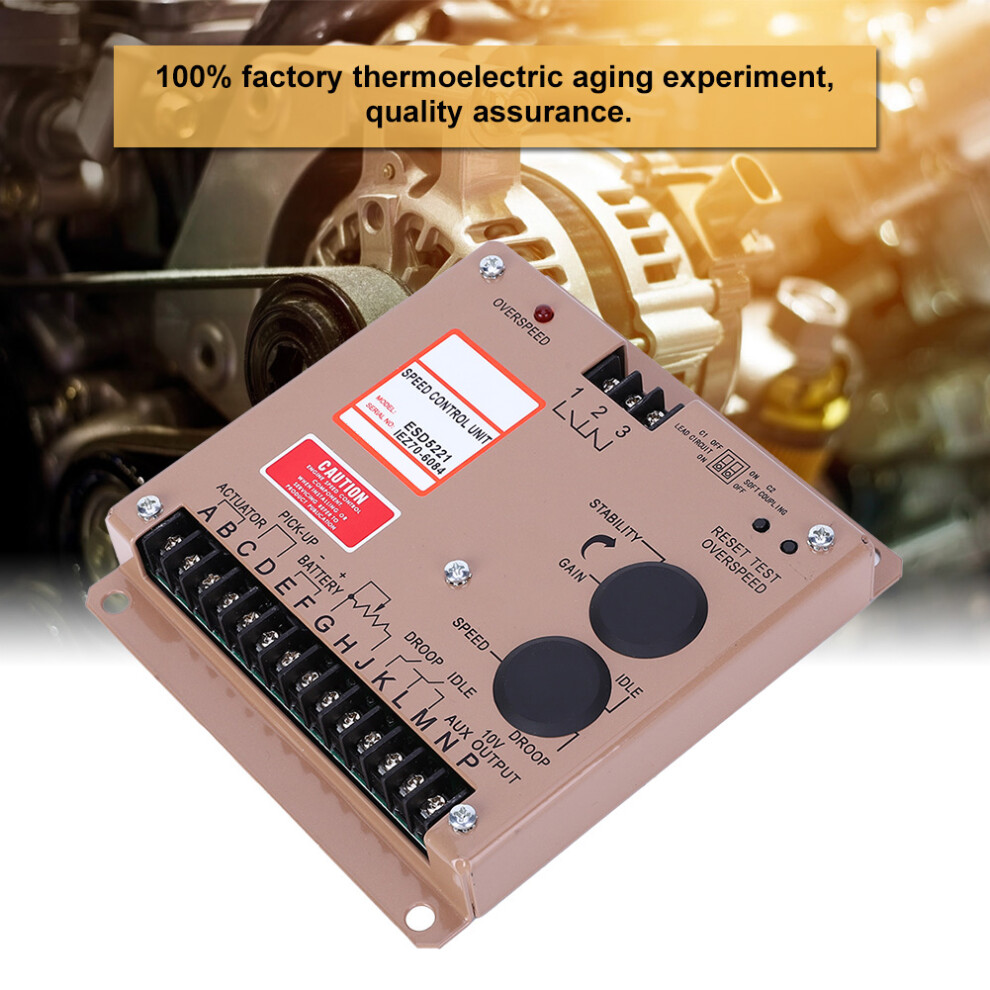

1、Using this product can perfectly replace expensive imported products. 2、The speed controller can cooperate with a variety of engines. 3、With imported spare parts production, the product is reliable and of good quality. 4、The already improved circuit is featured with higher stability and better performance. 5、100% factory thermoelectric aging experiment can give quality assurance.



Item Type: ESD5221 speed controller Speed Stability: Better than 0.25% Speed Range: 1KHz ~ 7.5KHz Thermal Stability: Maximum 1% IDLE Adjustment: 16020Hz ~ 95% of rated speed DROOP Adjustment: Minimum position: 15Hz6Hz / load current change per ampere Maximum Position 400Hz75Hz / load current change per ampere External Speed Adjustment: 200Hz (external 1KΩ) AUX Input Sensitivity: 148Hz / 1V., 10Hz., Impedance: 1MΩ START FUEL Adjustment: 16020Hz ~ 70% of rated speed RAMP Time Adjustment: 1.5 ~ 20Sec. 10V Output Current: Maximum 20mA Surroundings: Operating Temperature Range: -40~ 85 Operating Humidity Range: Maxism 95% Storage Temperature: -55~ 90 Vibration: 20-100HZ 500mm/Sec. Input Power: Power Supply Voltage: 12V and 24V DC battery system Grounding polarity: Negative Power Consumption: 50mA Actuator Continuous Current: Minimum 2.5A; maximum 10A Speed Sensor Signal: 0.5 ~ 120 RMS Size: Approx. 15.2 x 16.5cm / 6 x 6.5in



1 x Speed Controller 1 x User Manual
