ESP32-S3 Ethernet Development Board with POE Module

ESP32-S3 Ethernet Development Board with POE Module Description

1. This is an Ethernet development board designed based on ESP32-S3R8, with excellent Wi-Fi and Bluetooth wireless connection functions, more reliable and efficient wired Ethernet connection, and supports PoE power supply (PoE version only).
2. Onboard camera interface, compatible with mainstream cameras such as OV2640, OV5640, etc., convenient for image and video acquisition.The development board also reserves compatible interface, suitable for some expansion boards of , and relying on its rich ecology and open source resources, users can quickly and flexibly carry out secondary development, which can be widely used in Internet of Things, image acquisition, smart home and artificial intelligence projects.
3. Based on ESP32-S3R8 high-performance chip, equipped with Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz. Integrated 512KB and 384KB ROM, built-in 8MB PSRAM and 16MB Flash.
4. Support 2.4GHz Wi-Fi and Bluetooth 5 (LE), built-in antenna, support external antenna. Onboard W5500 Ethernet chip, expand 10/100Mbps network connection through SPI interface.Support external PoE module to realize Ethernet power supply function (compliant with IEEE 802.3af standard). Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640, suitable for image and video acquisition.
5. Onboard USB Type-C interface, support power supply, debugging and firmware download, more convenient development. Onboard Micro-SD card slot, support external SD card to store pictures and files. Onboard compatible interface, providing rich peripheral expansion and strong compatibility.

Processor: Xtensa 32 bit
Due to different batches, there may be differences in product appearance and printed text, which not affect use
Colour:Black
Material:PCB

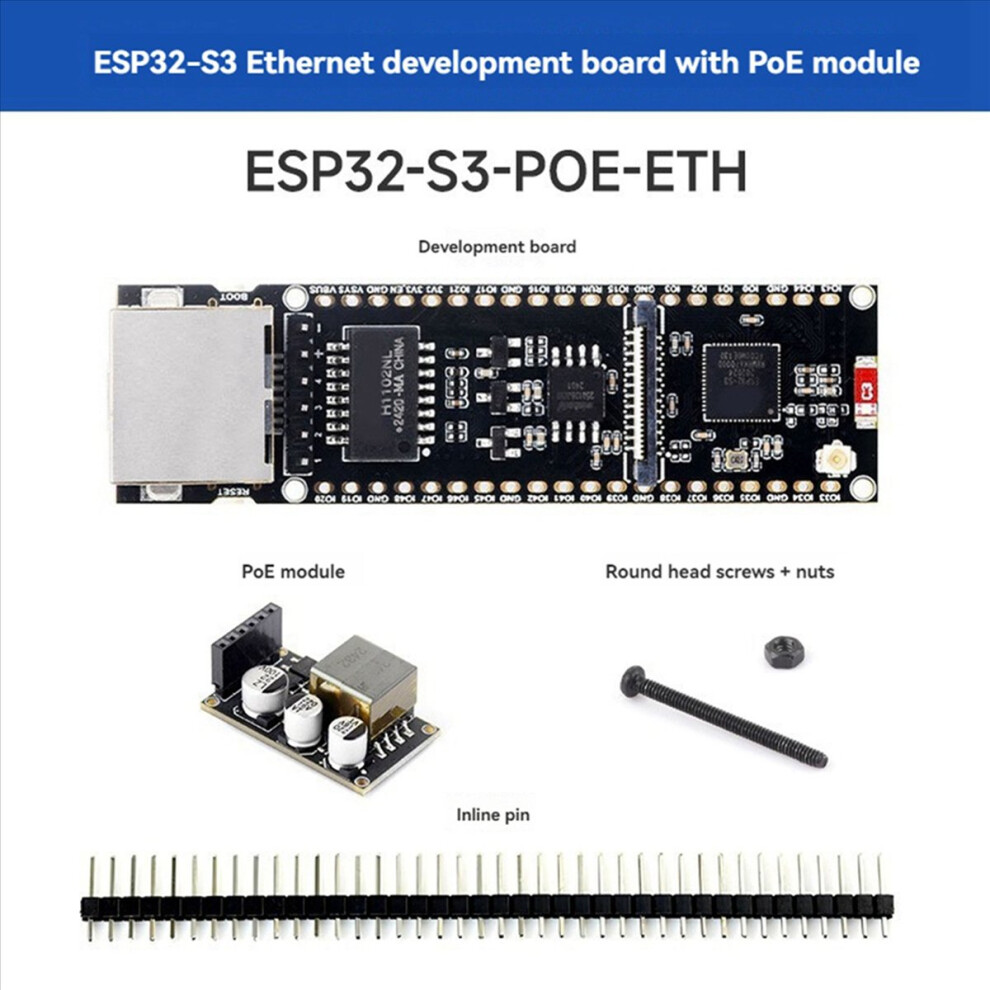

Package Contents:
3 x Development board
3 x POE module
3 x Pin header

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
