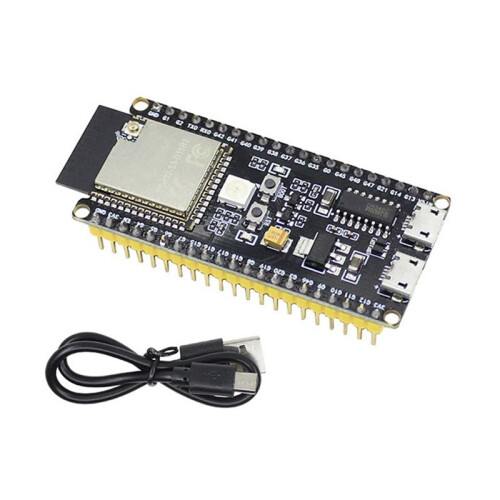

ESP32-S3 N16R8 Artificial Intelligence AI Voice Motherboard with Data Cable for Xiaozhi AI Chatbot Micro-Type Interface

Summary

• Support for AI acceleration: the ESP32-S3 MCU adds vector instructions for accelerating neural network computation, signal processing, etc. Al developers can use these vector instructions through the ESP-DSP and ESPNN libraries to enable high-performance applications such as image recognition, voice wake-up and recognition, etc. The ESP-WHO and ESP-Skainet will also support this feature. ESP-WHO and ESP-Skainet will also support this feature.
• Perfect Security Mechanism: ESP32-S3 provides IoT devices with perfect security mechanisms and protection against all kinds of malicious attacks and threats. It supports flash encryption based on the AES-XTS algorithm, secure boot based on the RSA algorithm, digital signatures, and HMAC. ESP32-S3 also adds a new World Controller module, which provides two non-interfering execution environments, enabling trusted execution environments or privilege separation mechanisms.
• Wi-Fi + Bluetooth 5 (LE): The ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz bandwidth: its low-power Bluetooth sub-system supports Bluetooth 5 (LE) and Bluetooth Mesh, which enables long-distance communication with broadcast extensions via Coded PHY. It also supports 2 Mbps PHY for higher transmission speed and data throughput.The ESP32-S3 has excellent Wi-Fi and Bluetooth LE RF performance, and can work stably under high temperature.
• Rich 10 Interfaces: The ESP32-S3 has 45 programmable GPIOs as well as common peripheral interfaces such as SPI, I2S, I2C, PWM, RMT, ADC, UART, SD/MMC host controller and TWAITM controller. Fourteen of the GPIOs can be configured as capacitive touch inputs for HMI interaction. In addition, the ESP32-S3 is equipped with an ultra-low-power co-processor (ULP), which supports a variety of low-power modes and is suitable for a wide range of low-power applications.
• Mature software support: ESP32-S3 follows Loxin's mature IoT development framework, ESP-IDF. ESP-IDF has successfully empowered hundreds of millions of IoT devices, undergone rigorous testing and release cycles, and has a clear and effective support strategy. Based on its mature software architecture, developers will find it easier to build applications or migrate legacy applications to the ESP32S3 platform by leveraging their familiarity with the tools and APIs.
