ESP32-S3 WiFi Kit 32 with OLED Display - Arduino-Compatible IoT Development Board

ESP32-S3 WiFi Kit 32 with OLED Display - Arduino-Compatible IoT Development Board Description

Features:

Microprocessor: ESP32-S3FN8(Xtensa? 32-bit LX7 dual-core processor up to 240mhz)

TYPE-C USB interface with full voltage regulation, ESD protection,short circuit protection,RF shielding and other protective measures

On-board SH1.25-2 battery interface,integrated lithium battery management system

(Charge/discharge management,overcharge protection,battery level detection,USB/battery level automatic switching)

Support Arduino development environment

Integrated CP2102 USB to serial chip,convenient for program download, debugging information printing

Specification:

Host controller:ESP32-S3FN8

USB to Serial Chip:CP2102

WIFI:802.11B/G/N,UP to 150bps

Hardware Resources:7ADC1+2*ADC2,3*UART,2*I2C,2*SPI

Interface:TYPE-C,2*1.25 battery connector,2*18*2.54 pins

Battery:Supports 3.7V Li-ion battery charge/discharge

Temperature:-20~70??C

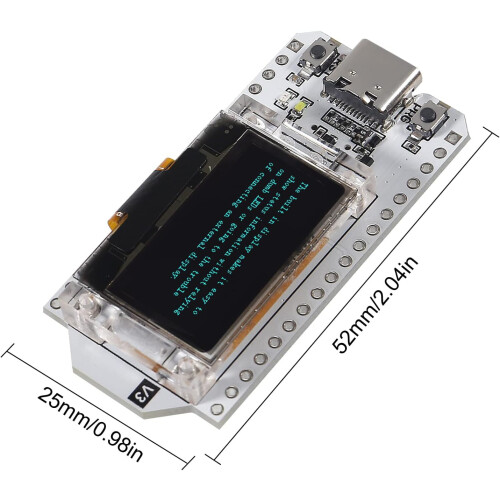

Size:50.2*25.5*10.2 mm

Power consumption:deep sleep 10uA

Package Includes:

1 Set* Development Board

Note:

Only include the above package products

Specifications are manually tested and are for reference only

Please allow 0-1cm error due to manual measurement

Please make sure you don't mind before bidding

Due to the difference between different monitors

Pictures may not reflect the actual color of the item.Thank
