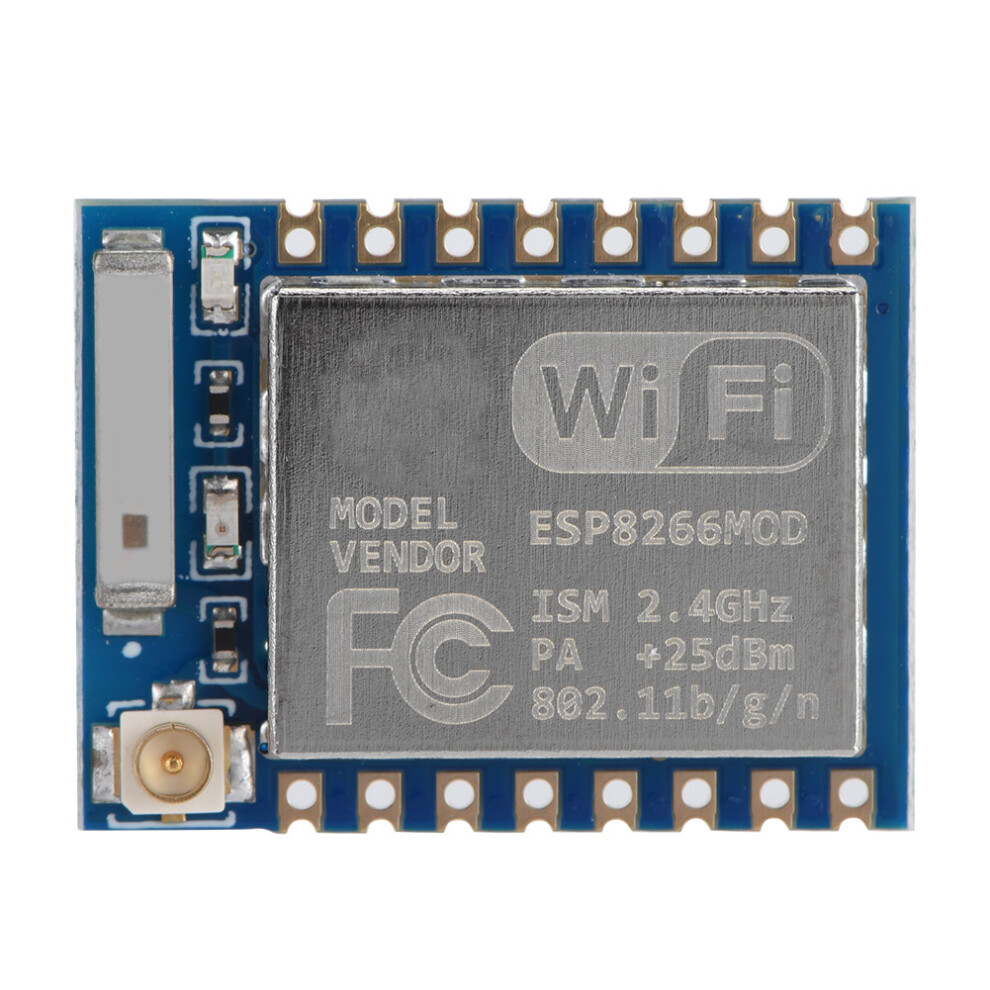

ESP8266-07 WiFi Transceiver Module 32-bit MCU 4.3*2.5cm

ESP8266-07 WiFi Transceiver Module 32-bit MCU 4.3*2.5cm Description

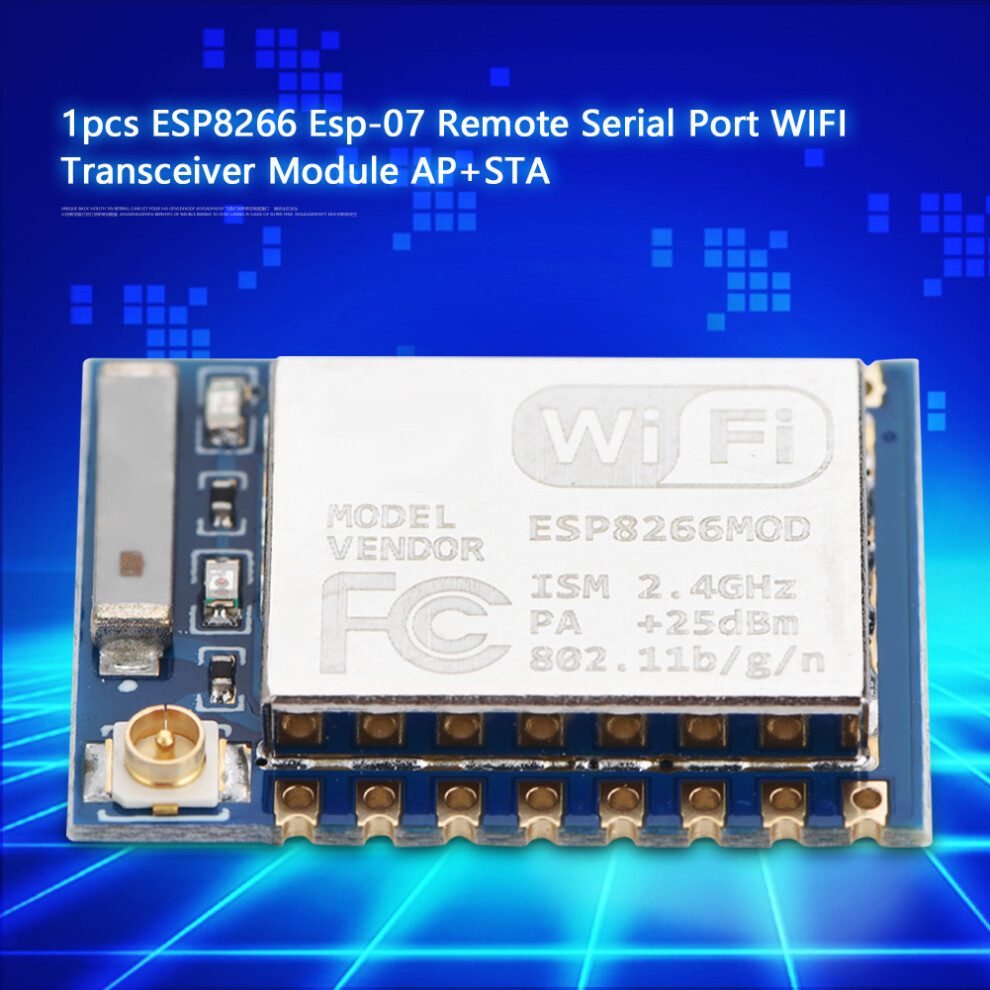

1pcs ESP8266 Esp-07 Remote Serial Port WIFI Transceiver Module Ap STA




ESP8266 is a WIFI Transceiver Module with ultra-low power consumption,User's physical device can be connected
to the wi-fi wireless network for Internet or LAN communication and
networking functions. It can
be widely used in smart power grid, intelligent transportation,
intelligent furniture, handheld equipment, industrial control and other
fields.







Features:

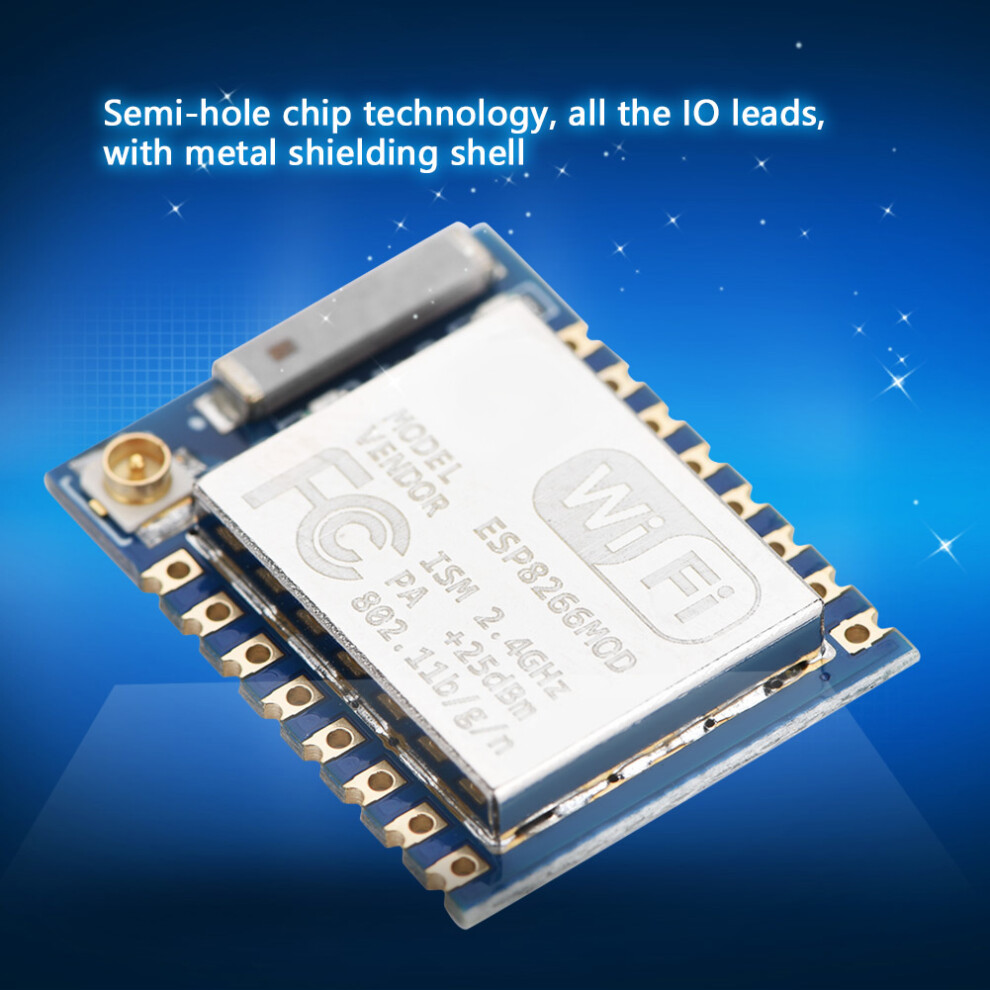

Semi-hole chip technology, all the IO leads, with metal shielding shell


IPX external antenna, can also be built-in ceramic antenna.


Support wireless 802.11b /g/n standard


Supports three working modes: STA/AP/STA+AP


The built-in TCP/IP protocol stack supports multiple TCP Client connections


Supports rich Socket AT instructions


Supports UART/GPIO data communication interface


Supports Smart Link Smart networking


Supports remote firmware upgrade (OTA)


The built-in 32-bit MCU can double as application processor


Low energy consumption, suitable for battery power supply applications










Specification:









Module




Model




ESP8266-07





Main chip




ESP8266






Wireless parameters




Wireless standards




IEEE 802.11b/g/n










Frequency range








2.412GHz-2.484GHz






Transmission power




802.11b: +16 +/-2dBm (@11Mbps)






802.11g:+14 +/-2dBm (@54Mbps)






802.11n: +13 +/-2dBm (@HT20, MCS7)






Receiving sensitivity




802.11b: -93 dBm (@11Mbps ,CCK)






802.11g: -85dBm (@54Mbps,OFDM)






802.11n: -82dBm (@HT20, MCS7)











Antenna form



External: stamp port






External: I-PEX connector, SMA connector





Built-in: onboard PCB antenna




Hardware parameters



Hardware interface




UART,IIC,PWM,GPIO,ADC









3.3V






GPIO drive ability




Max:15ma






Working current




Keep sending=>


average:~70mA,peak value: 200mA


Normal mode=>


Average: ~12mA,peak value: 200mA


Standby:<200uA,






Working temperature



-40~125






Storage environment




temperature:<40,Relative humidity:<90%R.H.






Size




4.3*2.5cm/1.7*1in





SerialApp




Transmission rate



110-921600bps






TCP Client




5pcs





software parameters



Wireless network type




STA/AP/STA+AP





Security mechanism



WEP/WPA-PSK/WPA2-PSK






Encryption type




WEP64/WEP128/TKIP/AES





 firmware update



Local serial port, OTA remote upgrade






Network protocol




IPv4, TCP/UDP/FTP/HTTP






User configuration




AT+Instruction set, Web page Android/iOS terminal, Smart Link smart configuration

APP











Package list:


1 x WIFI Transceiver Module
