Ethernet Controller Network Web Server 16-Channel Relay Module RJ45 Interface

Ethernet Controller Network Web Server 16-Channel Relay Module RJ45 Interface Description

Overview:

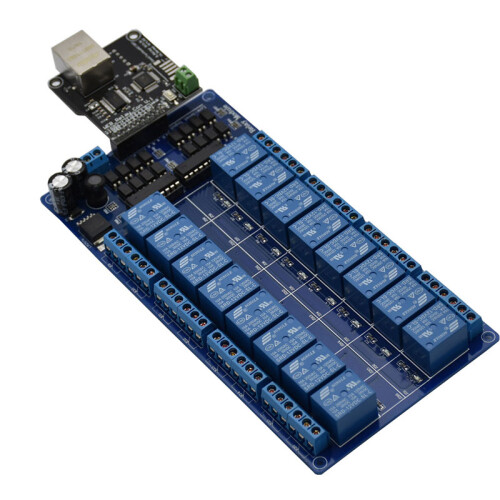

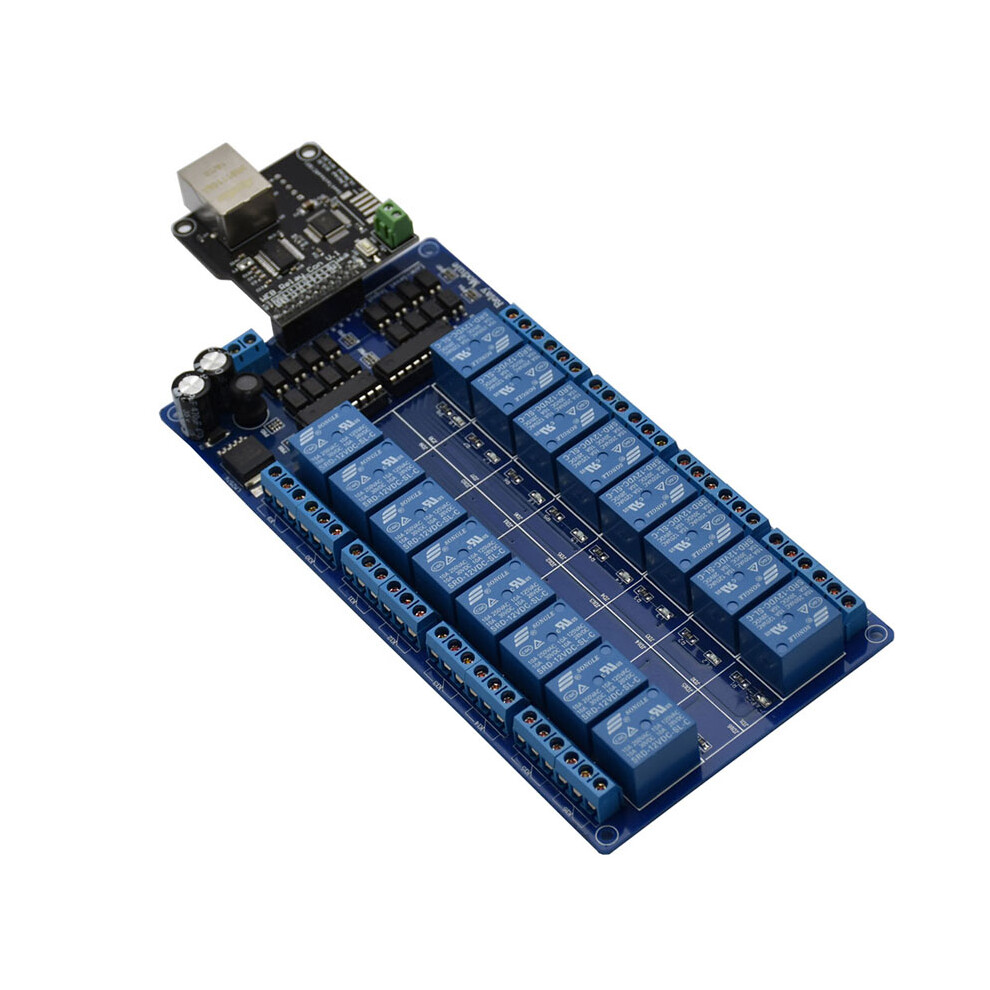

This is an Ethernet Controller board based on Imatic system which could be compatible with the 16 Channels relay.
Using the controller module and the 16 Channels relay, you could control up to 16 devices remotely on LAN or WAN.
The Ethernet Controller board has integrated the web server, when you are on your office, you just need to open the page on your computer, pad or smartphone, and then control your devices like lights, air-conditioning or refrigerator on your home.
You can feel free to enjoy the remote controlling of your other devices with the ethernet controller board.

Feature:
Control switches remotely together with 16 Channel relay!
RJ45 interface, via RJ45 telecommunications connection for network control.
Support for 16 Channels relay which means you could controll more to 16 different devices at the same time.
Unique dual TCP connect control, corresponding with above trait, local as TCP server accept client control, when connect to remote server as TCP client, Supply core module detailed information.
Default IP: 192.168.1.4 prot:30000  http://192.168.1.4/30000  (You could change the default IP address)
Relay: about 175 * 90 * 20mm
Relay + controller: about 215 * 90 * 25mm

HTTP comment:
http://192.168.1.4/30000/00 : Relay-01 OFF
http://192.168.1.4/30000/01 : Relay-01 ON
http://192.168.1.4/30000/02 : Relay-02 OFF
http://192.168.1.4/30000/03 : Relay-02 ON
http://192.168.1.4/30000/04 : Relay-03 OFF
http://192.168.1.4/30000/05 : Relay-03 ON
??
http://192.168.1.4/30000/30 : Relay-16 OFF
http://192.168.1.4/30000/31 : Relay-16 ON
http://192.168.1.4/30000/41 : Enter
http://192.168.1.4/30000/40 : Exit
http://192.168.1.4/30000/42 : Next Page
http://192.168.1.4/30000/43 : Next Page

Package included:
1 x Ethernet Control Module
1 x 16 Channel relay

Wiring is for reference only!
