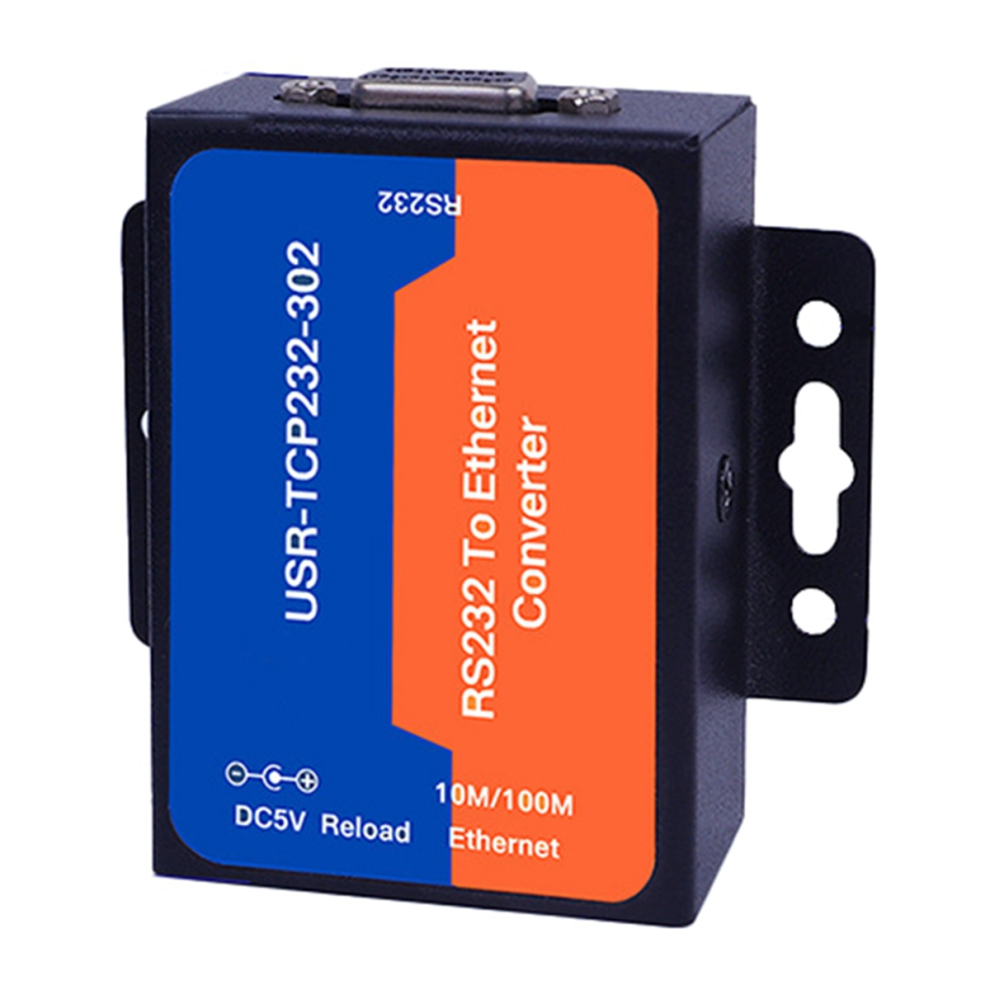

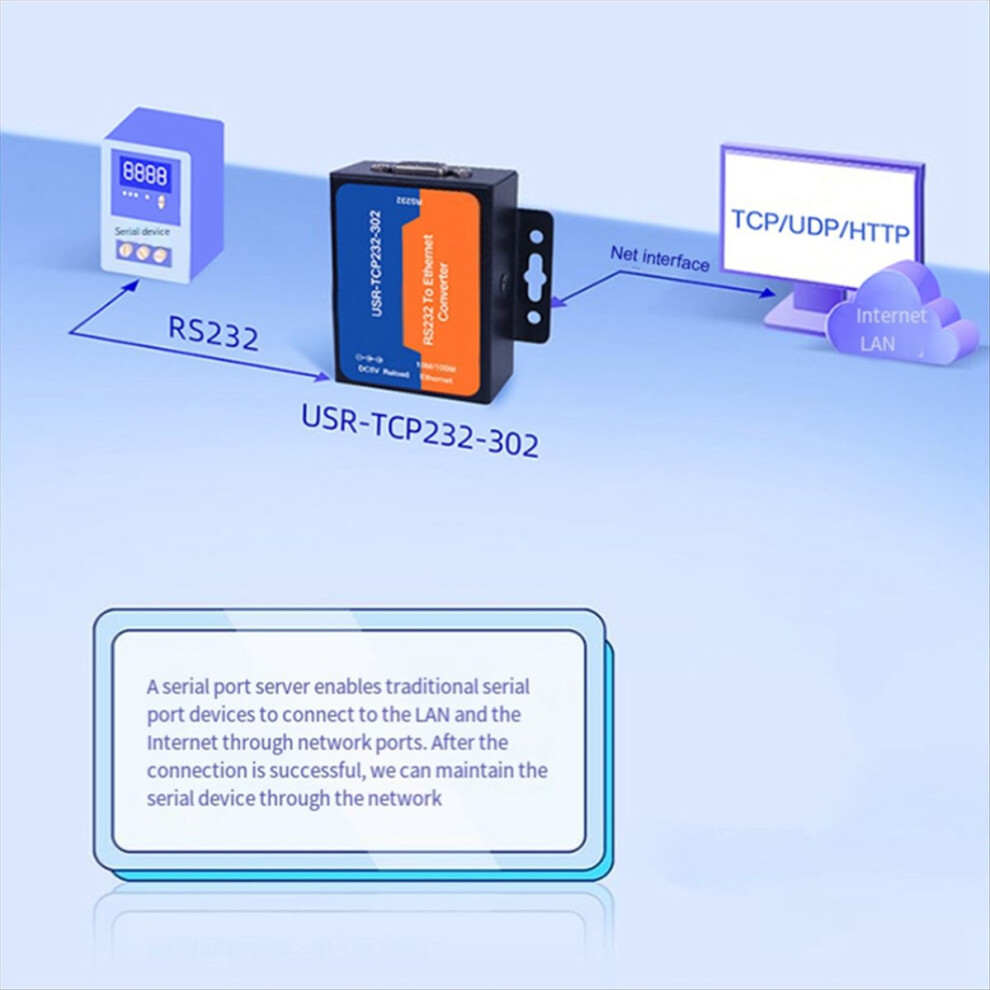

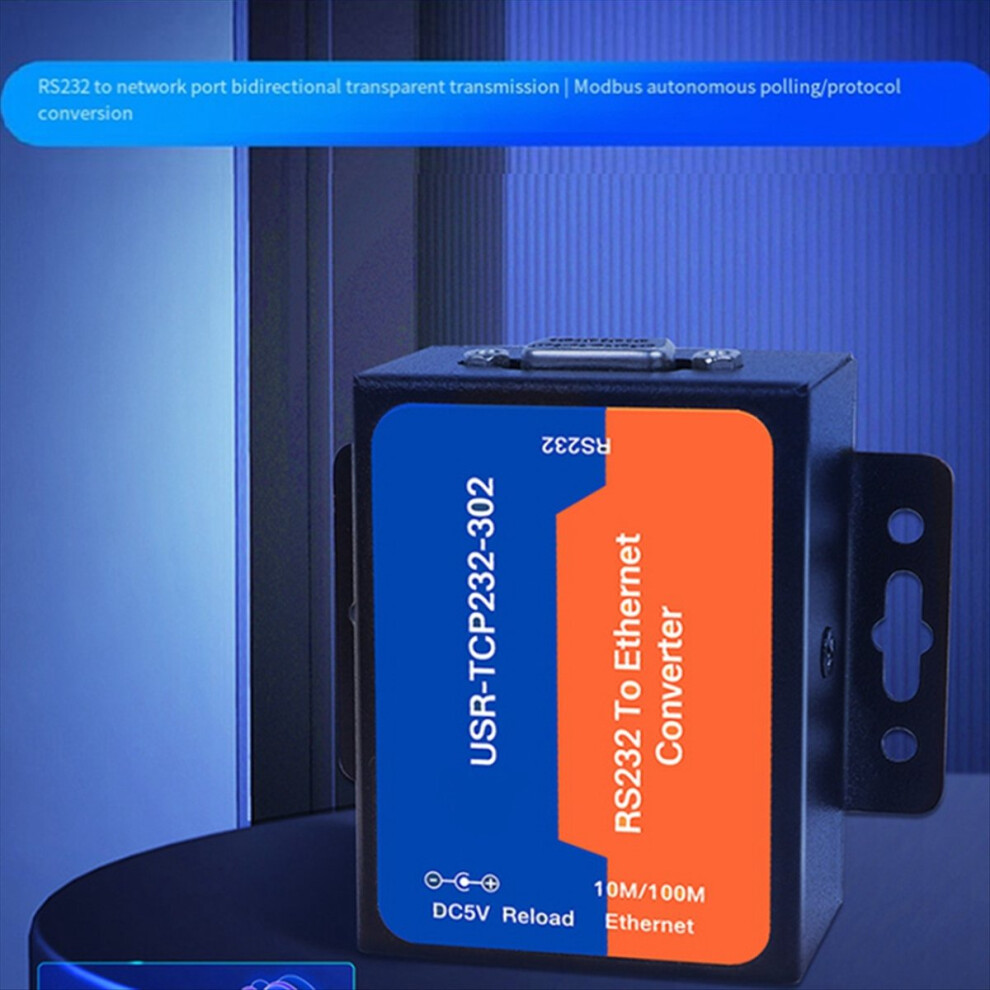

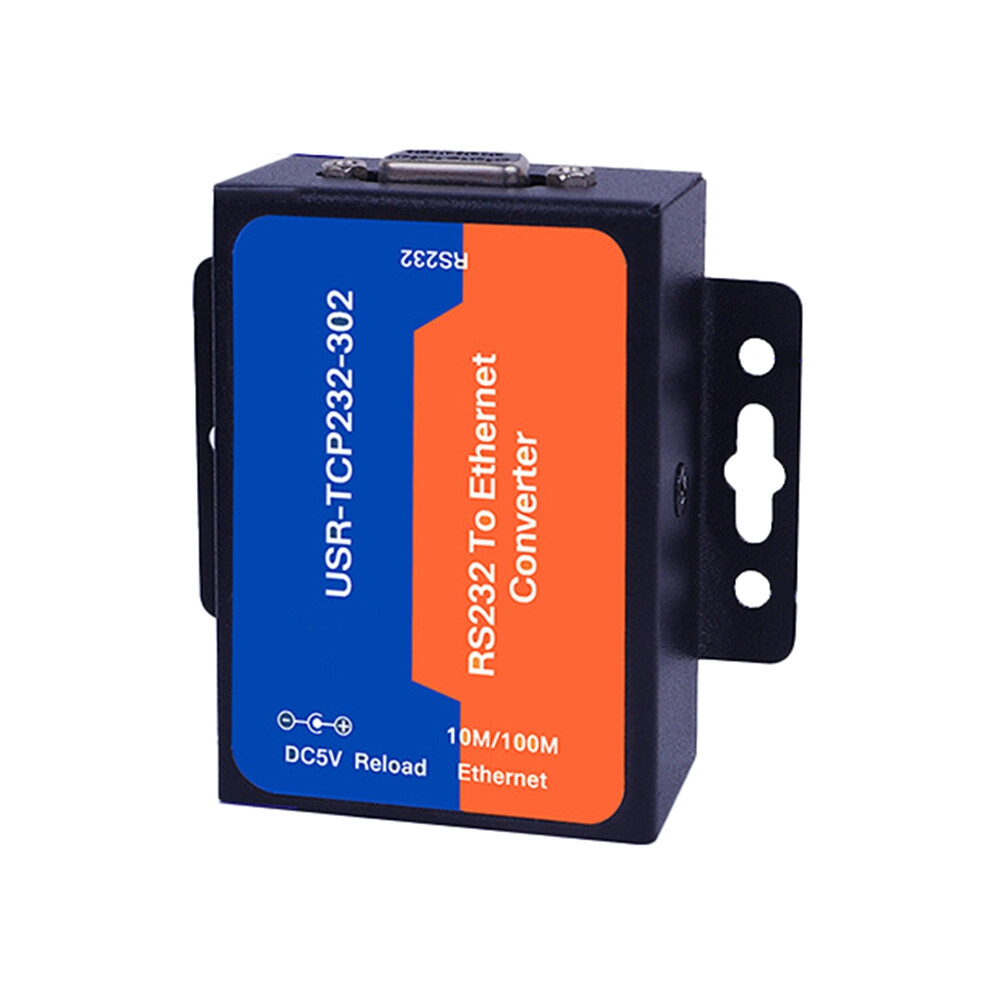

Ethernet Server Module -TCP232-302 RS232 to IP Converter Support DHCP/DNS

Ethernet Server Module -TCP232-302 RS232 to IP Converter Support DHCP/DNS Description

Support DHCP, automatically obtain an IP address and query IP address through serial protocol setting
DNS support function
Set the parameters through the web page
Firmware update via

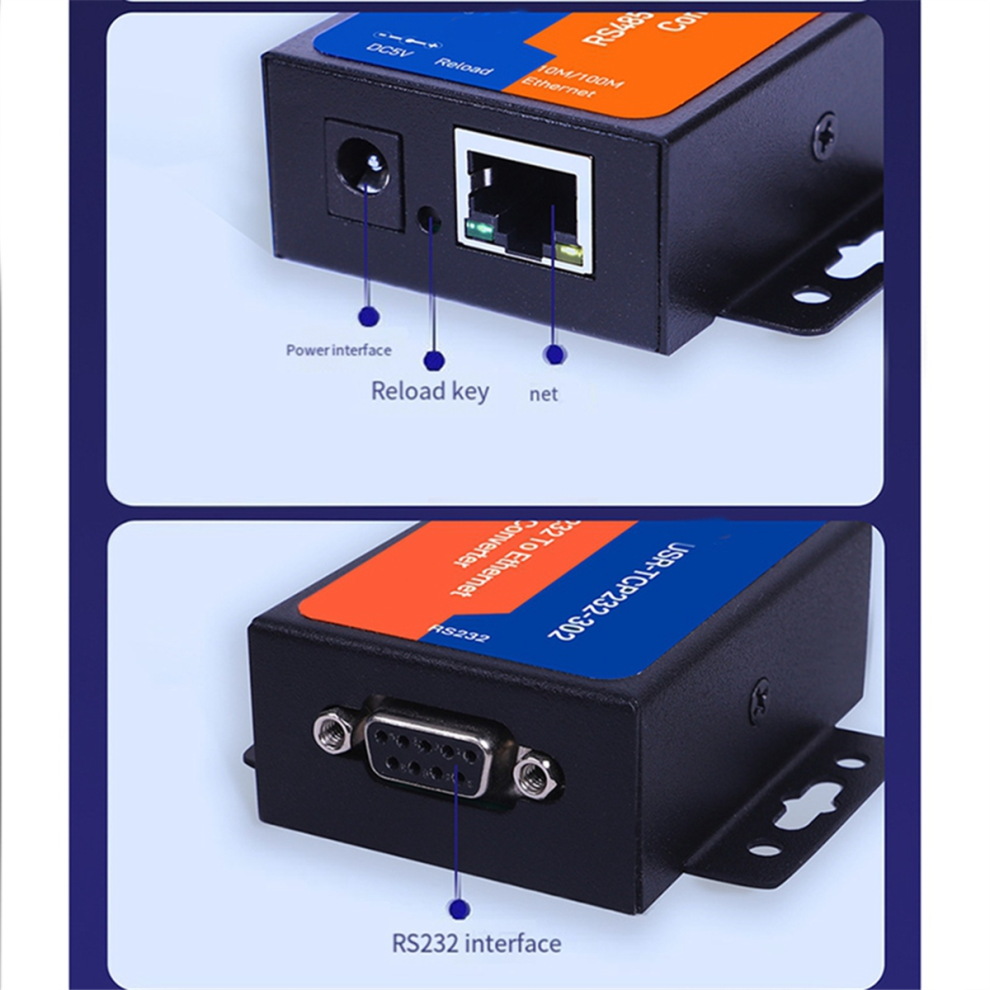

Auto- / MDIX, RJ45 port with 10/100 Mbps

Serial port baud rate from 600 bps to 230.4 Kbps, Control bits of None, Odd, Even, Mark and Space
Working modes: Server, Client, UDP Client, UDP Server, HTTPD Client
Support virtual serial port and provide corresponding - software

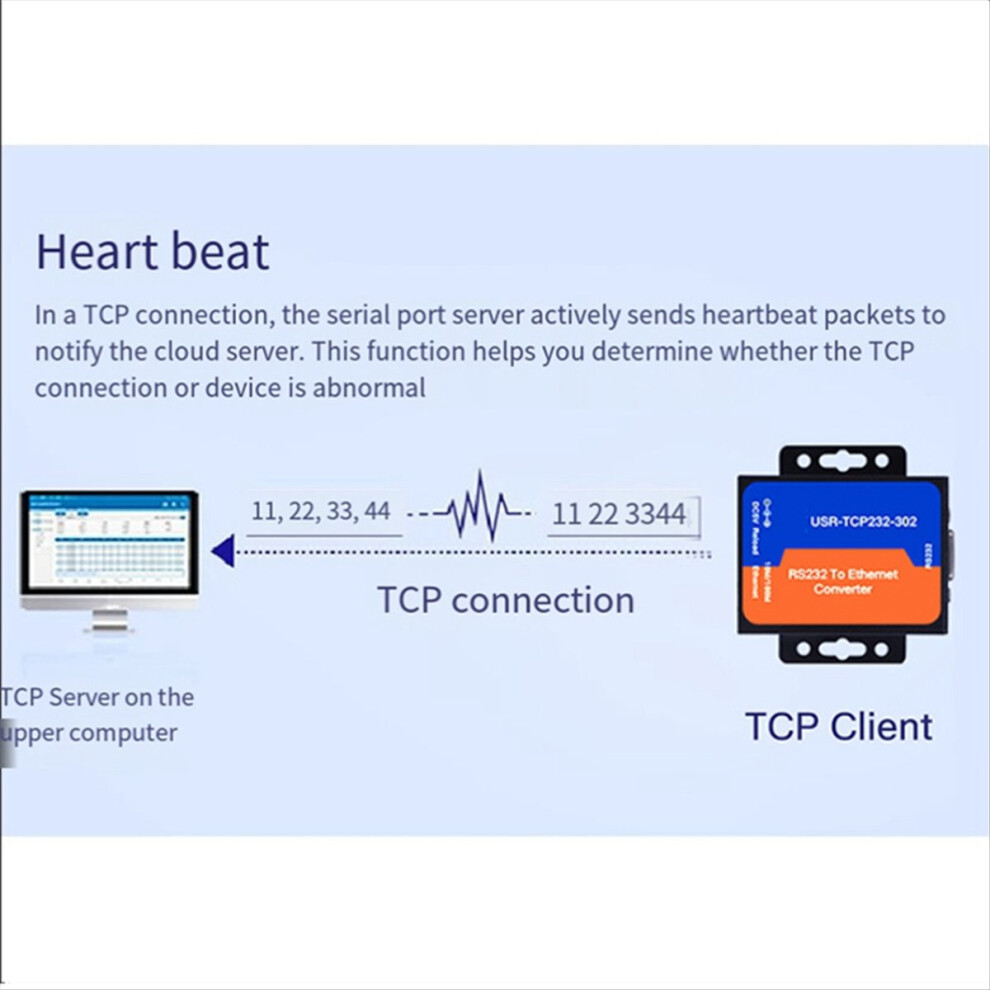

Heartbeat package mechanism to the connection is reliable, put an end to dead link

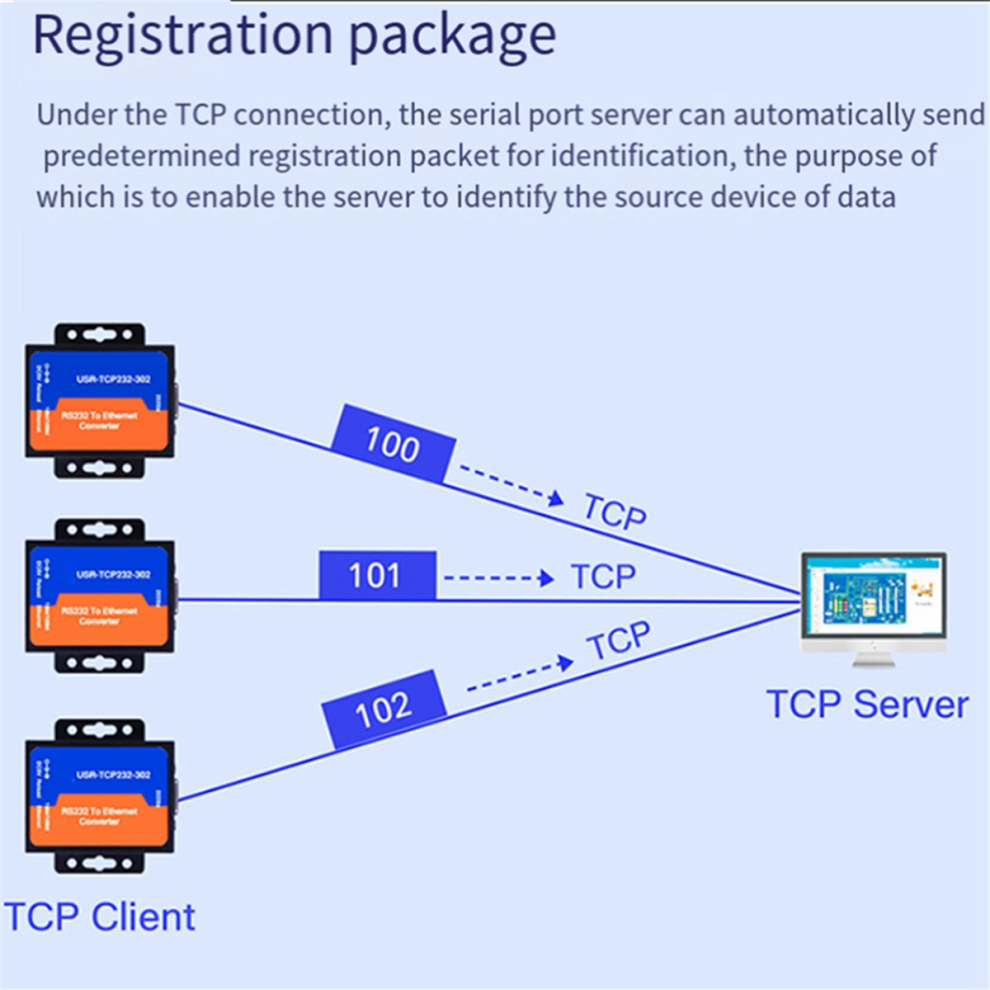

User-defined package registration mechanism, check connection status and use as the packet header
In Server mode, Client number ranges from 1 to 16; default number is 4
The global address bought from IEEE, the user can define address
Factory default reset
Through the gateway, switch, router
Can work in LAN, also can work in internet (external network)
Provide PC / IP programming test socket such as VB, C ++, , Android and IOS
Support customization
Industrial data transmission, industrial automation
Safety and security monitoring, public safety
Smart home, power control, environmental monitoring, smart agriculture
Control door at work attendance system, POS system, rice sales system
Building automation system, power control, self-service banking system, telecommunications monitoring machine room
Colour: black
Material: metal

Package Contents:
1 * rs232 to Ethernet converter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
