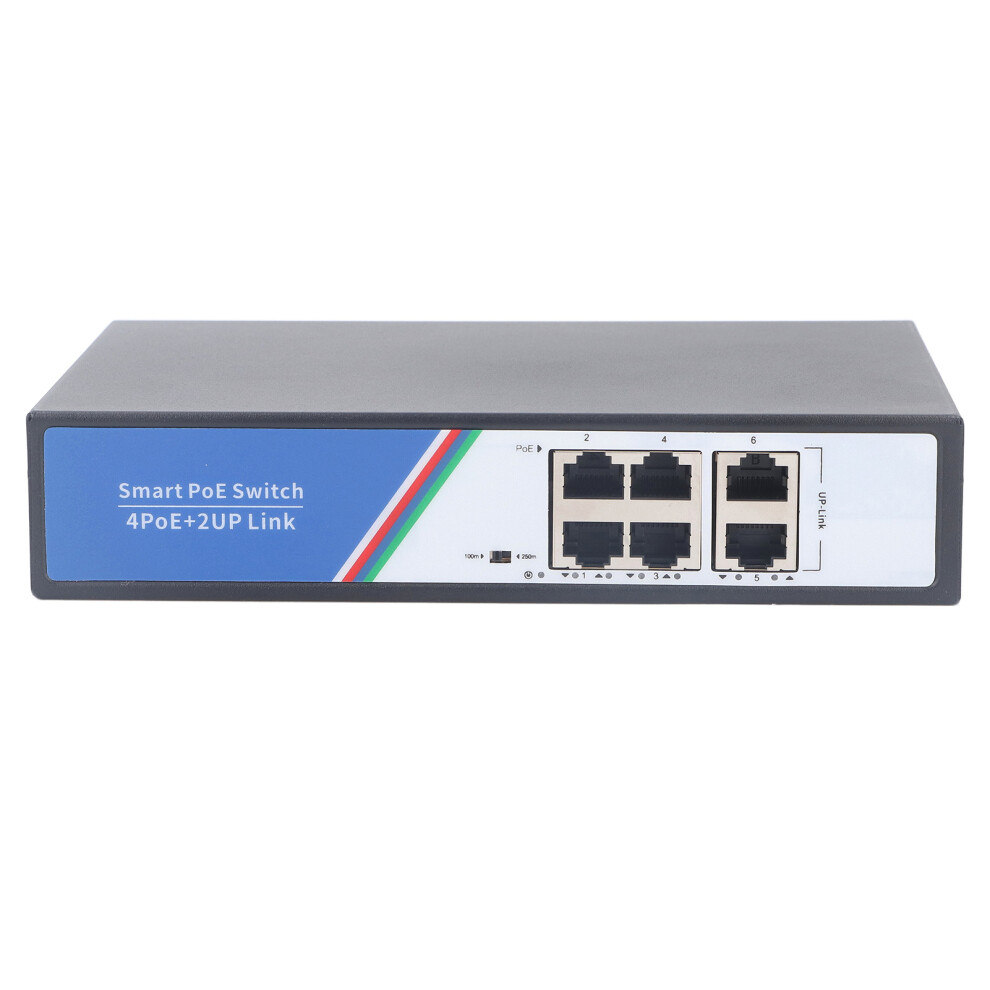

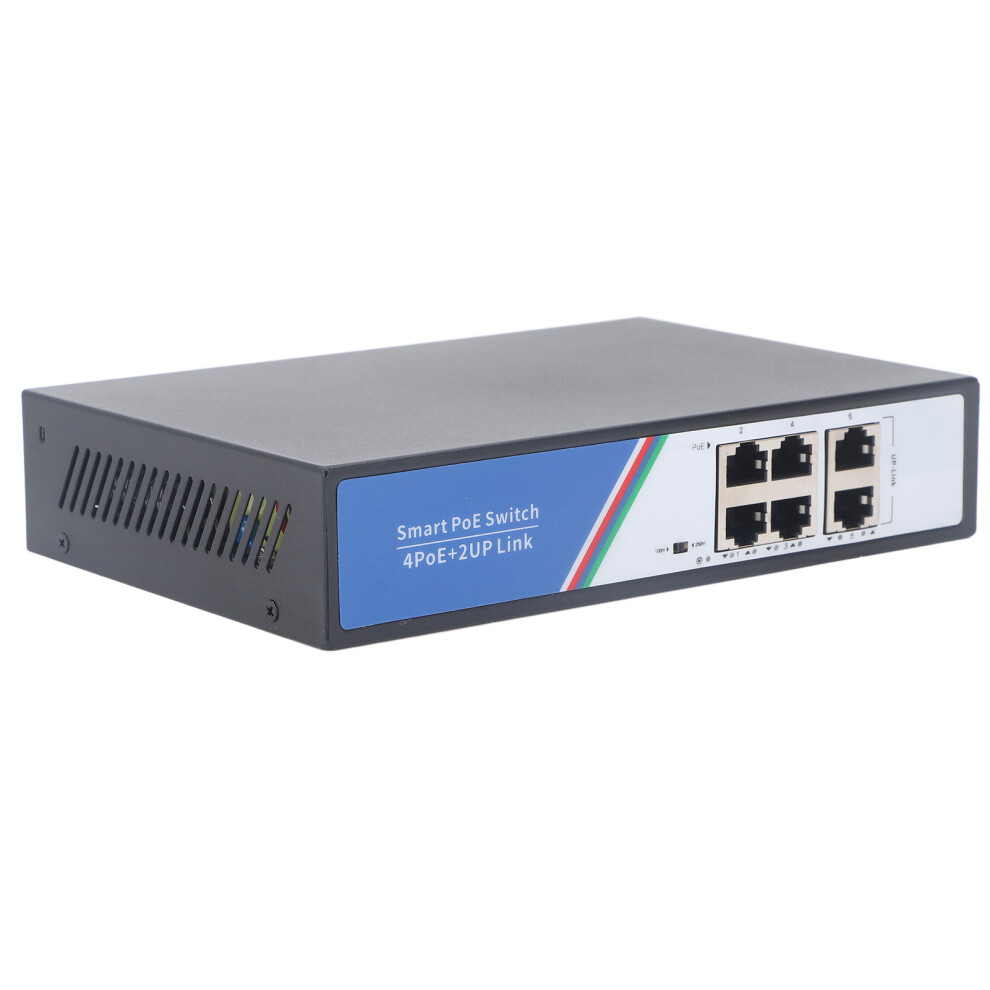

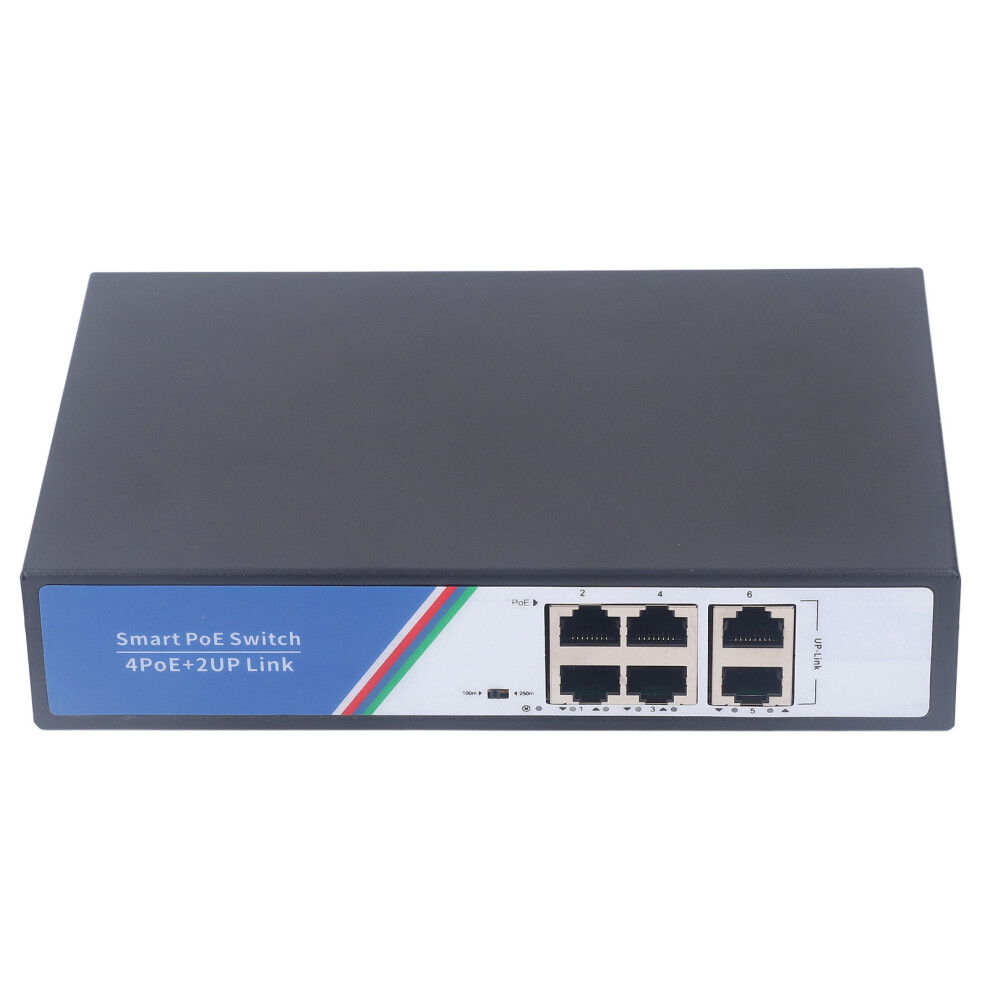

(EU Plug) 6 Port Ethernet Switch 12Gbps 100-240V US Plug

(EU Plug) 6 Port Ethernet Switch 12Gbps 100-240V US Plug Description

1、ISOLATION AND TRANSMISSION: One touch DIP switch enable extension and VLAN isolation. The maximum transmission distance can reach 250 meters 2、PROTECTION FUNCTION: Ethernet switch provide 4KV high level lightning protection, PoE support short circuit and overload protection; The power supply support overtemperature protection and overvoltage protection 3、MULTIPLE PORTS: Ethernet switch 6 port provide two 10, 100, 1000M RJ45 up connected ports, which can access NVR and router at the same time. Local monitoring and cloud monitoring can be synchronized to view, reducing equipment investment costs 4、HIGH SPEED NETWORKING: The 6 port 12Gbps Ethernet switch provide fast and reliable network connections, ideal for streaming, online gaming, and large file transfers 5、EASY PLUG AND PLAY SETUP: Simply connect your devices to the switch and enjoy seamless networking without any configuration required. Perfect for home or office use 6、COMPACT AND DURABLE DESIGN: The 6 port switch is designed to be space saving and built to last. Its sturdy construction ensure long term reliability for your networking needs
Item Type: Ethernet Switch
Chip Scheme: RTL8367S and RTL8211F
Network Standard: IEEE 802.3af/at
Network Media:
10BASE-T: Unshielded Cat 3, Cat 4, Cat 5 twisted pair(maximum 100m)
100BASE-TX/100BASE-T: Unshielded Cat 5, Cat 5e or more twisted pair(maximum 100m)
1000BASE-TX/1000BASE-T: Cat 6e or more of twisted pair(maximum 100m)
Fixed Ports: 4 x 10 100 1000 Base TX Ethernet Ports(data or power); 2 x 10 100 1000 Base T Ethernet Ports(data)
Transmission Mode: Store and forward
Address Capacity: 4K
Switching Capacity: 12Gbps
Packet Forwarding Rate: 8.688Mpps
Port Lightning Protection: 4KV
Indicator Light:
Each: Power. System (power: red) The indicator status is steady on when the device is connected to the load
Each Port: Link/Activity(Link/Act: green) The indicator status is blinking when the port is connected
PoE Support: 1-4 Port compatible with 802.3af/at PoE(1/2)+, (3/6)-
Port Features:
Two Modes:
OFF: Common mode
All ports can communicate with each other and can be used as a common non-NMS PoE switch
ON: Extended mode
The maximum transmission distance of the switch is 250 meters, and the 1-4 ports are isolated from each other, and are interworking with 5 and 6
Operating Temperature: -10~70(32~127)
Storage Temperature: -40~85(-97~142)
Operating Humidity: 10%~90% non condensing
Storage Humidity: 5%~95% non condensing

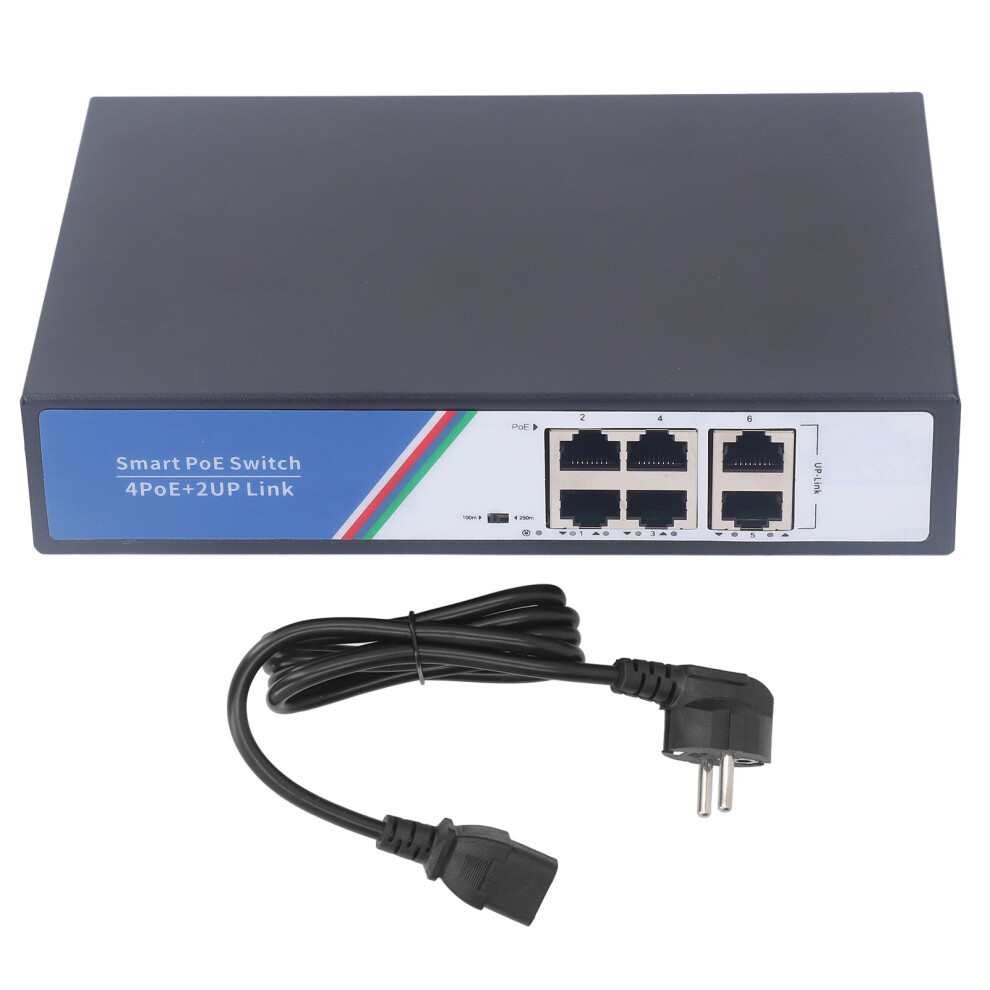

1 x Ethernet Switch
1 x Power Adapter
1 x User Manual
