Expansion Board with OLED for Model B / 3B+

Expansion Board with OLED for Model B / 3B+ Description

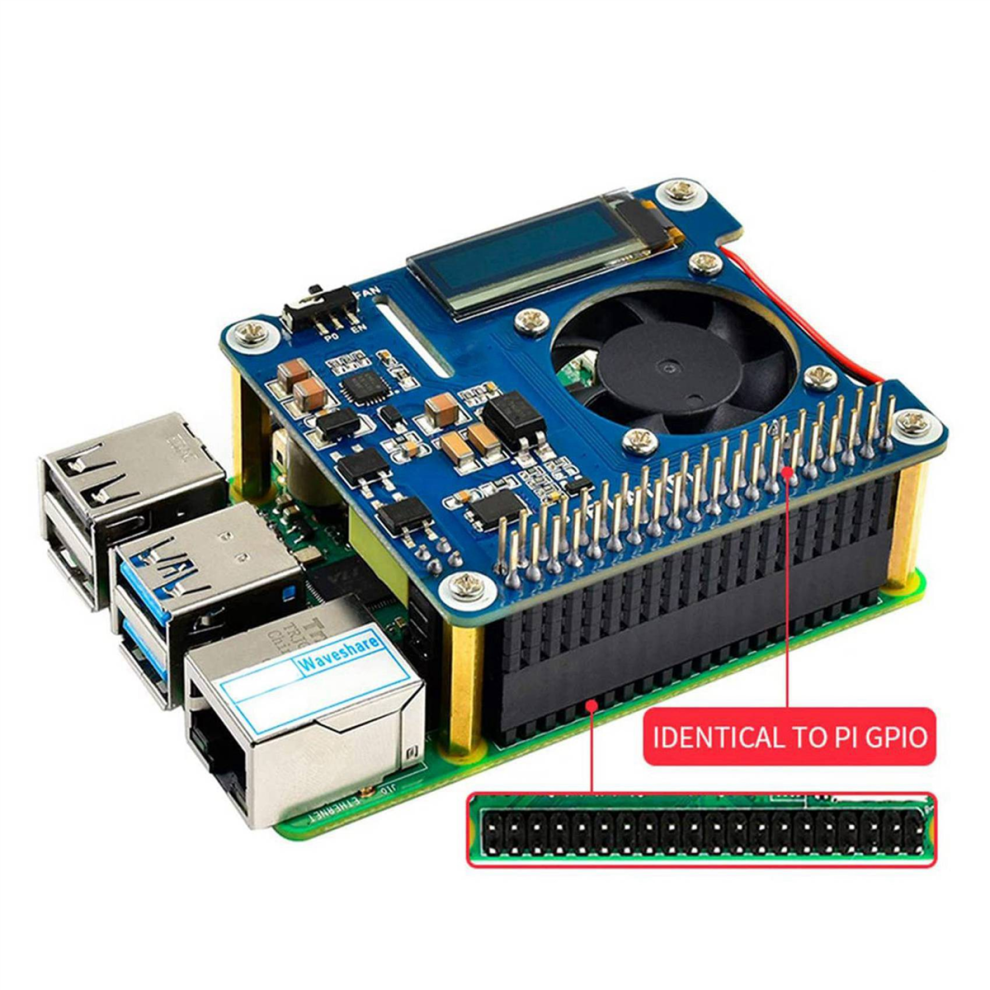

POE HAT (B) for 4B/3B+,Power Over Ethernet HAT,Support 802.3af PoE Network,802.3af Power-Sourcing Equipment Required
Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins

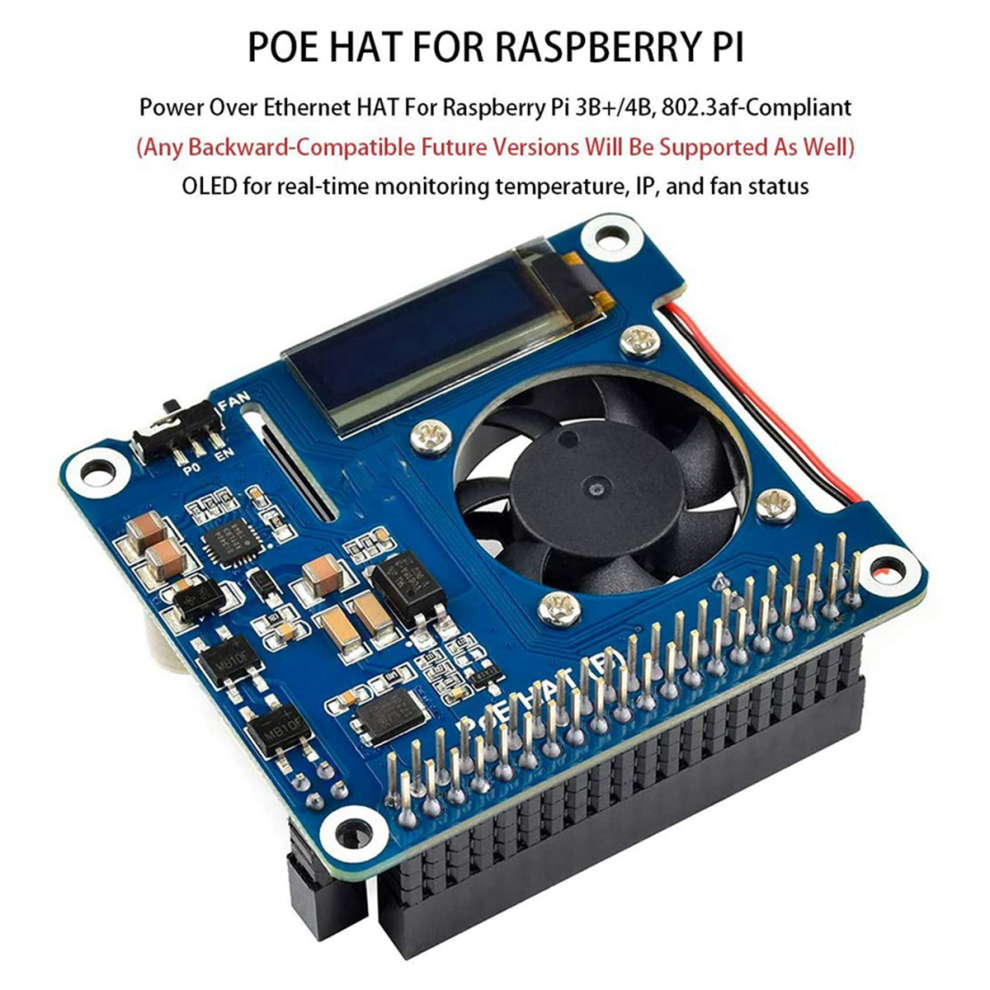

0.91Inch OLED, for monitoring processor temperature, IP address, and fan status in real-time; Onboard cooling fan, allows auto running on OR programmable control, configured by switch
POE POWER INPUT:37V ~ 57V DC in. POE POWER OUTPUT:5V 2.5A DC out .
OLED PIXELS:128x32. NETWORK STANDARD:802.3af PoE. OLED DRIVER:. OLED DISPLAY COLOR:white.

DESCRIPTION

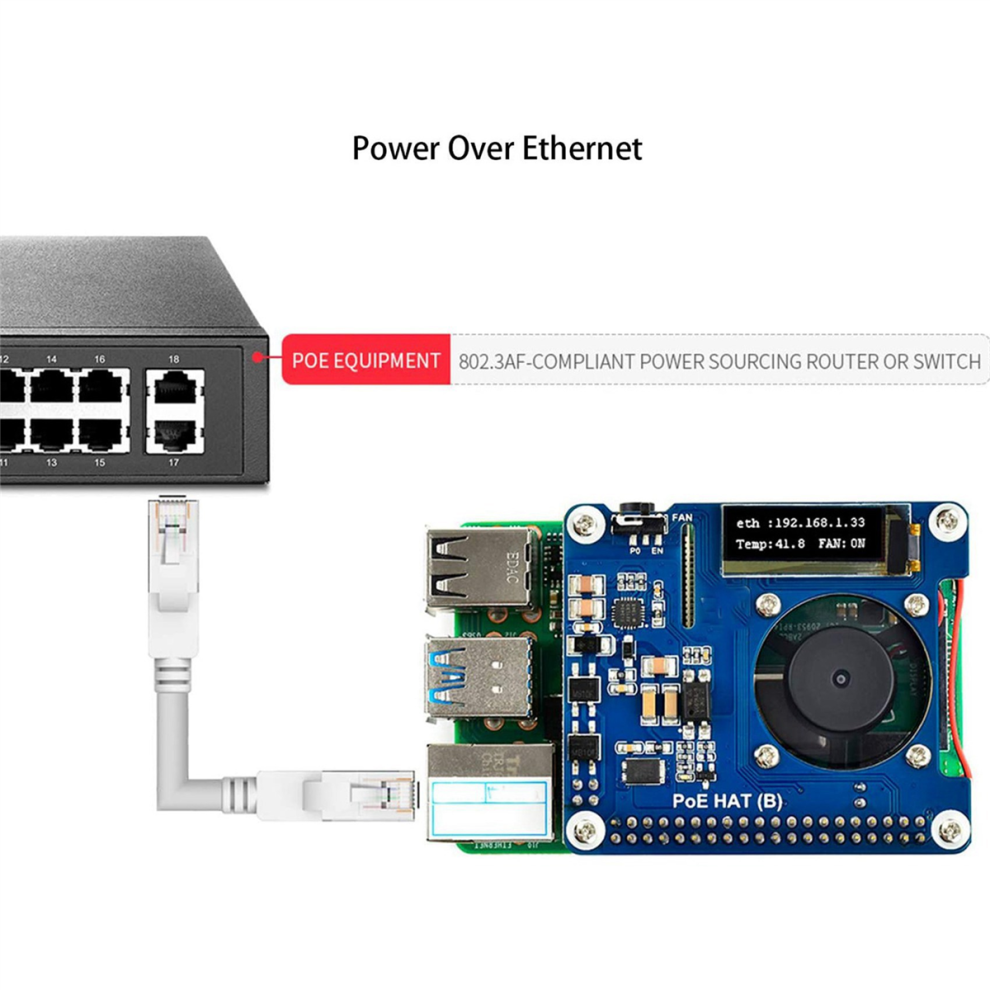

Power Over Ethernet: Providing Both Network Connection And Power Supply For Your In One Cable
Cooling Fan: Allows Auto Running On OR Programmable Control, Configured By Switch; Automatically Turn On/Off Depending On The Processor Temperature

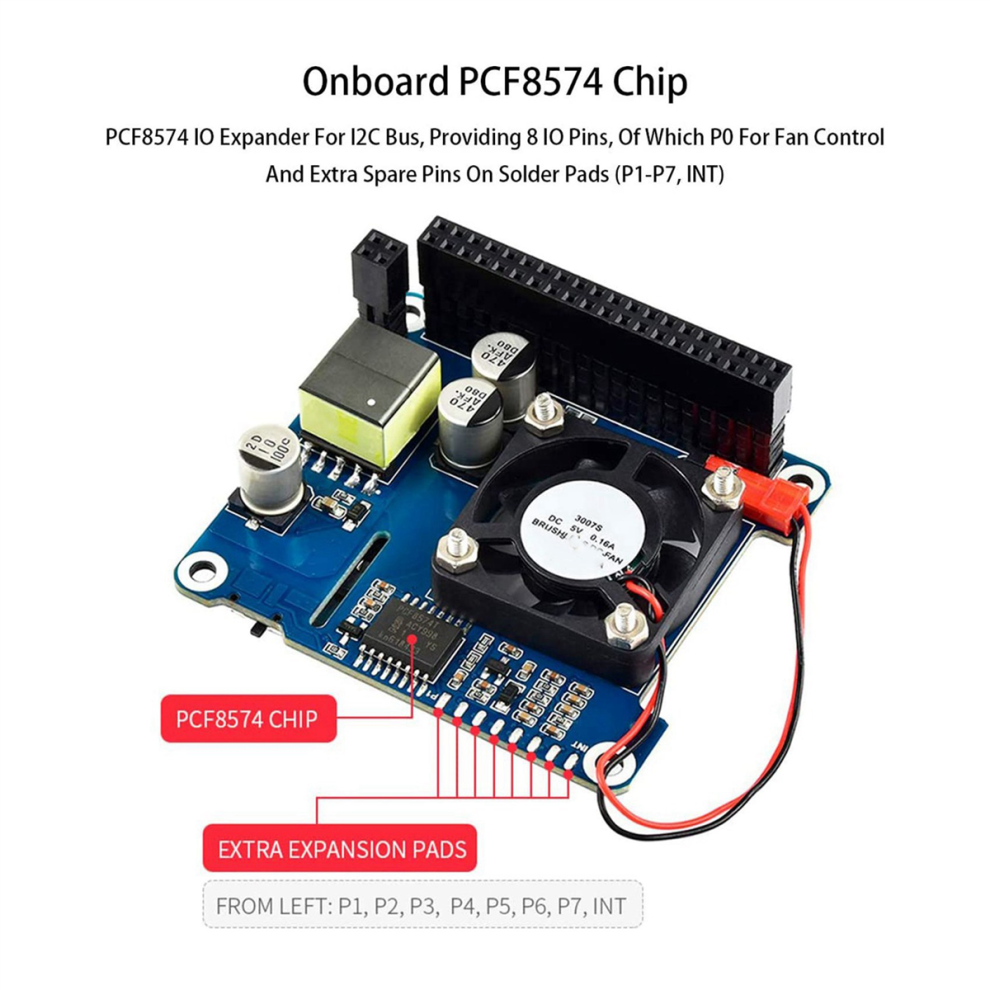

Onboard PCF8574 Chip: PCF8574 IO Expander For I2C Bus, Providing 8 IO Pins, Of Which P0 For Fan Control; And Extra Spare Pins On Solder Pads (P1-P7, )
PoE (Power Over Ethernet) capability,802.3af-compliant
Fully isolated switched-mode power supply (SMPS)
colour: blue
Material: PC board + metal
size: 65x56.5mm

Package Contents:

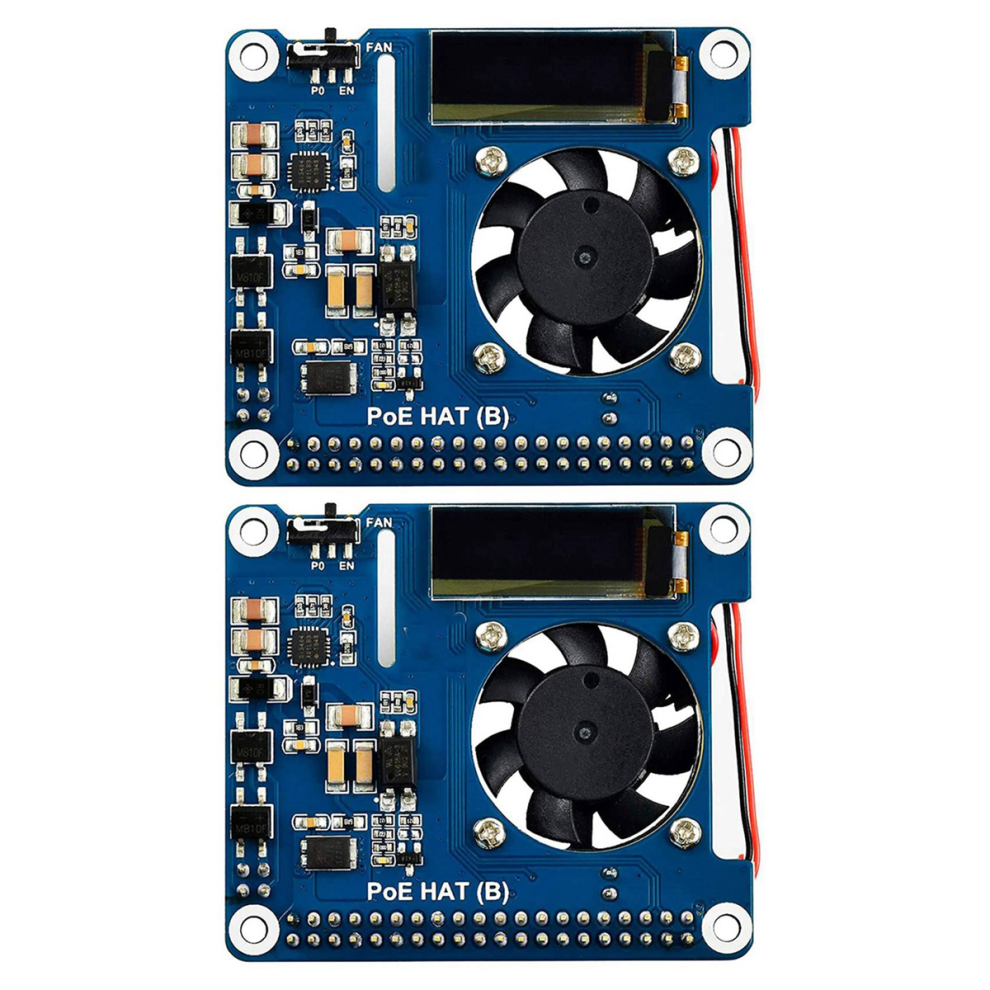

2 x PoE HAT Expansion Board

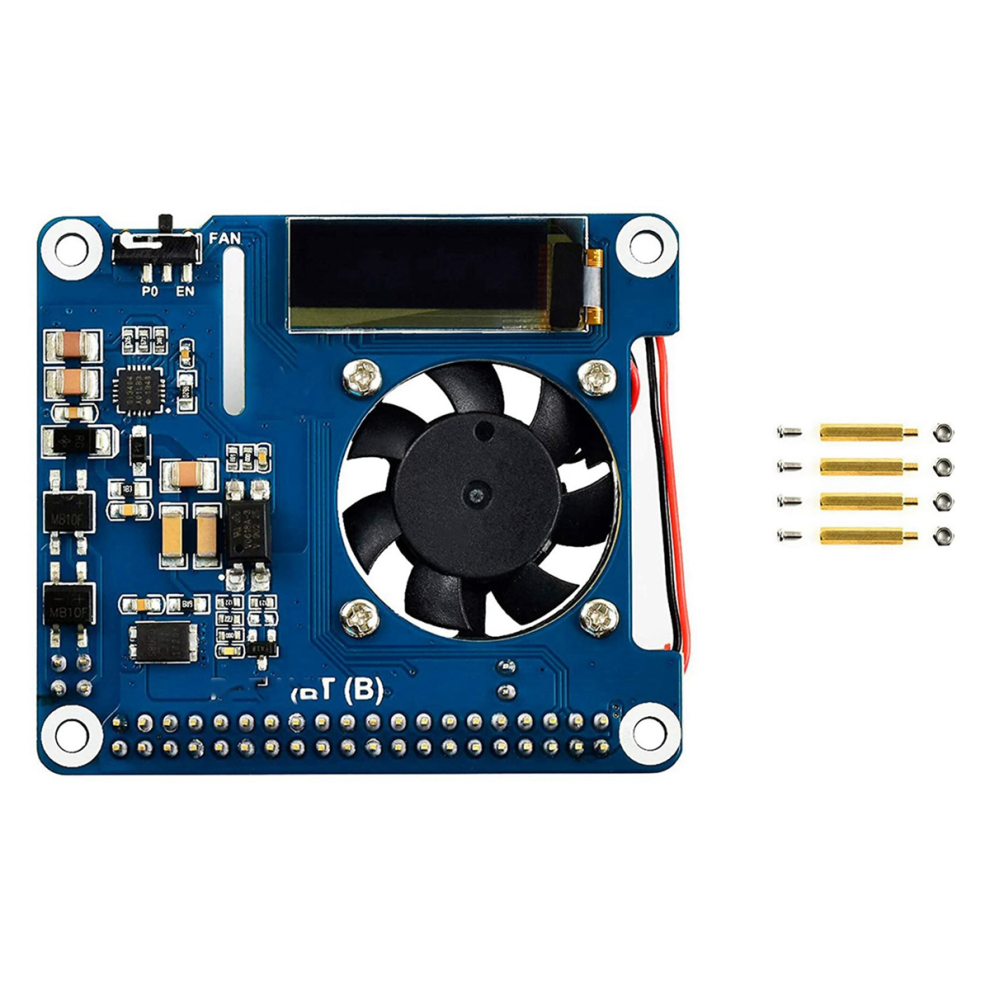

2 x Screws kit

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
