Expansion Boards for Industrial DIN-Rail RS232 RS485 FD Multi Communication

Expansion Boards for Industrial DIN-Rail RS232 RS485 FD Multi Communication Description

Are you still bothered that the for doesn' work in an industrial environment? Designed for 4B and The isolated industrial interface expansion board designed for 5 is here! This industrial expansion board is

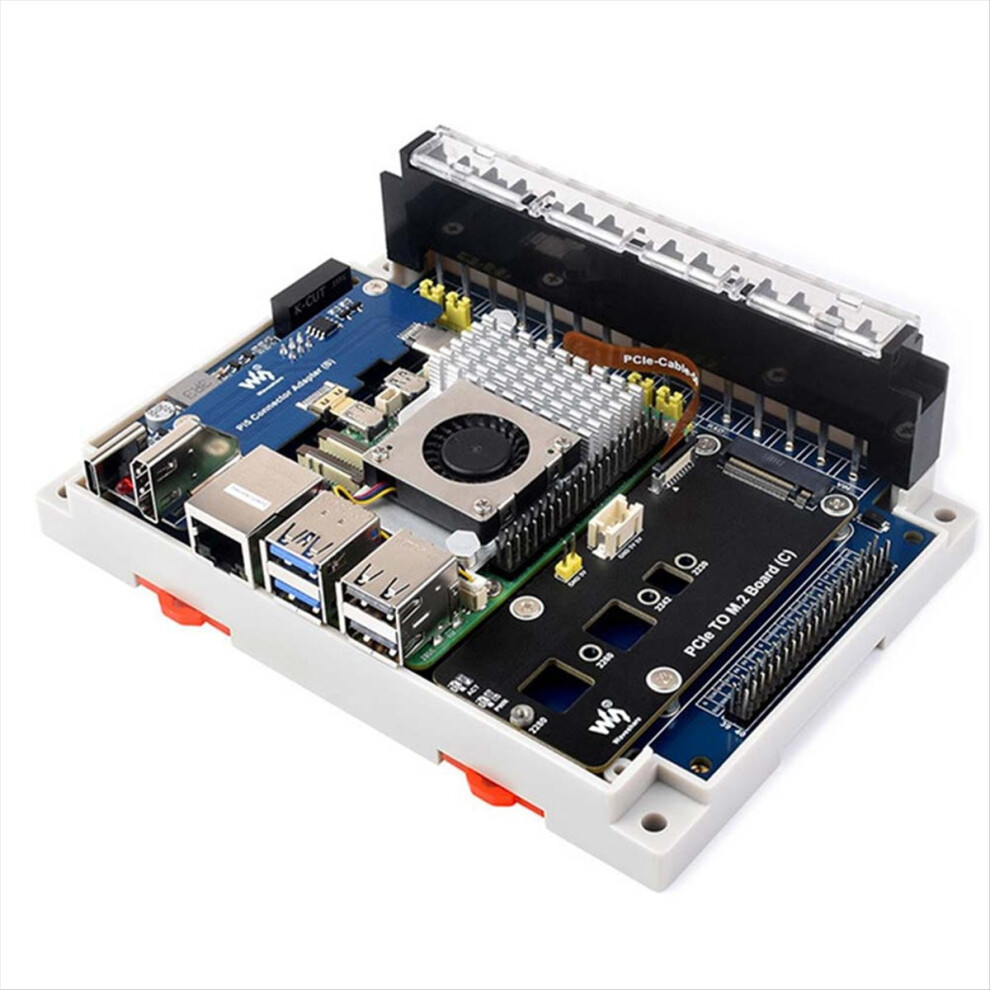

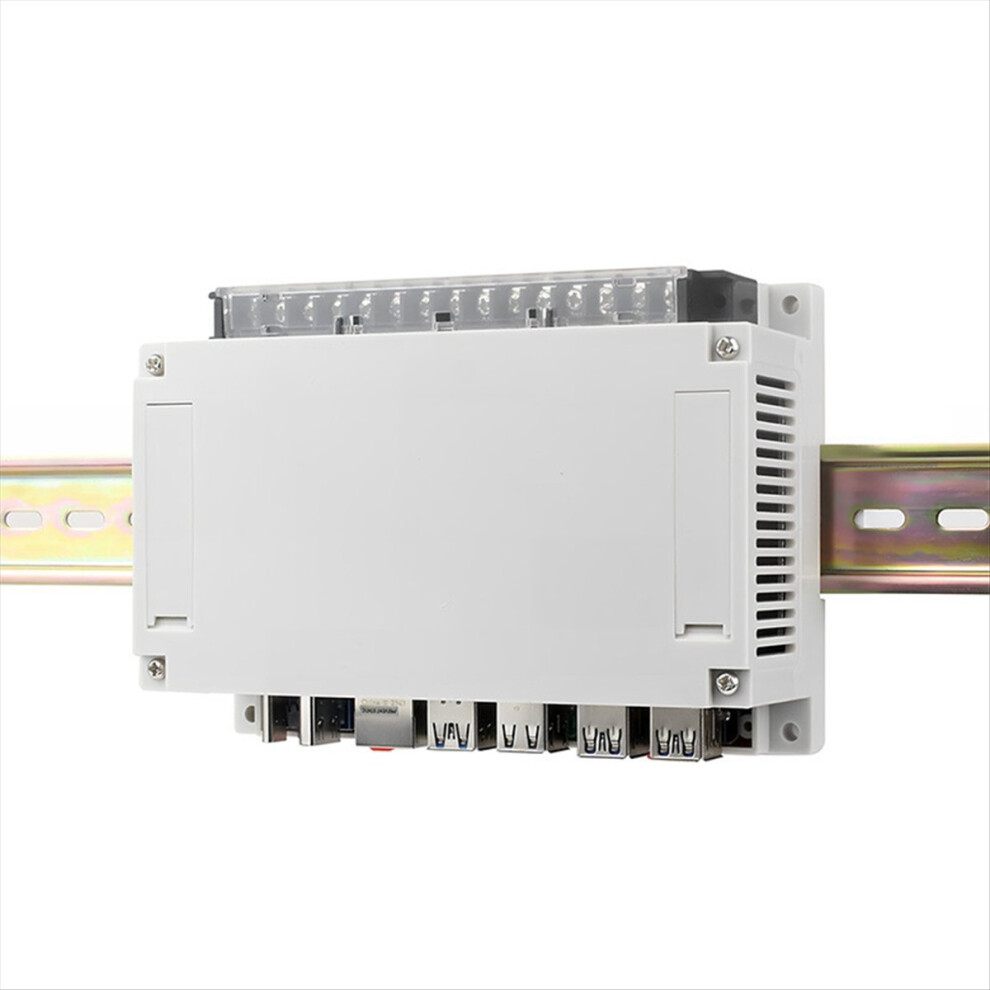

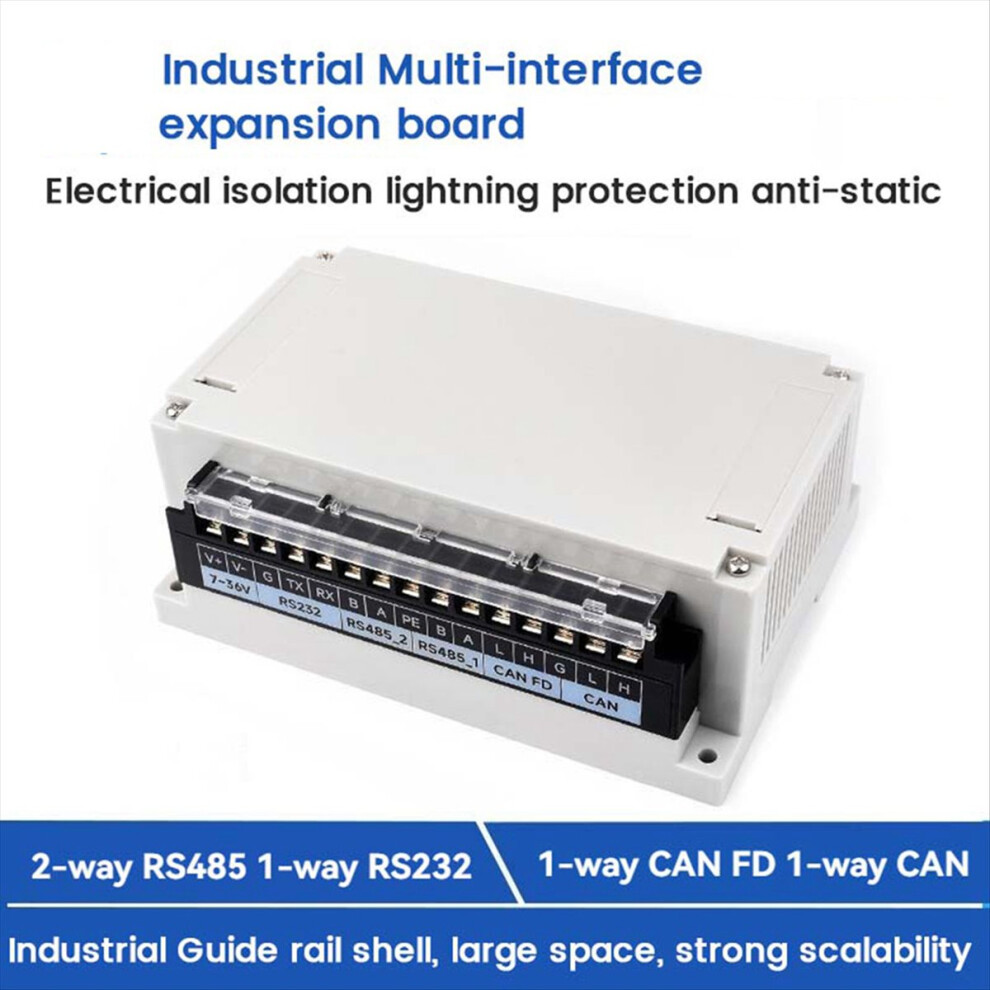

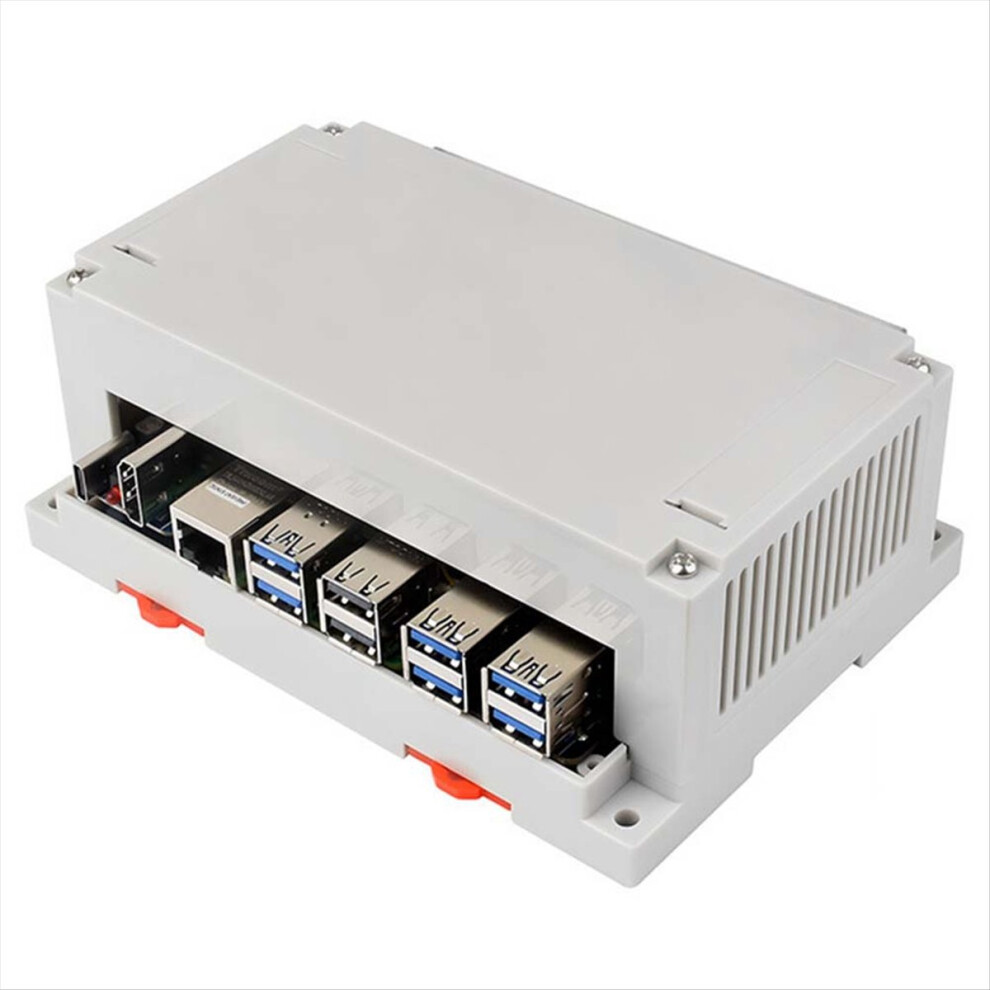

The for provides a variety of industrial communication interfaces: 2 RS485, 1 RS232, 1 CAN FD and 1-way CAN, each with electrical isolation protection. Onboard anti-static and so on A protective measure to make communication more secure and reliable. We also come with custom industrial rail housings, square Easy integration in industrial control applications. For 5, reserve the PCle expansion board Interface, convenient for users to further expand the function.
Home stack extension custom function. This expansion board doesn' just make your for better integrated into industry
In the control application, it also provides the possibility for expansion.
for 40pin GPIO interface for 4B and for 5 Hirata SC1615752 SDA85 fine fit square Encometer SDI interface expanded two 485 The combination of MCP2515 and SN65HVD230 can be extended through SPI interface

CAN
The combination of MCP2518FD and MCP2562FD can be extended through SPI interface
Road CAN FD
for Raspberry UART and SP3232EEN can be expanded through UART interface
Exhibition road RS232
Onboard (Transient Voltage Suppressor tube) can effectively suppress surge voltage and transient spikes in the circuit
Pressure, static protection
Onboard self-recovery fuse and protection diode to stable current and voltage output, anti-overflow
Pressure, improve the impact resistance
On-board integrated power supply isolation, isolation end does not need additional power supply, can RS232, RS485,
CAN,CAN FD current and voltage stable output, improve anti-interference ability, improve impact resistance force
The weight carrier number isolation core, the message loss isolation communication is , better stability and positivity, and more powerful

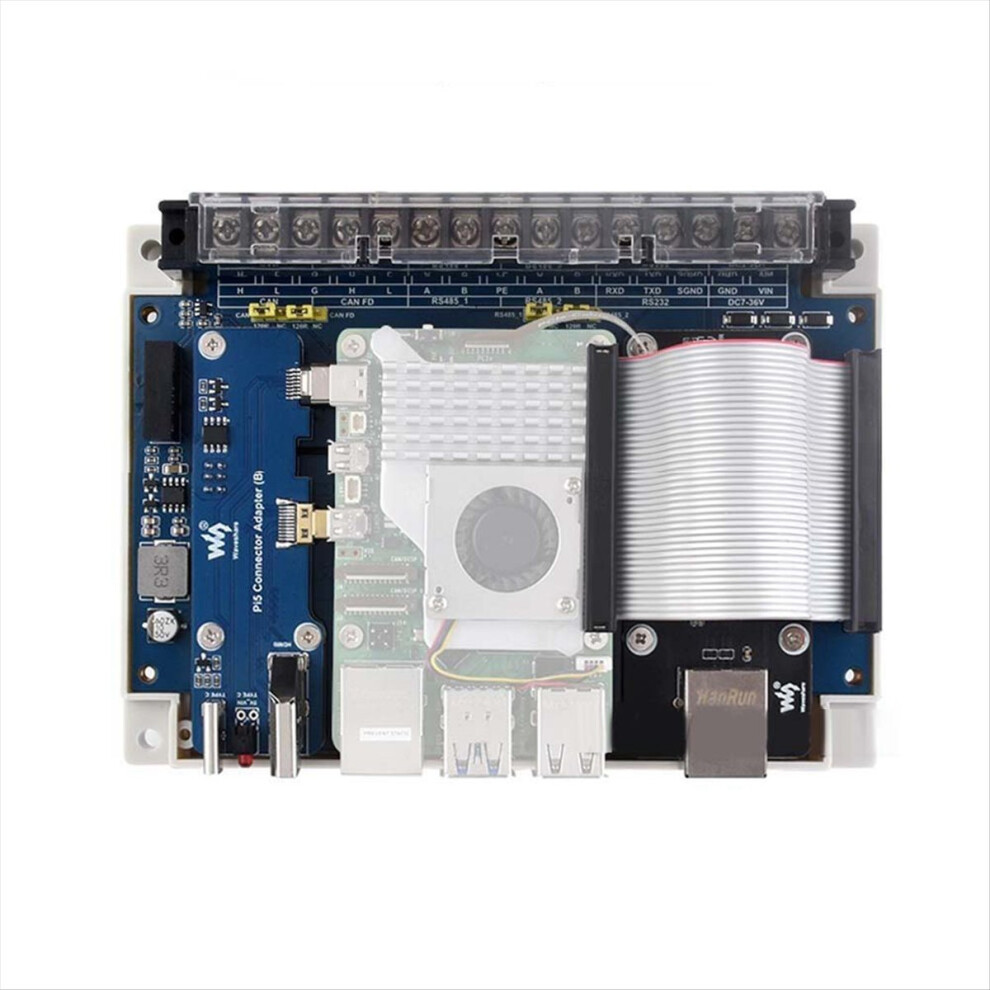

Onboard external terminal power supply, support 7~36V wide voltage power supply, can be combined with Pi5
The ConnectorAdapter(B) supplies power to both for and the expansion board

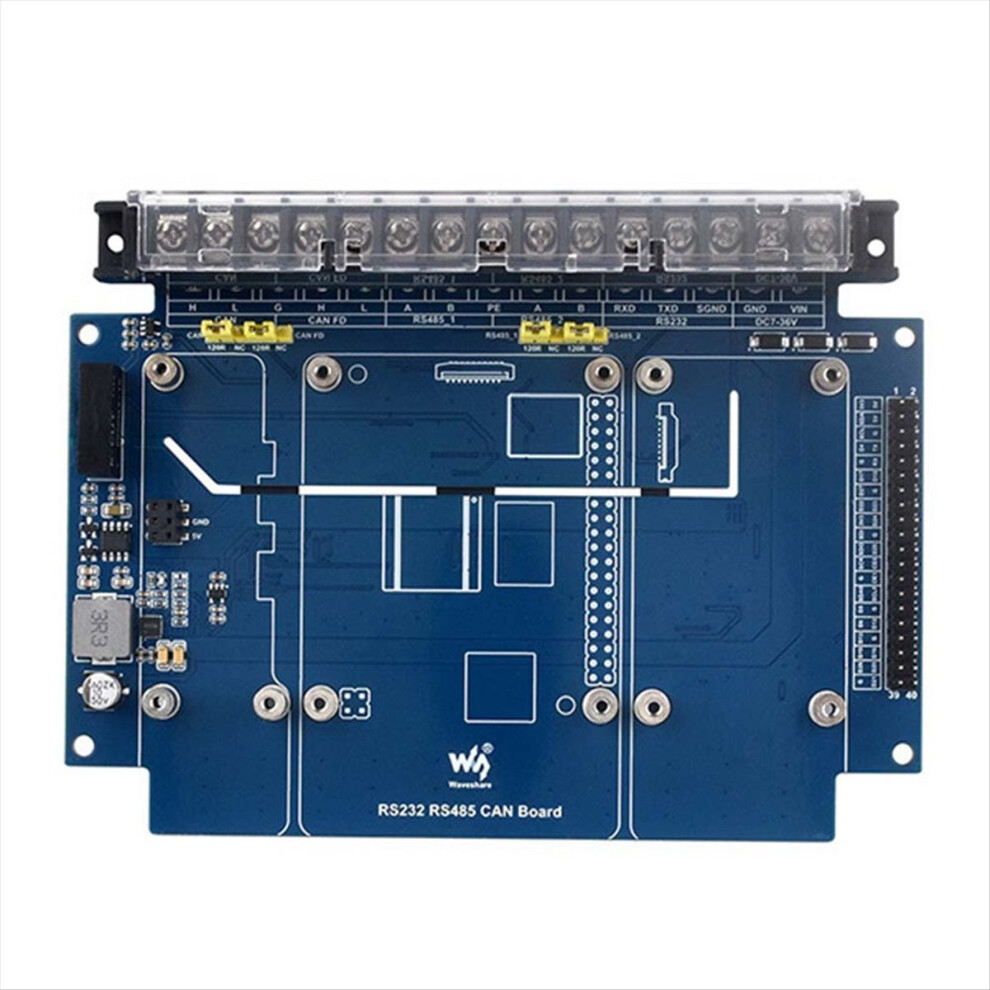

On-board 1202 terminal resistor can be enabled by jumper cap setting
Reserve interrupt resistance pad, which can flexibly switch interrupt pins to prevent special occupation
Colour:White
Material:plastic

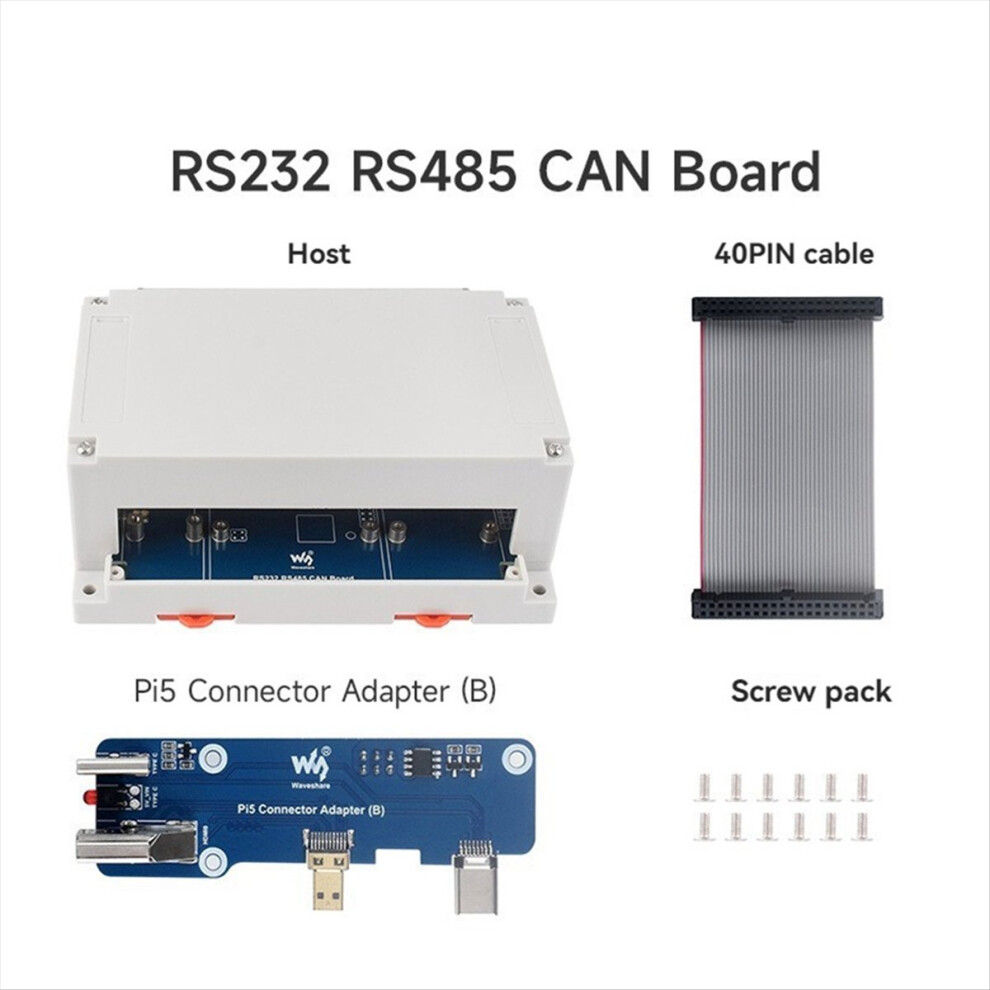

Package Contents:
1 x Expansion Board

Only the above package content, other products are not included.
