F Connector Coaxial Cable Variable Attenuator 0 20dB Coax RF Digital TV Freeview

F Connector Coaxial Cable Variable Attenuator 0 20dB Coax RF Digital TV Freeview Description

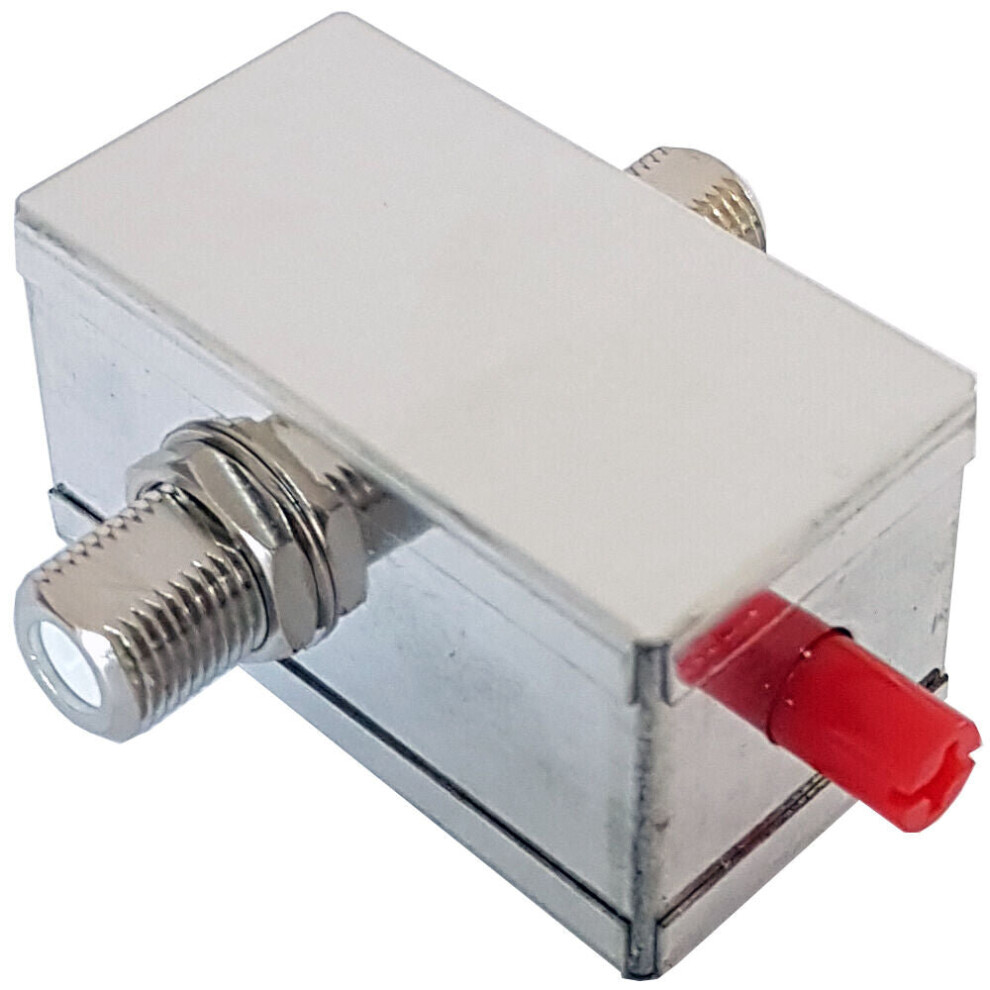

Variable Coaxial Attenuator 0-20dB (75ohm)

Overview - Decibel (dB) is a logarithmic unit of measurement that expresses the magnitude of a physical quantity, usually power or intensity. This device will reduce the signal strength between 0-20dB to hopefully help you achieve a better signal quality.

Compatible with;

Digital (freeview) and analogue signal signals
Satellite signals
Cable TV

Technical Details;

Frequency Range - 5-2400MHz
Attenuation - 0-20db
75ohm

Insertion Loss - Min. Attenuator

45MHz- Less than 0.5dB
1500MHz - Less than 2.5dB
2000MHz - Less than 5dB
2400MHz - Less than 8.5dB

Insertion Loss - Max. Attenuator

45MHz - 20dB
1500MHz - 19-24dB
2000MHz - 19-24dB
2400MHz - 18.5-22dB

How do I know if I need an attenuator? - If you experience break-up on some or all of your channels whilst trying to tune in your TV, it could be that your signal is too strong or too weak. It will usually take trial and error to work out what the problem is. An attenuator is usually the cheapest option to establish what the problem might be.

The example below is to guide you through a typical aerial installation, this may vary if the attenuator is not being using with an aerial, however the same principles apply.

If you have installed an aerial and you've done the basics such as making sure it is pointing in the right direction and you are sure that all your contacts are making a good connection then, it may also be worth looking at houses near to you, look at their aerials, if yours looks to be pointing in a similar direction and is a similar sort of aerial, it may be worth asking them if they have any problems with reception. If their reception is fine, it is likely that you have made a mistake somewhere when installing. If everything seems to be installed correctly and you are still getting problems with reception, buying this attenuator will establish whether your signal is too weak or too strong. When installed, if your signal quality deteriorates further, then your signal is too weak, if the signal goes better you should leave this attenuator installed and set the variable dial to the point that gives the best signal. One other way to reduce your signal strength (to check whether you need an attenuator) is to put your signal through an extremely long length of cable. Good quality coaxial cable loses about 0.18db/metre, therefore a cable run of 40 metres would lose about 7.2db.

How to use - The attenuator should be positioned between your aerial (or other device) and splitter (in your loft), if you don't have a splitter then it should be positioned between your aerial and TV.

Peace of mind - This product has been tested to CE and ROHS standards.
