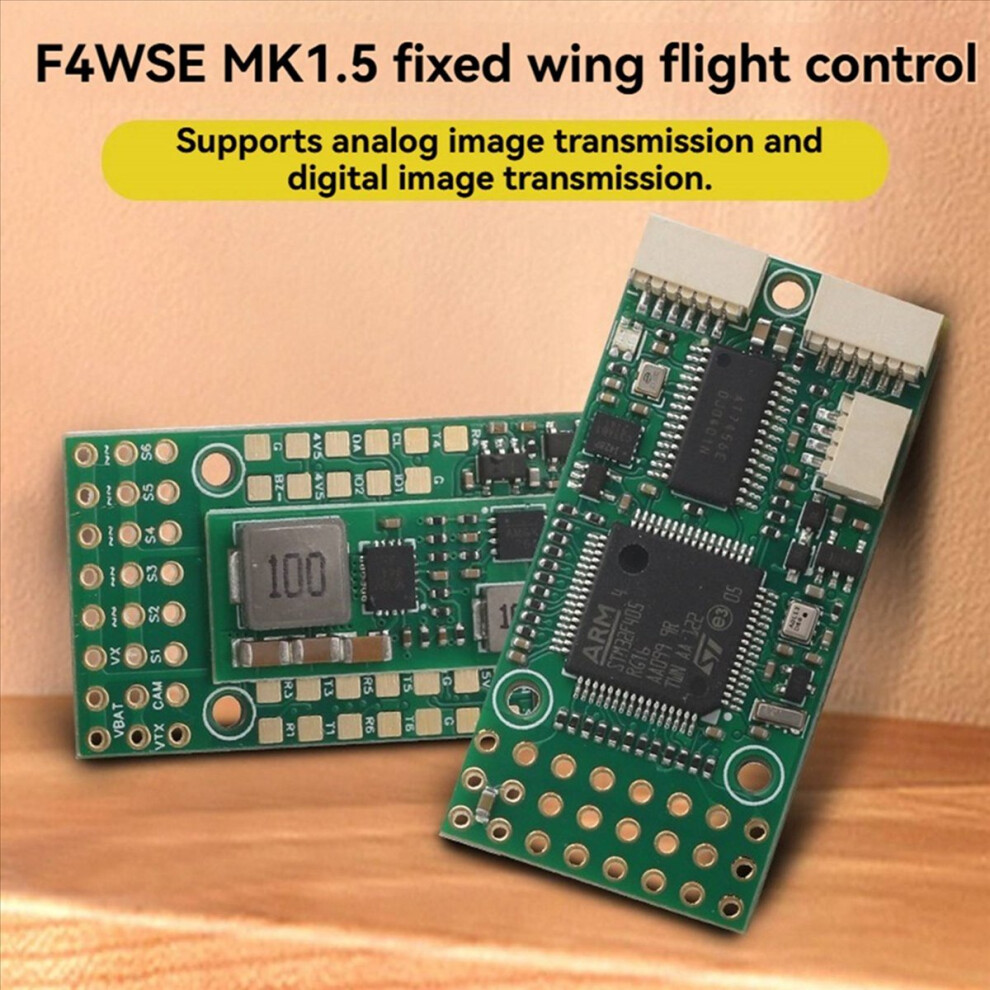

F4WSE MK1.5 Fixed Wing Flight Controller 2-6S Support Analog/Digital VTX /INAV Firmware for RC FPV Airplane

F4WSE MK1.5 Fixed Wing Flight Controller 2-6S Support Analog/Digital VTX /INAV Firmware for RC FPV Airplane Description

Advanced Flight Control: Boost the performance of your RC FPV aircraft. It is designed for stability and , supports AP firmware, and can meet flight needs.
Wide voltage compatibility: Efficient operation under 2-6S battery settings, ensuring flexibility and power for aircraft sizes and types.
Using high- gyroscopes and barometers, the stability of the flight control is greatly improved compared to the same type.
Small size, suitable for small FPV carriers or modified hand-throwing aircraft, and can also be connected to expansion boards, a total of 12 PWM channels, large carriers can also be used.
VTX support: This flight controller is fully compatible with analog and digital video transmission systems, which can enhance your visual experience during flight.

Type:F4WSE MK1.5 Fixed Wing Flight Controller 2-6S for RC FPV Airplane
Main control:STM32F405RGT6

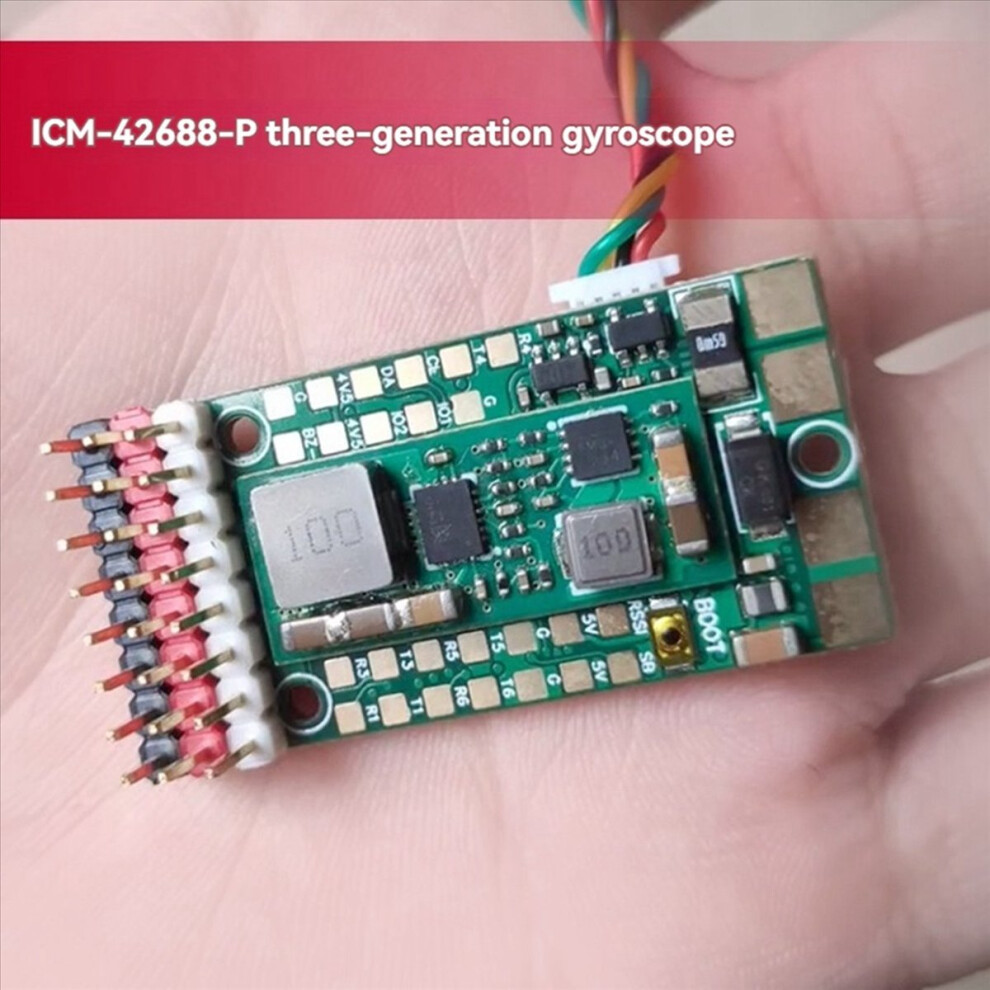

Gyroscope:-42688-P
Barometer:SPL06-001
BEC: 1 x Servo 5V4A, 1 x 5V2A (device)

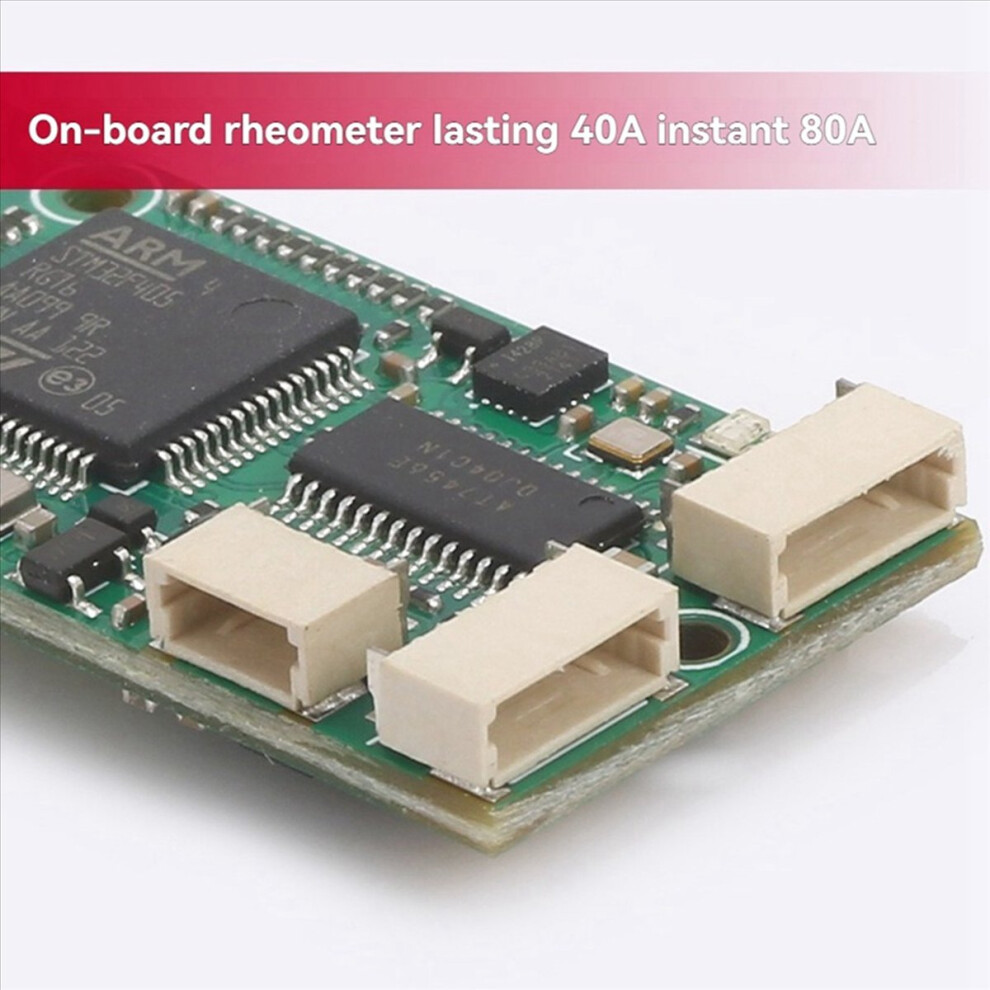

Onboard ammeter: 40A continuous, 80A instantaneous
Servo expansion board: no onboard BEC, need to prepare your own
Black box: external TF card module, maximum available capacity 4GB, maximum supported capacity 32GB
Input voltage: 7-26V DCIN (2-6SLiPo)
Note:The factory default is flashed with the latest stable version of Ap firmware.
The product appearance and printed words depending on the batch, but this does not affect use.

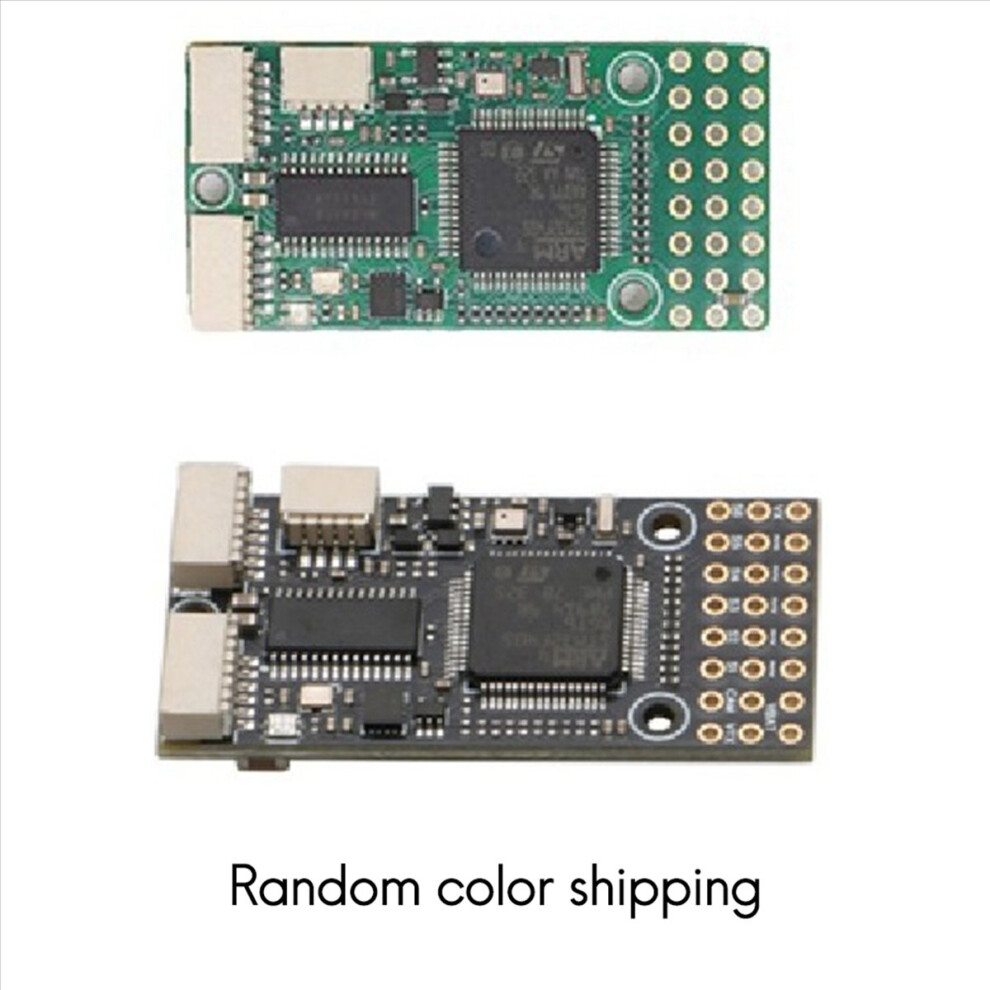

colour:Random Color
Note: Random color, don't accept the specified color.
Material:PCB

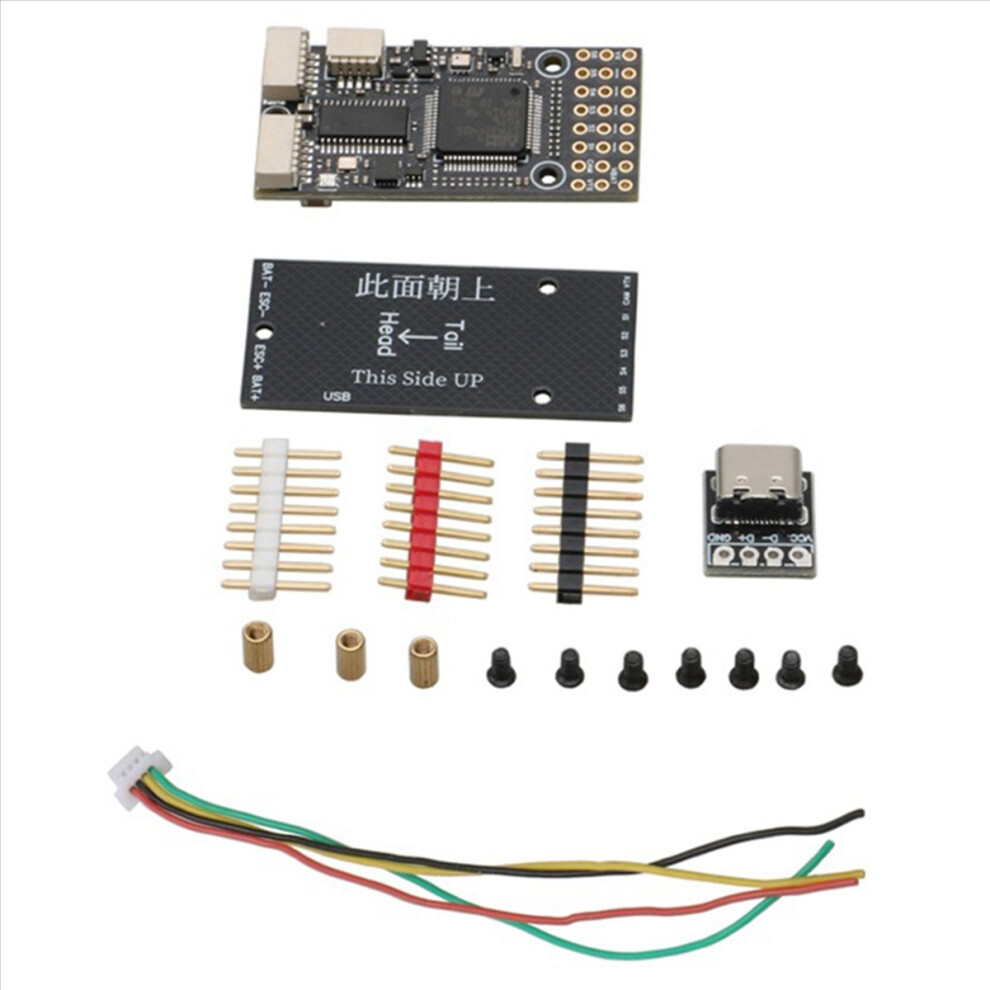

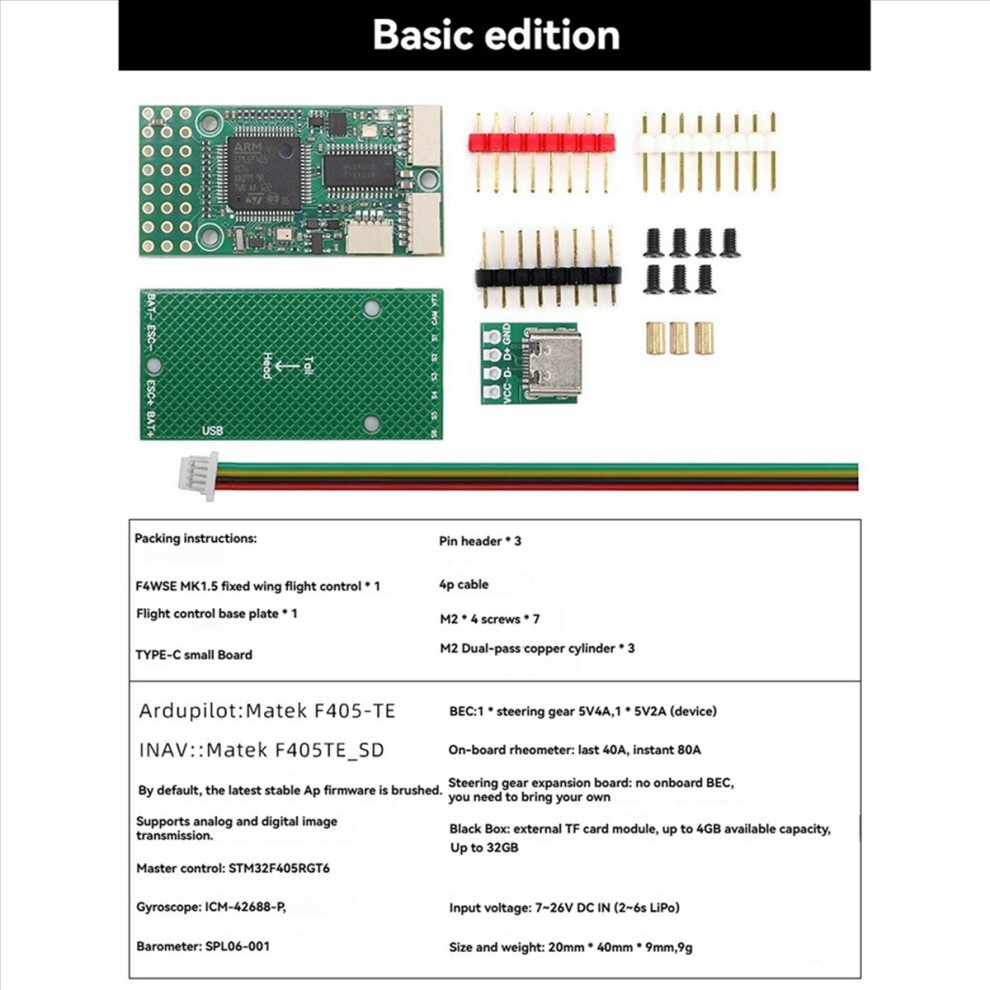

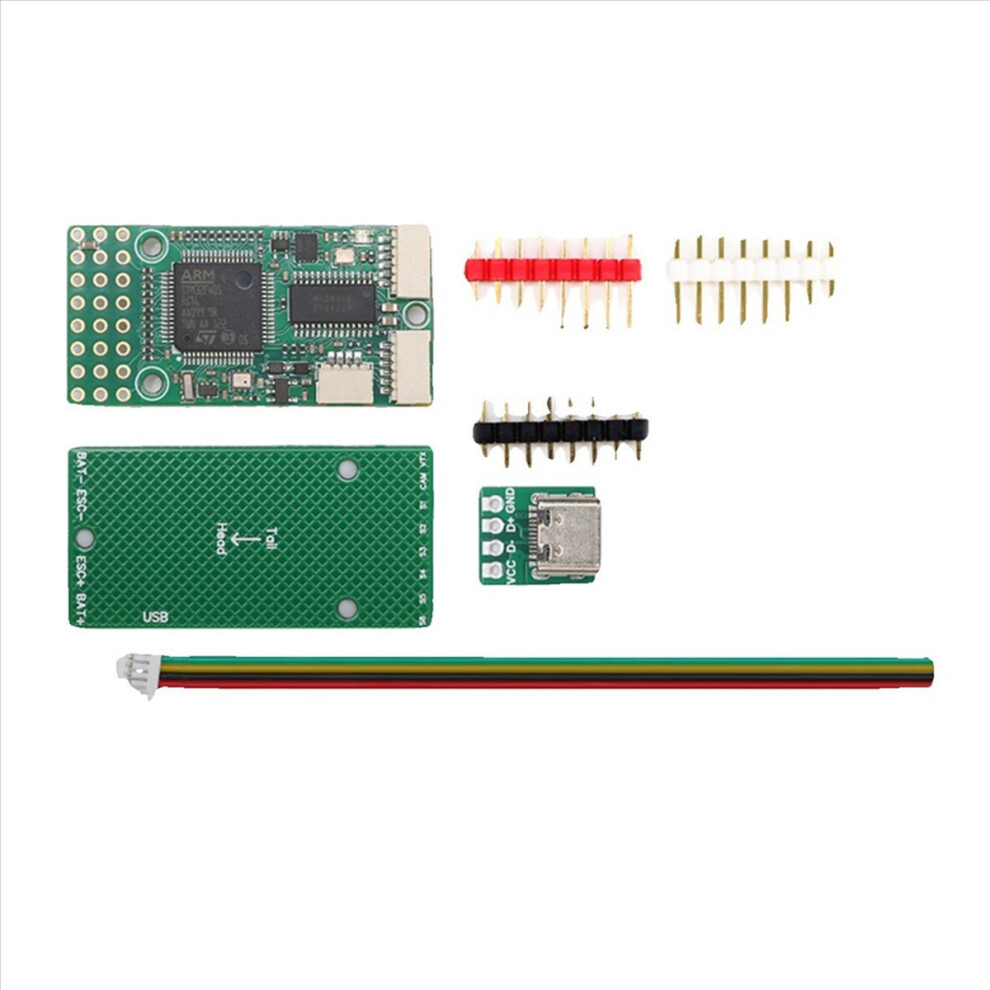

Package Contents:
1 * Flight Controller Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
