F7-45A F722-45A AIO V2 Flight Controller for Advanced Drone Performance

F7-45A F722-45A AIO V2 Flight Controller for Advanced Drone Performance Description

1. High-performance F722 main control, with strong performance and higher computing speed
2. With a complete set of 5 UART ports, you can connect more external devices
3. Independently designed 6P interface, use the cable to directly plug into the terminal
4. Use BLHEILI_S 45A ESC, support 2-6S LIPO battery input, continuous current 45A, instantaneous current 55A (10 seconds)
5. Support OSD adjustment, buzzer, LED and other functions

25.5mm x 25.5mm installation hole, suitable for most racks
Product name:F7-45A AIO V2

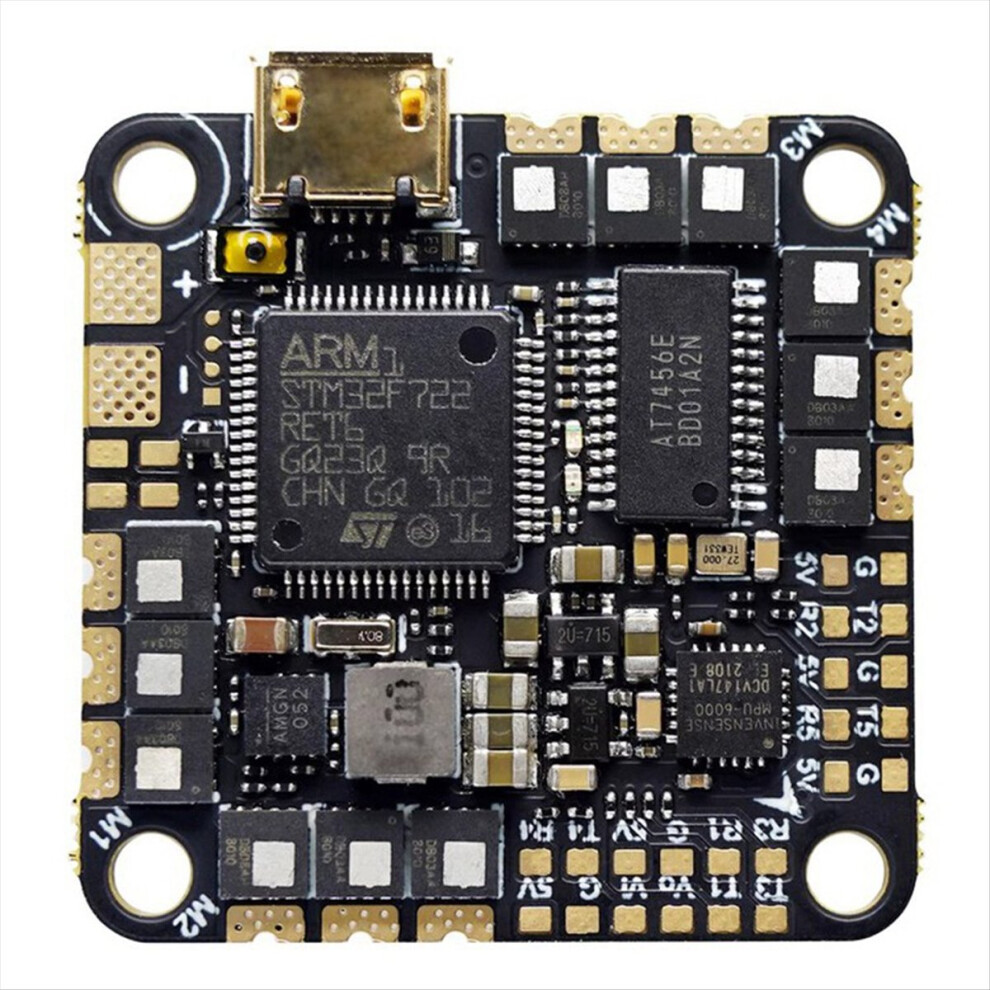

MCU: STM32F722
IMU: accelerometer (SPI)
Flight controller firmware: GEPRC_F722_AIO
OSD: Betaflight OSD w/ AT7456Ev
Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Buzzer: YES
LED: YES
USB port: Micro-USB
BEC output: 5V@1A

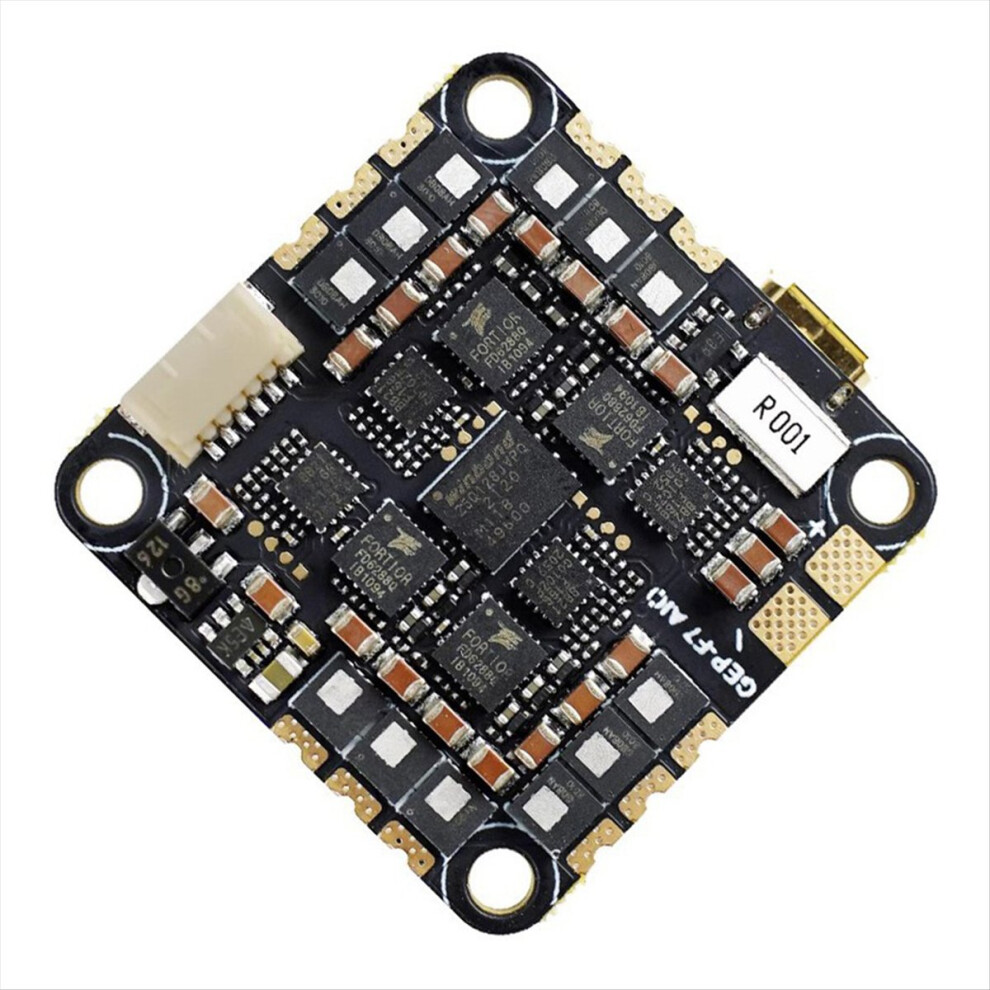

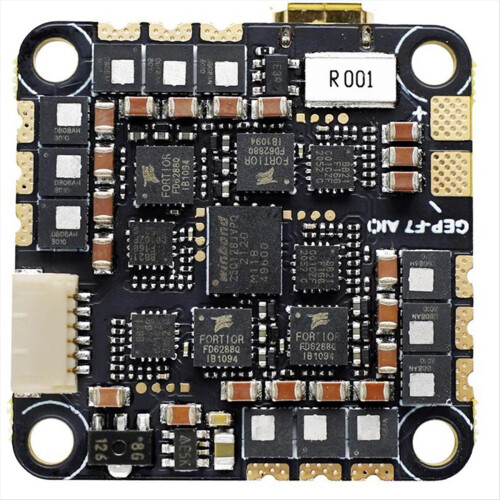

ESC MCU: BB21F16G
Continuous current: 45A
current: 55A (10s)
Input: 2~6S (LIPO Battery) (without battery)
ESC protocol: Dshot600, Oneshot, Multishot
Ammeter: 210
ESC firmware: G_H_30

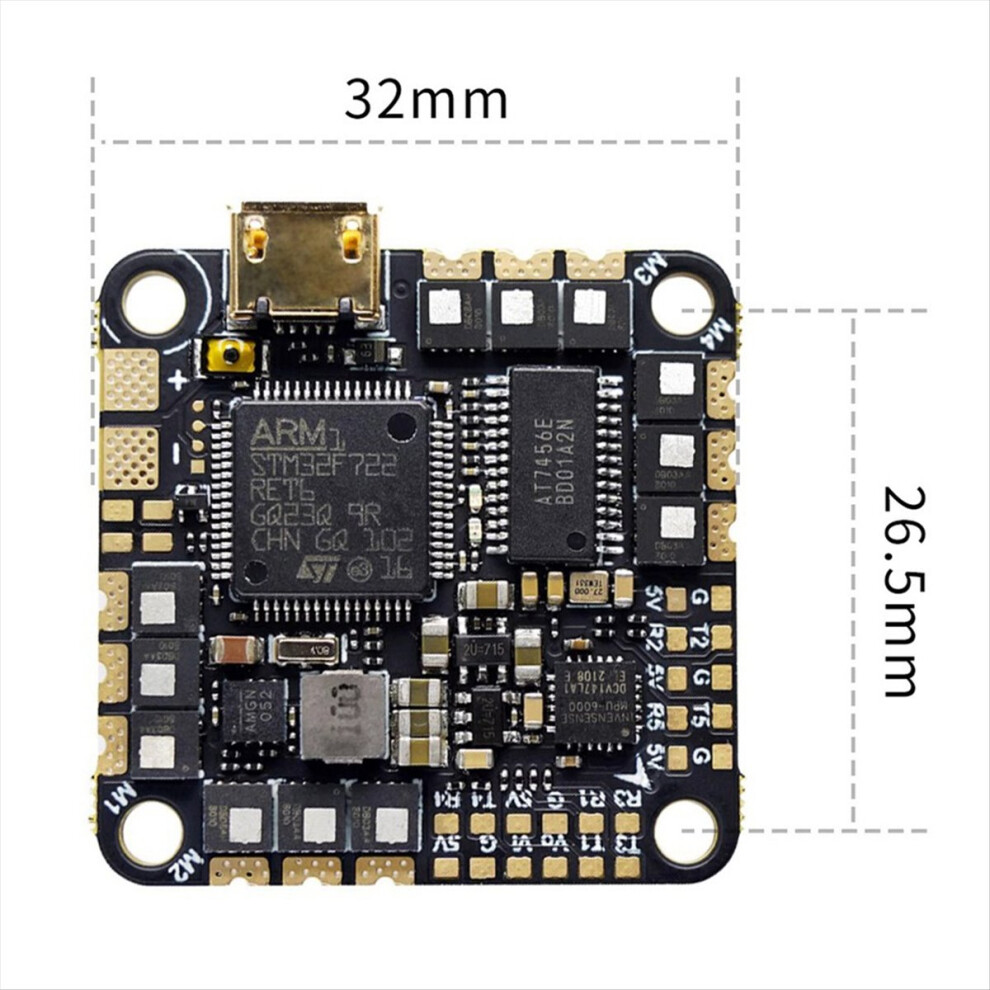

Size: 32x32mm Board
Mounting hole: 25.5mm x 25.5mm
(Due to different batches, the product appearance and printing may be different, but it not affect the use)
Color: As Shown
Material: PCB

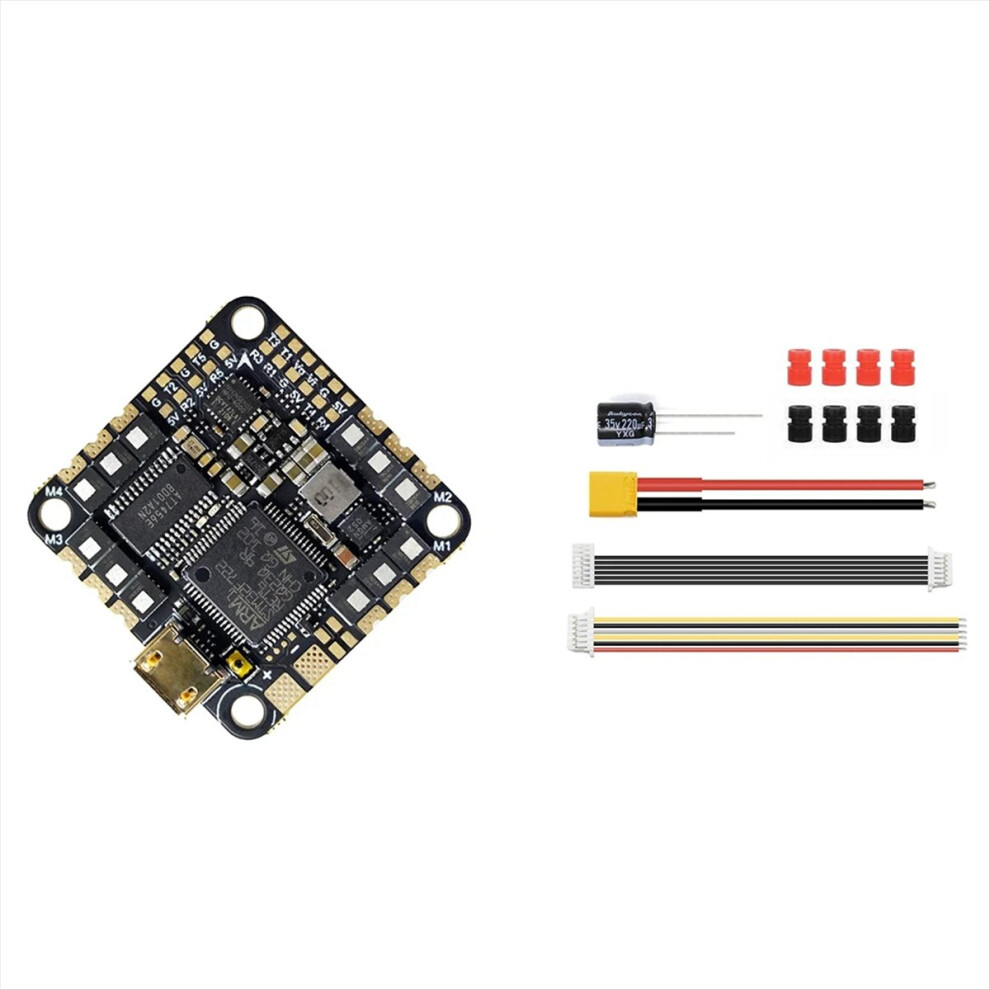

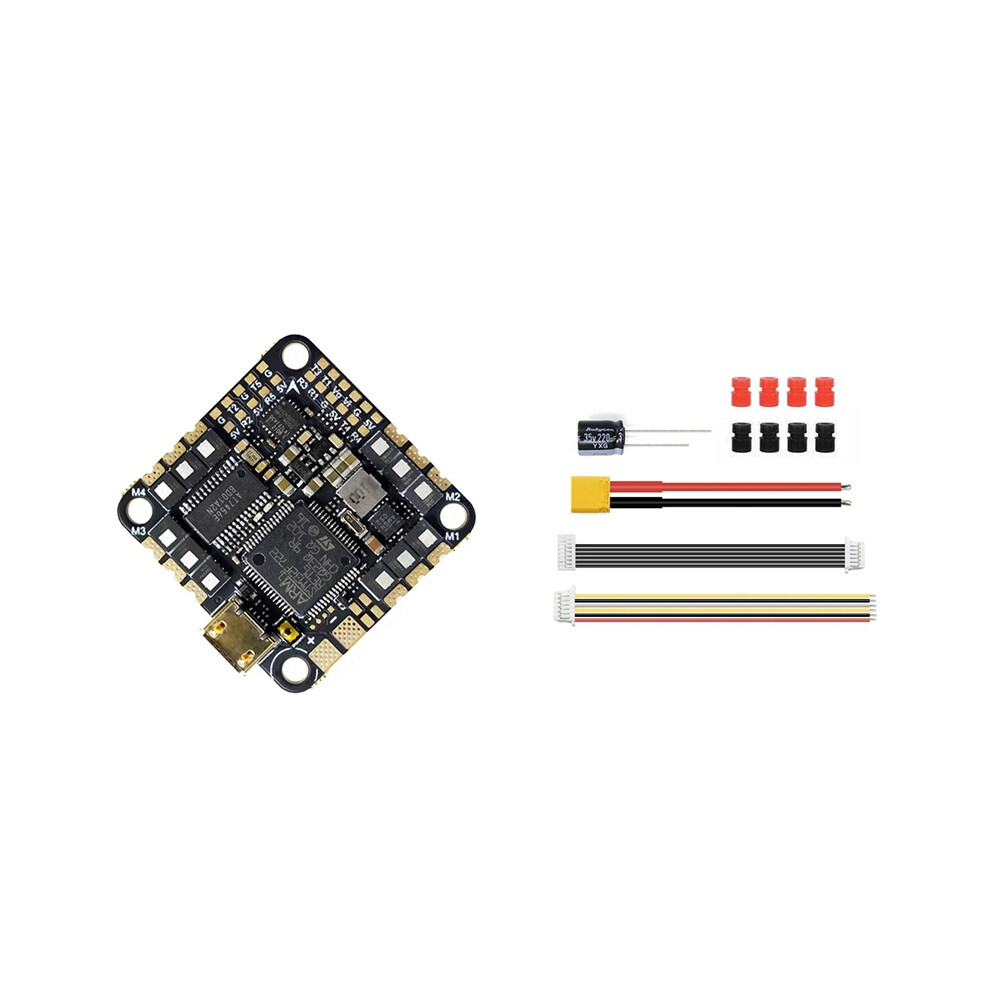

Package Contents:
1 x F7-45A AIO
1 x XT30-7CM-18AWG power cord
1 x 35V220UF capacitor
1 x SH1.0-6P cable
1 x matching screw package

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
