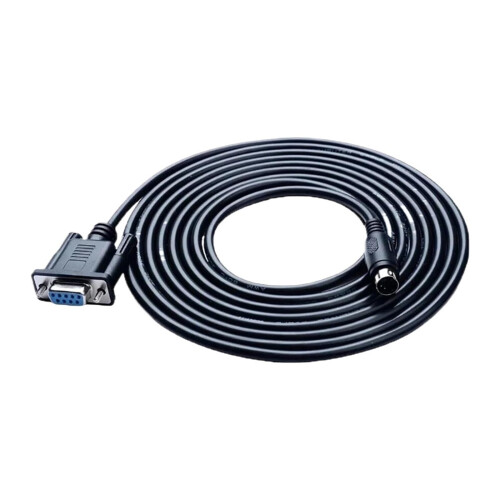

FBS232P09F For PLC Series Programming Cable RS232 Serial Port Data Download

FBS232P09F For PLC Series Programming Cable RS232 Serial Port Data Download Description

FBS232P09F is a dedicated RS232 programming cable designed for the FBS FB1 Series PLCs. It provides a serial port link for programming and data transfer between a PC and the FB1 PLC, enabling straightforward download of programs and exchange of configuration data. Key benefits Enables direct RS232 serial communication with FB1 Series PLCs for programming, data download, and parameter transfer. Supports efficient setup and maintenance of FB1 PLC projects by connecting a PC to the PLC's serial port. Designed for compatibility within the FBS FB1 ecosystem, helping to simplify workflow and reduce setup time. Compact, purposebuilt cable suitable for onsite and workshop use, reducing the need for adapters or additional hardware. Key attributes Functionality: Serial port programming and data download for FB1 Series PLCs via RS232. Compatibility: FBS brand products, specifically the FB1 Series PLCs. Interface: RS232 serial port connection. Connector details: 9pin interface (9F) suitable for standard RS232 wiring to PLC and PC equipment. Size and materials: Not specified in this listing; refer to packaging or supplier specifications for exact length, jacket material, and connector construction. Performance: Enables reliable data transfer for programming and data exchange between PC software and FB1 PLCs through a dedicated serial path. Two to three use cases Programming and firmware or project updates: Use with PCbased programming software to upload ladder logic or configuration data to the FB1 Series PLC via RS232. Data backup and restoration: Connect to a PC to download and archive PLC programs and settings for version control and disaster recovery. Commissioning and troubleshooting: During site installation, establish a stable serial link to read, verify, and diagnose PLC program behavior and communications with peripheral devices. Notes For results, ensure your PC has an available RS232 serial port or an appropriate USBtoserial adapter, and configure the programming software to use the correct COM port settings as required by the FB1 Series PLC. Refer to the FB1 Series documentation and the FBS product manual for any modelspecific instructions, supported software, and recommended serial parameters.
