FC SM Simplex Fibre Optic Patch Panel Mount Gland Coupler Joiner Single Mode SX

FC SM Simplex Fibre Optic Patch Panel Mount Gland Coupler Joiner Single Mode SX Description

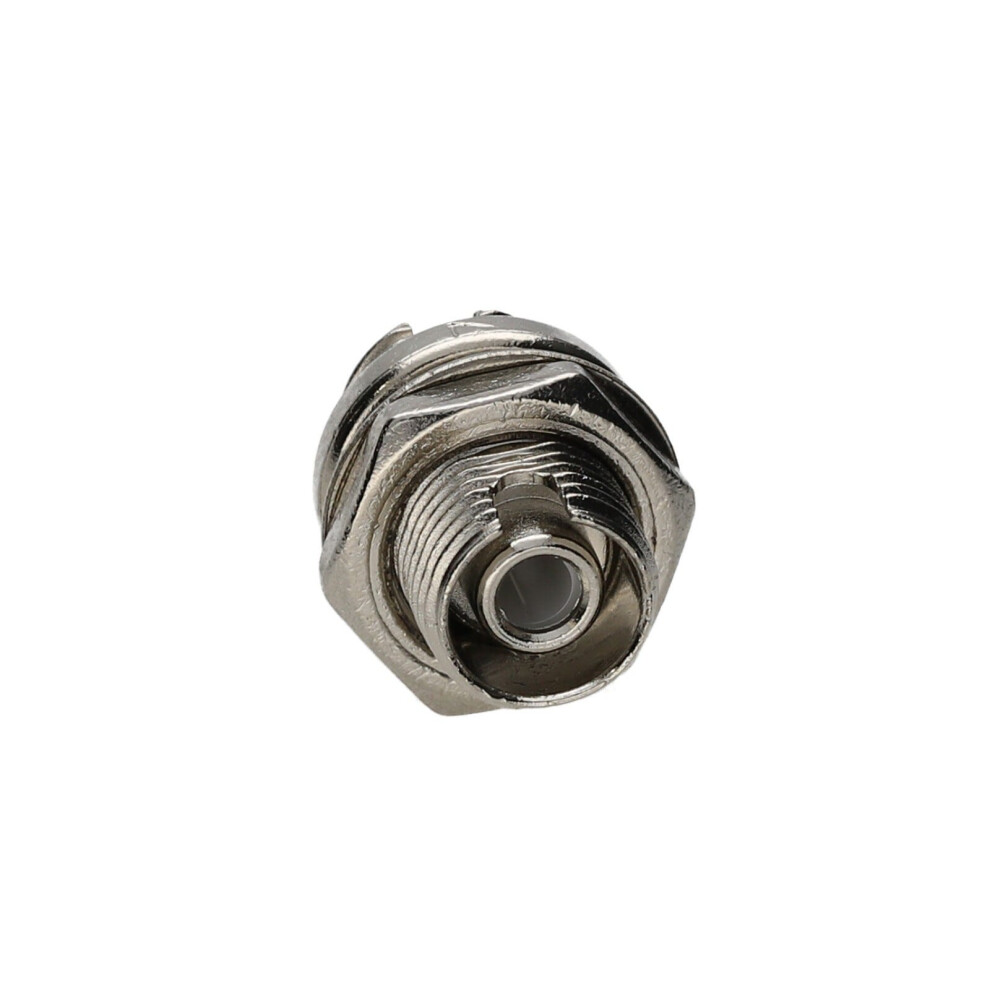

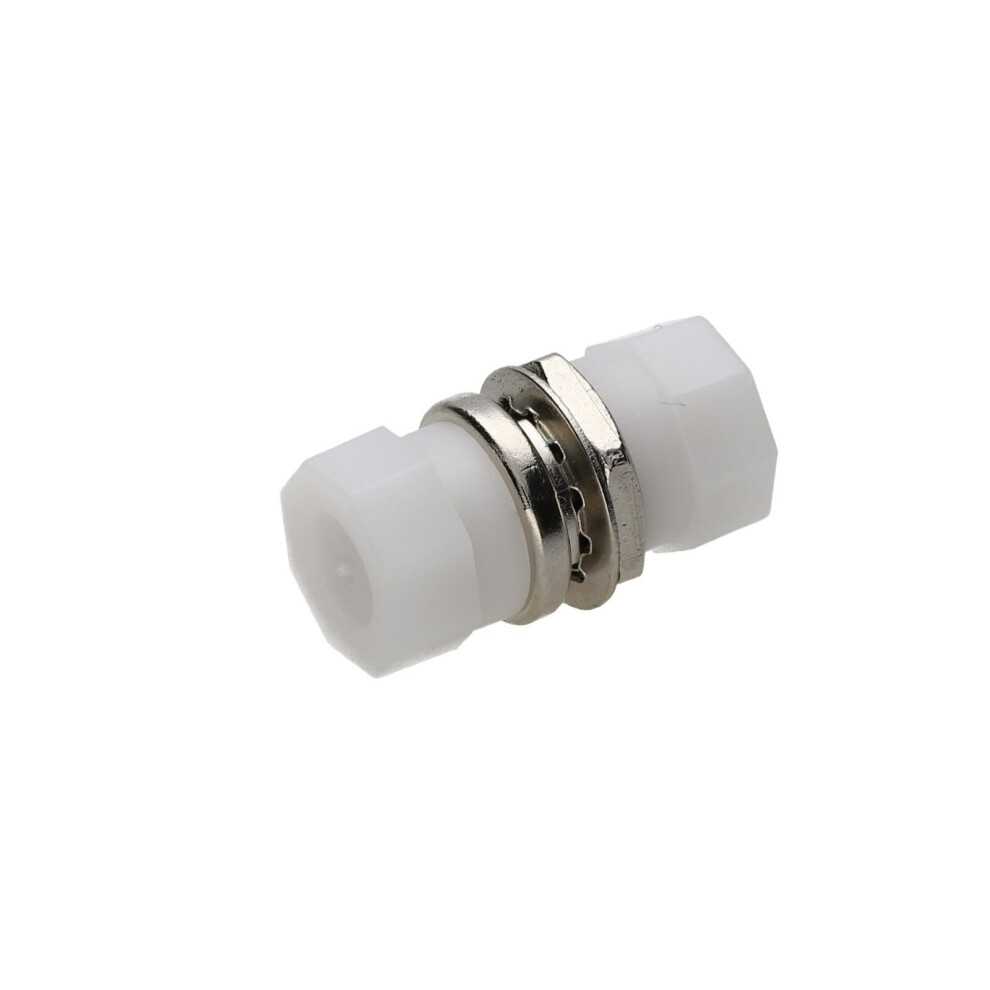

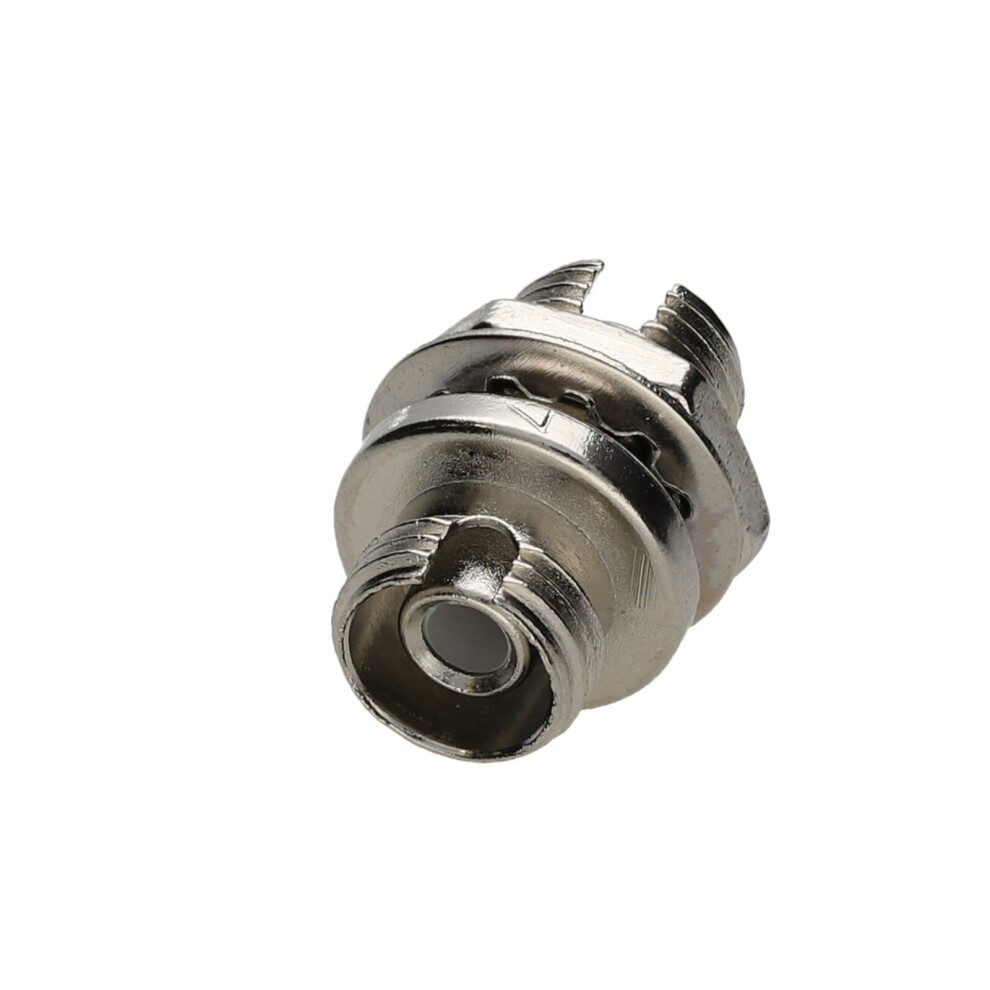

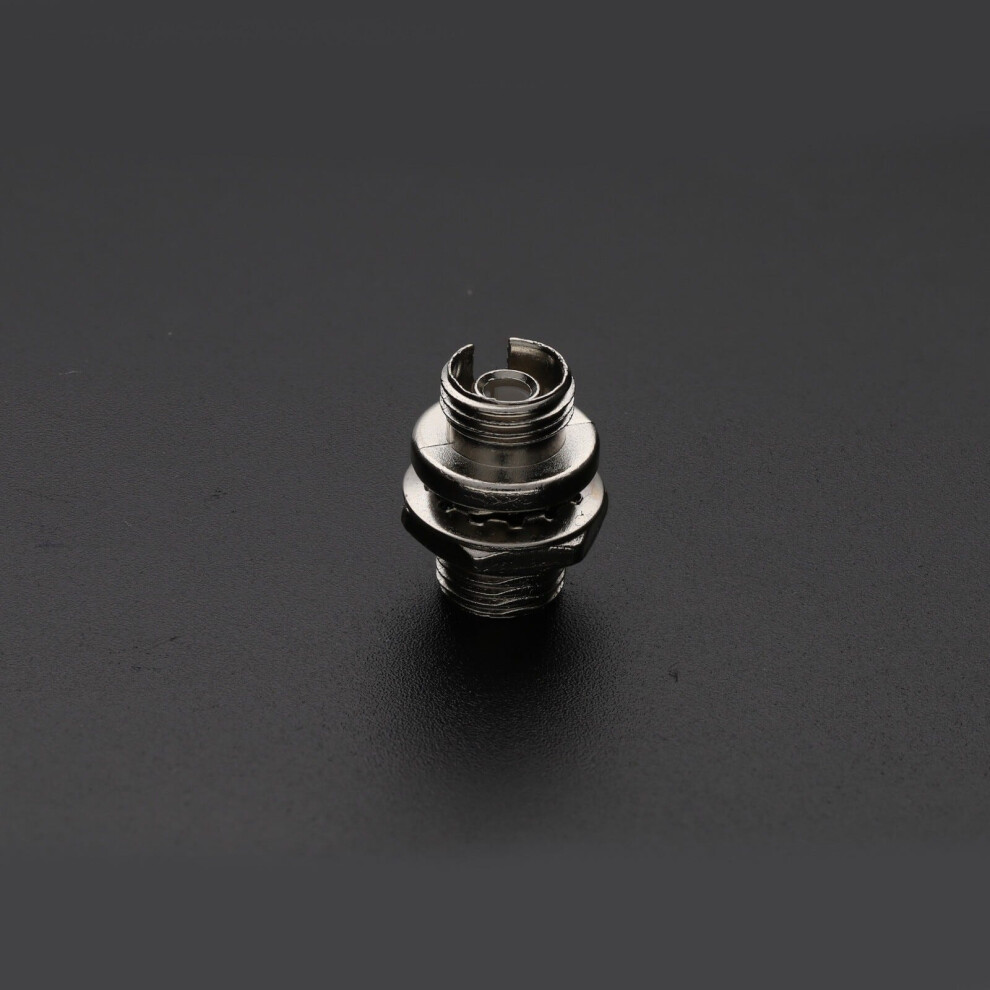

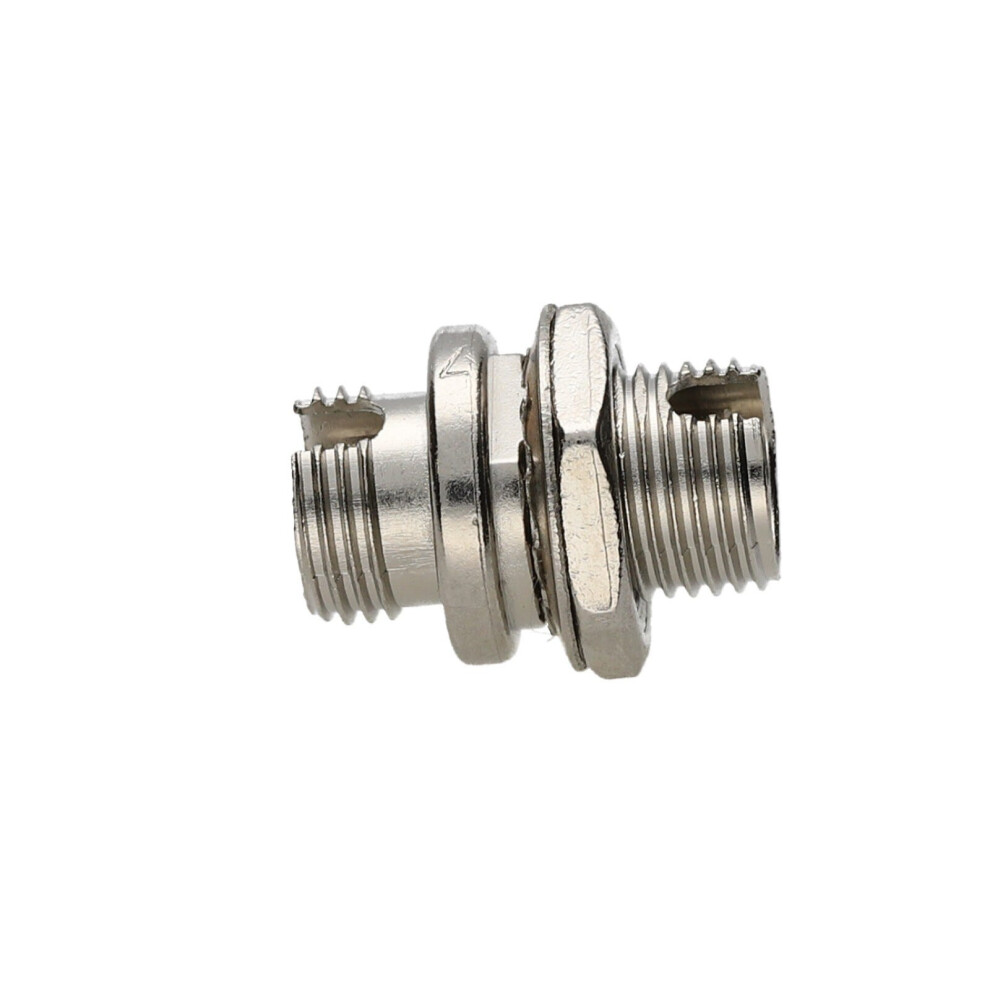

FC fibre optic simplex Single Mode adapter with ceramic sleeves as standard Designed for panel mount applications the coupler can be mounted in most surfaces providing a thorough style connection for your cables. Simply drill a 8mm hole feed the coupler through the hole and secure using the supplied locking nut and washer. The housing has a D-hole profile. FC Panel Mount Coupler Single Mode Simplex Adapter Supplied with dust caps Suitable for: Local area networks Premise installations Active device and test equipment Field deployable video and broadcast Features: Low insertion loss High precision ceramic alignment sleeves as standard RoHS REACH SvHC compliant Designed to conform to or exceed all relevant ISO/IEC and TIA/EIA standards Insertion Loss (Typ) (db) 0.1 Mating Durability 500 Receptacle Retention Force 2N - 5.9N Operating temperature (C) -25 to +70 12 cycle
