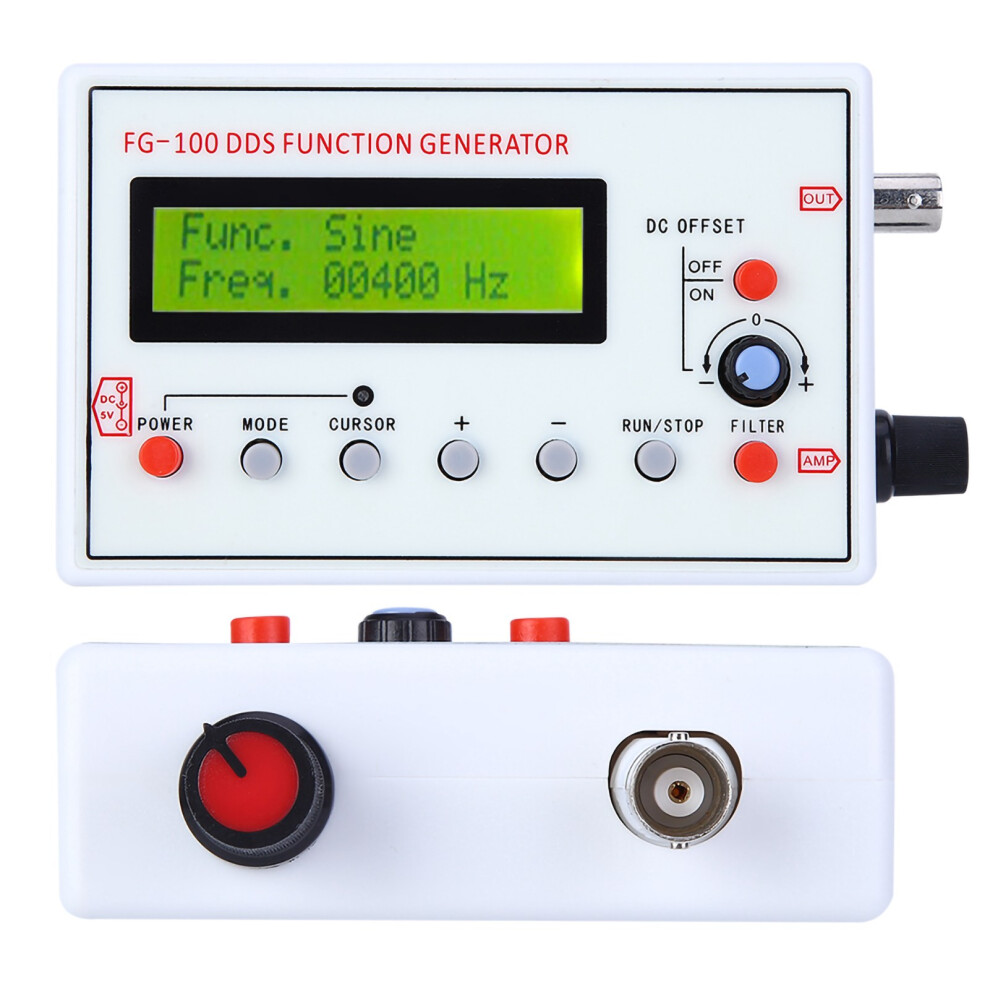

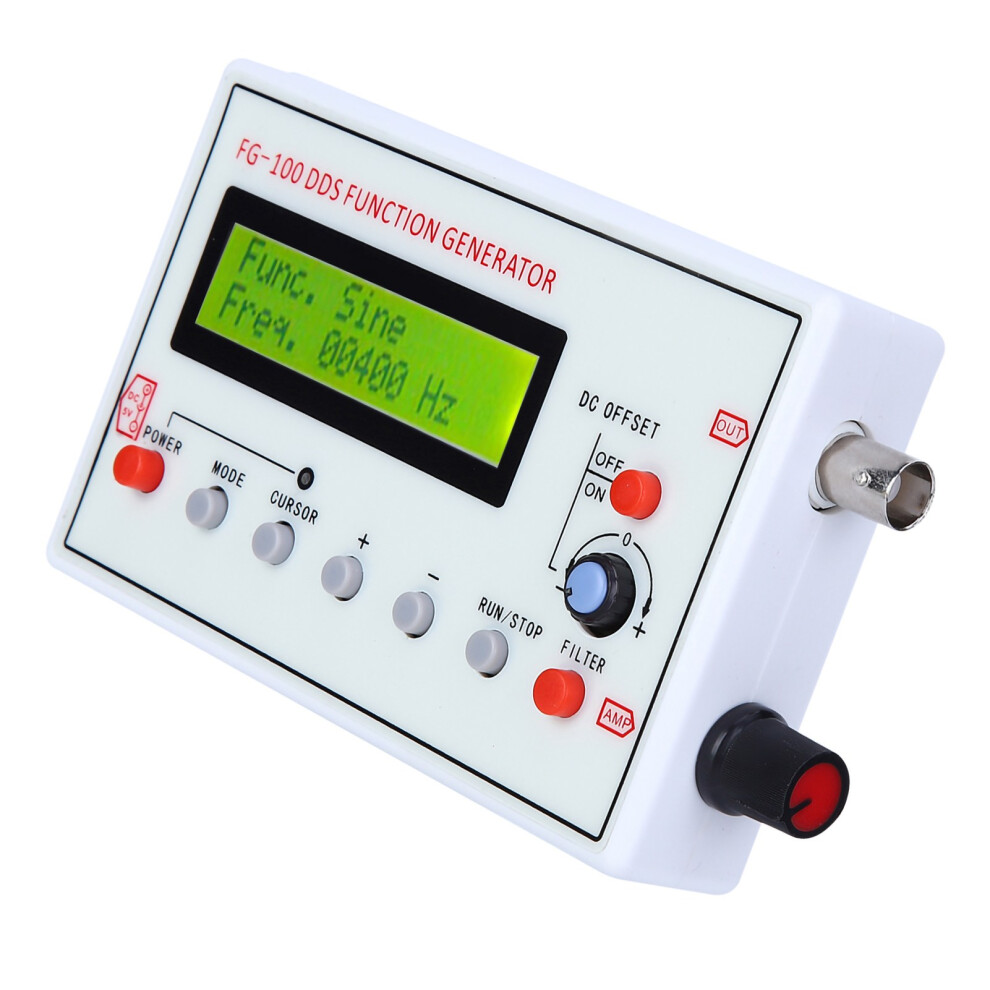

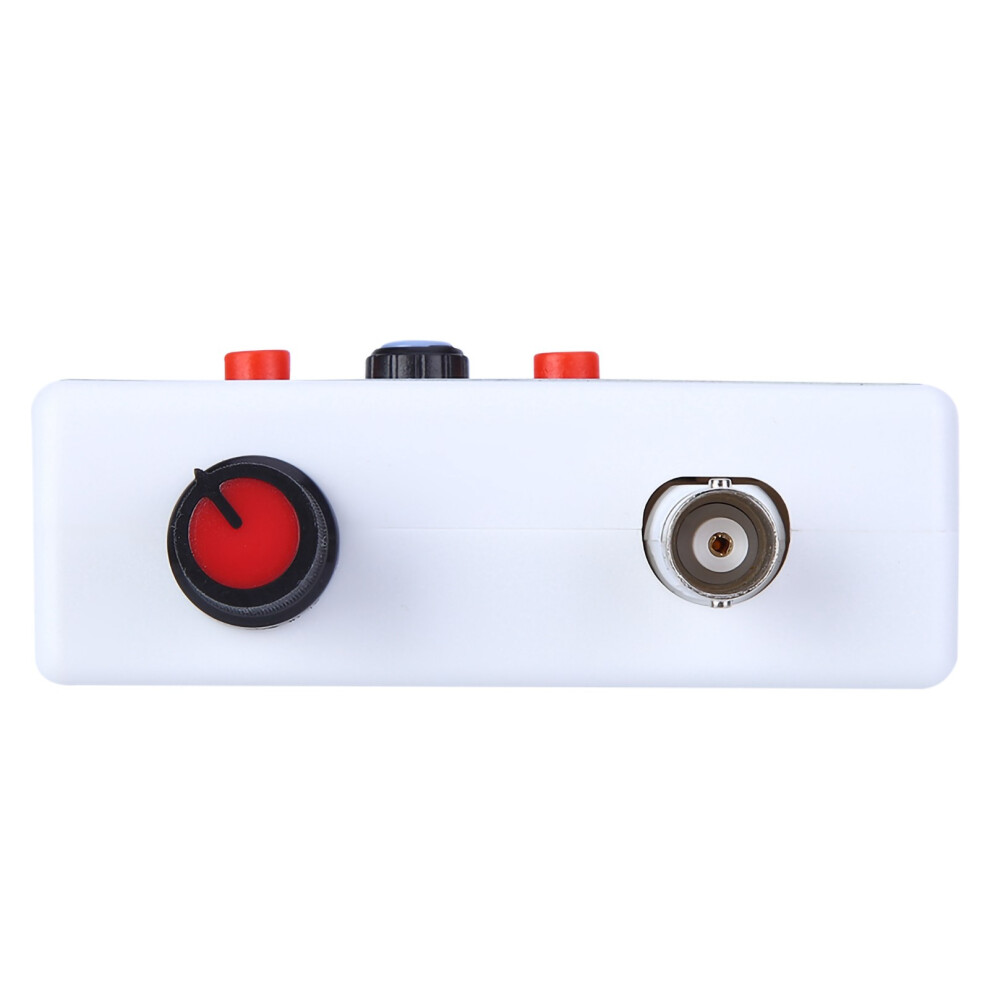

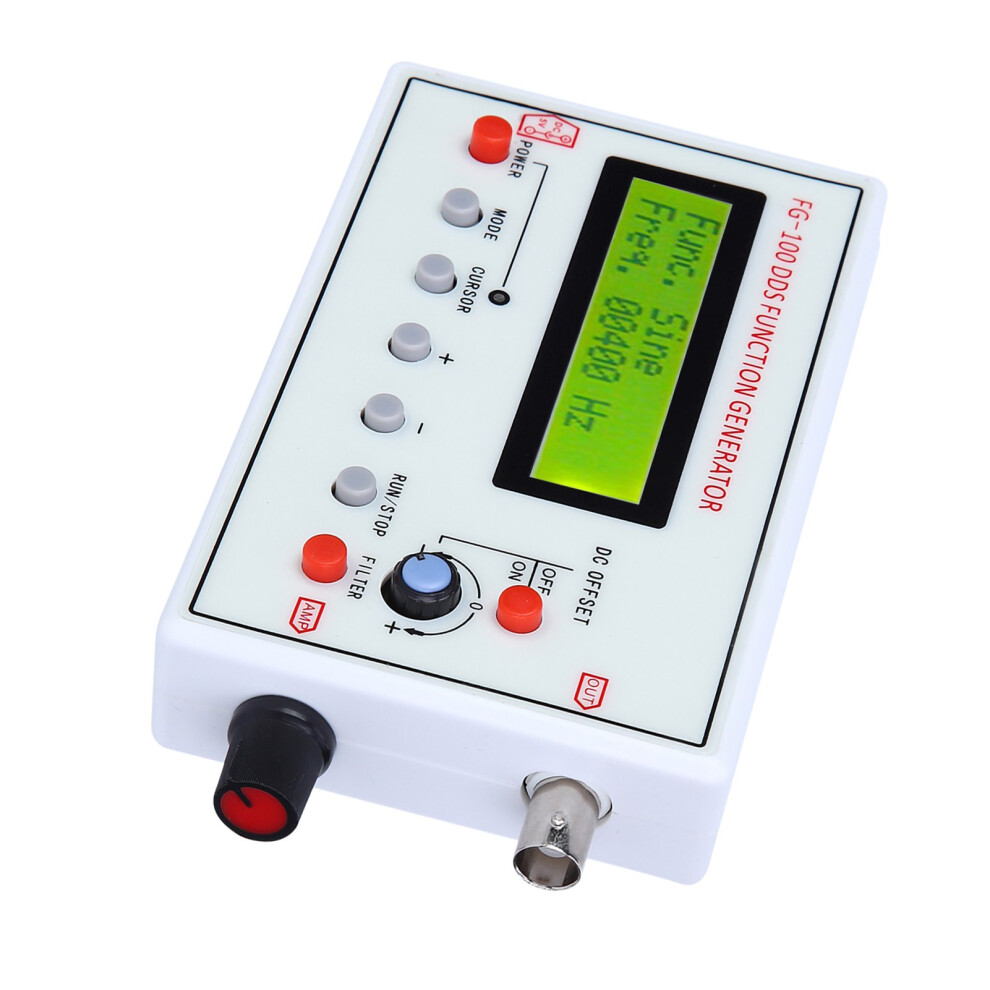

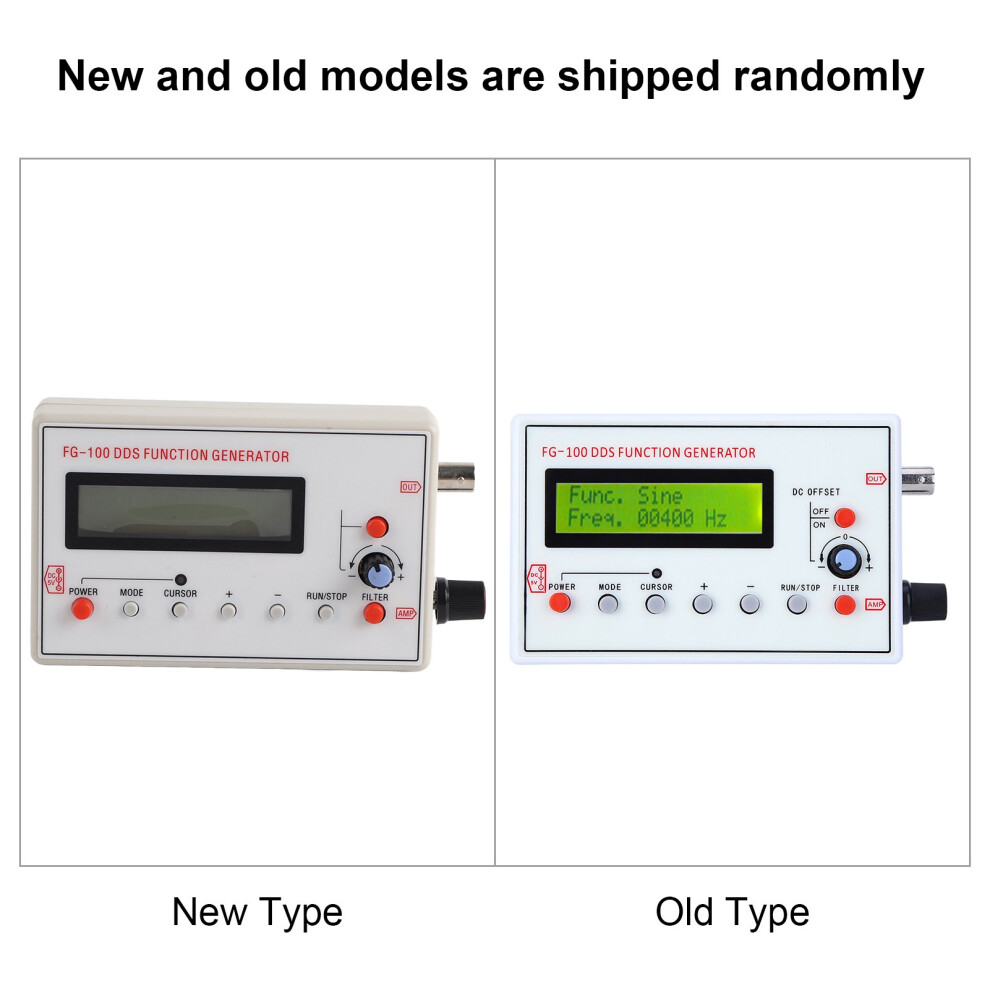

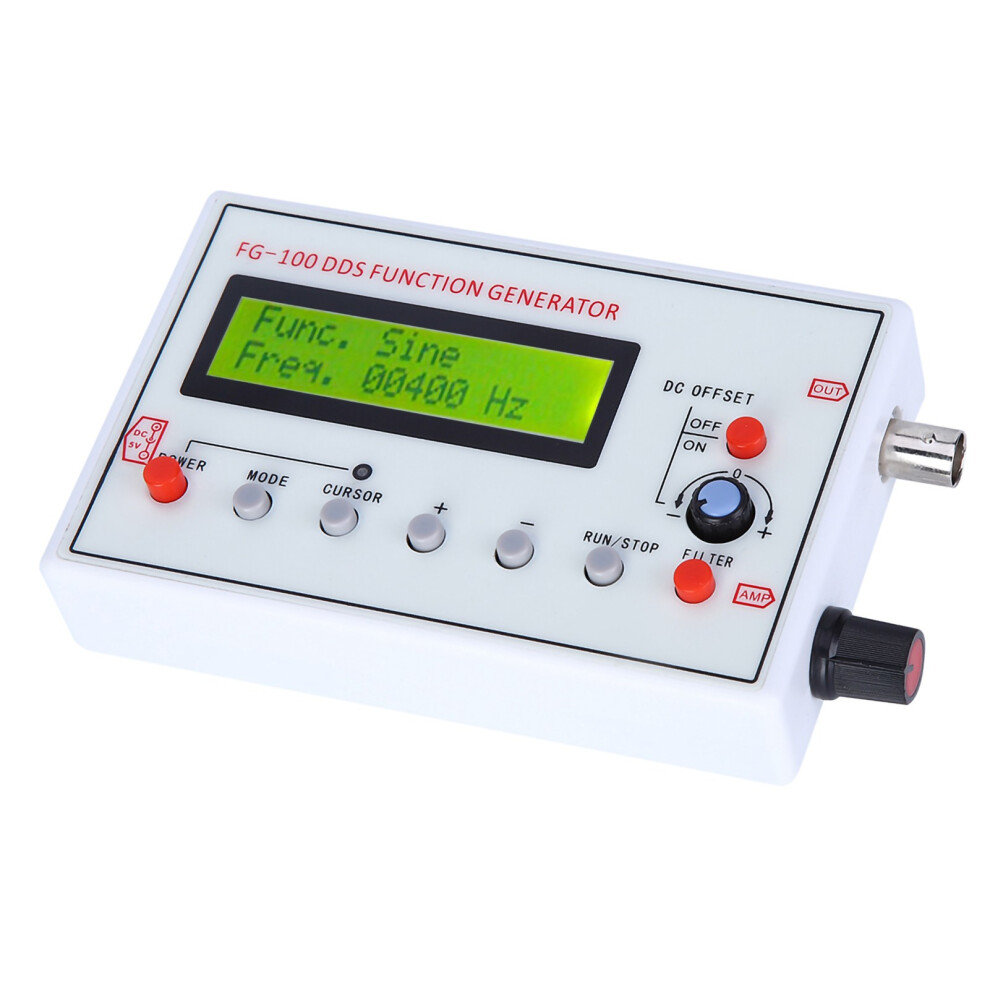

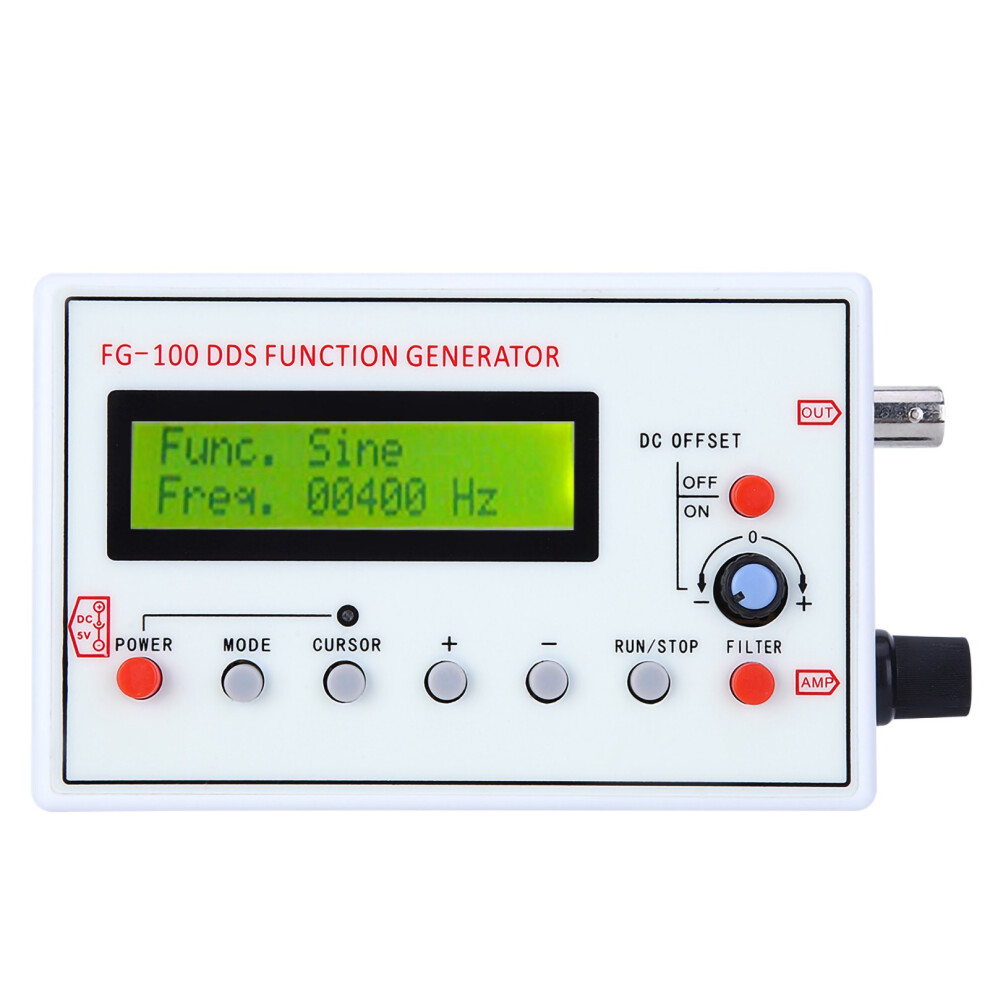

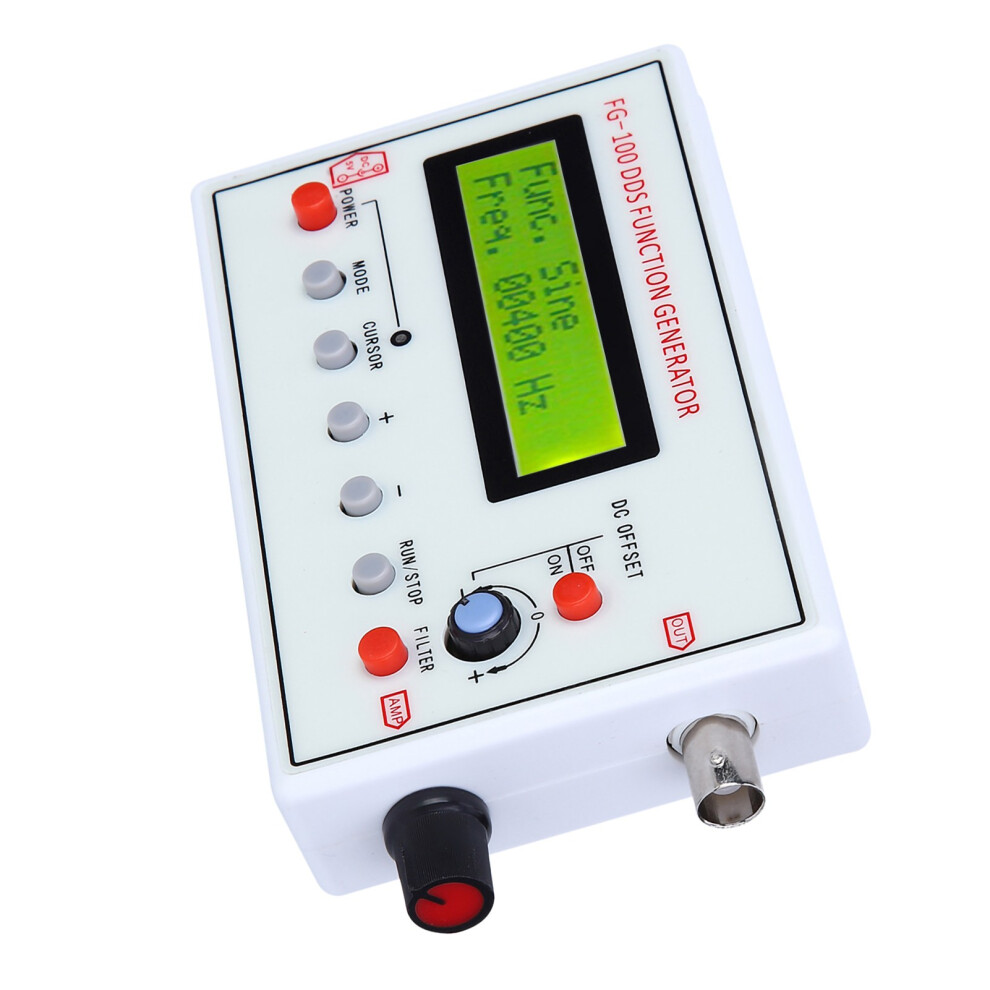

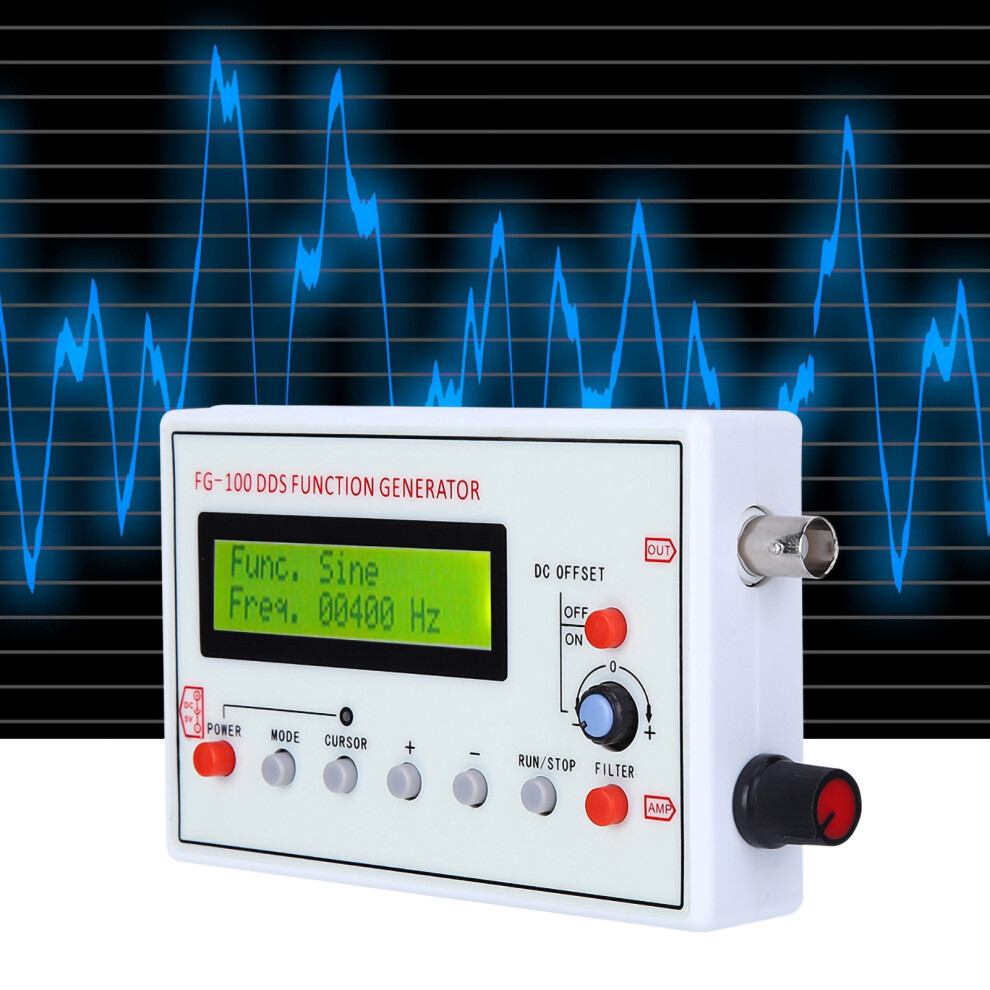

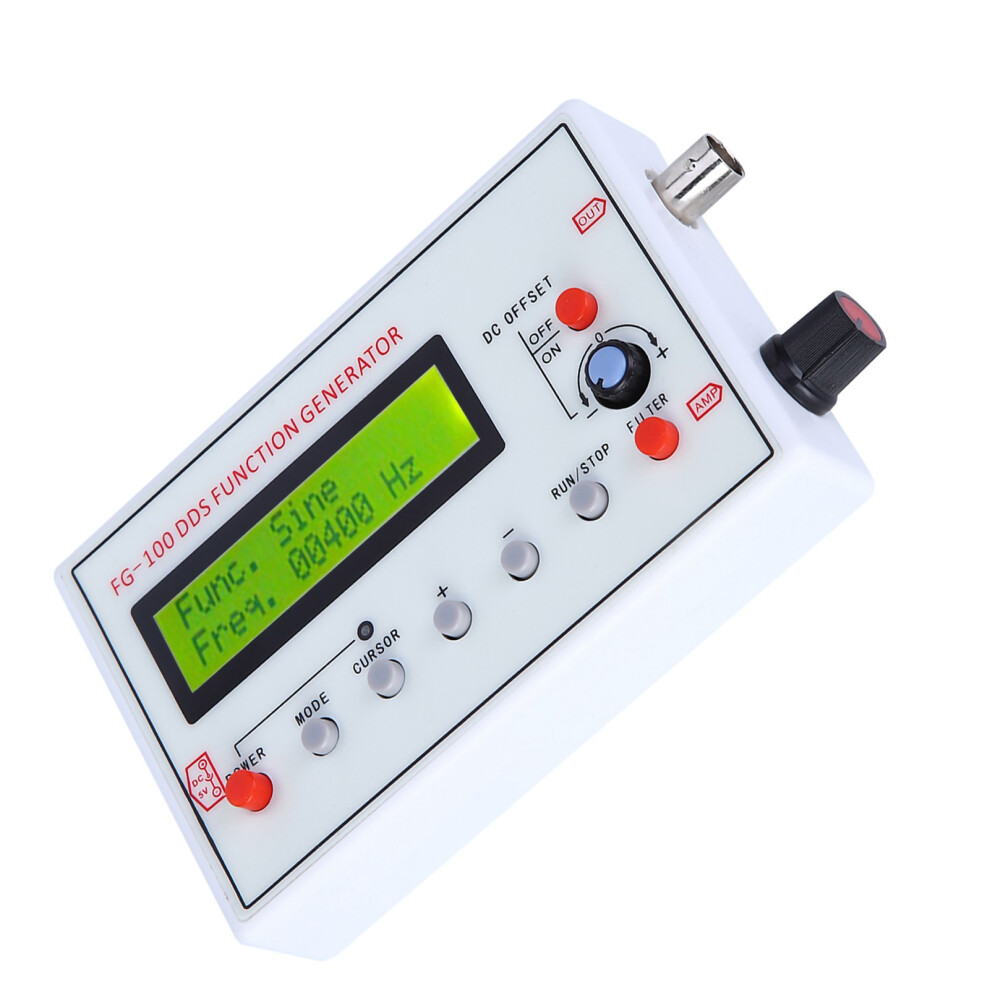

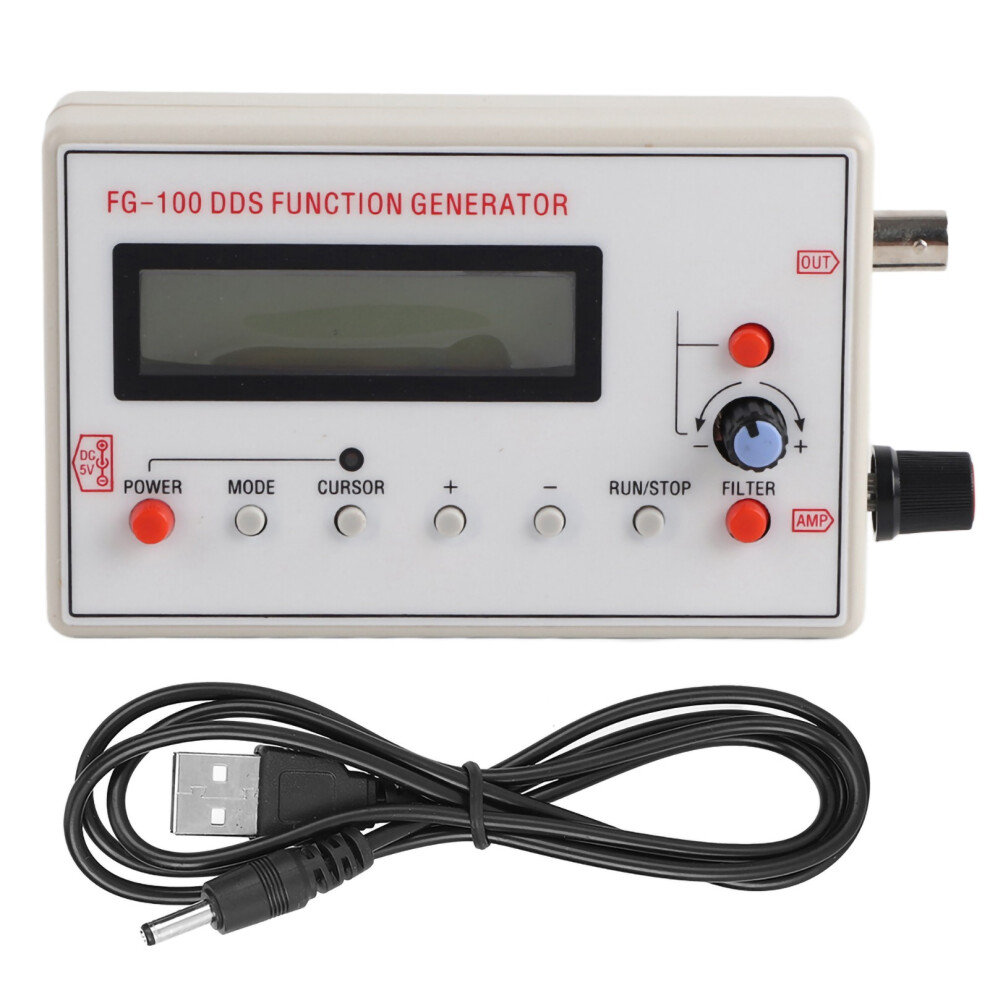

FG‑100 DDS Signal Generator 1Hz‑500KHz Sine Wave, Multi-Waveforms
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
£24.21
£33.16
27% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 30th Jun - Thu 2nd Jul
Returns: 30 days
180-day payment protection
Description & Details
Summary
- Due to the high precision and stable frequency of the DDS, it is also very suitable for the oscilloscope's scan time calibration factor.

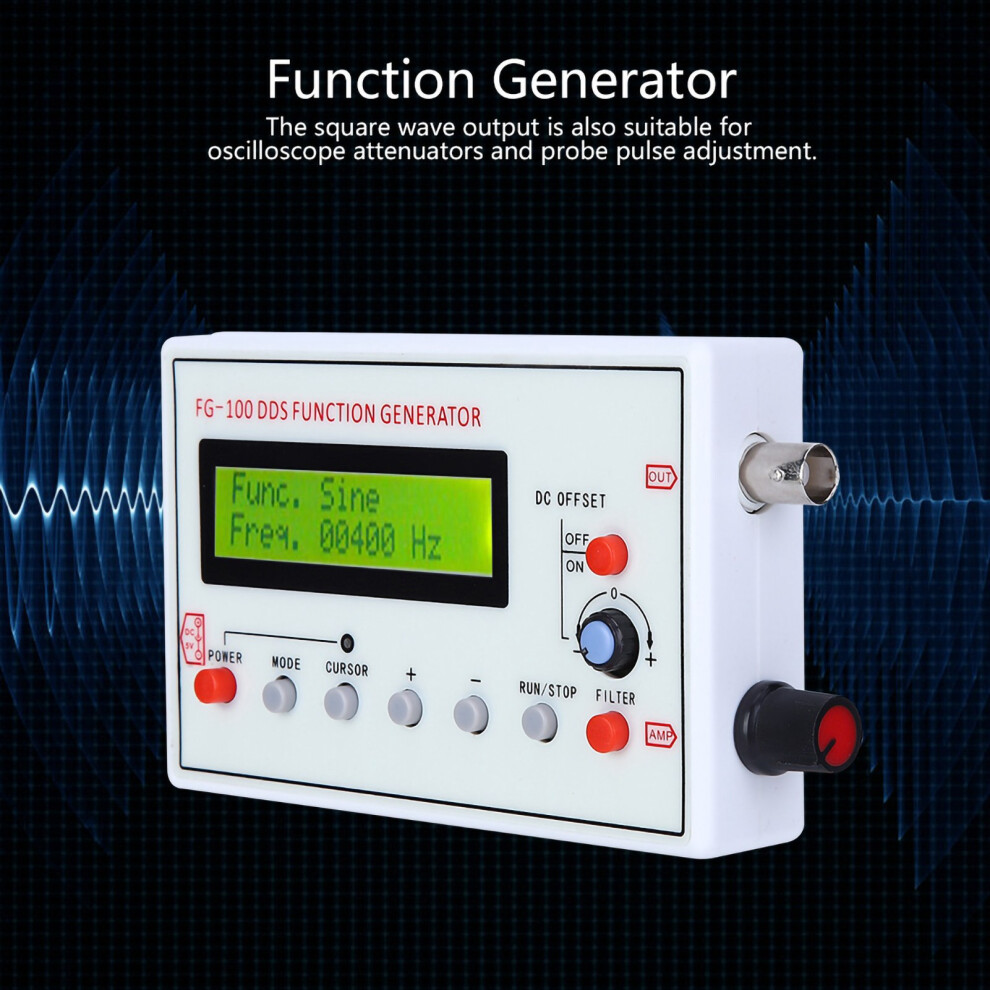

- The square wave output is also suitable for oscilloscope attenuators and probe pulse adjustment.
- The main output waveform are sine wave and square‑wave, triangular wave, sawtooth wave.
- Have a filter (can be turn on/off ) to suit the output of sine wave and pulse wave.
- Small size, multiple functions, simple operation, easy to carry.
FG‑100 DDS Signal Generator 1Hz‑500KHz Sine Wave, Multi-Waveforms Description
FG‑100 DDS Function Generator Sine Frequency 1HZ‑500KHz Counter Signal Source Generator Meter
Item Type: Function Generator
Material: ABS
Color: As shown in the picture
Frequency Range: Sine wave 1Hz~500kHz (Magnitude is flat up to 200kHz, above 200kHz, the magnitude may drop as frequency increases), other waveforms 1Hz-20kHz with good phase noise and small distortion, if you don't care the phase noise and distortion, it can output full frequency range.
Resolution: 1Hz
Output Waveforms: Sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave.
Sinewave Distortion: 1% (frequency <1kHz); 0.5% (frequency >=1kHz)
Output Amplitude: Maximum 10V(P-P).
Output Impedance: 50 ohm
DC Offset: Maximum 10V, can be disabled
Internal Filter: For sinewave or pulse, can be turn on/off
Power Supply: DC3.5-10V. DC 5V adaptor or 3.7V Lithium battery is recommended.
Weight: Approx.172g/6.1oz
Details
| OPC | PQCX7T2 |
|---|---|
| Codes | 4681379714154 (EAN) |
