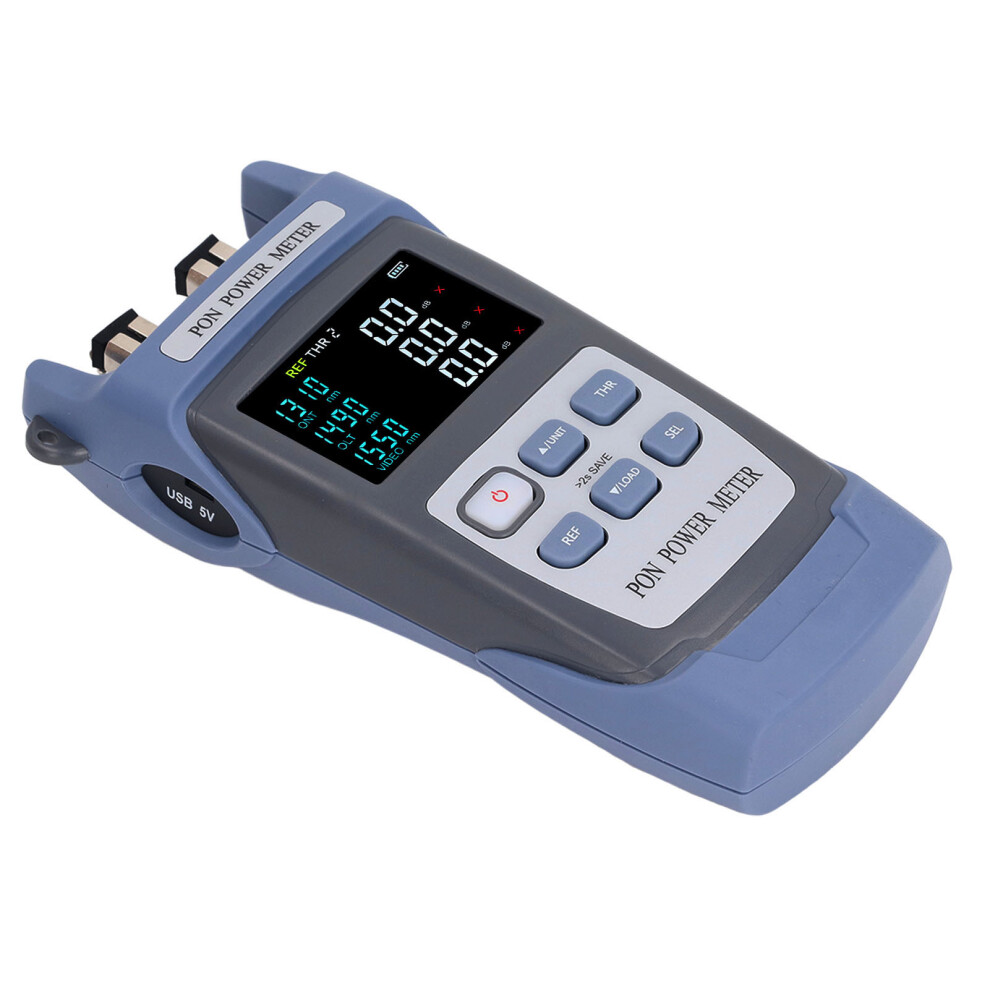

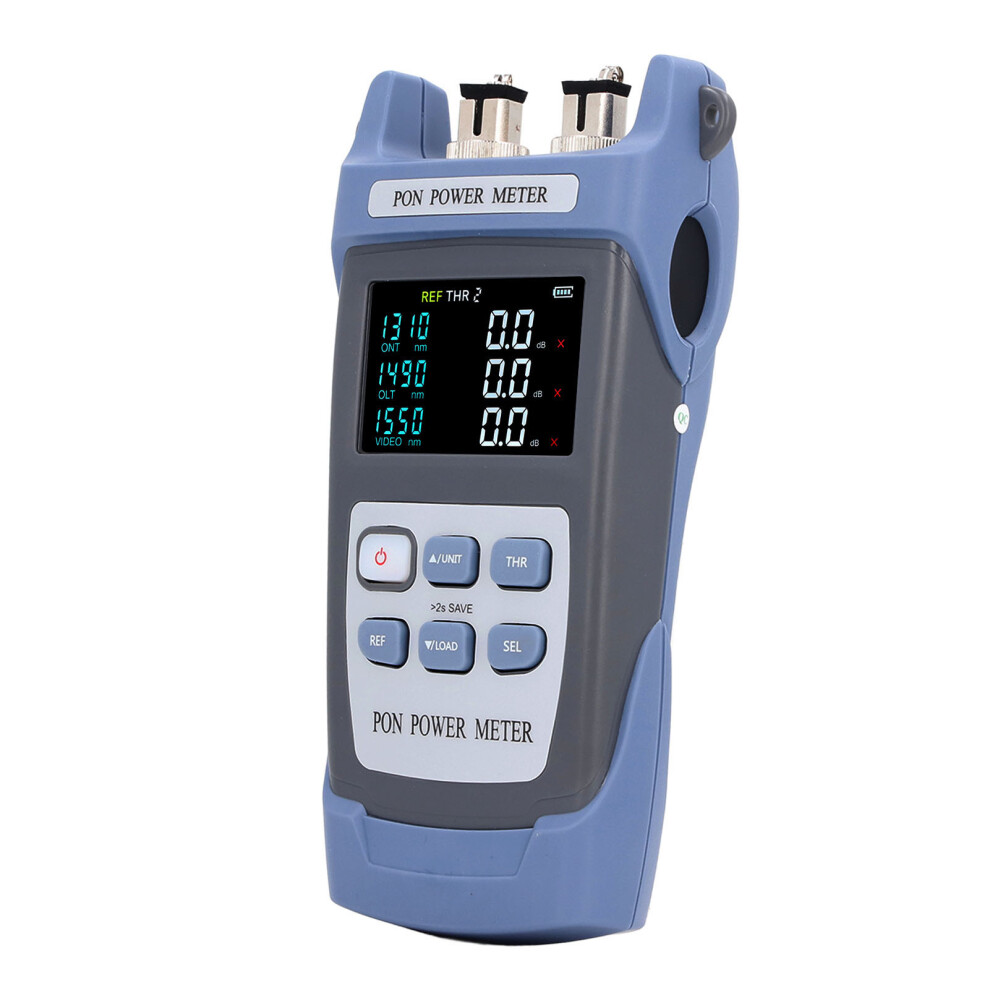

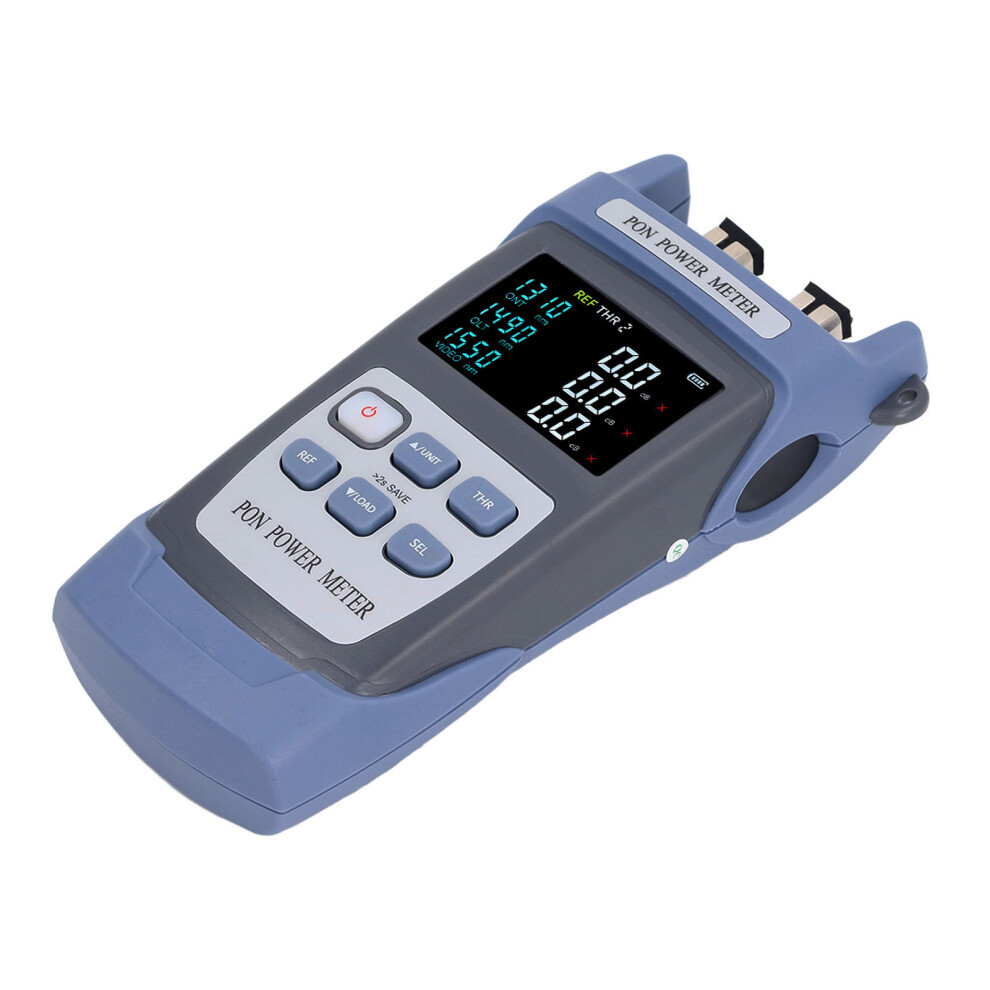

Fiber Optic Power Meter APC Connector LCD Screen Handheld

Fiber Optic Power Meter APC Connector LCD Screen Handheld Description

1、Accurate Measurement: This PON power meter provides accurate power measurement at wavelengths of 1310nm, 1490nm, and 1550nm, with high isolation. 2、User Friendly Design: Equipped with a color LCD screen, this power meter provides clear and easy to read results, also allows for threshold settings and data storage of up to 10 records. 3、Versatile Compatibility: The PON power meter uses for APC fiber connector, can be easily interchangeable with SC or ST connector, suitable for different fiber optic setups. 4、Good Performance: The optical power meter adopts sensitive chip with sturdy internal structure, high accuracy, optional switching display, and automatic power off function. 5、Multiple Usages: This handheld PON optical testing device can help check the performance of cables, calculate relative power loss, locate faults, and troubleshoot them.
Item Type: PON Power Meter
Test Wavelength
131050nm
149015nm
155010nm
Isolation 1310nm
>40dB
>40dB
Isolation 1490nm
>40dB
>40dB
Isolation 1550nm
>40dB
>40dB
Measuring Range
-35-10dBm
-40-12dBm
-40-25dBm
Measurement Uncertainty: 0.5dB
Insertion Loss: 1.5dB
Detector Type: For InGaAs
Display Resolution: 0.1dB
Fiber Type: SM 9/125μm
Threshold Settings: 10 Sets
Fiber Connector: For APC (interchangeable SC, ST)
Display: Color LCD Screen
Data Storage: 10 records
Data Interface: Micro USB
Power Supply: 3 x 1.5V AA Battery (not included)
Battery Life: Standby >20 hours
Operating Temperature: -10-+50
Storage Temperature: -40-70
Relative Humidity: 0-95% non condensing

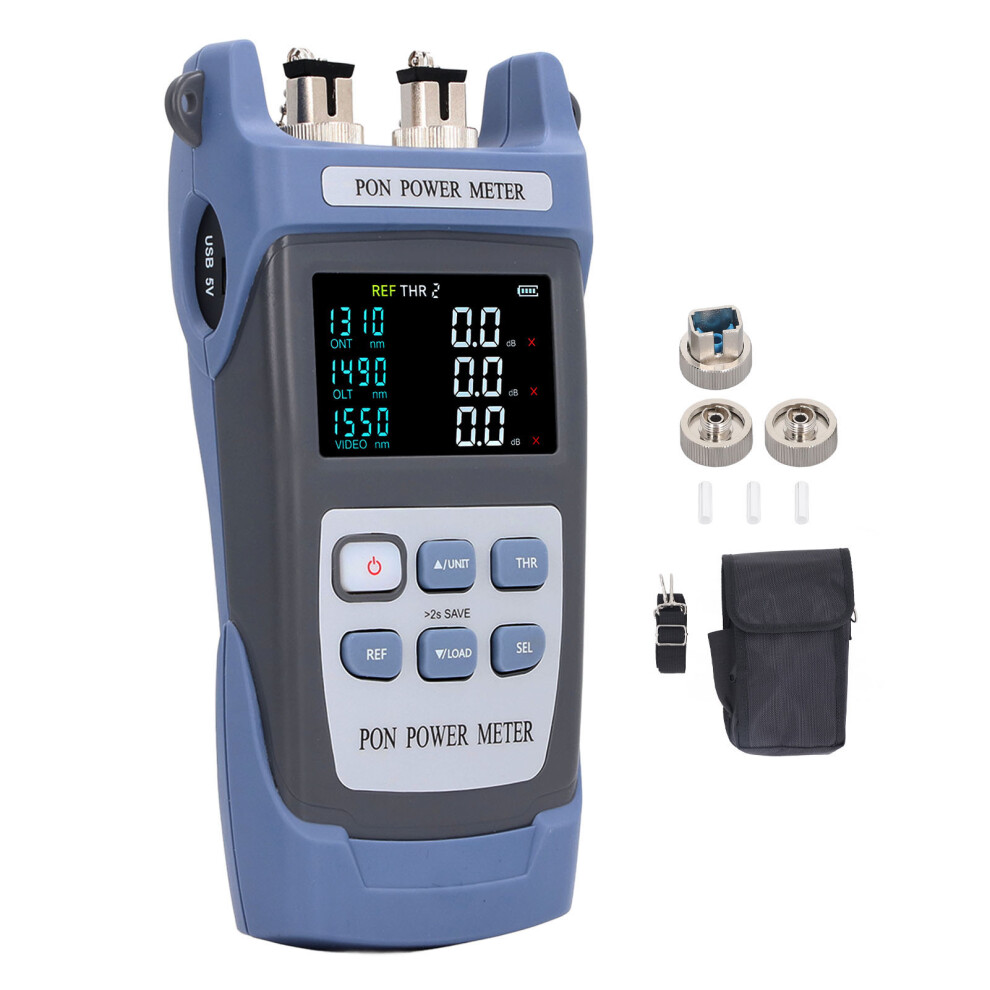

1 x Optical Power Meter
3 x Adapter Heads
1 x Storage Bag
3 x Accessories
1 x Cable Tie
