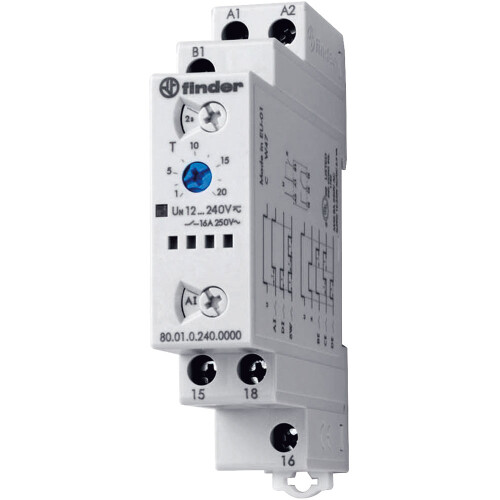

Finder 80.01.0.240.0000 Time Delay Relay, Timer, 1 changeover contact IP20

Finder 80.01.0.240.0000 Time Delay Relay, Timer, 1 changeover contact IP20 Description

The Finder 80.01.0.240.0000 is a Time Delay Relay from the 80 Series. This Multi-voltage/ Multi-function modular timer is 17.5mm width and 35mm DIN rail mountable. It has six time scales from 0.1 second to 24 hour. This flexibility of operation means that specification is simplified and inventory levels can be kept to a minimum.

This multi-function timer has On-delay (AI) , Interval (DI), Symmetrical flasher (SW (starting pulse on)), Off-delay with control signal (BE), On- and off-delay with control signal (CE) and Interval with control signal on (DE). The contact configuration is 1 CO (SPDT). Rated at 1A and with a flexible voltage range of 12 to 240V AC means that specification is simplified and inventory levels can be kept to a minimum

Both flat blade and cross head screw drivers can be used to adjust the function selector, the timing trimmer, and to disengage the 35mm rail mounting clip.

• Monofunction, multivoltage
• 17.5mm wide
• Six time scales from 0.1s to 24h
• 35mm DIN rail (EN 60715) mount
• Contact material: AgCdO
• Contact type: 1 CO (SPDT)
• Dimensions: 60.8(H) x 17.5(W)mm
• Operating voltage: 12 - 240V DC/AC
• Protection type: IP20
• Specification: Timer delay relay switch
• Switching current: 16/30A
• Switching voltage: 250/400V AC
• Temperature range: -10°C to +50°C
• Time range(s): 6 time domains upto 20 hrs
• Manufacturer's part: Finder 80.01.0.240.0000
