Fischer Frame Fixing with Screw Set 10 x 60 T 50 Piece Hardware Wall Plug Set
Brand Fischer
New
£26.80
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary
- Colour: Grey
- Material: Nylon
- Box dimensions: 24,5 x 18 x 6,8 cm (L x W x H)
- Drill diameter: 10 mm
- Anchor length: 60 mm
Fischer Frame Fixing with Screw Set 10 x 60 T 50 Piece Hardware Wall Plug Set Description

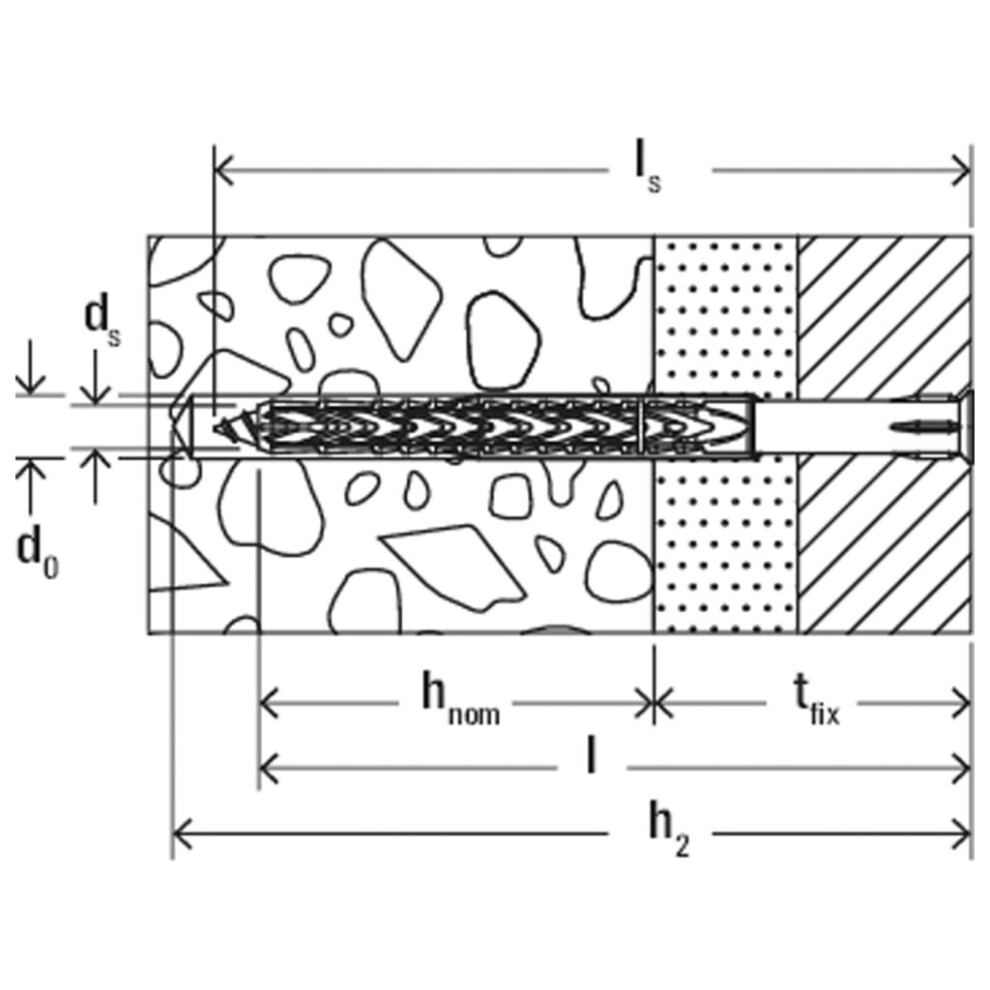

This zinc-plated Fischer frame fixing with screw set SXRL is a perfect tool for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete. The frame fixing set is suitable for push-through installation. When using in aerated concrete and solid building materials, the two expansion zones of the fixing combine to form one long expansion element. In perforated brick masonry, a force transmission that protects the substrate is guaranteed through the two expansion zones. The longer ribs prevent the fixing from spinning during installation. With the special geometry of the plug, these Fischer frame fixings apply loads evenly to the thin-walled building materials. Colour: GreyMaterial: NylonBox dimensions: 24,5 x 18 x 6,8 cm (L x W x H)Drill diameter: 10 mmAnchor length: 60 mmMin. drill hole depth for through fixings: 70 mmUsable length at anchorage depth 50 mm:10 mmDrive: TX40ETA-approvalTwo expansion zones in the fixingLoads evenly appliedRibs prevent plug rotationEasy to installDelivery includes:50 x SXRL frame fixing with countersunk head screw (10 x 60)
Details
| OPC | P8895K5 |
|---|---|
| Brand | |
| Codes | 4048962330137 (EAN) |
| MPN | 546477 |
| Links | Fischer Wall Plugs |
Product Data
| Weight | 1,05 |
|---|
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
The fischer frame fixing SXRL-T is approved along with the fischer countersunk head screw with TX40 drive for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete. The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material. The frame fixing with the safety screw made out of zinc-plated steel is suitable for fixings in internal areas such as windows, coat racks, wall cupboards, or TV consoles.
Advantages
- The long expansion element makes the SXRL an extremely versatile product.
- Through the special geometry of the plug, the retention forces are evenly distributed in the drill hole.
- When it is to be set deep, the longer ribs prevent the plug from turning during installation.
Alternative names:
- Fischer 546477 screw anchor / wall plug 50 pc(s) Screw & wall plug kit 60 mm
Detailed Product Information
Features
| Material | Plastic |
|---|---|
| Screw type | Torx |
| Screws included | Yes |
| Screws material | Zinc plated steel |
| Product type | Screw & wall plug kit |
| Suitable for materials | Autoclaved aerated concrete, Brick, Concrete, Gypsum block, Masonry |
| Screw drive size | TX40 |
Weight & dimensions
| Length | 60 mm |
|---|---|
| Diameter | 1 cm |
| Drill hole diameter | 1 cm |
Packaging content
| Quantity per pack | 50 pc(s) |
|---|
