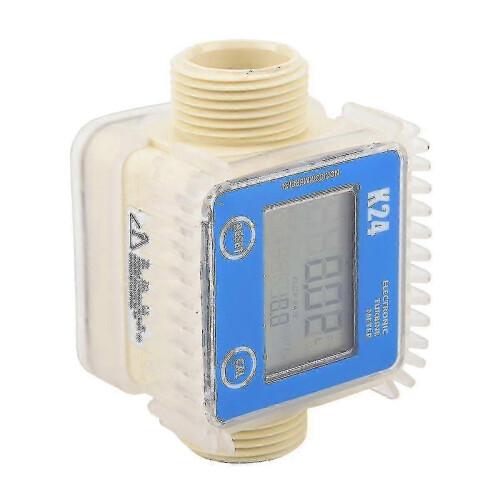

Flow meter for K24 turbine systems with LCD display and liquid measurement

Flow meter for K24 turbine systems with LCD display and liquid measurement Description

Digital Lcd K24 Flow Meter Turbine Fuel Flow Tester For Chemicals Water Sea Liquid Flow Meters Measuring Tools s202412245518 The control panel of this product adopts modular design and features complete functions, simple structure and convenient operation. Can be widely used in petroleum, , pharmaceutical, transportation, food and industrial and commercial. Model: K24 digital display turbine flowmeter Suitable medium: methanol, alcohol, beverage, crude oil, , gasoline, water, urea, liquid Import and export diameter: 1 inch thread Measurement accuracy 1% Repeatability 0.5% Working pressure 145PSI/10BAR Working voltage 2.3-3.3V Standby time 1 year Flow range 10-100L/MIN Single count 0.00-9999.9 Total cumulative number 0.00-999999.9 Unit of measure liter / L, gallon / GAL, pint / , quart / (Not for commercial use) Turbine flowmeter is the main type of speed flowmeter. When the fluid to be measured flows through the turbine flowmeter sensor, under the action of the fluid, the impeller is forced to rotate, and its rotation speed is equal to the average flow velocity of the pipeline. In proportion, at the same time, the blade periodically cuts the magnetic lines generated by the electromagnet and changes the magnetic flux of the coil. According to the principle of electromagnetic induction, a pulsating potential signal, that is, an electric pulse signal, is detected in the coil, and the frequency of the electric pulsating signal is measured. The flow rate of the fluid is proportional. Colour:Random Color Material:plastic Size:10*7.4*5.5cm Package Contents: 1* turbine flow meter (with battery) Random colors are not optional Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
