FlyMotion 6- CNC Controller for USB Motion High Speed Differential Version

FlyMotion 6- CNC Controller for USB Motion High Speed Differential Version Description

Fully supporting all for versions, including the latest version currently available.
Supporting for series, including for Win8/Win10, regardless of bits.
No need to install any USB drivers, it can be used after plugging in the computer.

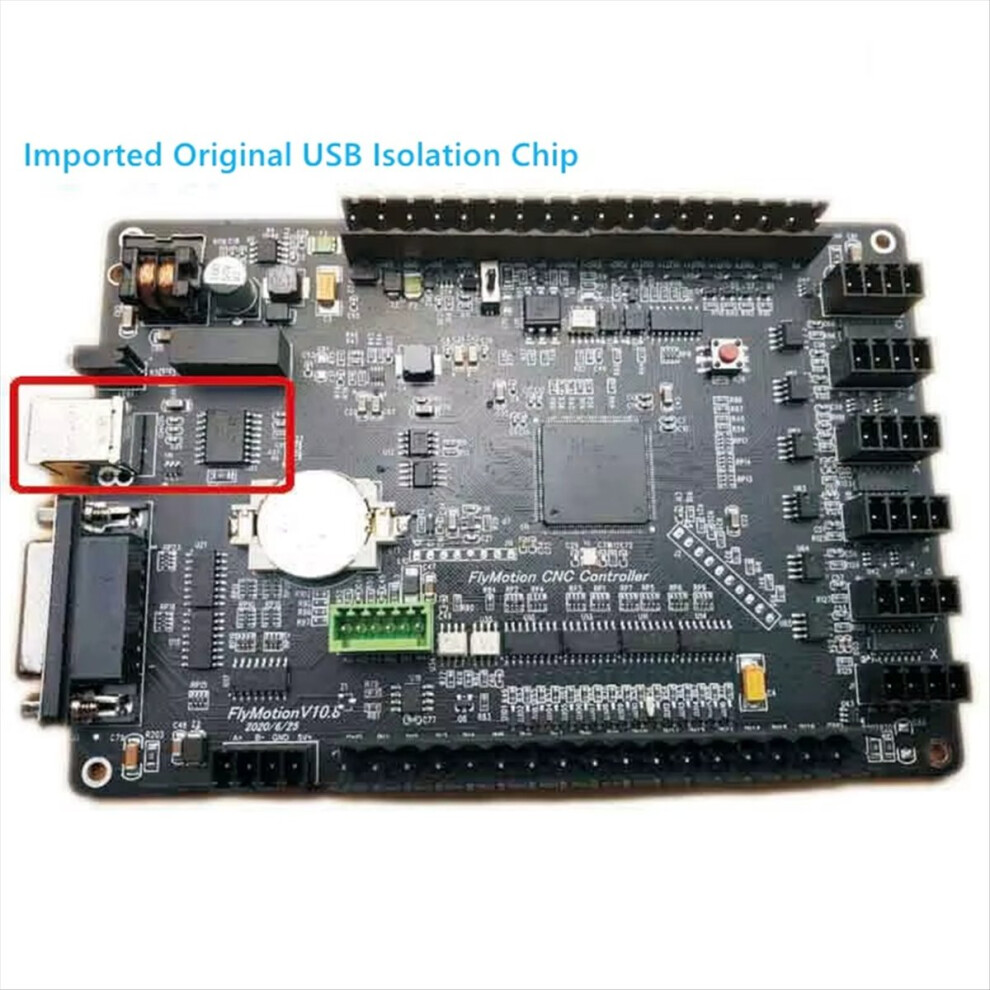

The USB bus adopts high-end chip magnetic coupling isolation, which is a truly valuable isolation. Unlike the optical coupling isolation input and output of general control cards, it achieves ultra-high reliability and can the absolute safety of computer USB. Simultaneously ensuring strong EMC anti-interference capability.
Single chip, the system is more streamlined, and the stability is countless times higher than the general multi chip processing method.

Dual core ultra high speed CPU (single core with a maximum main frequency of 204MHz), with extremely redundant computing and processing capabilities. And to achieve a pulse output frequency of 1000KHz per under 3- linkage, 750KHz per under 4- linkage, and a maximum pulse output frequency of 500KHz under 6- linkage, which can be connected to servo/stepper motors.
The size of the motion control buffer can be set to stable operation even during the fastest interpolation cycle, and even when the computer is running under , it can run smoothly.
Equipped with 16 isolated input ports, the input interface is simpler, and both dry and wet contacts can be used. The wiring is more convenient, and the dry contact method only requires external connection of a physical switch to the ground wire. All 16 input ports have signal indications, and the indicator light is on when the battery is low. Debugging is simple and clear.
Note: Please contact customer service about download or installation information before placing order.
Colour:Black
Material:Plastic+PC

Package Contents:

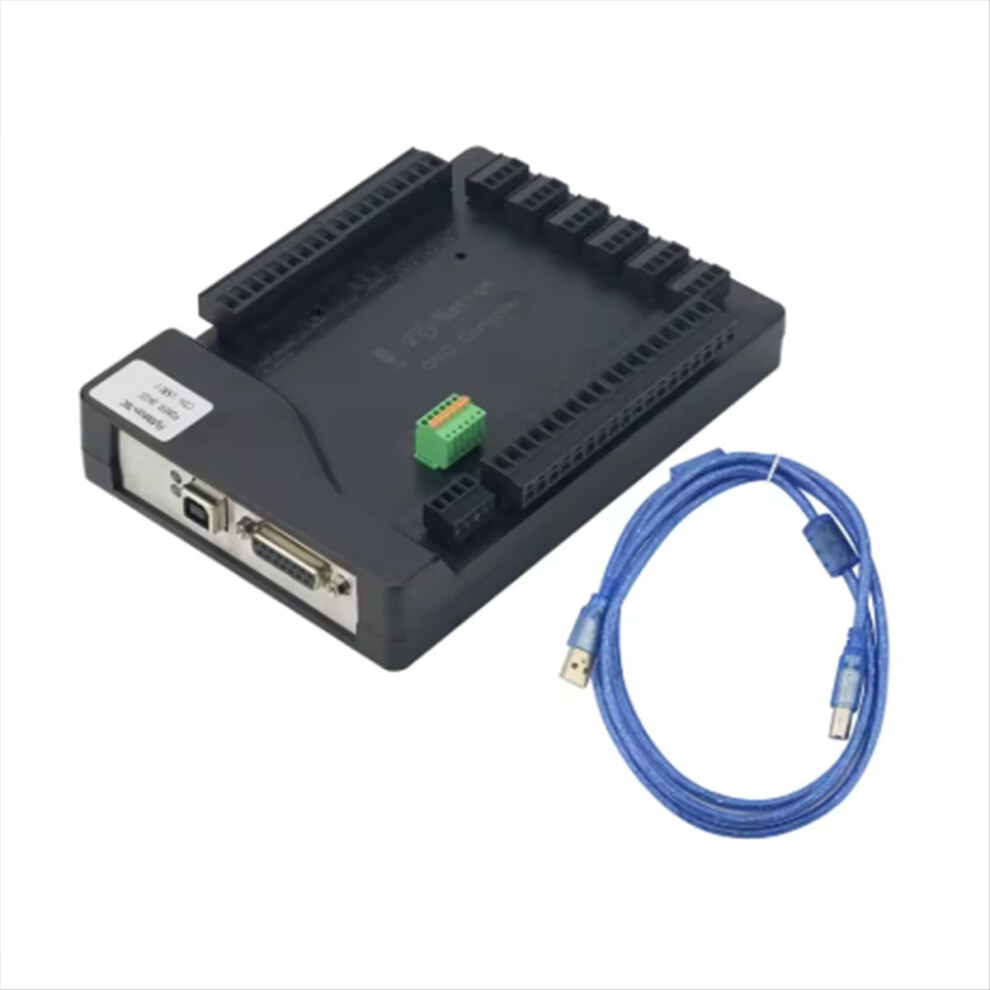

1 x Controller
1 x Special Customized Dual Magnetic Ring USB Cable
1 x Installation Adapter Board(Due to different product batches, the appearance , which does not affect the use)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
