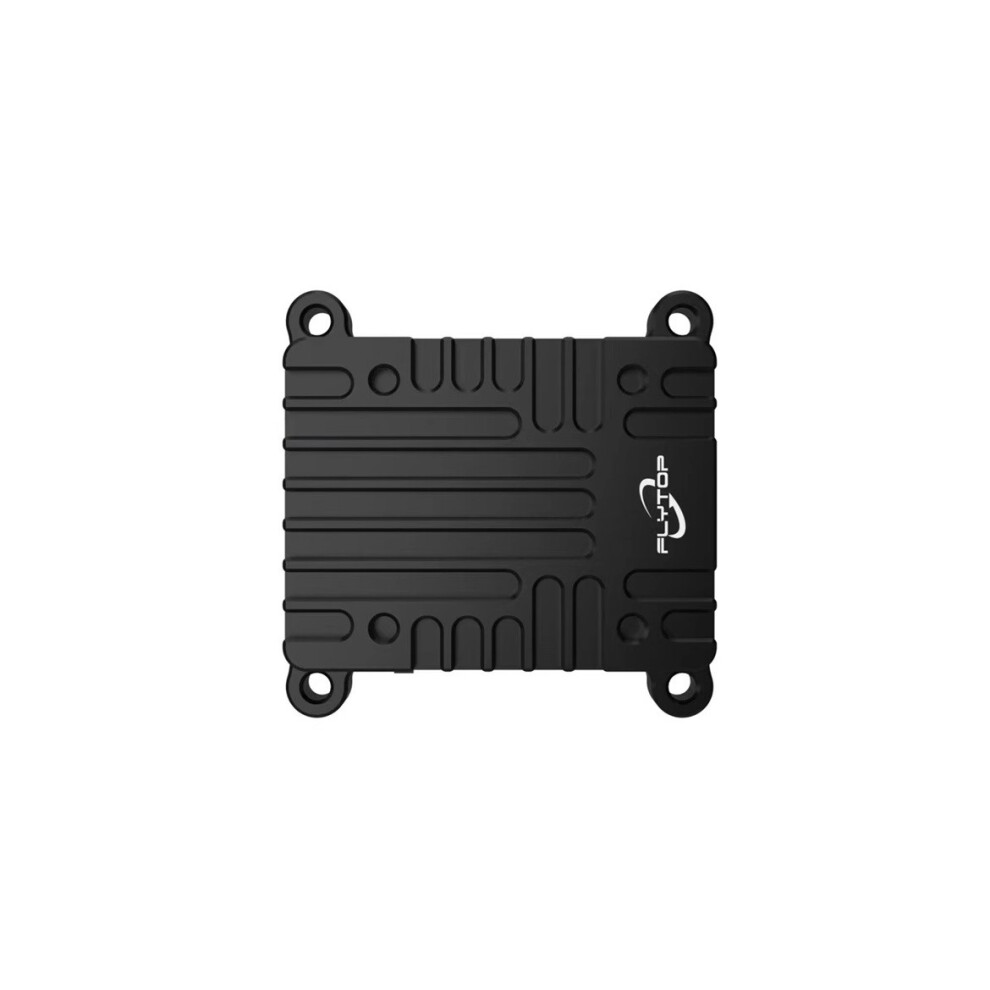

FLYTOP 2.5W 5.8G VTX Input Image Transmission Module For RC FPV Range Racing Drone

FLYTOP 2.5W 5.8G VTX Input Image Transmission Module For RC FPV Range Racing Drone Description

Specifications:

Product Name: FLYTOP-VT25

Output Power: 0-25-400-800-1500-2500mW

Input Voltage: 6-36V

Parameter Adjustment Method: Button/OSD

Operating Current: 450mA @ 12V, 800mW; ??800mA @ 12V, 2500mW;

Output Frequency Points: 56CH (A-B-E-F-R-X-L)

Antenna Interface: MMCX

Mounting Hole Dimensions: 20mm x 20mm / 30.5mm x 30.5mm

Dimensions: 35.7mm x 35.7mm x 7.6mm

Weight: 14.9g (excluding antenna and power cable)

Video format: NTSC/PAL automatic detection

Usage instructions and precautions:

Adjust frequency and power via the button

Button frequency control: Press the button once to switch between 1CH-8CH;

Button frequency group control: Hold the button for 3 seconds until the RF light flashes and other lights turn off to enter frequency group switching mode, then press the button briefly to switch between frequencies A-L.

Power button control: Press and hold the button for 6 seconds until the R light flashes and other lights turn off to enter power adjustment mode. Then press the button briefly again to switch between power levels 25mW-2500mW.

Package Includes:

1x FLYTOP 2.5W 4.9G 5.8G VTX
