FM Frequency Modulation Transceiver Module 76-108.0MHz Broadcast Transmitter Receiver Radio

FM Frequency Modulation Transceiver Module 76-108.0MHz Broadcast Transmitter Receiver Radio Description

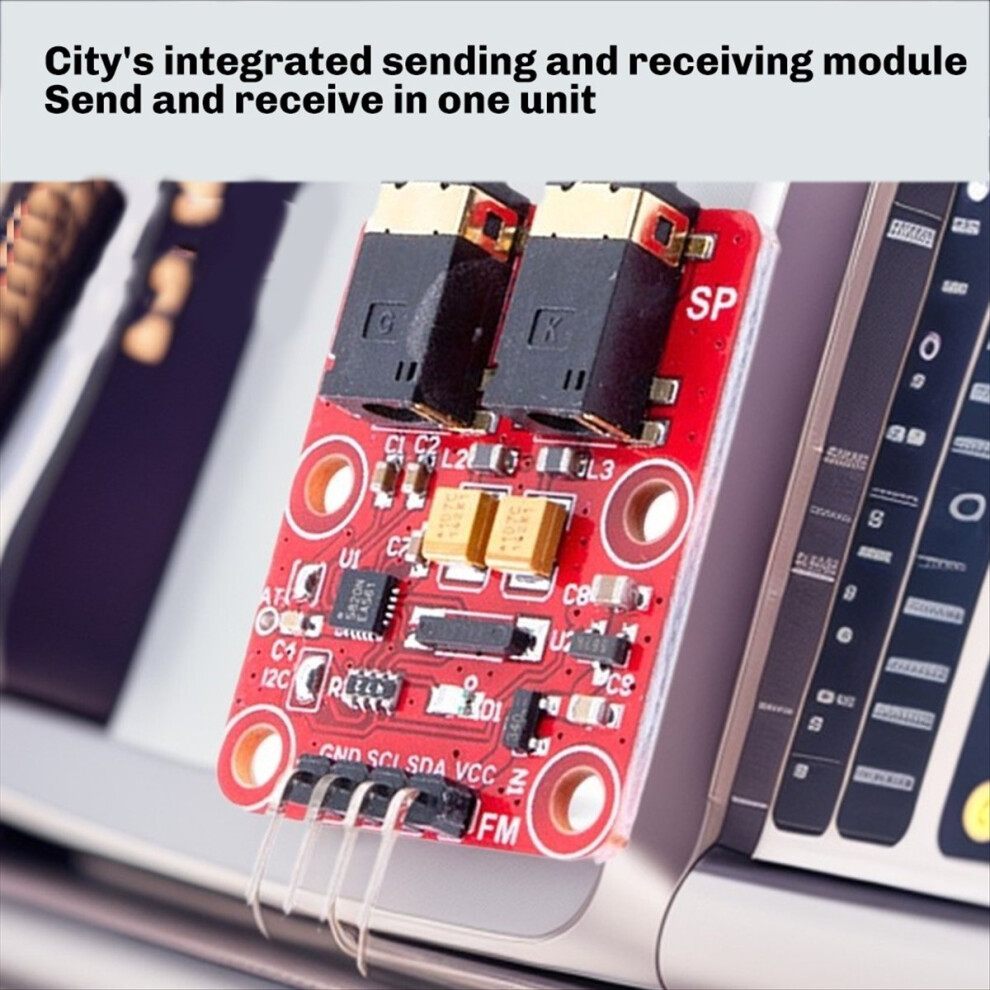

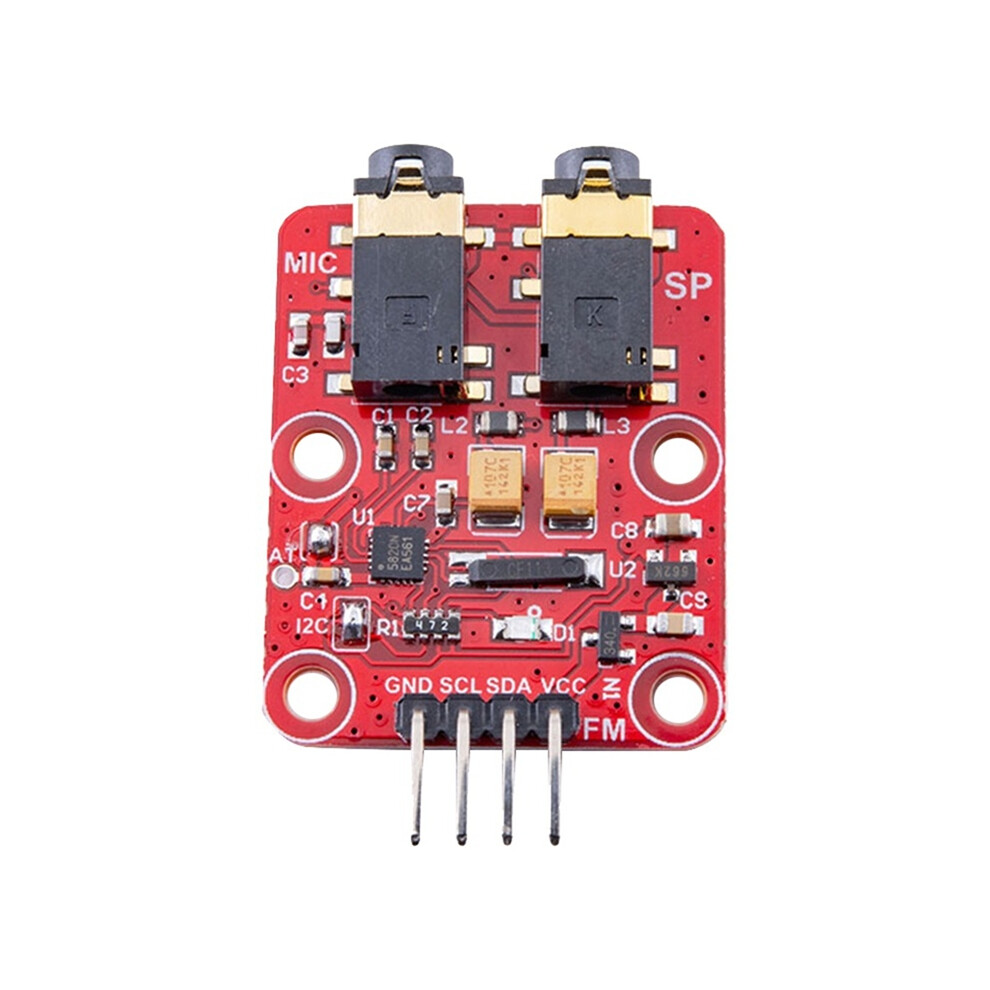

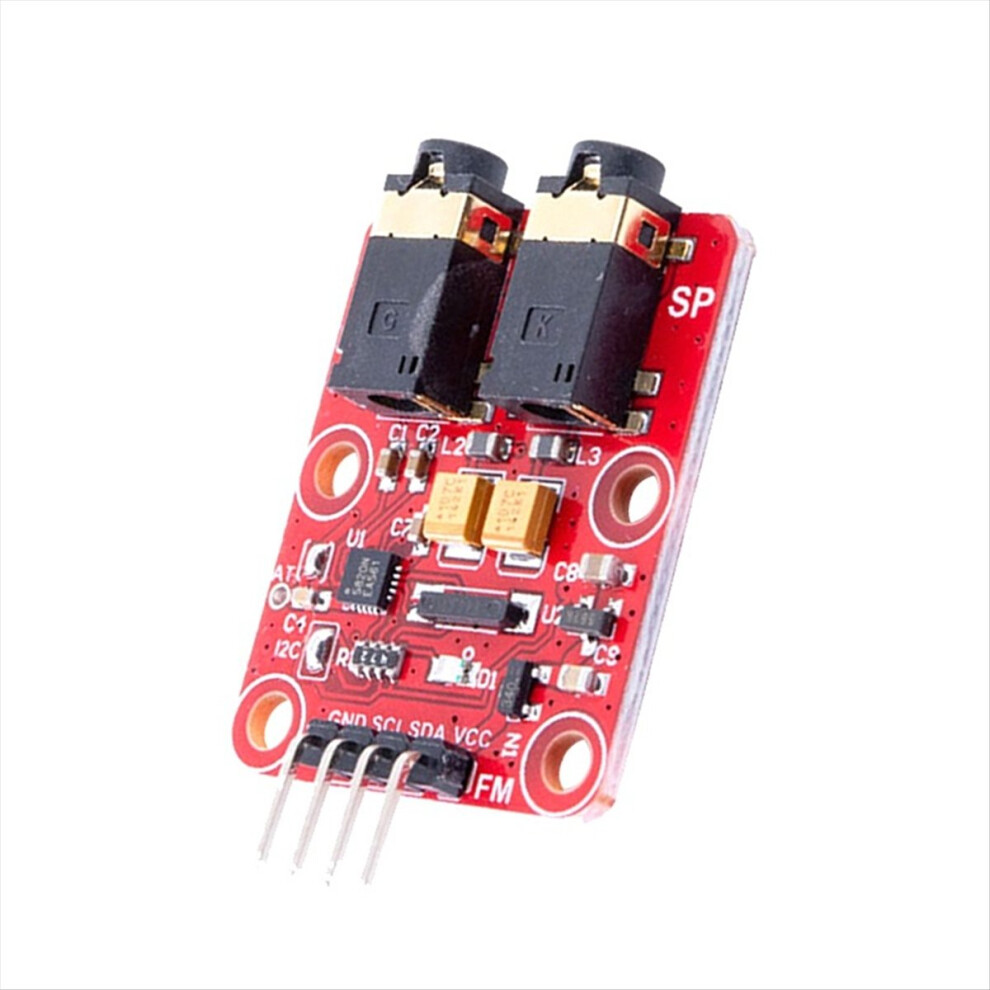

RDA5820N FM Frequency Modulation Transceiver Module 76-108.0MHz FM Broadcast Transmitter Receiver FM Radio Transceiver Module
The RDA5820NS is a single-chip broadcast FM receive/transmit tuner with integrated synthesizer, IF selectivity and MPX decoder
RDA5820NS adopts CMOS process and supports multi-interface. RDA5820NS has powerful low-IF digital audio processor, which makes it have good sound and high quality in various receiving conditions.
RDA5820NS uses double synthesizer, all-digital transmission structure, so that it has good transmission performance
RDA5820NS supports 115M band FM and RDS/RBDS transceiver, supports power supply range of 1.8-5.5V

Digital Automatic Gain Control (AGC) Digital Low-IF Tuner Digital Adaptive Noise Cancellation Image Suppression Downconverter Mono/Stereo Switch
Voltage: 3.3-5V
Interface:
Output: can be directly plugged into headphones
Antenna: The earphone cable is used as the antenna by default
Fixing hole: 3mm
Frequency: 76-108.0MHZ
No-load current: 0.23mA
Color: Red
Material: PCB

Package Contents:
1 * FM Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
