FM Transmitter Kit RF-02 Wireless Microphone Parts MP3 Repeater Micro Transmitter With Antenna

FM Transmitter Kit RF-02 Wireless Microphone Parts MP3 Repeater Micro Transmitter With Antenna Description

FM Transmitter Kit RF-02 Wireless Microphone Parts MP3 Repeater Micro Transmitter With Antenna -2021.

Feature:
Package name: FM Transmitter;
Kit model: RF-02;
Working voltage: DC3-6V;
Working current: 5-15mA;
Transmission frequency: 88-108MHz;
Launch distance: 5-50 meters (Affected by the level of production and the use of the environment);

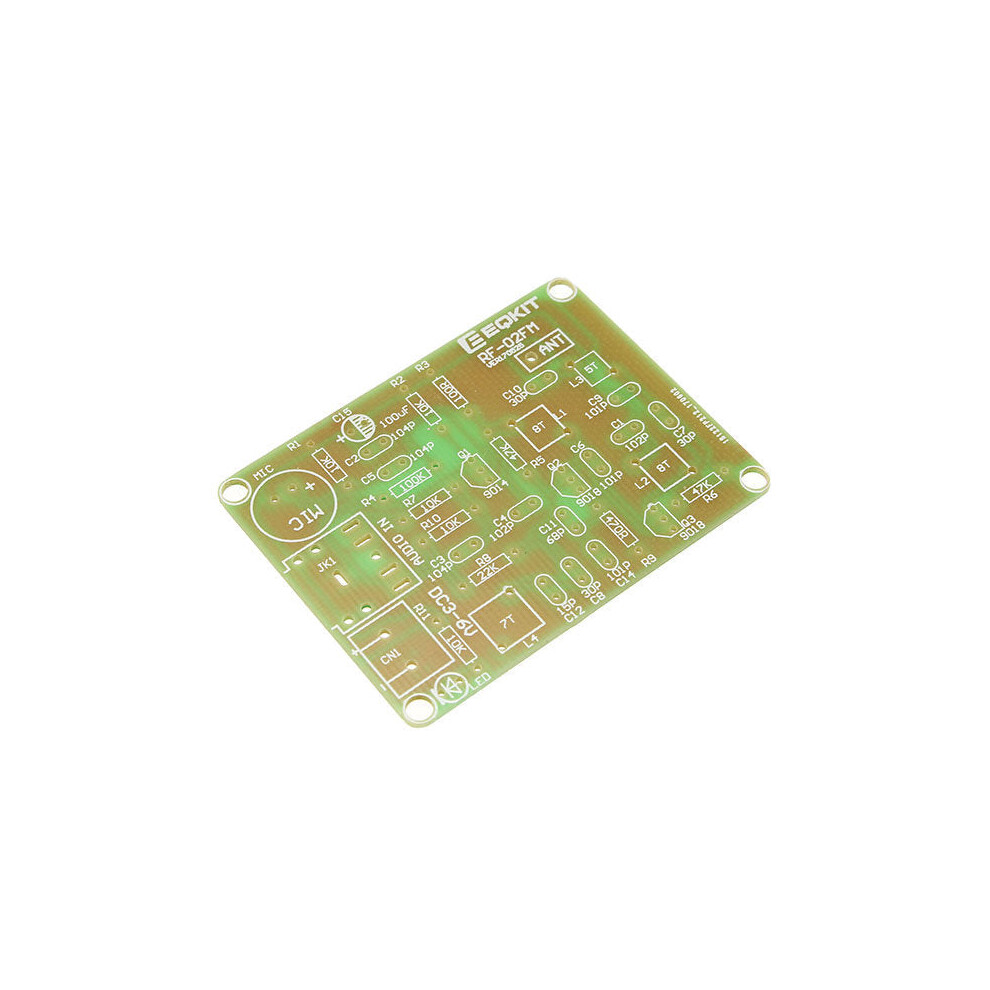

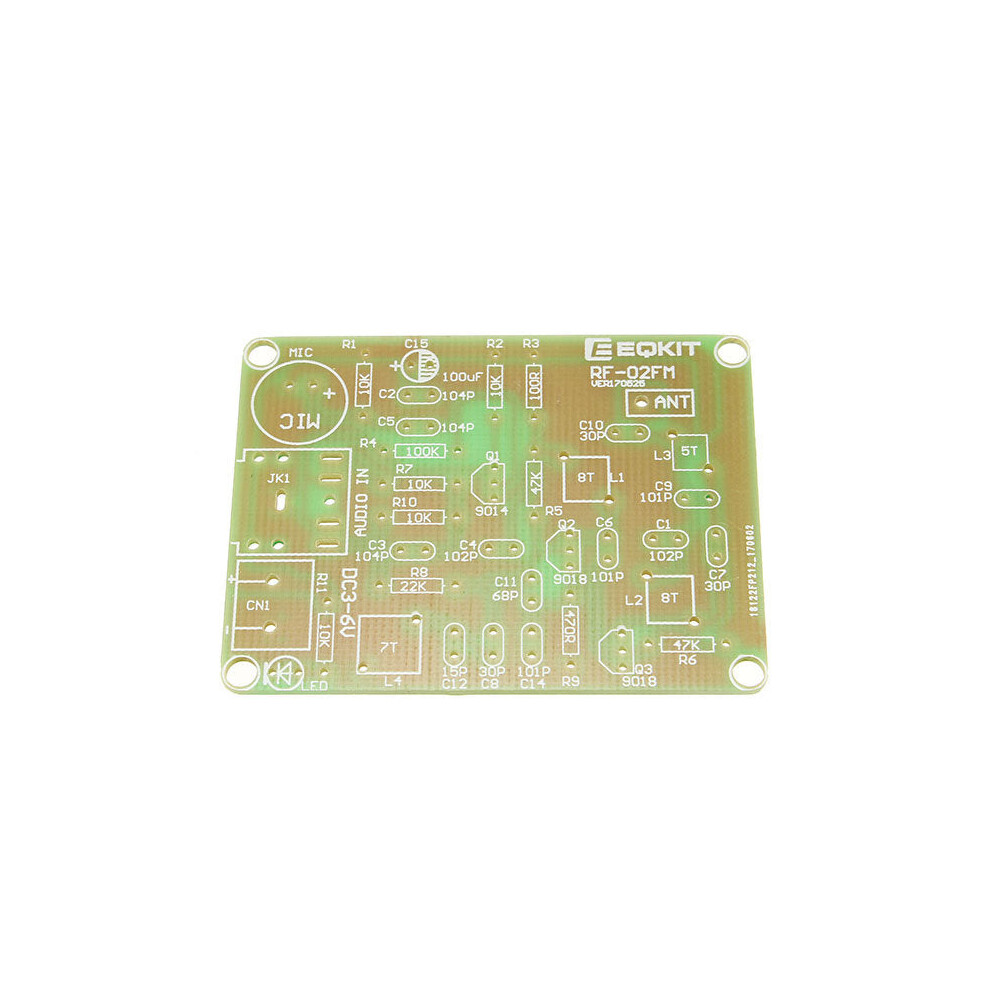

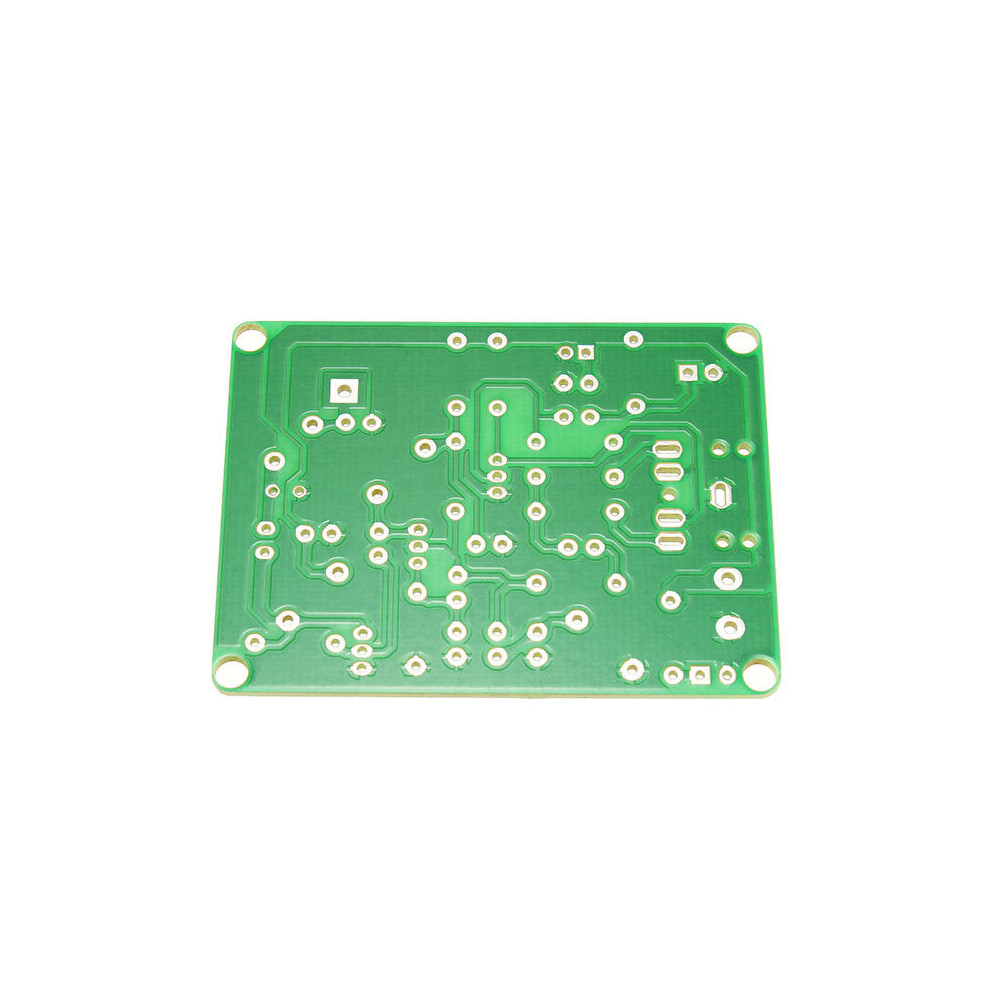

PCB size: 53 * 40mm;
Antenna: 300mm soft antenna;
Assembly instructions: electronic version (Click here to open);
Frequency stability: Better (relative to RF-01 model);
Sensitivity: Microphone 0.5 meters range of normal speech can be received;
Sound quality: Better (relative to RF-01 model);
Package weight: 15g;

MIC and audio input conversion:
Audio priority, pull out the audio line MIC work, insert the audio line MIC off, the audio input maximum -15dB.

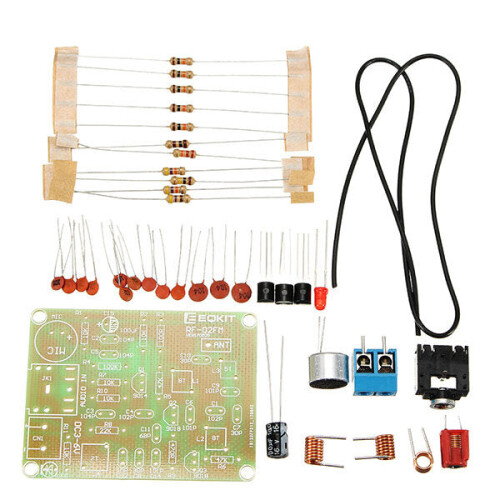

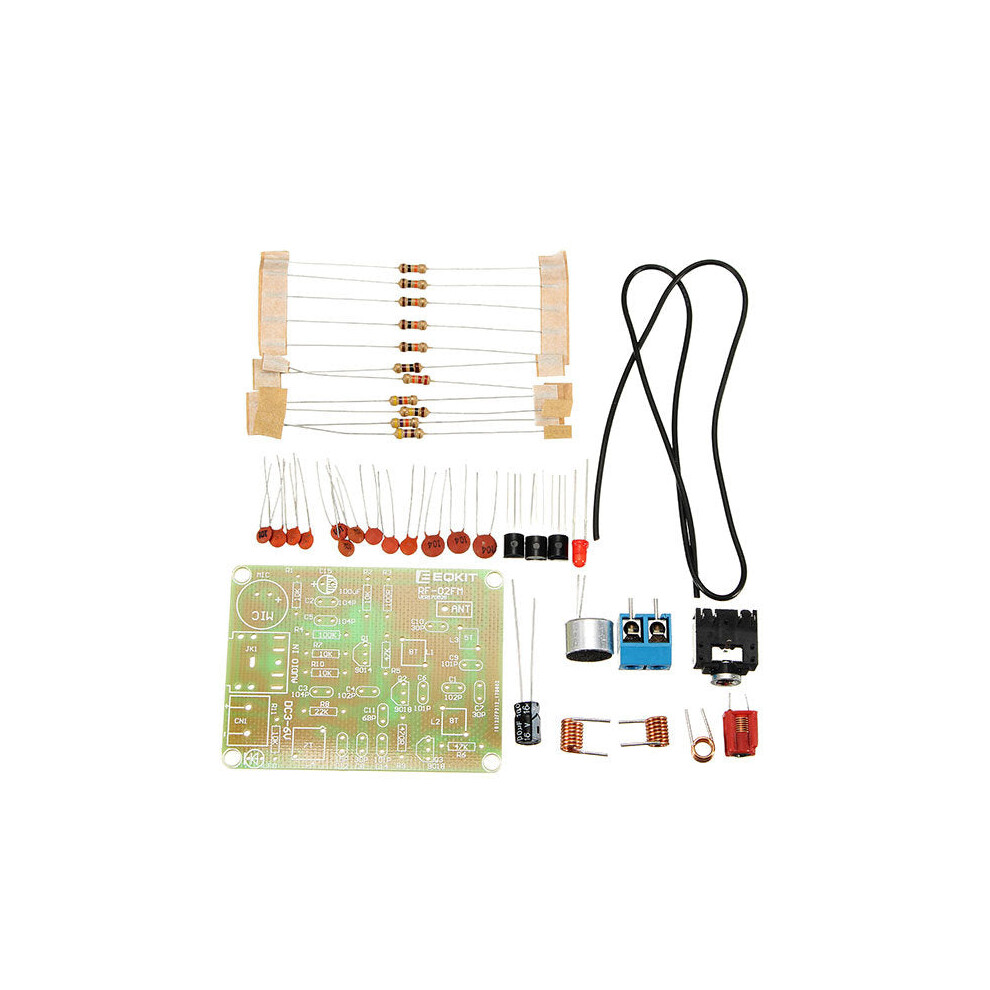

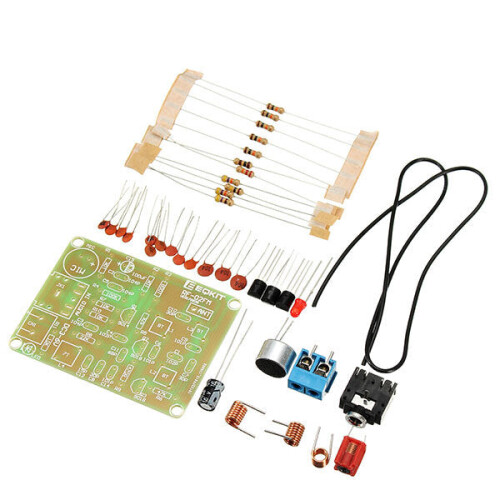

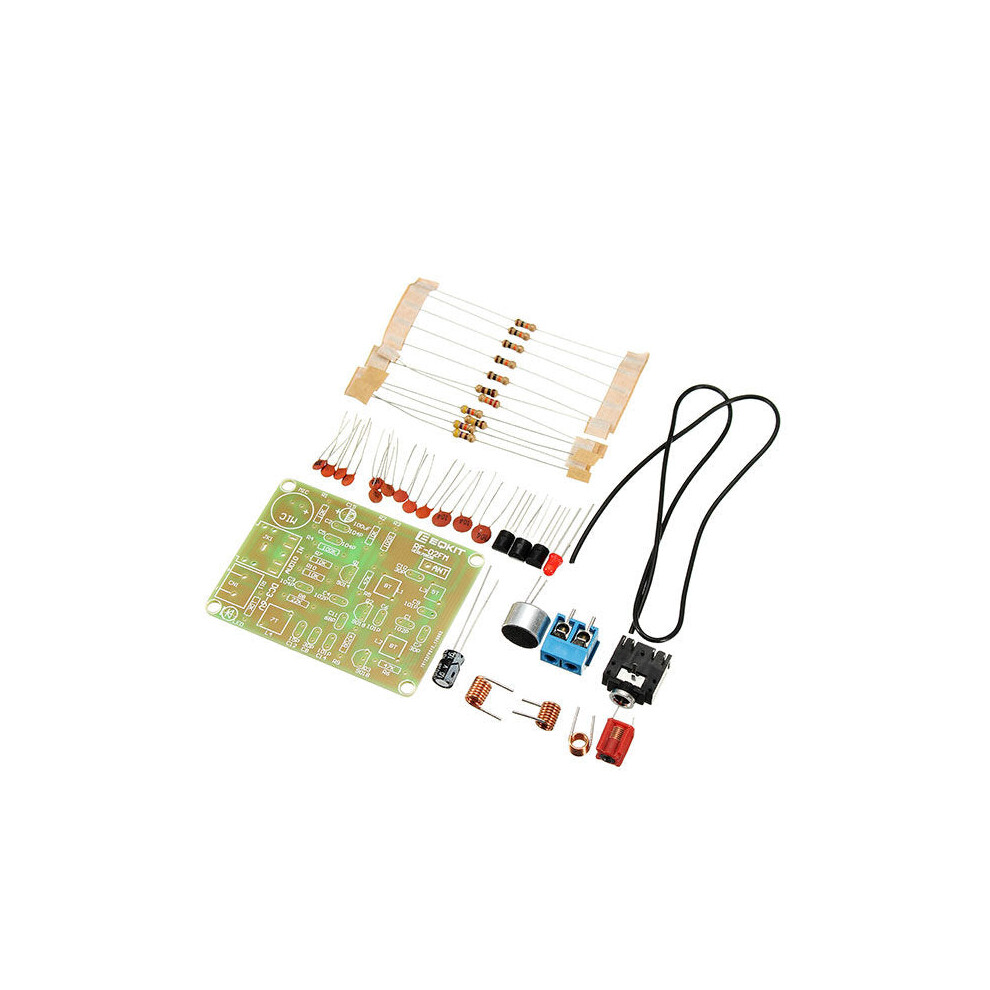

Package includes:
1 x RF-02 Wireless Microphone Parts.

Soldered PCB, for reference only!
