FNIRSI DMC-100 Clamp Meter, Automatic Multimeter with Temperature Probe

FNIRSI DMC-100 Clamp Meter, Automatic Multimeter with Temperature Probe Description

Product Description:

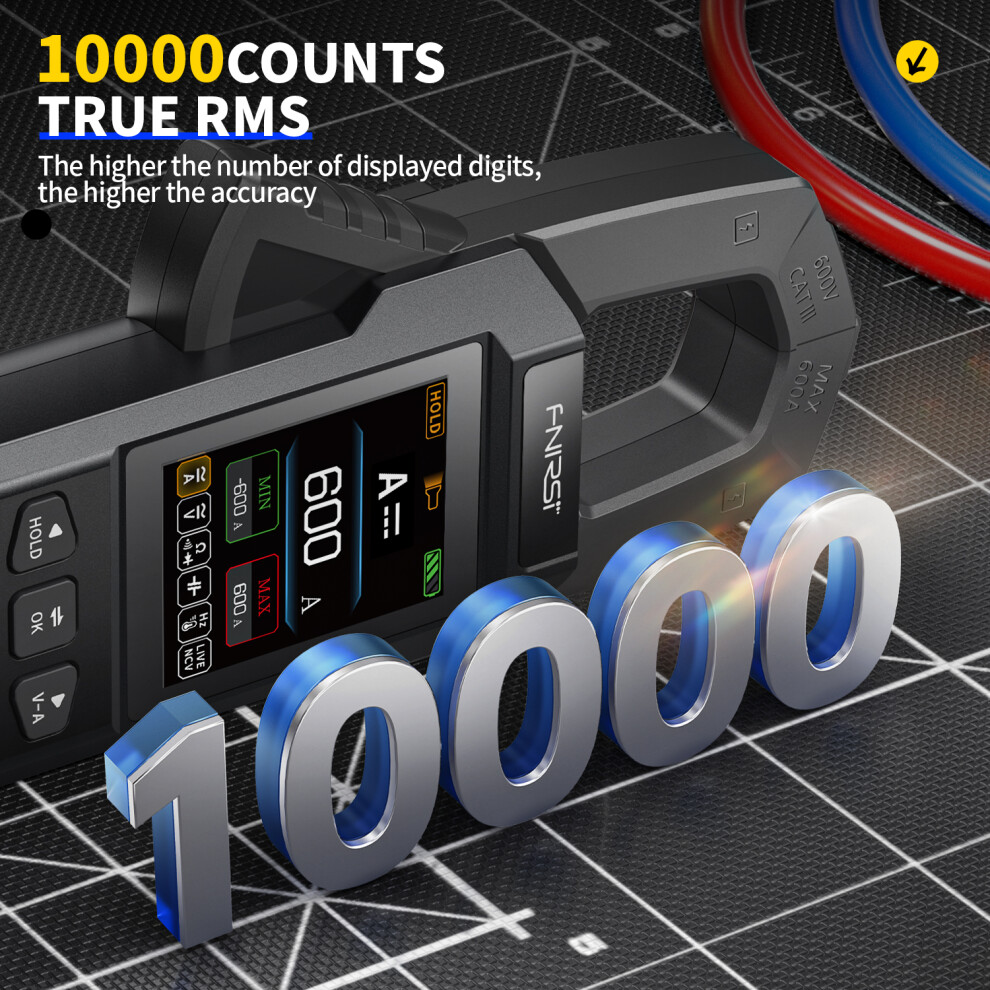

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle. Equipped with a 2.0-inch 240 * 320 full-color TFT screen, the new UI and data curve intuitive presentation, so that readings at a glance. Routine measurement, waveform display, power measurement of the three modes of switching at will, with 3.7V 1500mAh long-lasting battery, lasting battery life. NCV non-contact power measurement, zero fire line identification, temperature -55 ~ 1300 ?? wide range of measurement and other powerful features, supplemented by flashlight, screen backligt, data saving and other thoughtful design, Type-C interface to achieve charging and data transmission double convenient. Intelligent automatic shutdown, temperature unit free switching, brightness adjustable, firmware upgradeable, DMC-100, your indispensable electronic maintenance all-round assistant!

Product Parameters:

Main Speci?cations of the Device

Model??DMC-100 clamp multimeter

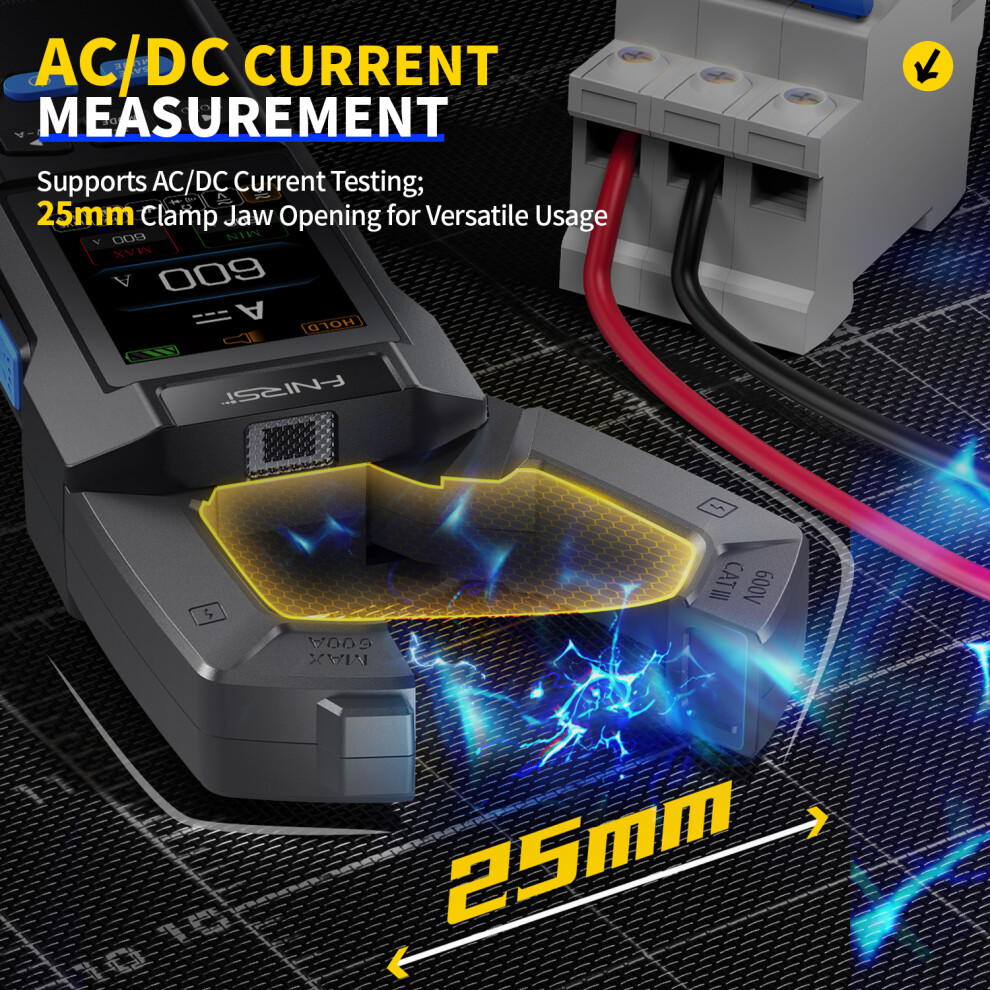

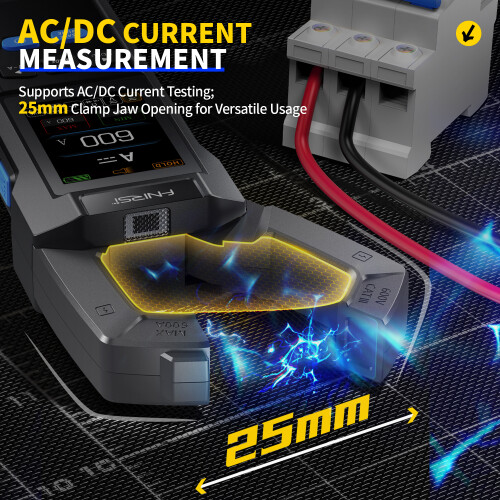

Maximum size of jaws: 25mm

Screen: 2.0'' TFT color screen

Screen resolution??240*320 pixels

Battery capacity: 3.7V, 1500mAh battery

Charging specification: USBType-C, 5V/1A

Product weight: 194g

Product size: 193x74x32mm

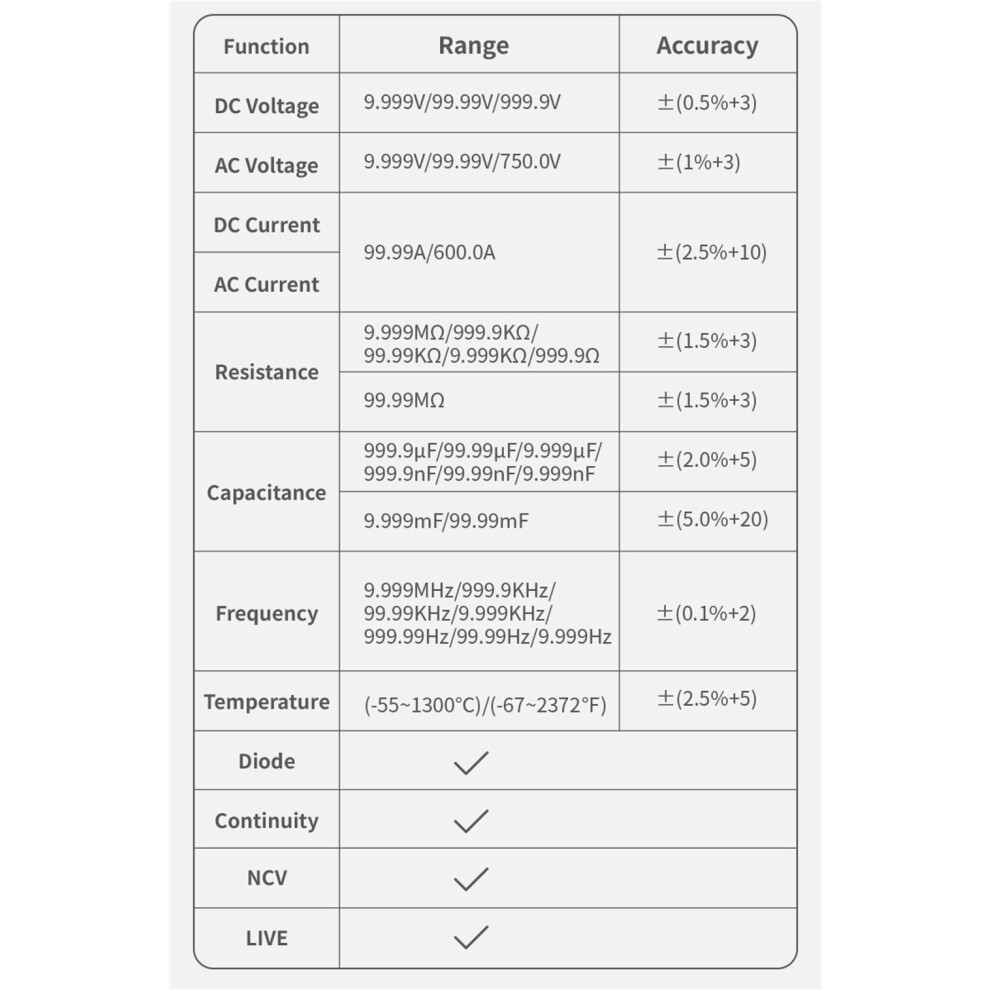

Measurement parameters

DC voltage: 9.999V/99.99V/999.9V

AC voltage: 9.999V/99.99V/750.0V

DC current/AC current: 99.99A/600.0A

Resistance: 99.99M??/9.999M??/999.9K??/99.99K??/9.999K??/999.9??

Capacitance: 9.999mF/99.99mF/999.9??F/99.99??F/9.999??F/999.9nF/99.99nF/9.999nF

Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz

Temperature: -55~1300??/-67~2372?H

Diode Measurement: ??

On-off test: ??

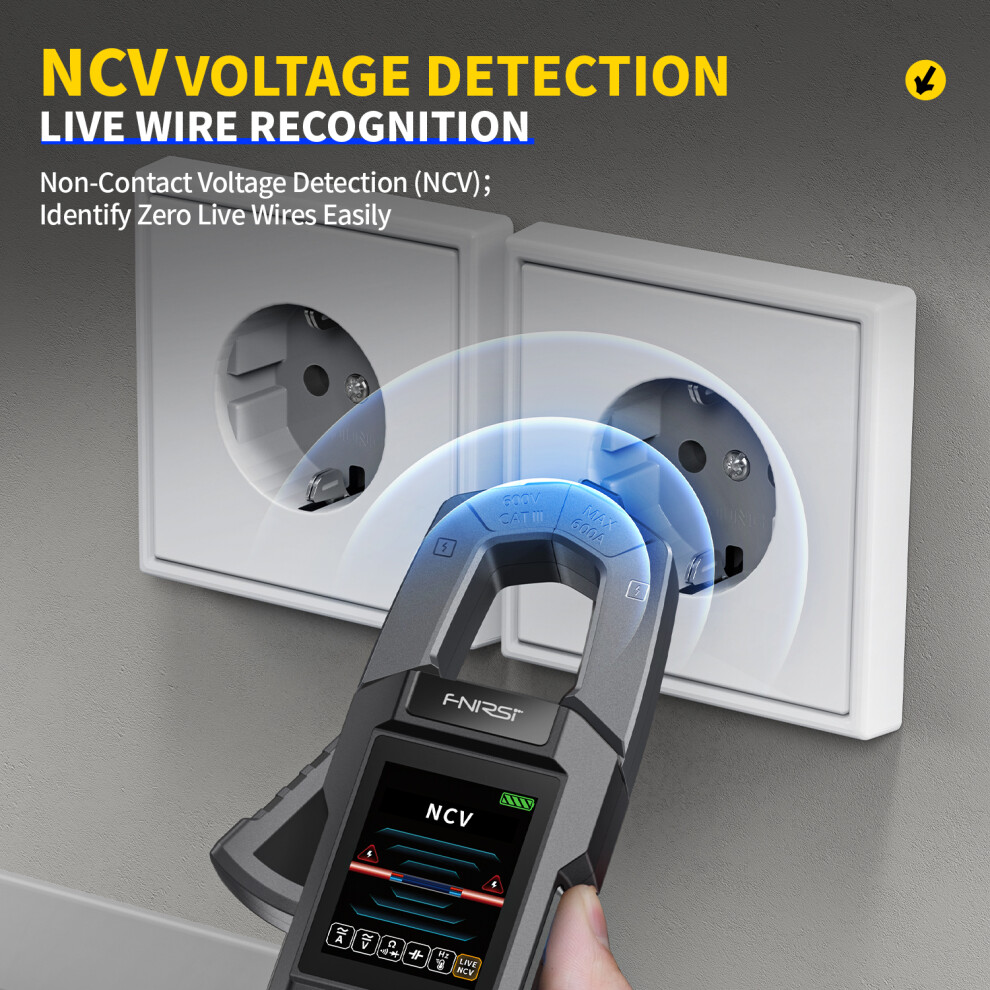

Non-Contact Voltage Check (NCV): ??

Zero Fire Wire Check: ??

Other Functions:

Measuring Mode 1: general measurement

Measuring Mode 2: waveform display

Measuring Mode 3: power measurement

Measurement gear: manual adjustment

Torch: Support

Data Zeroing: Support

Maximum/Minimum Value: Support

Waveform display: Support

Power Calculation: Support

Data Hold: Support

Data Storage and Viewing: Up to 30 groups of data

Language: Chinese/English

Brightness Adjustment: 10-speed adjustment

Temperature unit: ??/?H

Auto Power Off: OFF/5min/15min/30m

Firmware Upgrade: Support

Packing list:

1 x DMC-100 Clamp Multimeter

1 x Type-C Cable

1 x Multimeter Pen

1 x Temperature Probe

1 x Packing box

1 x Instruction Manual
