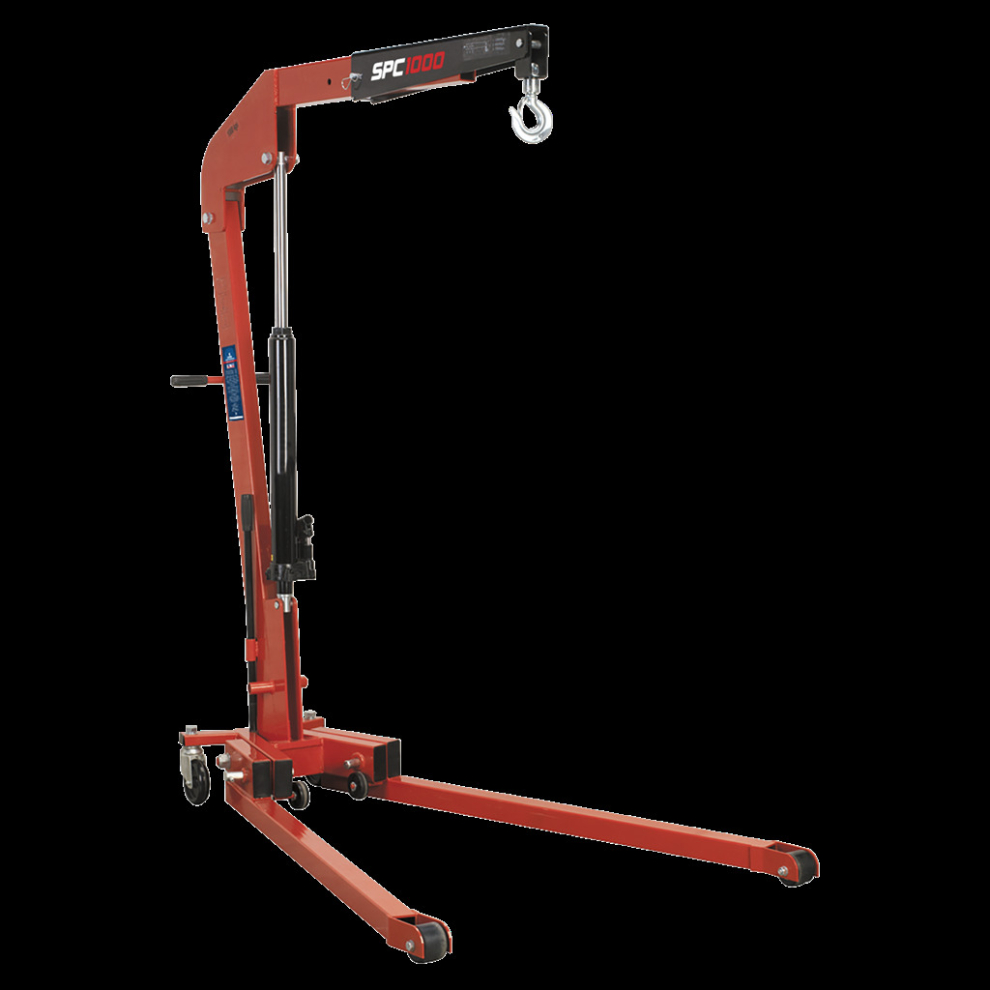

Folding Engine Crane 1 Tonne

Folding Engine Crane 1 Tonne Description

Features:

• 1tonne Folding crane with heavy-duty forged hook.
• Fast folding for easy storage and transportation.
• Weighs 124kg and is perfect for professional workshop use.
• Beam can be set in three positions, allowing a lifting capacity from 700kg to 1000kg.
• 300 Swivel pump aids use where space is limited.

Specifications:

• Model No: SPC1000
• Lifting Capacity in Position 1: 1000kg
• Lifting Capacity in Position 2: 800kg
• Lifting Capacity in Position 3: 700kg
• Lifting Capacity in Position 4: n/a
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Max. Jib Ext. Position 1: 2380mm
• Max. Lift Ht at Max. Jib Ext. Position 2: 2465mm
• Max. Lift Ht at Max. Jib Ext. Position 3: 2550mm
• Max. Lift Ht at Max. Jib Ext. Position 4: n/a
• Max. Lift Ht at Max. Jib Ext. Position 5: n/a
• Length of Jib Position 1: 1280mm
• Length of Jib Position 2: 1430mm
• Length of Jib Position 3: 1576mm
• Length of Jib Position 4: n/a
• Length of Jib Position 5: n/a
• Height Jib Down: 1665mm
• Length: 1750mm
• Length Legs Extended: n/a
• Rear Width: 435mm
• Width Inside Front Frame: 930mm
• Width Front Frame: 1065mm
• Height Legs Folded: 1680mm
• Height of Frame: 80mm
• Weight: 124kg
• Note: n/a
• Height: 1740
• Width: 650
• Length: 510
