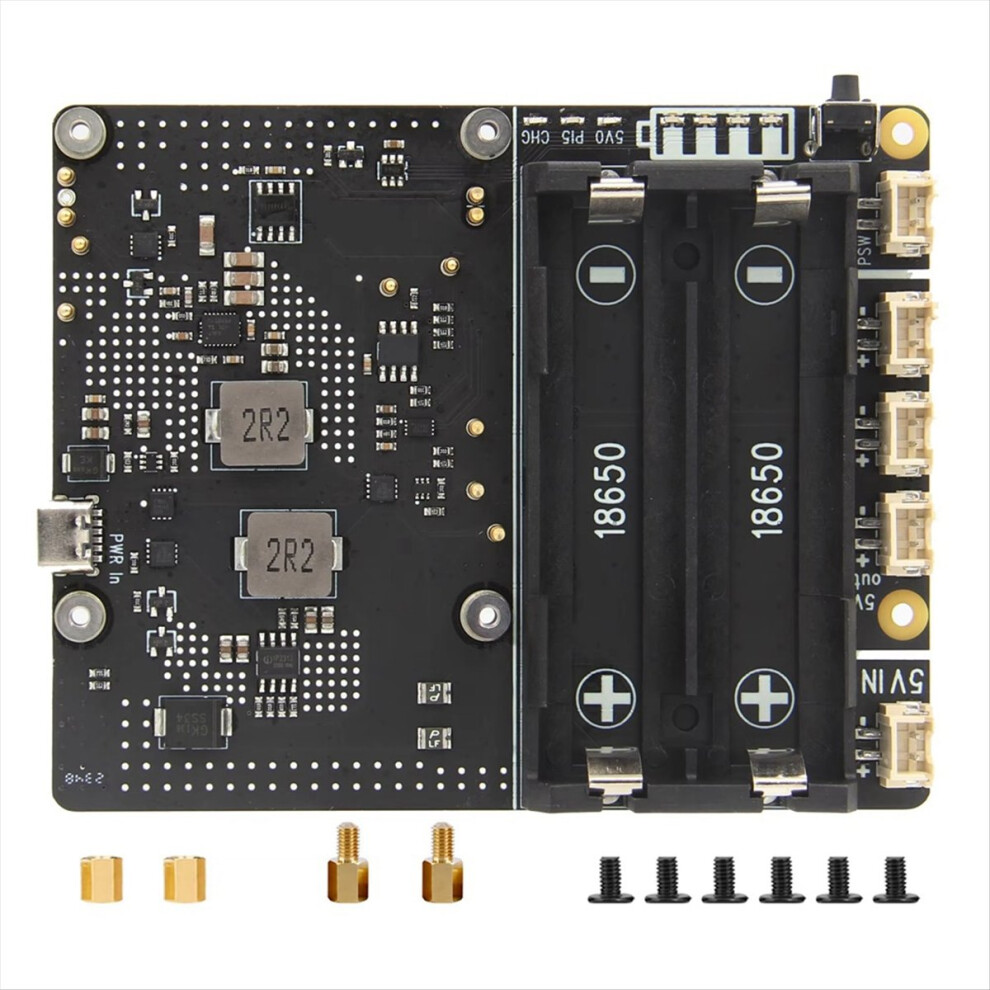

For 5 18650 UPS, X1201 V1.1 Power Management Board

For 5 18650 UPS, X1201 V1.1 Power Management Board Description

Battery Charging
Supports fast battery charging with a capacity of 3000mA
Battery charging control can be managed via GPIO
Provides protection against battery overcurrent and overvoltage. Built-in protection against reverse connection of battery cells
Integrated 's -gauge systems for reading battery voltage and percentage over

On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%

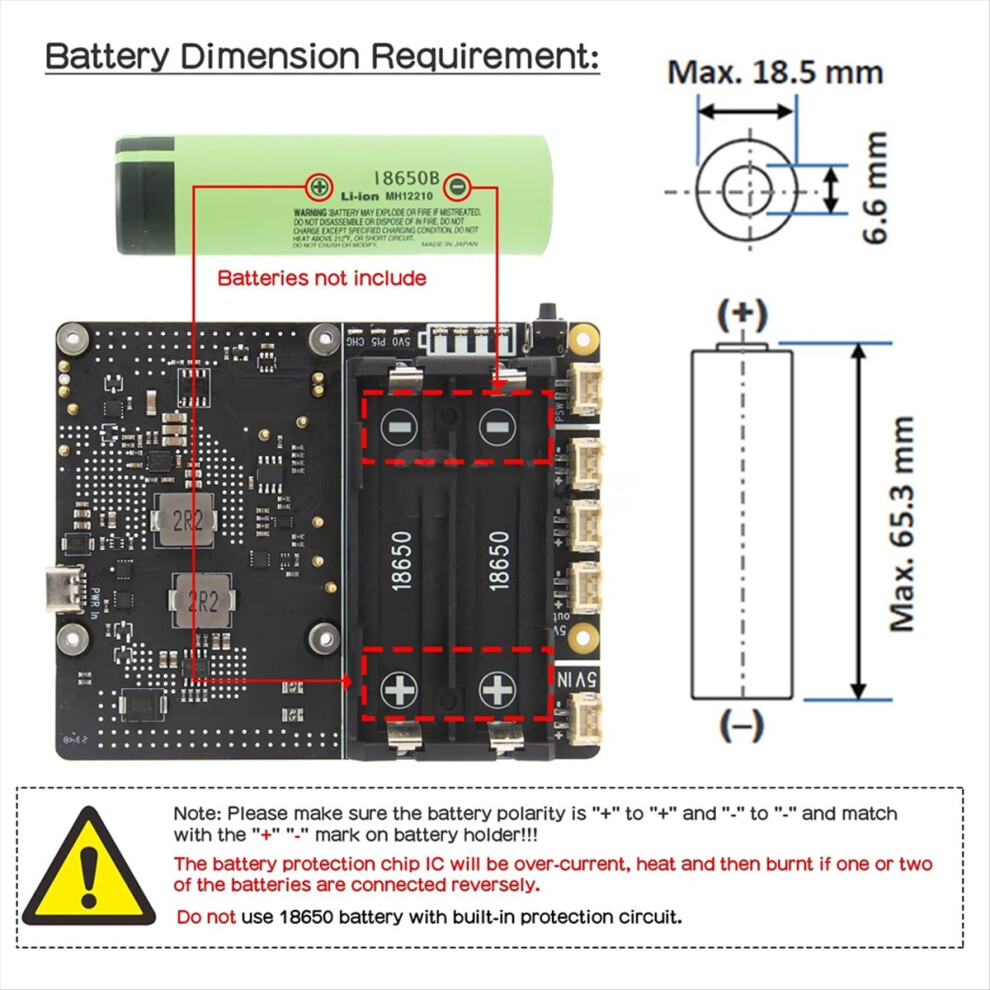

Features a 2-cell 18650 battery holder (Battery not included)
Enhanced Power Management
Seamless power switching between backup power and power adapter
On-board push button performs the same actions as the Pi's power button
Automatically cuts off power when the Pi is shut down
On-board LED indicates power status and Pi detection
AC power loss and power adapter failure detection via GPIO
Auto power-on when power is applied or restored

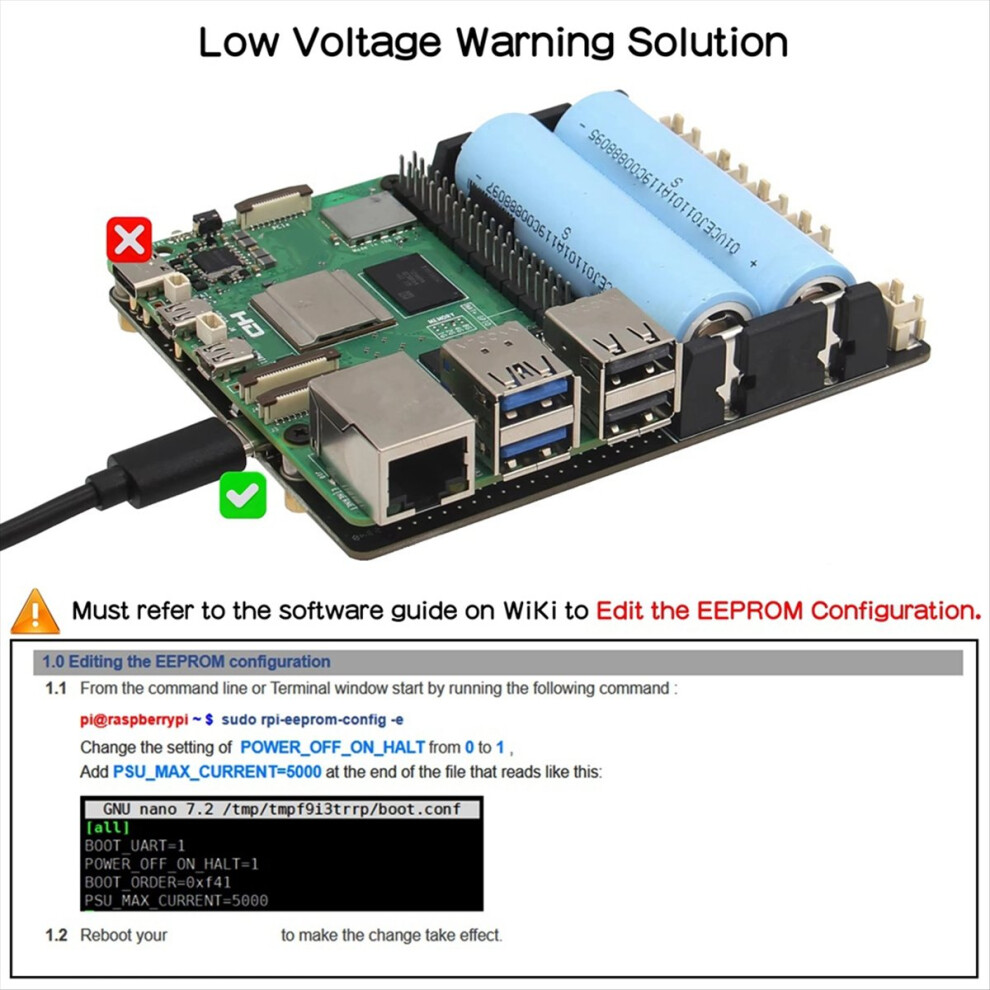

Automatic safe shutdown when battery voltage is low (programmable)
Ultra-low standby power consumption to maximize battery life
Advanced system power-path management to minimize frequent charging and discharging of batteries
Power input: 5Vdc 5A via USB Type-C / XH2.54-2P connector
UPS output: 5.1V 5% Max 5A
Battery charging current: Max 2.3-3.2A
Terminal Battery Voltage: 4.23V
Battery Recharge Threshold: 4.1V

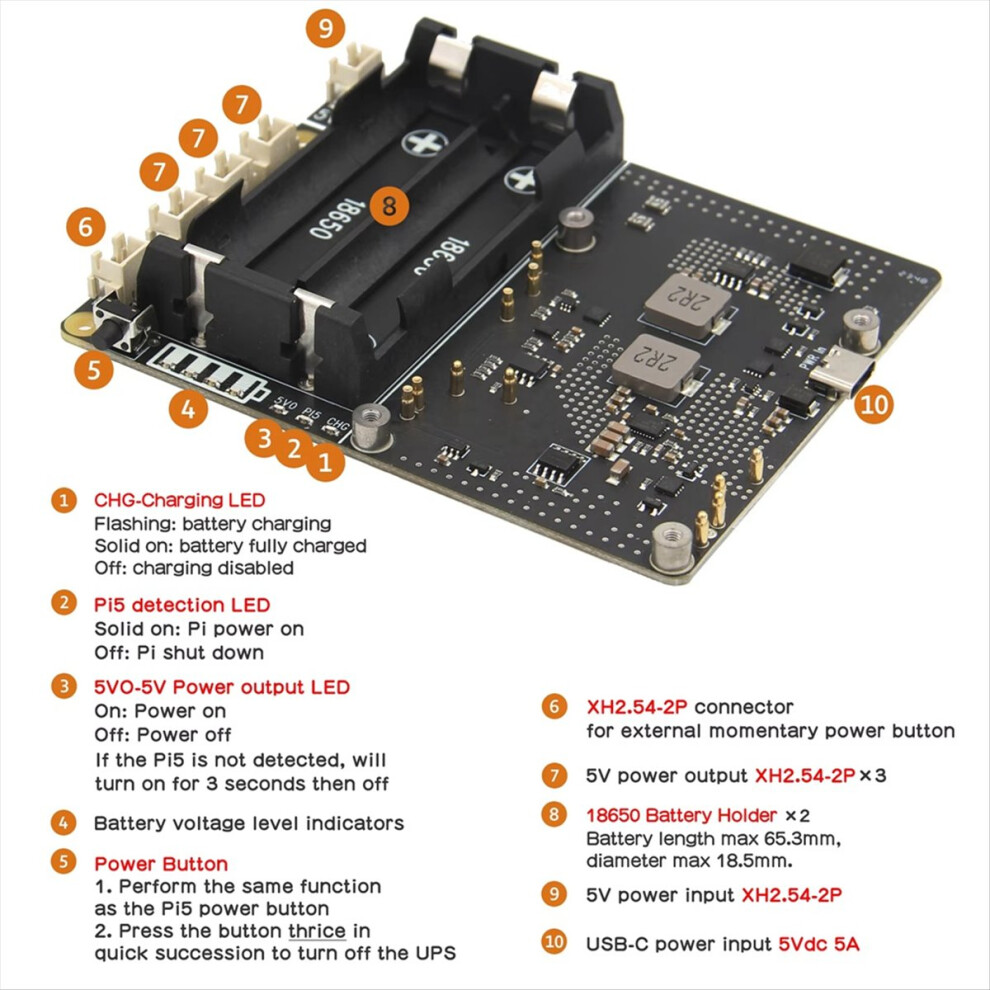

Ports & Connectors:
USB Type-C socket
18650 battery socket x2
5V Power output connector x2 - XH2.54 2-pin
External power button connector x1 - XH2.54-2P
PCB Size: 106.6mm x 85mm
NOTE: Not include 5 & 18650 Batteries & cooler!!!
Color: As Shown
Material: Electronic Component

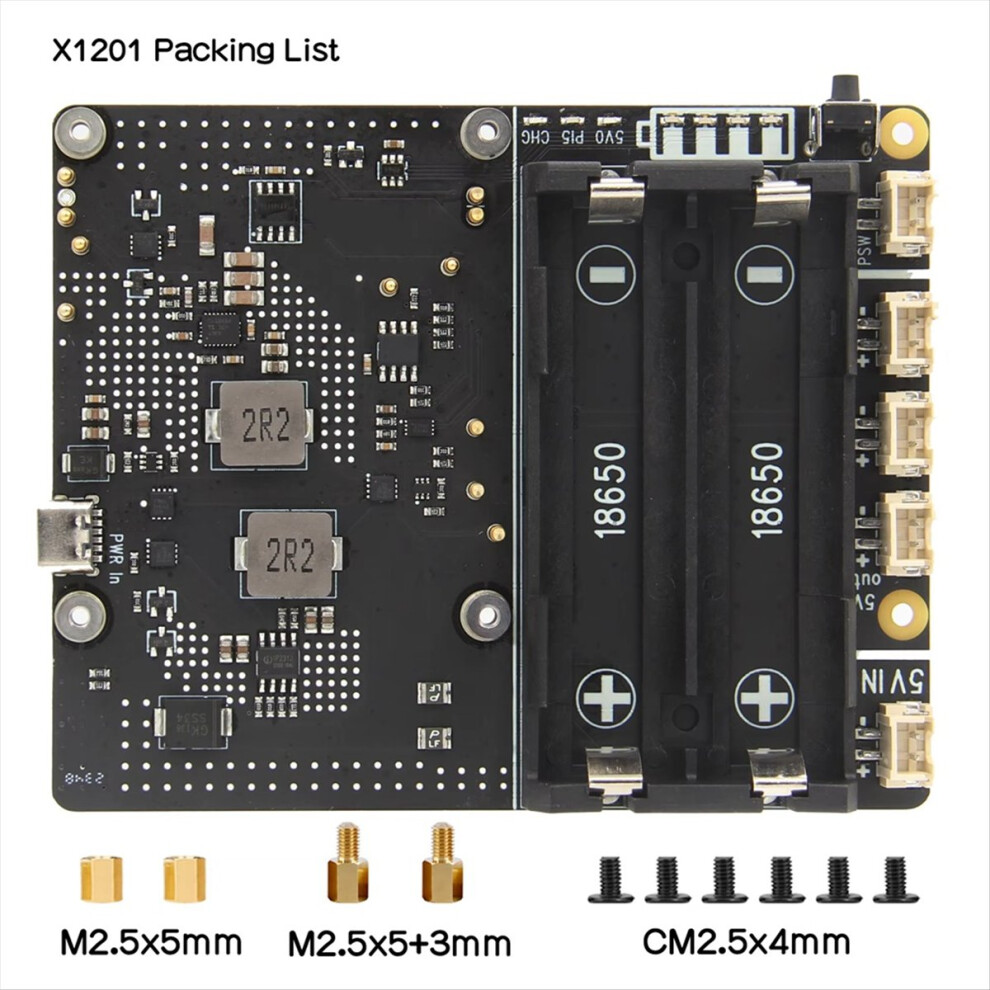

Package Contents:
1 * Power management expansion board
1 set * accessories

Only the above package content, other products are not included.
