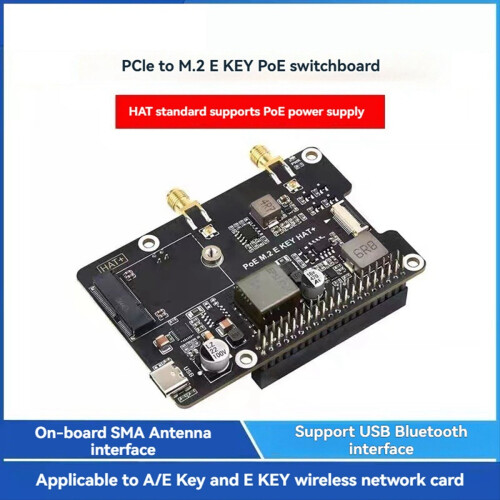

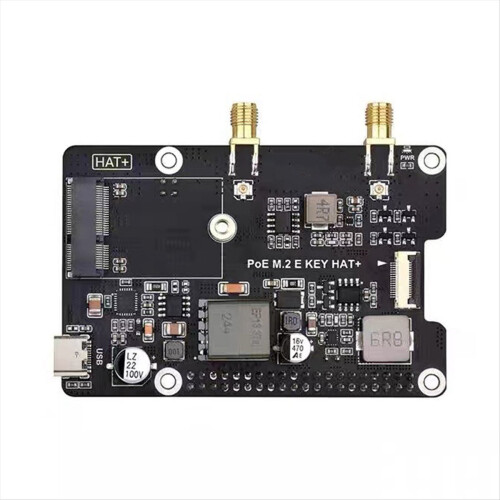

for 5 PCIe to M.2 E KEY with PoE HAT+ Supports NGFF Wireless Network Card/Bluetooth for RPI 5

for 5 PCIe to M.2 E KEY with PoE HAT+ Supports NGFF Wireless Network Card/Bluetooth for RPI 5 Description

Onboard SMA internal antenna interface, supports USB Bluetooth connection, and can input Bluetooth signals to for through USB adapter board (USB Bluetooth connection function is limited to use after connecting to wireless network card module)
Applicable for Raspberry Pi5, can be connected to PI5 through 16PIN cable, based on for Raspberry Pi40PIN GPIO interface design, top lead pin, convenient to connect to other for expansion boards
Support PoE Ethernet power supply, only need one network cable to connect to PoE device to make for realize networking and power supply
Onboard multiple power supply interfaces, onboard 5V and 12V pin power supply interfaces, 5V interface output total power up to 4.5A (12V and 5V output total not exceeding 25W), meet the power supply of for and other devices
Applicable for 5, support NGFF (M.2EKey) wireless network card

for
PoE power input: 37V-57V DC input
Power output: GPIO pin header: 5V 4.5A (MAX)
2P pin header: 12V 2A (MAX)
Network standard: Support IEEE 802.3af/at PoE
PCle interface type: M.2 E Key
The product appearance and printed words depending on the batch, but this does not affect use
Colour:Black
Material:PCB

Package Contents:
1 x PoE M.2 E KEY HAT+
1 x USB Type-C Adapter (E)
2 x IPEX1 to 4
1 x 16P-Cable-40mm
1 x Screw Pack

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
