For 5 UPS Power Module 5V5A USB-C Output with PD N

For 5 UPS Power Module 5V5A USB-C Output with PD N Description

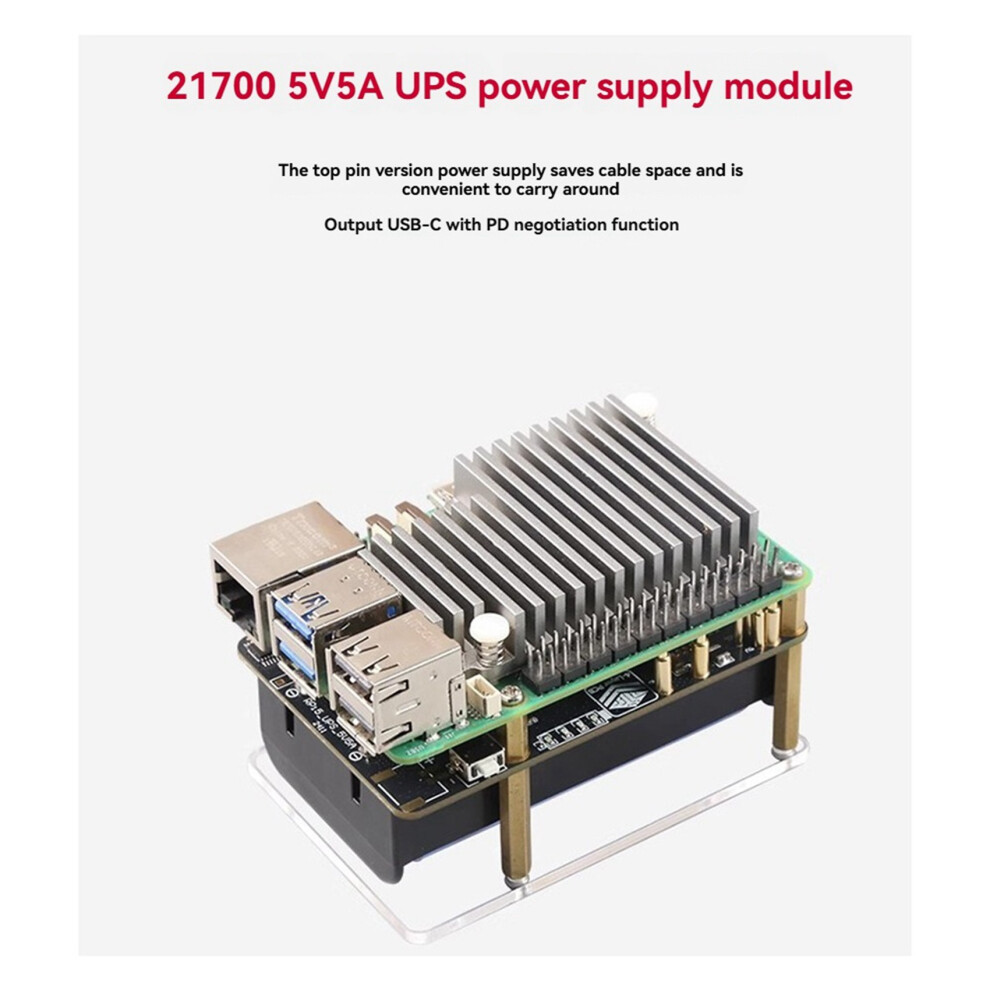

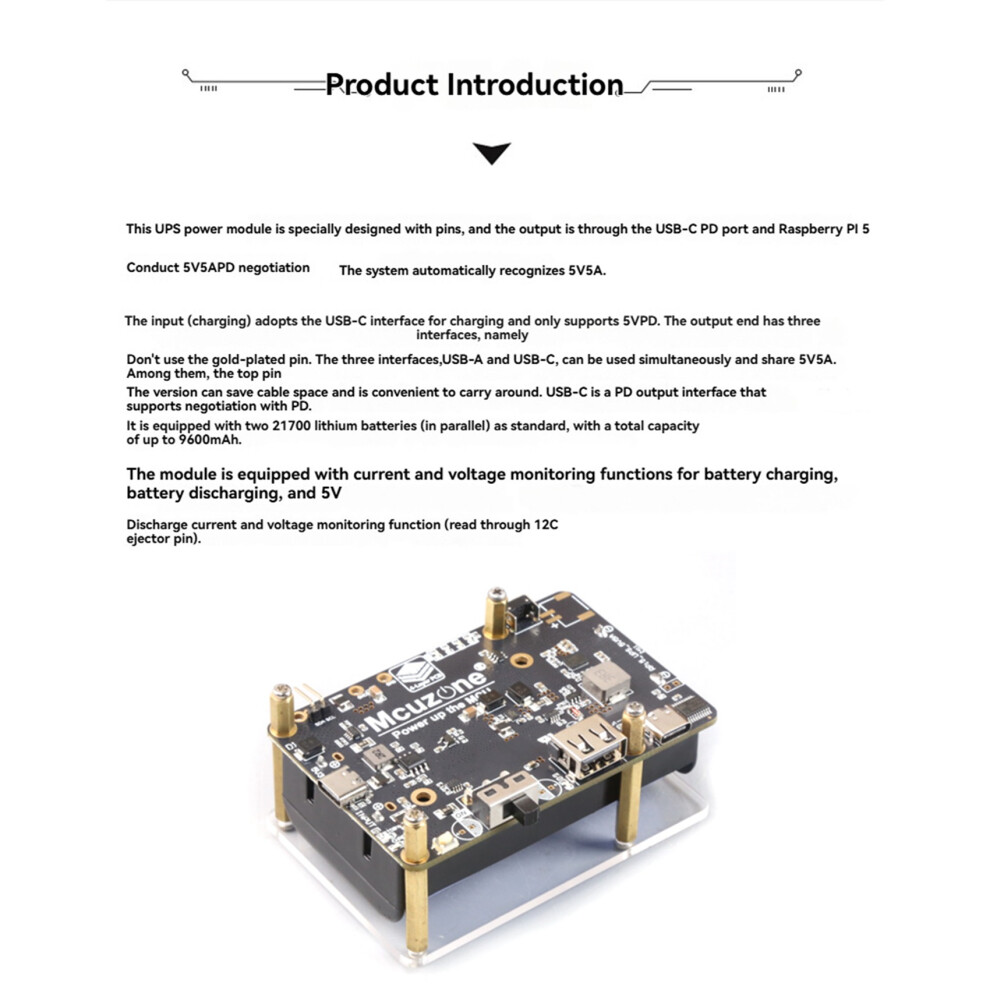

This UPS power supply module is designed for the 5.
It negotiates 5V5A PD output with the 5 through a USB-C port, allowing the system to automatically recognize the 5V5A
Charging input uses a USB-C interface, supporting only 5V PD.

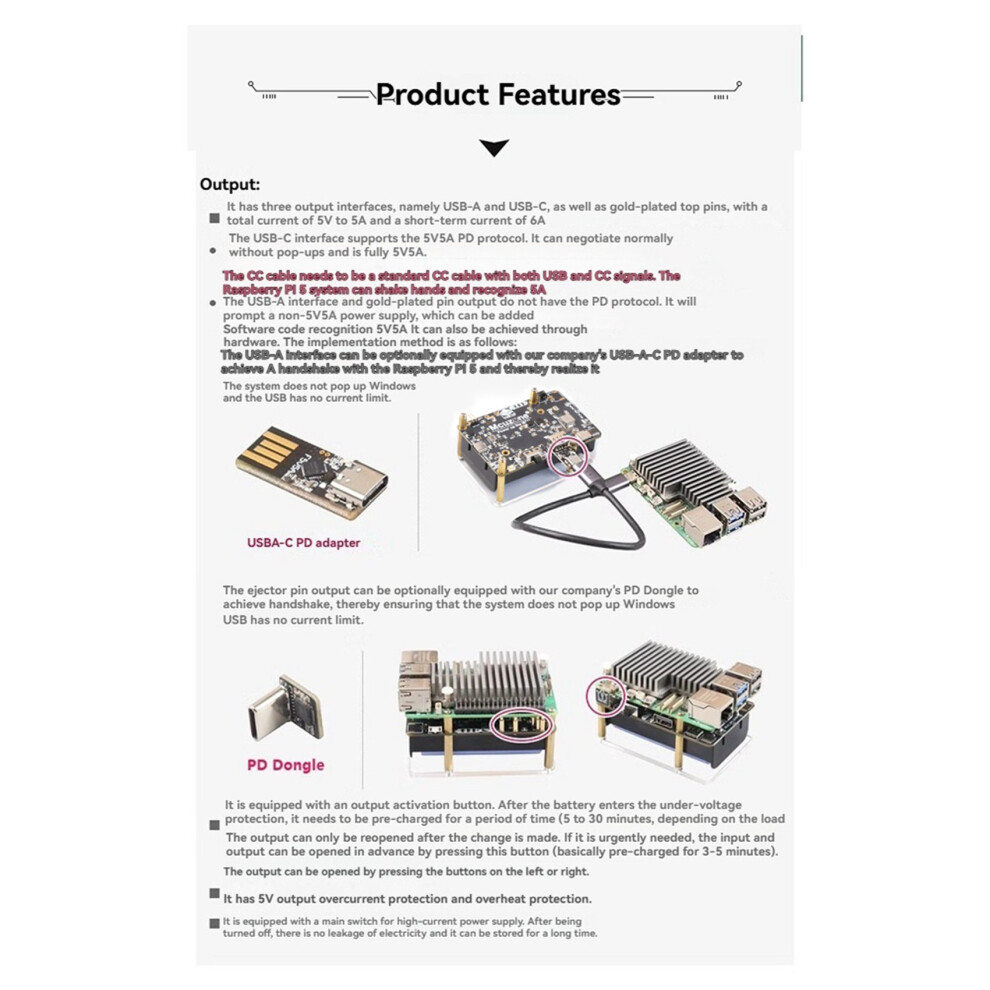

The USB-C output interface supports PD negotiation with the 5

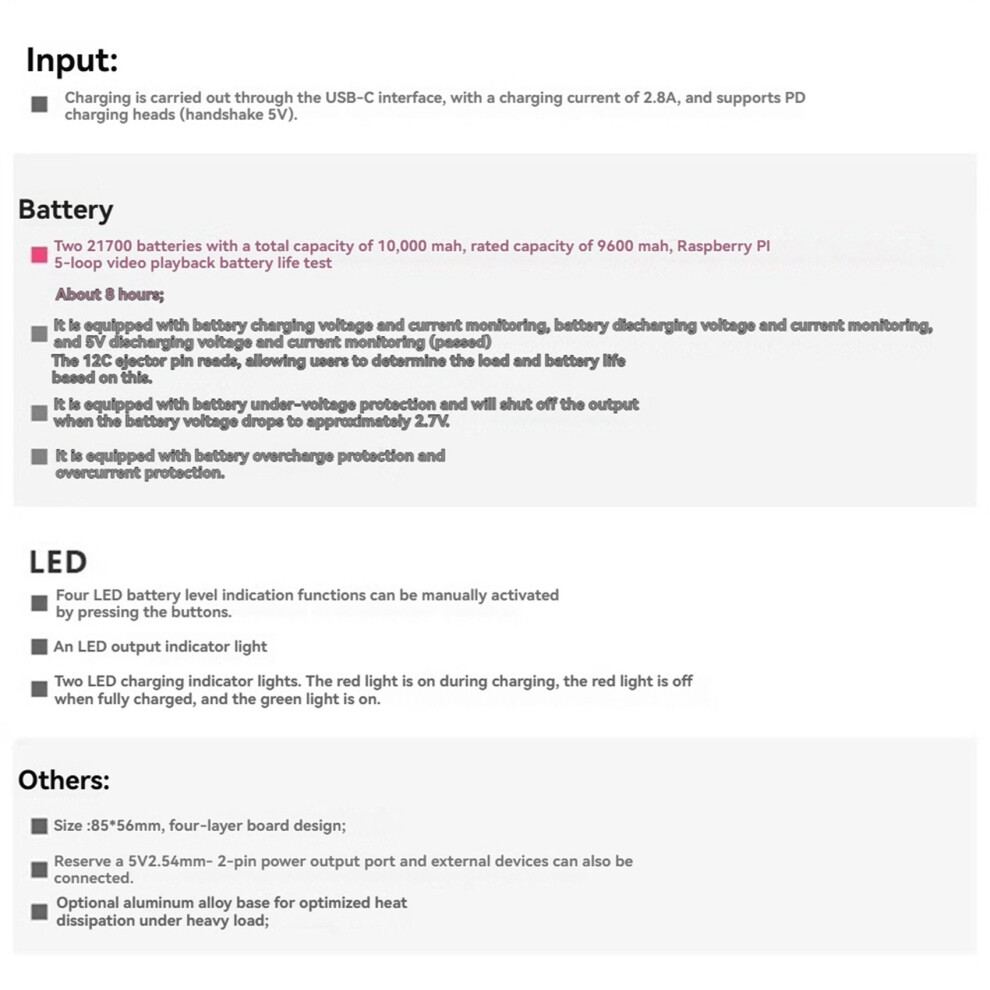

The module is equipped with two 21700 lithium batteries, with a combined capacity of up to 9600mAh

The module includes current and voltage monitoring functions for both battery charging and discharging, as well as 5V discharge current and voltage monitoring (can bad via pogo pins)
The circuit board uses a four-layer design, enhancing the current and heat dissipation efficiency
Dimensions: 84 x 56mm.
Optional 5V 2.54mm-2pin Output (fan connector)
The product appearance and printed words depending on the batch, but this does not affect use
Color: As Shown
Material: PCB
Specification: USB

Package Contents:

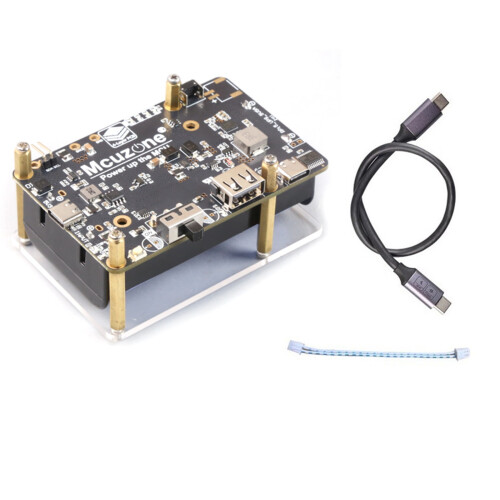

1 x UPS Power Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
