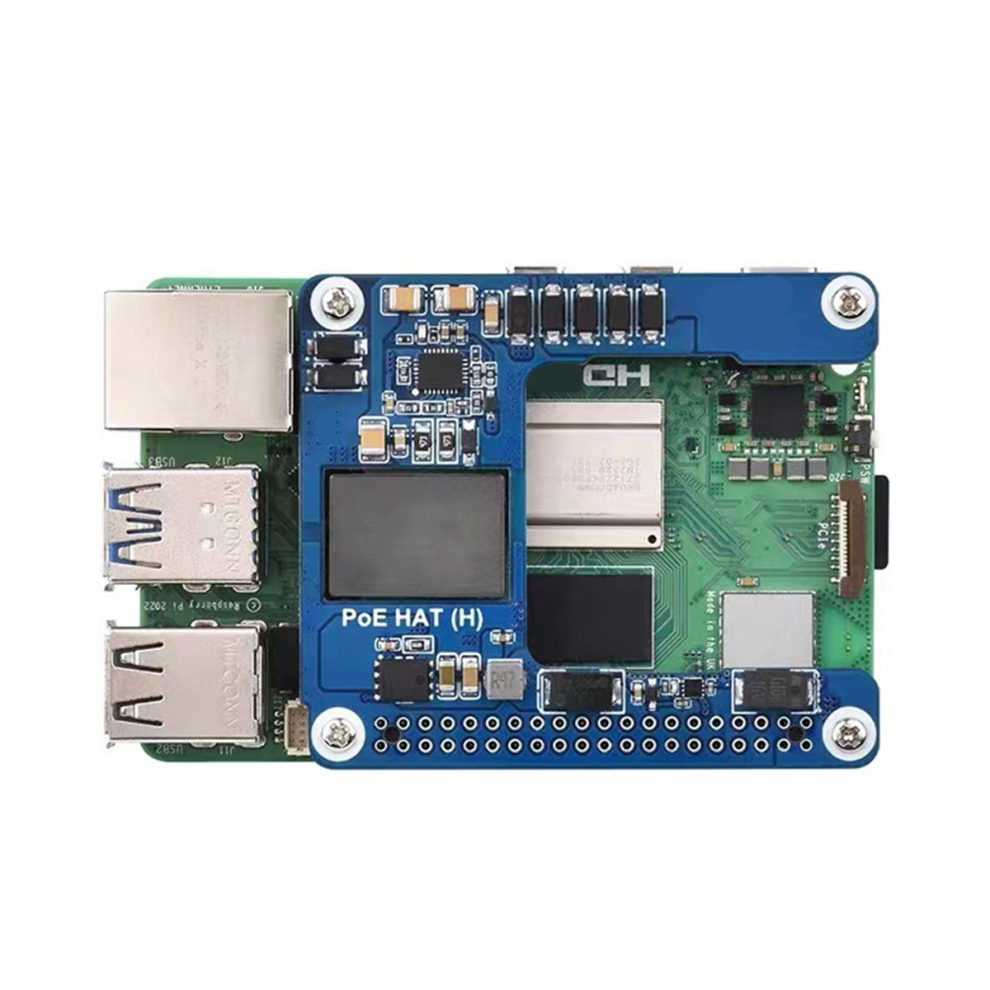

For 5/CM5 PoE HAT Power over Ethernet HAT(H) 5V 5A

For 5/CM5 PoE HAT Power over Ethernet HAT(H) 5V 5A Description

1. A Power over Ethernet (PoE) expansion board for Raspberry Pi5/CM5, supporting IEEE 802.3af/at network standards. Suitable for use with PoE routers or switches that support IEEE 802.3af/at network standards. Only one network cable is needed to connect the for to the Internet and power it.
2. Based on the for 40PIN GPIO interface
3. Supports PoE Ethernet power supply, supports IEEE 802.3af/at PoE network standards, and PoE power supply performance is more stable
4. Uses isolated switch mode power supply

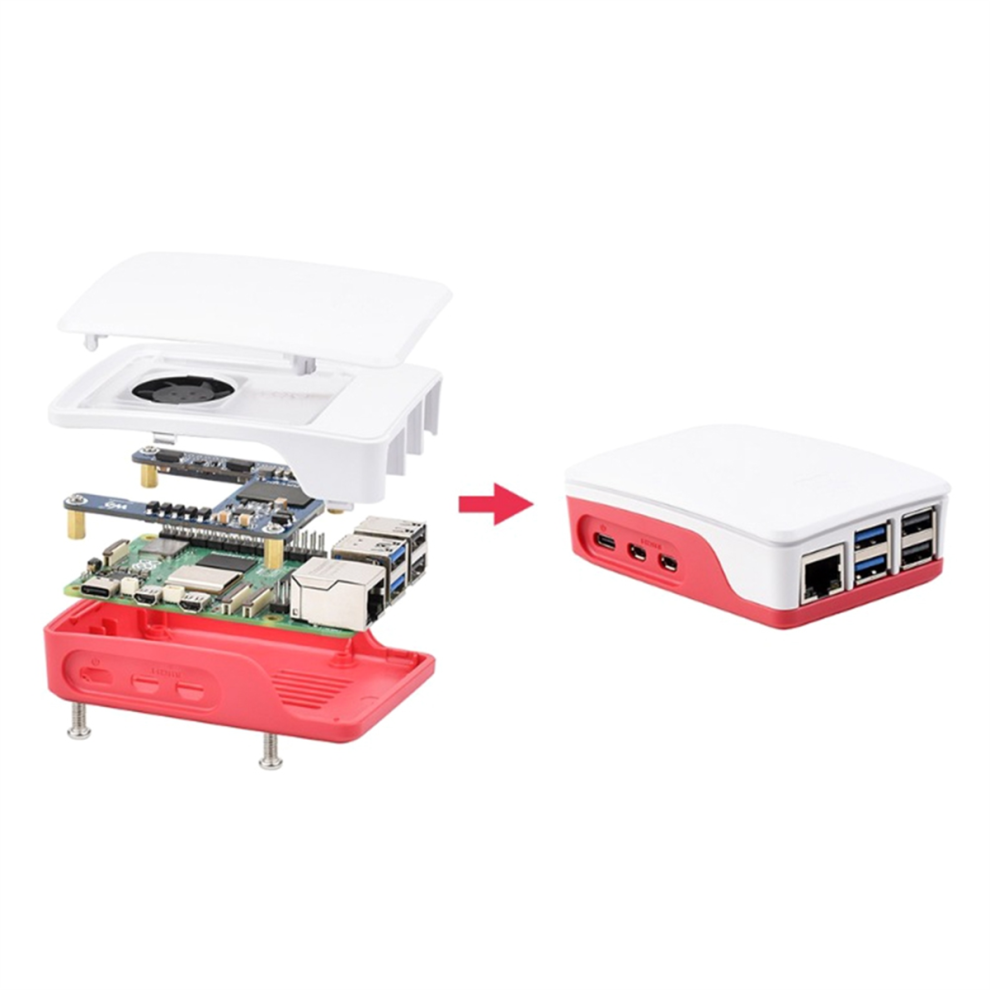

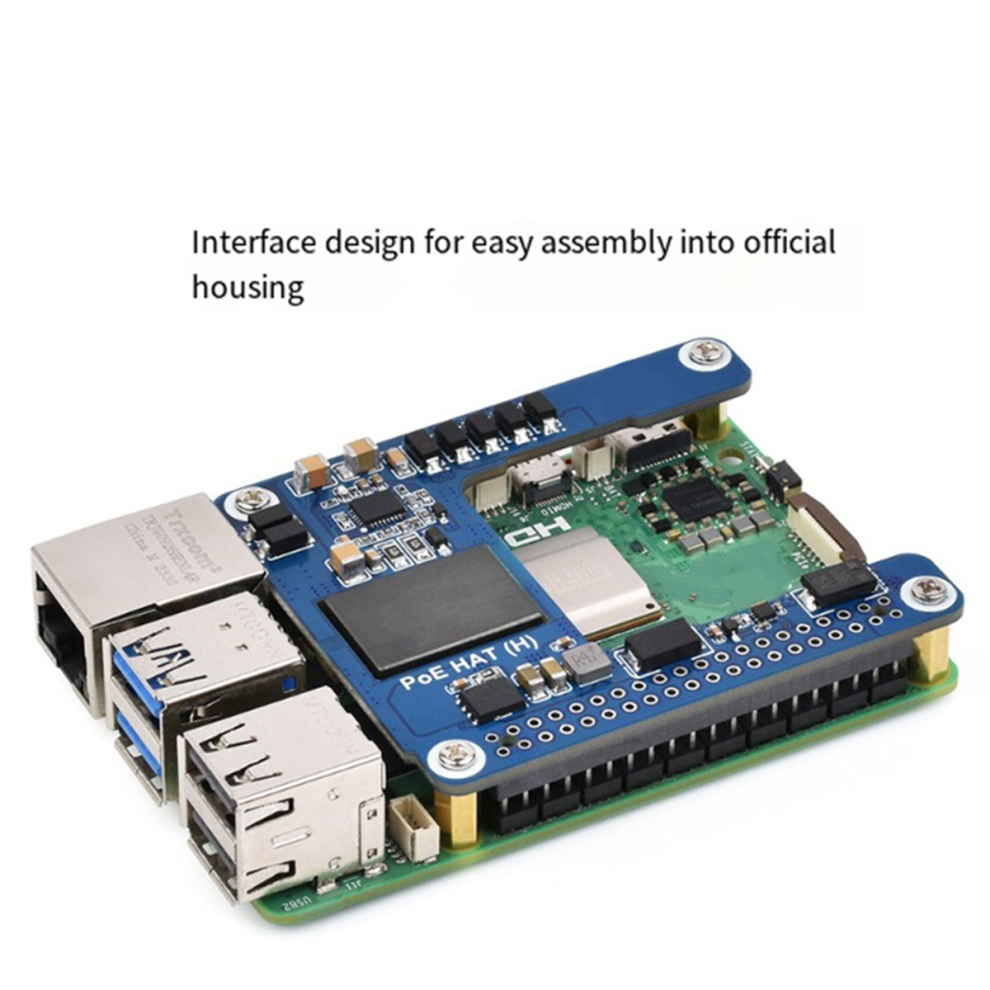

5. Compact and easy to assemble

PoE power input: 38V-57V DC input
Power output: GPIO pin header: 5V 5A (MAX)
Network standard: Support IEEE 802.3af/at PoE
Due to different batches, there may be differences in product appearance and printed text, which not affect use
Color: blue
Material: PCB

Package Contents:
1 x POE Expansion Board Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
