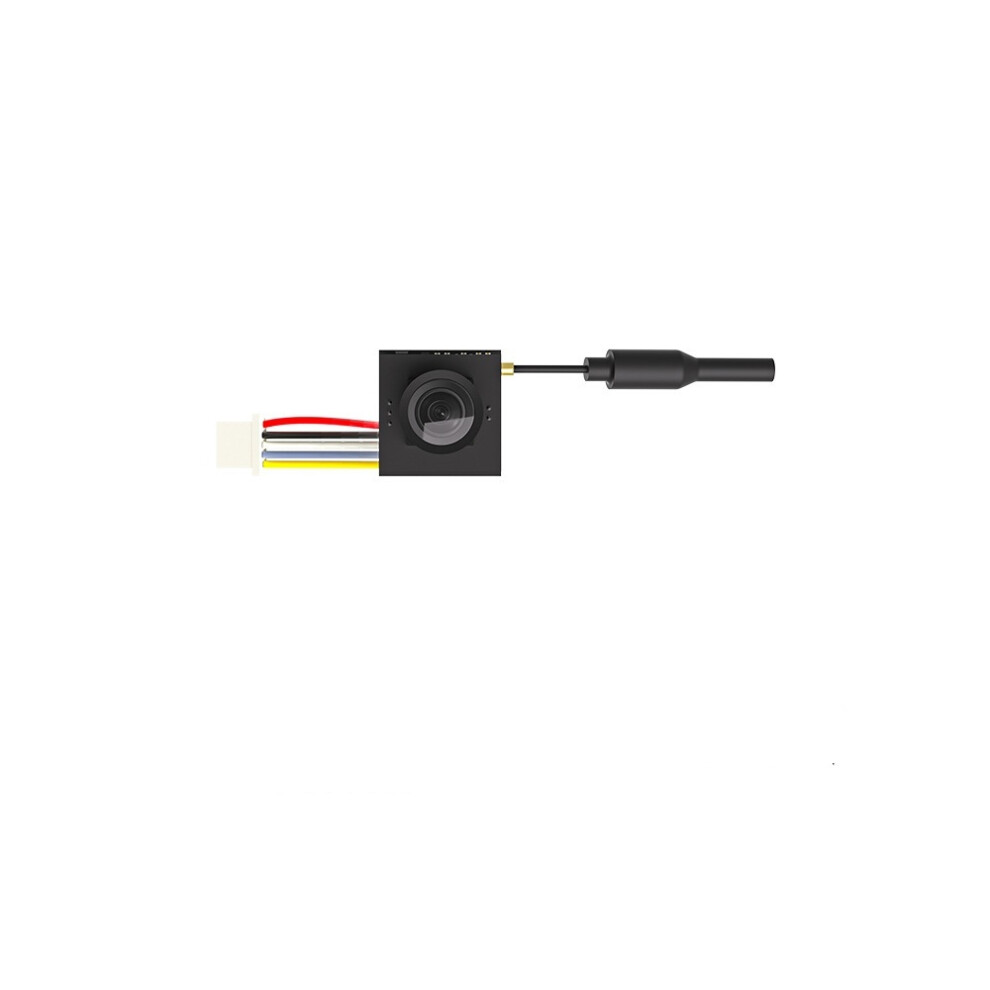

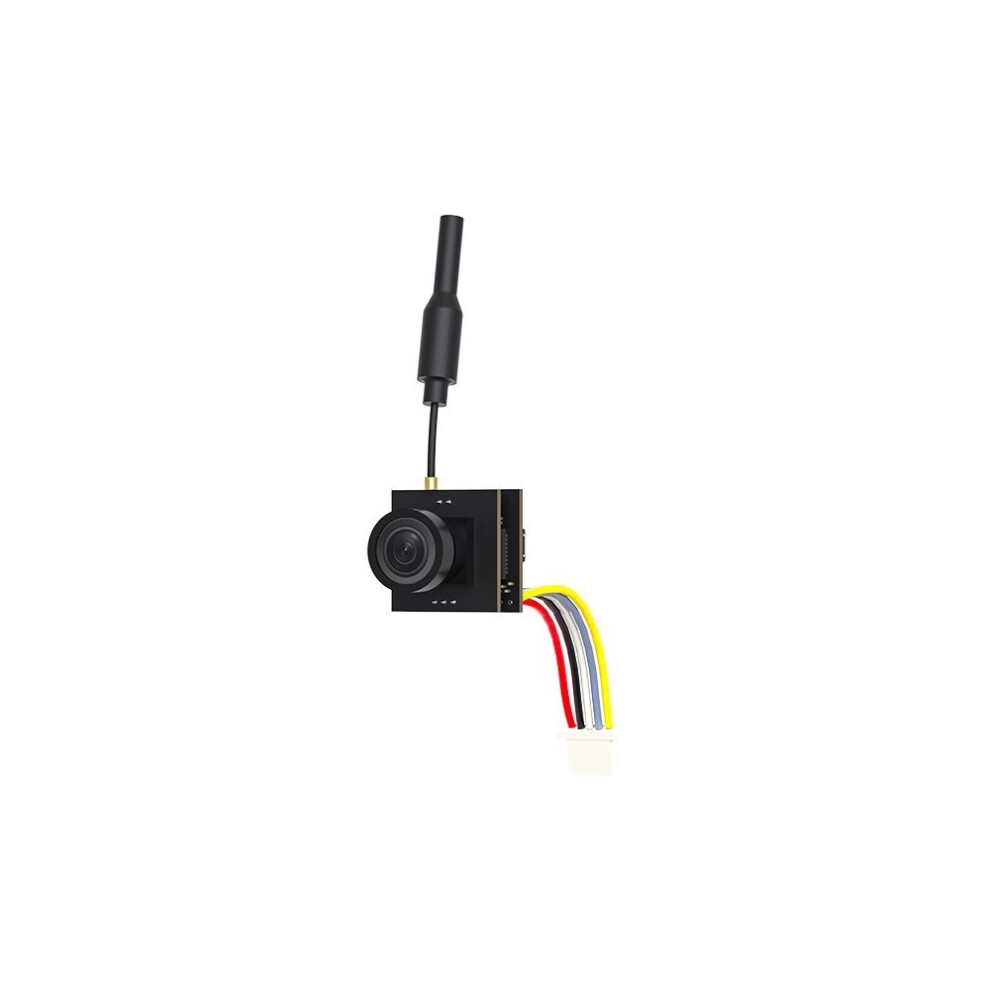

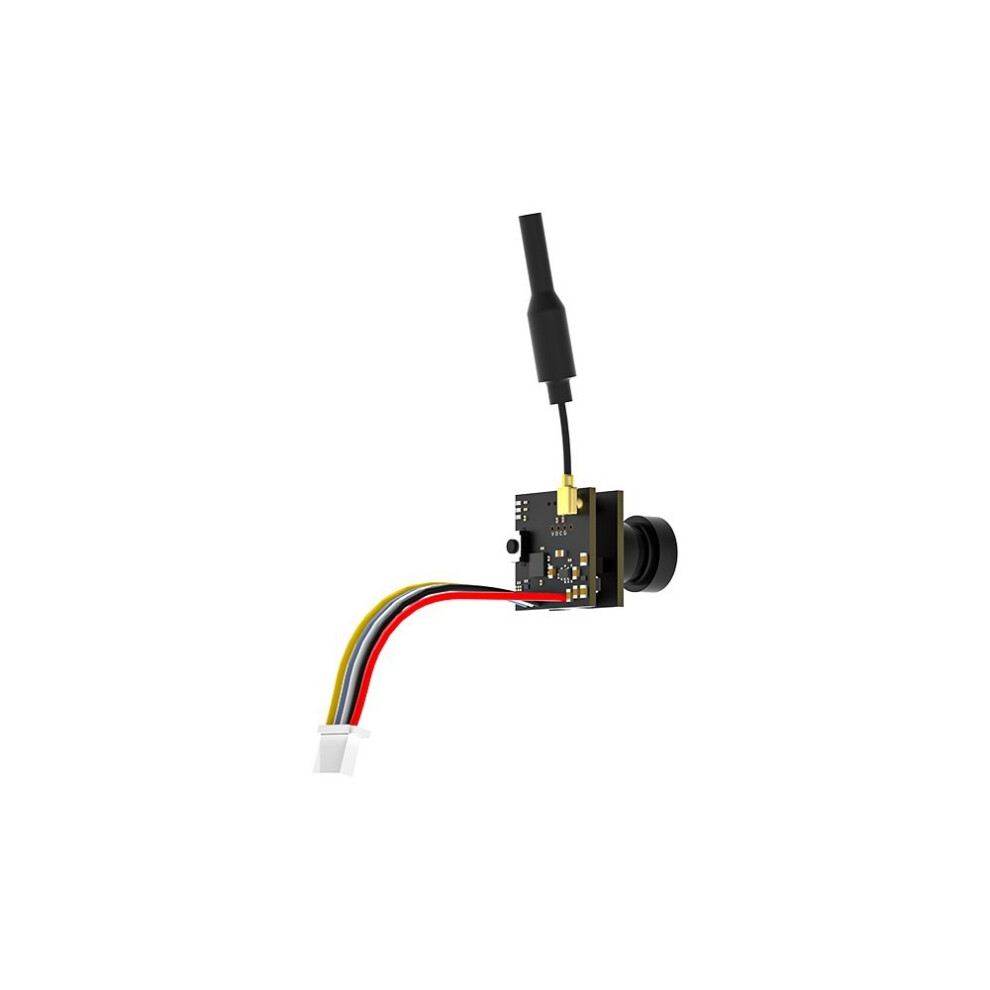

For Borg 5.8G Micro-Type 150mW VTX FPV Racing Video Camera & Transmitter

For Borg 5.8G Micro-Type 150mW VTX FPV Racing Video Camera & Transmitter Description

Warm tips:

1. When installing the map transmission, we must leave space to ensure air convection, to ensure that the module heat dissipation.

Otherwise the overheating protection will start, reduce the power emission, or even shut down the power emission.

2.Make sure the voltage is correct and the positive and negative poles are correct before power on to avoid burning the components.

Make sure the RF antenna is installed on the RF end to extend the module life.

3. Please read the manual carefully before use to ensure correct wiring and avoid operation errors.

3.When installing, the antenna should be far away from GPS, carbon board or conductor, so as not to affect the performance of the antenna.

Mapping specifications:

Mapping power: PIT/25mW/100mW/150mW@5V 550mA

Frame size: 15.5*15*20.5mm

Antenna Interface: IPEX1

Mapping protocol: IRC Tramp

Input Interface: SH1.0 5P

Output Frequency: 48CH(A-B-E-F-R-L)

Weight: 3.8g

Camera Specifications:

Camera: 115¡ã wide-angle lens

Focal length: 1.45mm

Sensor . : 1/4¡ CMOS Sensor

Resolution: 600TVL

Video Format: PAL/NTSC Selectable

Image Ratio: 4:3

Operating voltage: DC-5V

Port Description:

VBAT :5V DC positive input

GND: Negative

RX: IRC Tramp signal input

CAMERA OUT: Camera signal output

VIDEO IN: Video input port

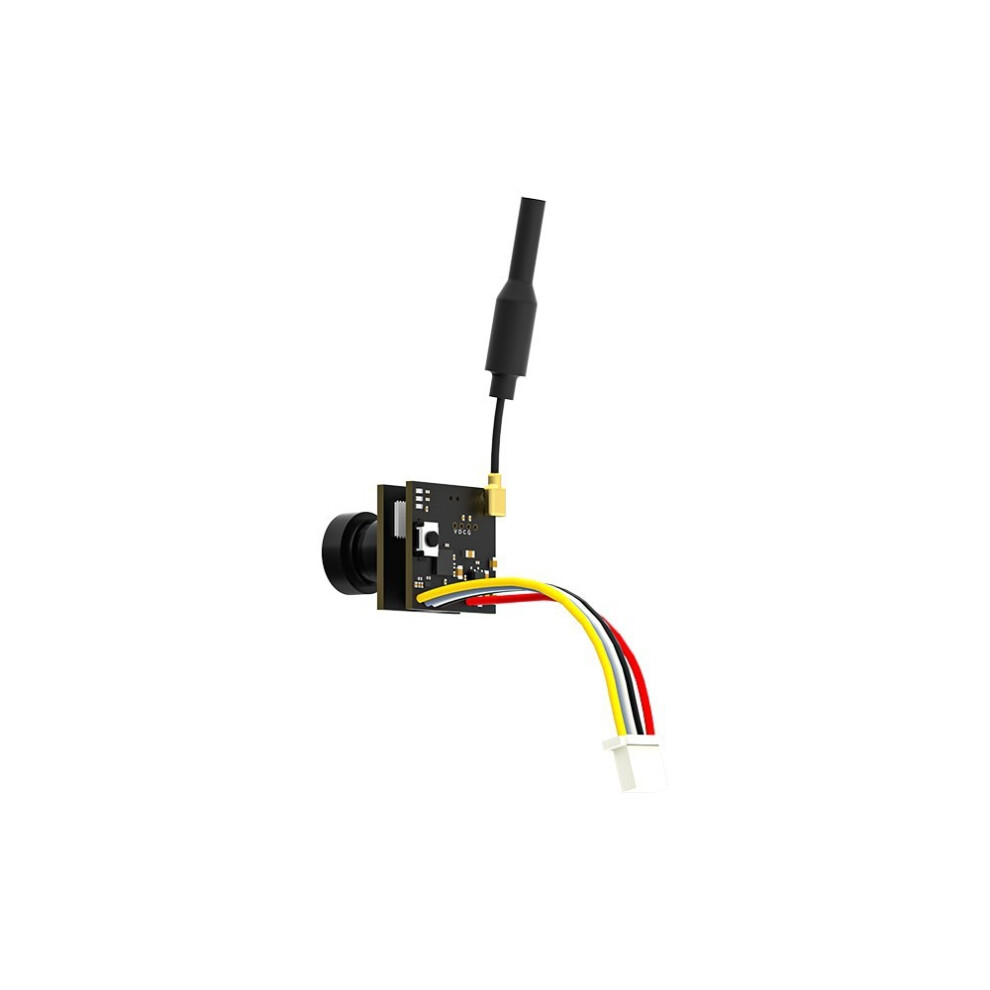

Button Description:

The three red, blue and green LEDs are set to indicate the current frequency, band and power level by blinking times respectively, which can be adjusted by one key, and the adjustment logic is as follows.

Short press (frequency), the blue light flashes: short press the frequency +1, the blue light blinking times +1

Long press (band), red light blinking: short press the band +1, red light blinking times +1

Long press (power), green light blinks: short press the power level +1, green light blinks +1 times

Note: Long press 2 seconds to exit the adjustment mode after setting is completed or if no key operation after 10 seconds during the adjustment process, it will automatically exit the adjustment mode and save the current setting.

Package Included:

1*5.8G Micro Mapping Transmitter
