For CanMV K230D AI-CAM Development Board C908 RISC-V Motherboard for Intelligence Robot Vision Recognition Camera Module

For CanMV K230D AI-CAM Development Board C908 RISC-V Motherboard for Intelligence Robot Vision Recognition Camera Module Description

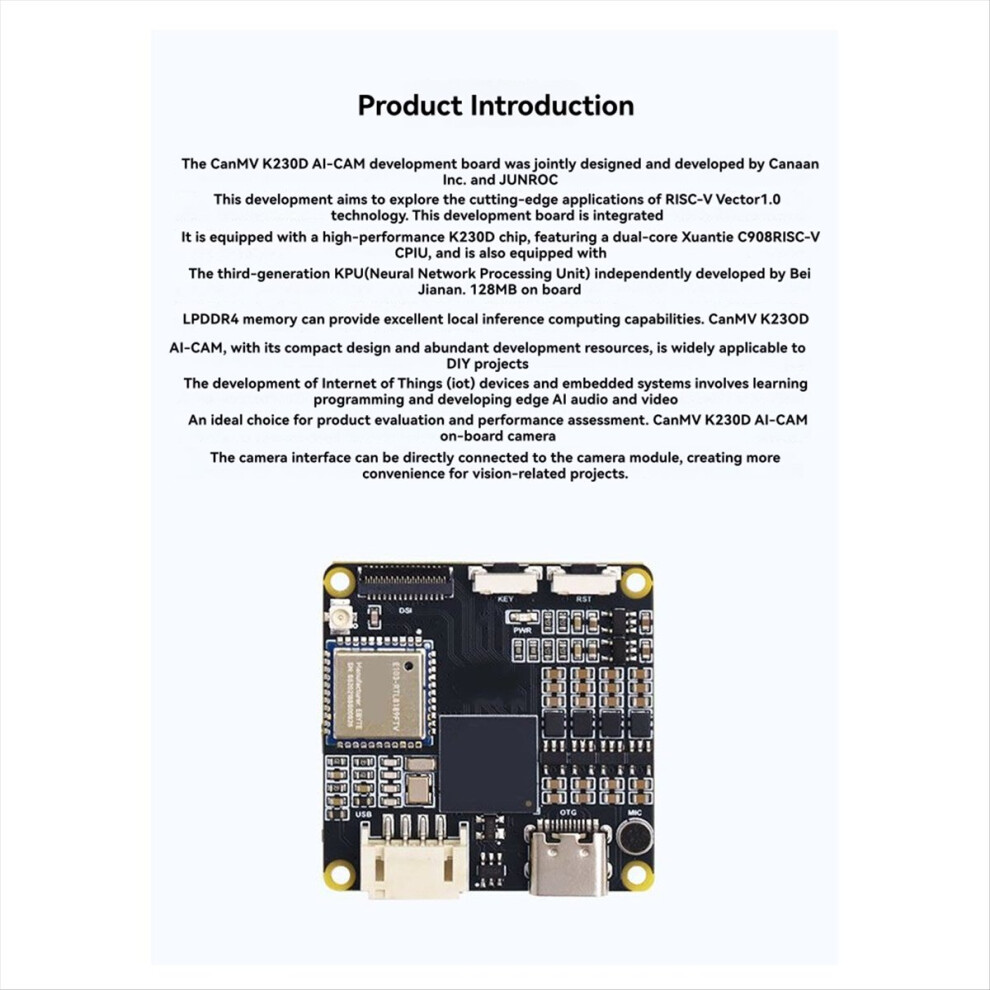

The for CanMV K230D AI-CAM development board, jointly designed and developed by Canaan Technology, is designed to explore cutting-edge applications of RISC-V Vector 1.0 technology

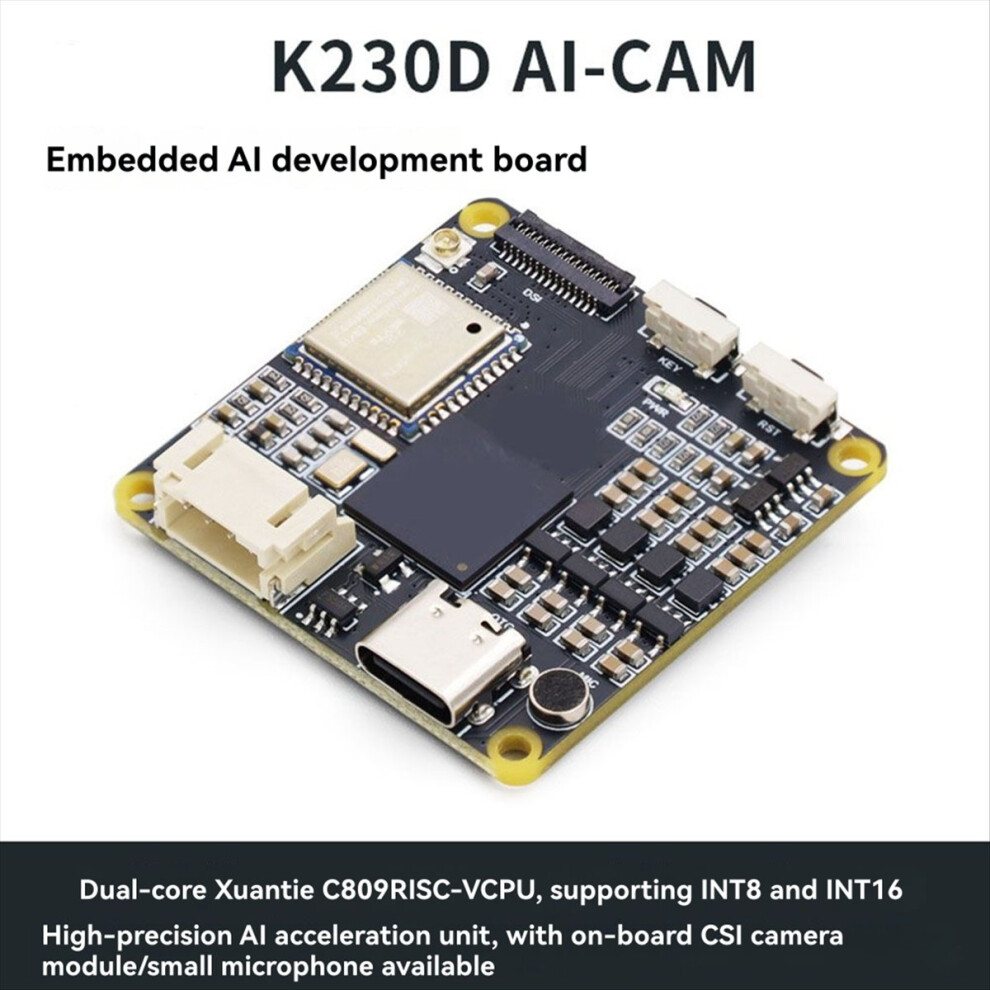

This development board integrates the high-performance K230D chip, featuring a dual-core C908 RISC-V CPU proprietary third-generation KPU (Neural Network Processing Unit). It also includes 128MB of onboard LPDDR4 memory, providing excellent local inference computing power
With its compact design and extensive development resources, the for CanMV K230D AI-CAM is widely suitable for DIY projects, IoT devices, and embedded system development
It is ideal for learning programming, developing edge AI audio and video products, and conducting performance evaluations
The for CanMV K230D AI-CAM also features an onboard camera interface for direct connection to camera modules, further facilitating vision-related projects

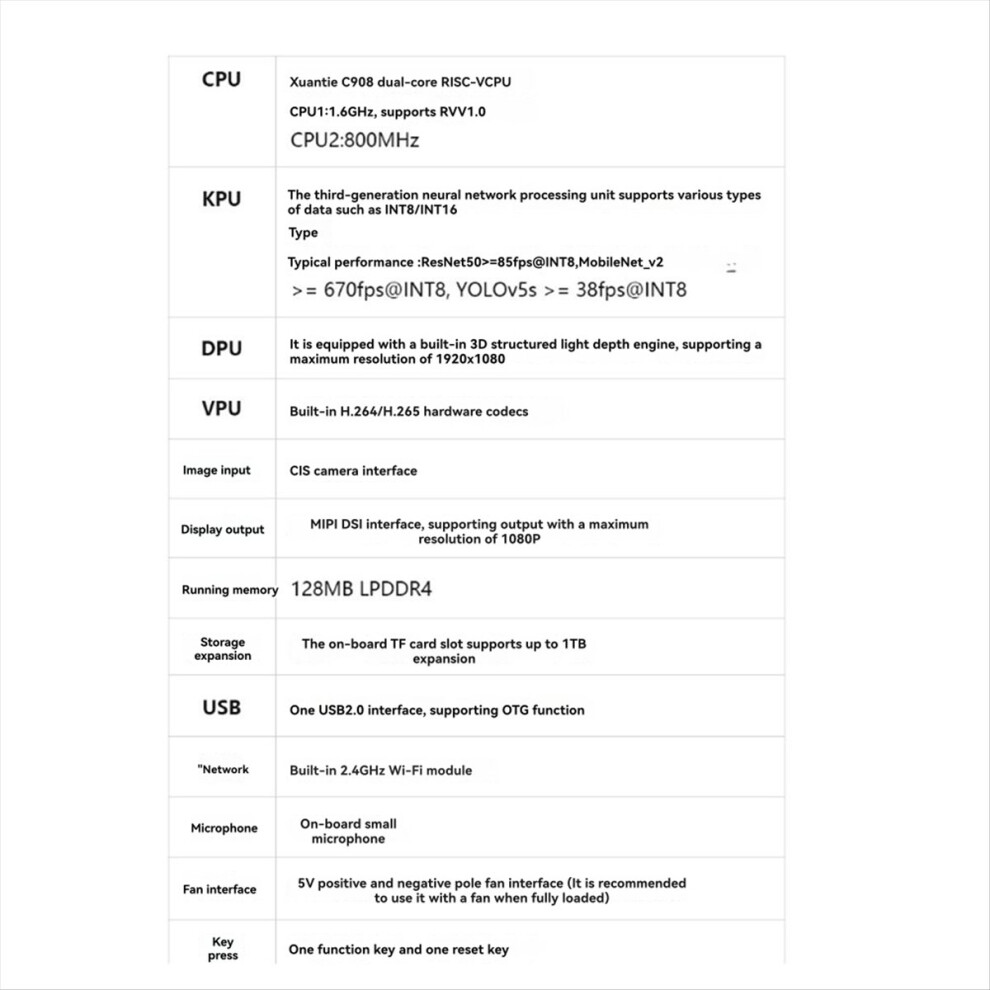

CPU: C908 dual-core RISC-V CPU,CPU1:1.6GHz, supports RVV1.0,CPU2:800MHz
DPU:Built-in 3D structured light depth engine, supports up to 1920x1080 resolution
VPU:Built-in 264/265 hardware codec

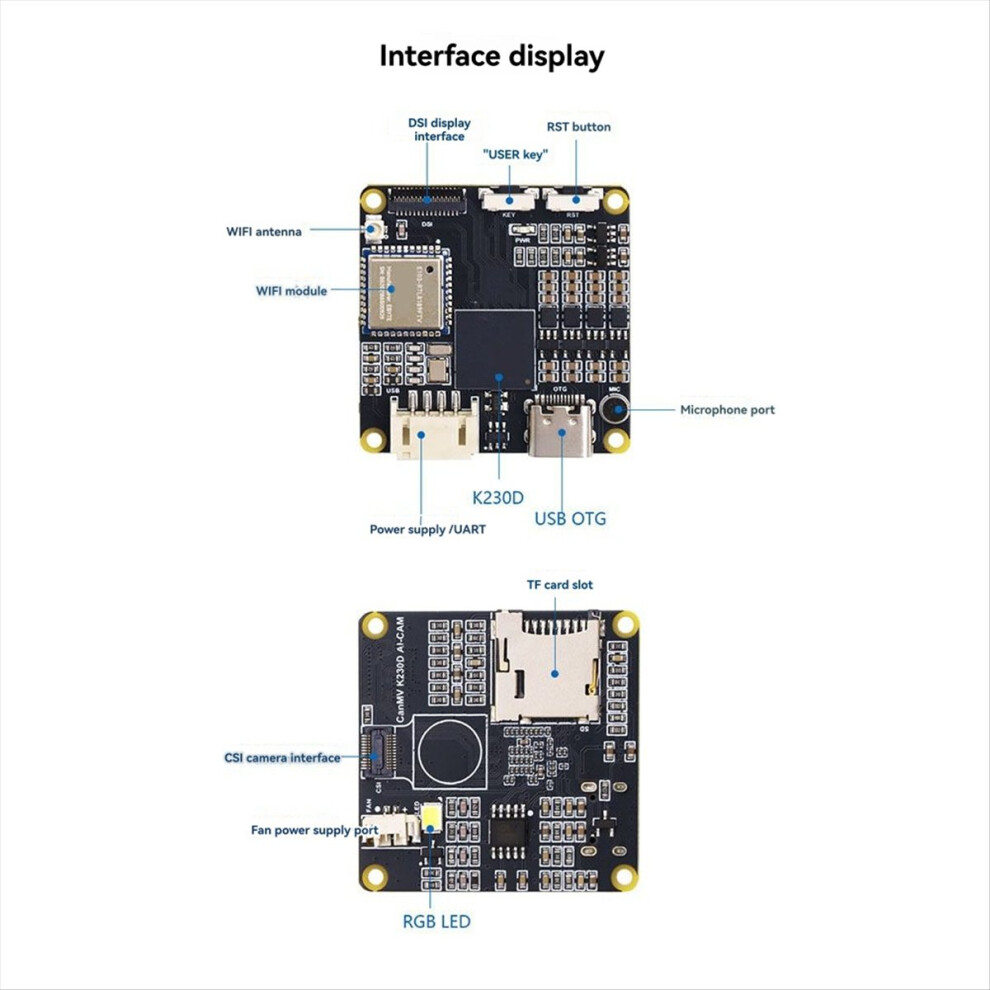

Image input: camera interface
show output:MIPI interface, supports the highest | interface, supports the highest 1080P resolution output
running memory:128MB LPDDR4

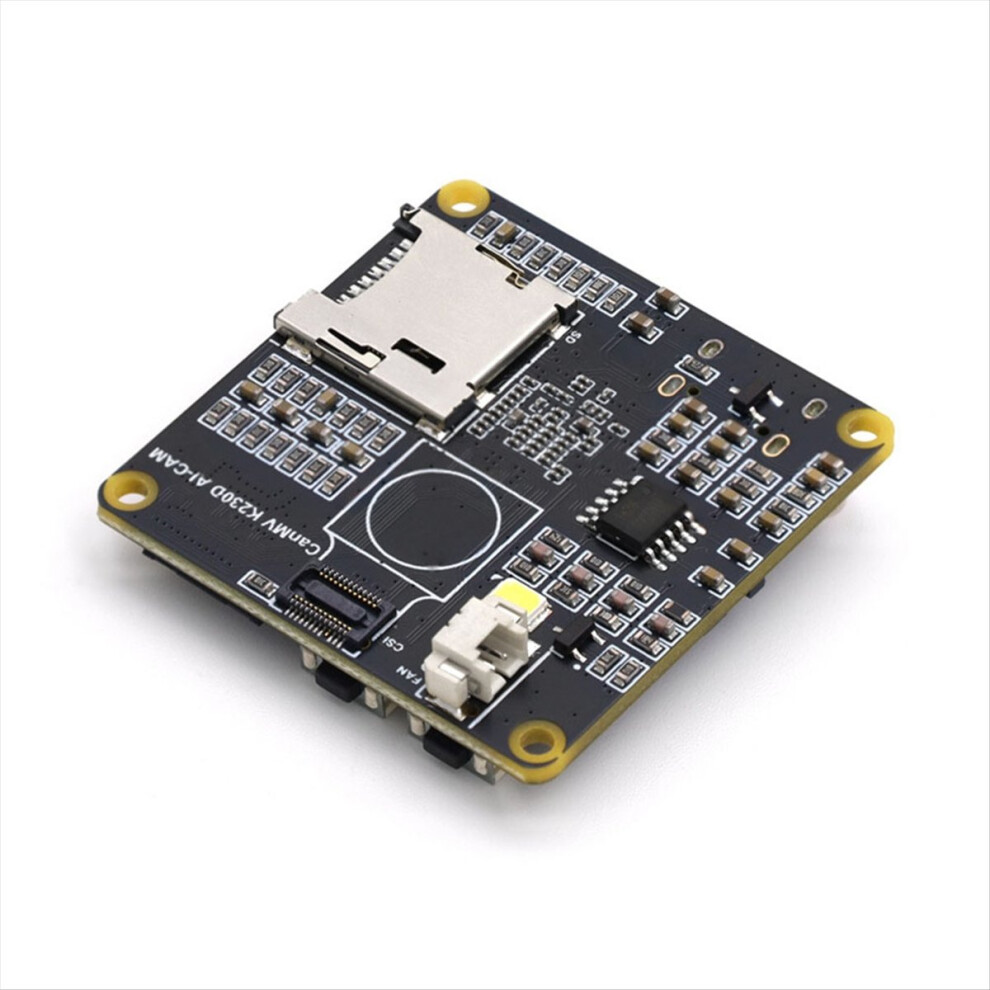

storage expansion:Onboard TF card slot, supports up to 1TB expansion
USB:1 USB 2.0 port, supports OTG function
network:Built-in 2.4GHz Wi-Fi module
microphone:Onboard small microphone
Fan interface:5V positive and negative fan connectors (recommended for use with fans when fully loaded)
button:1 function button, 1 reset button
power supply:USB Type-C port, input voltage 5V, current 2A
(The product printed words depending on the batch, but this does not affect use)
Color: As Shown
Material: PCB

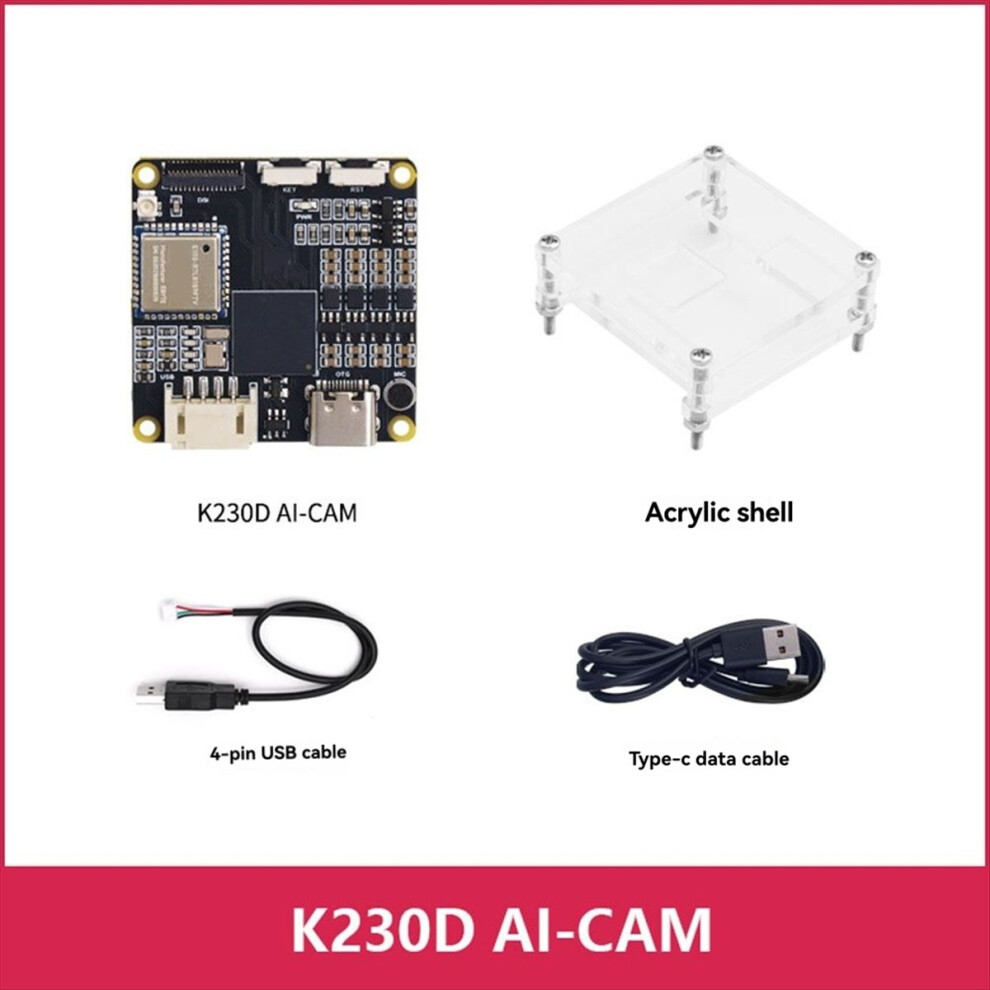

Package Contents:
1 * for CanMV K230D AI-CAM Development Board Kits

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
