For Core3576 AI Core Board 6 TOPS Octa-Core AloT R

For Core3576 AI Core Board 6 TOPS Octa-Core AloT R Description

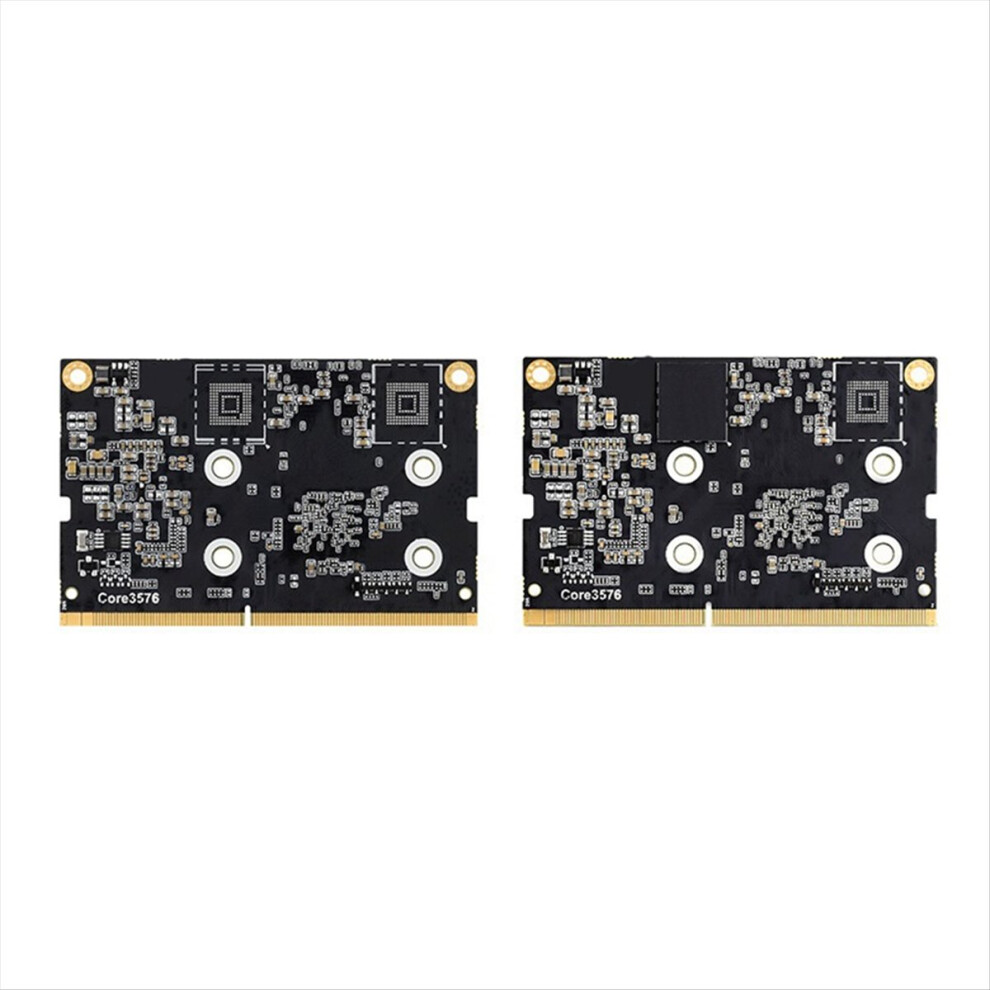

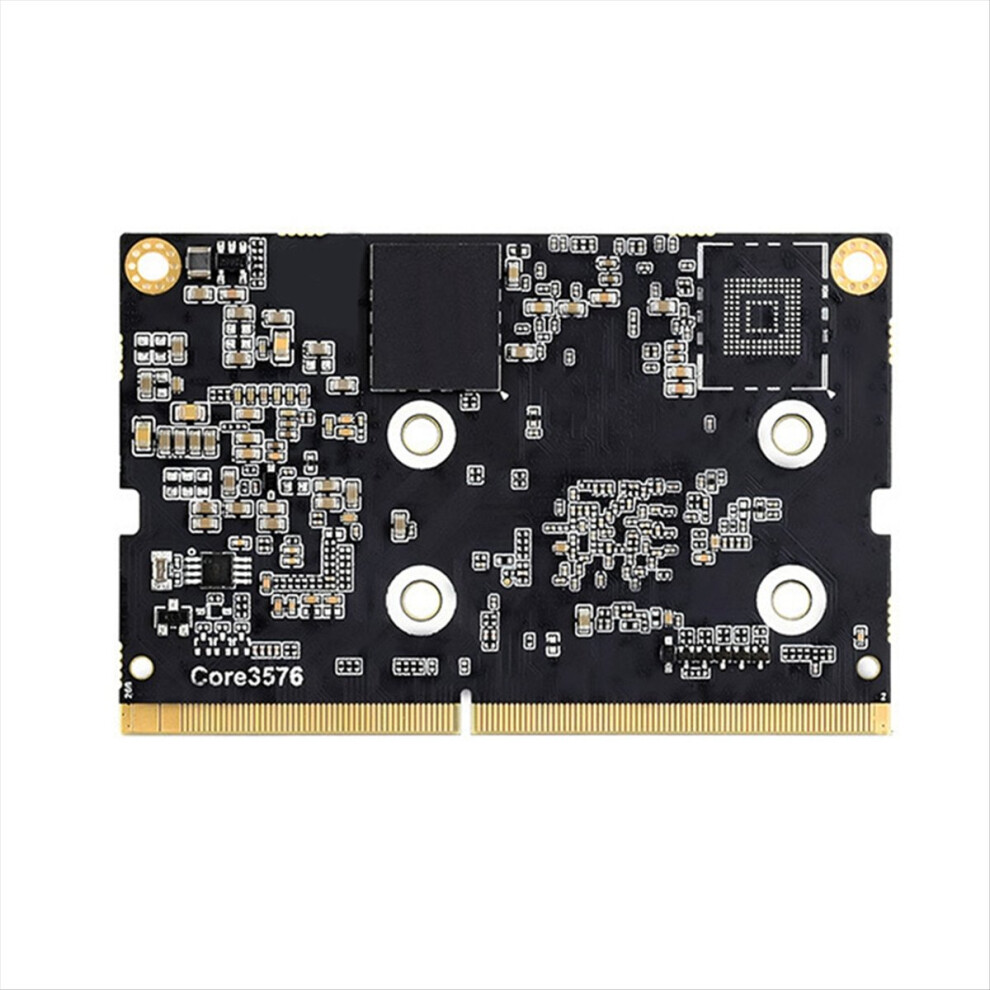

Core3576 is a core board based on Rockchip's high-performance and low-power AloT processor RK3576
Low-power octa-core AloT processor, equipped with high-performance processor RK3576, integrated with quad-core -A72 and quad-core -A53 large and small core design, powerful performance while taking into account energy efficiency
6TOPS computing power, equipped with 6 TOPS computing power, can easily convert network models based on a series of frameworks such as TensorFlow, MXNet, PyTorch, Caffe, etc
Support 4K encoding and decoding, support 4K@120fps (265/HEVC, VP9, AVS2, AV1), 4K@60fps (264/) decoding, support 4K @ 60 frames/second (265/HEVC, 264/) encoding, handle high-definition video tasks with ease

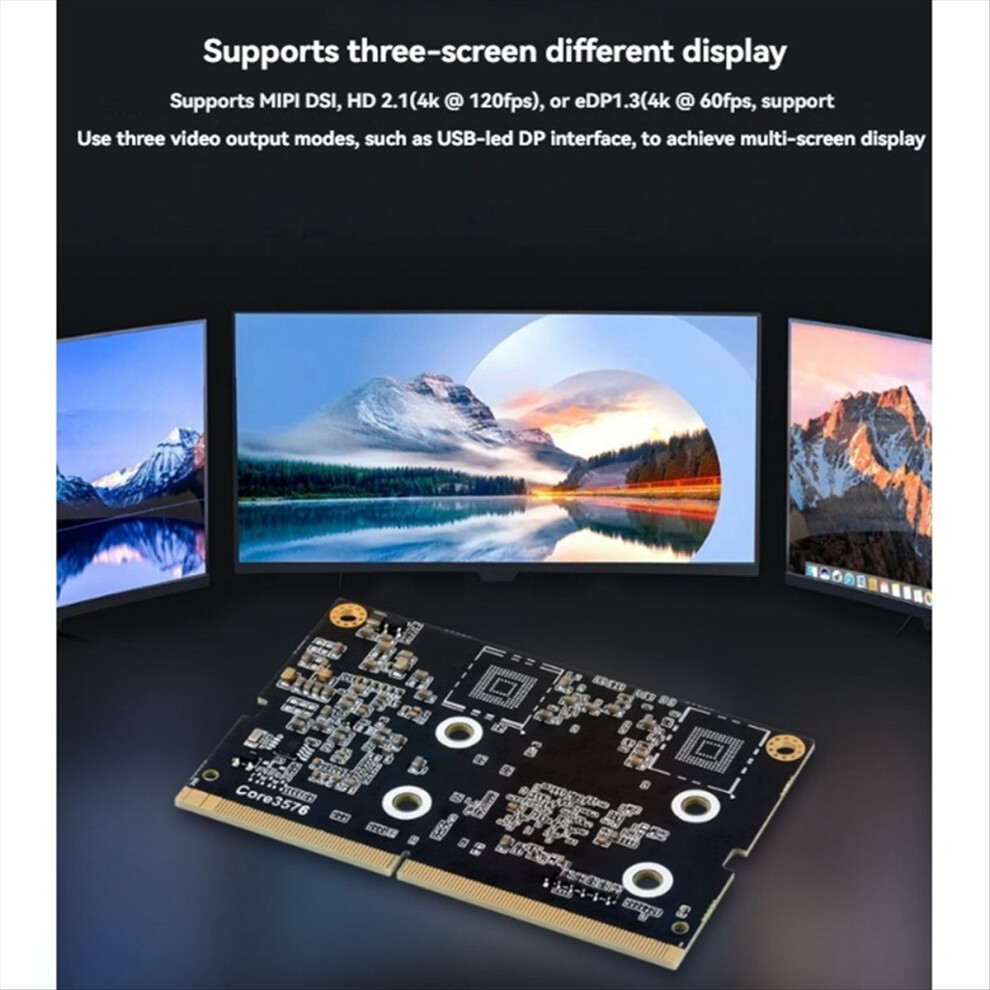

Support three-screen display, support MIPI , support HDMI2.1 (4K@120fps) or eDP1.3 (4K@60fps), support DP interface through USB, etc., to achieve multi-screen display

Processor: Quad-core Arm [email protected] + Quad-core Arm - [email protected]
Memory: 8GB LPDDR4X memory
Flash: 64GB eMMC flash
Neural network processor: 6 TOPS@INT8, support INT4, INT8, INT16, FP16, BF16, TF32 mixed operations
Graphics processor: ARM Mali G52 [email protected], support OpenGL ES 1.1/2.0/3.2, OpenCL2.0, 1.1, embedded high-performance 2D acceleration hardware
Connector: 260 Pin SO-DIMM connector
Power input: 5V DC
Color: Black
Material: PCB
(The product appearance and printed words depending on the batch, but this does not affect use)

Package Contents:
1 x Core Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
