For H3 2006-2010 Car Front Hood Engine Cover Support Rod

For H3 2006-2010 Car Front Hood Engine Cover Support Rod Description

compression gas springs type, also known as free type gas spring, supporting bar, nitrogen spring is a high-pressure gas sealed in the cylinder, the piston produced by the elastic features of the product. The product does not need to work at the outside power, constant lifting force. Fully open the rear door is widely used in automobile, hood, back door luggage, mechanical equipment, construction machinery, furniture, fitness equipment, and other fields.
It has a , easy to control, no maintenance and so on.
High quality and long service life.
Easy to install.
Suitable for For 2006-2010 H3

Instructions:
1. Use Safety stands whenever a procedure requires you under the vehicle or supports. Or have someone hold the lid open so that they can raise or lower it as needed.
2. Before removing the old lift support, inspect connections and compare them to the units on your vehicle to make sure that they are the same As well as the extended length.
3. Remove the old support from the vehicle by placing a small flat headed screw driver under the U shaped band on the ends of the support. Slowly turn the screw driver and it lift up on the band .1/8 inch, then pull the support away from the vehicle and it release.
4. To install the new supports do the same procedure in reverse. DO NOT jam the new support end over the ball socket without lifting the U band slightly or damage may occur.
5. Lift Supports need to be installed fully extended. In most cases you just can' compress them unless they are on the vehicle.
6. If the ends are not lining up the support may need to be turned. To do this attach the shaft end of the support to the vehicle and then turn the entire body of the support clockwise unit the ends line up.
Colour:black
Material:metal
Size:
Compressed Length: 15.8cm
Extended Length: 40cm

Package Contents:

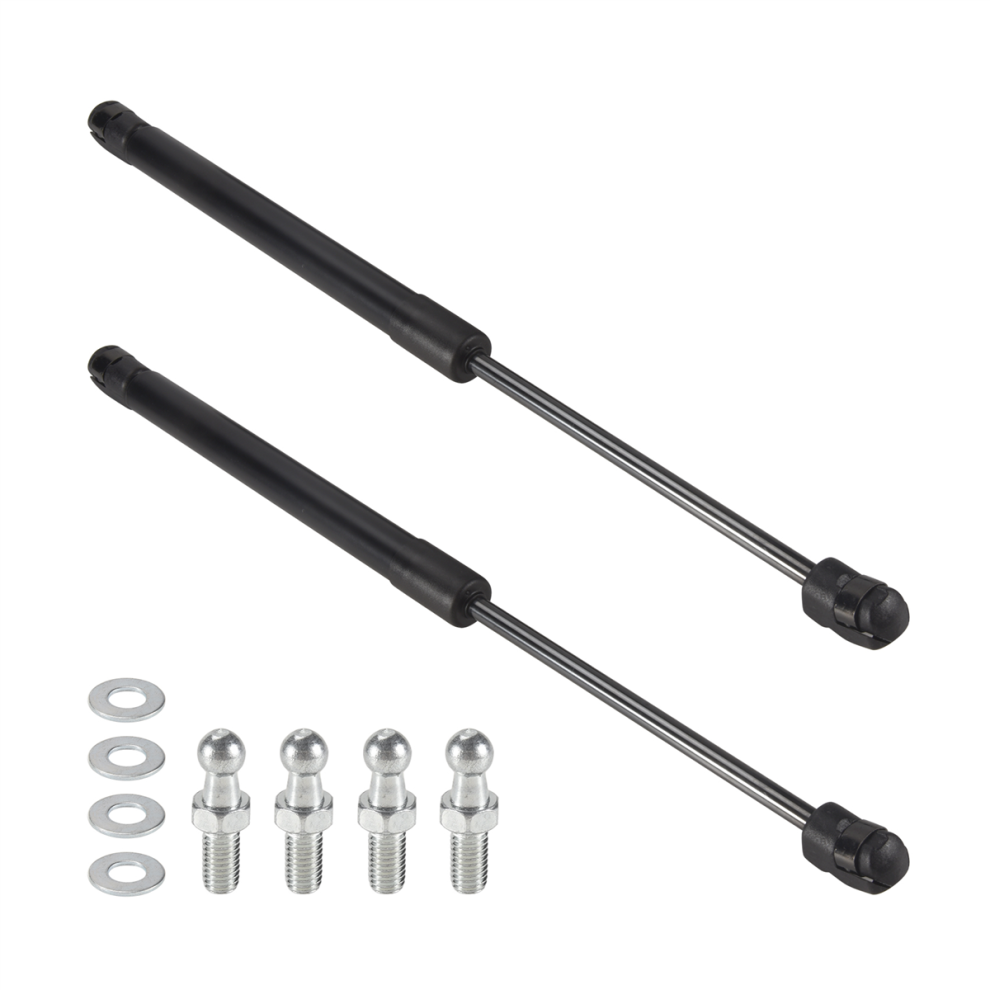

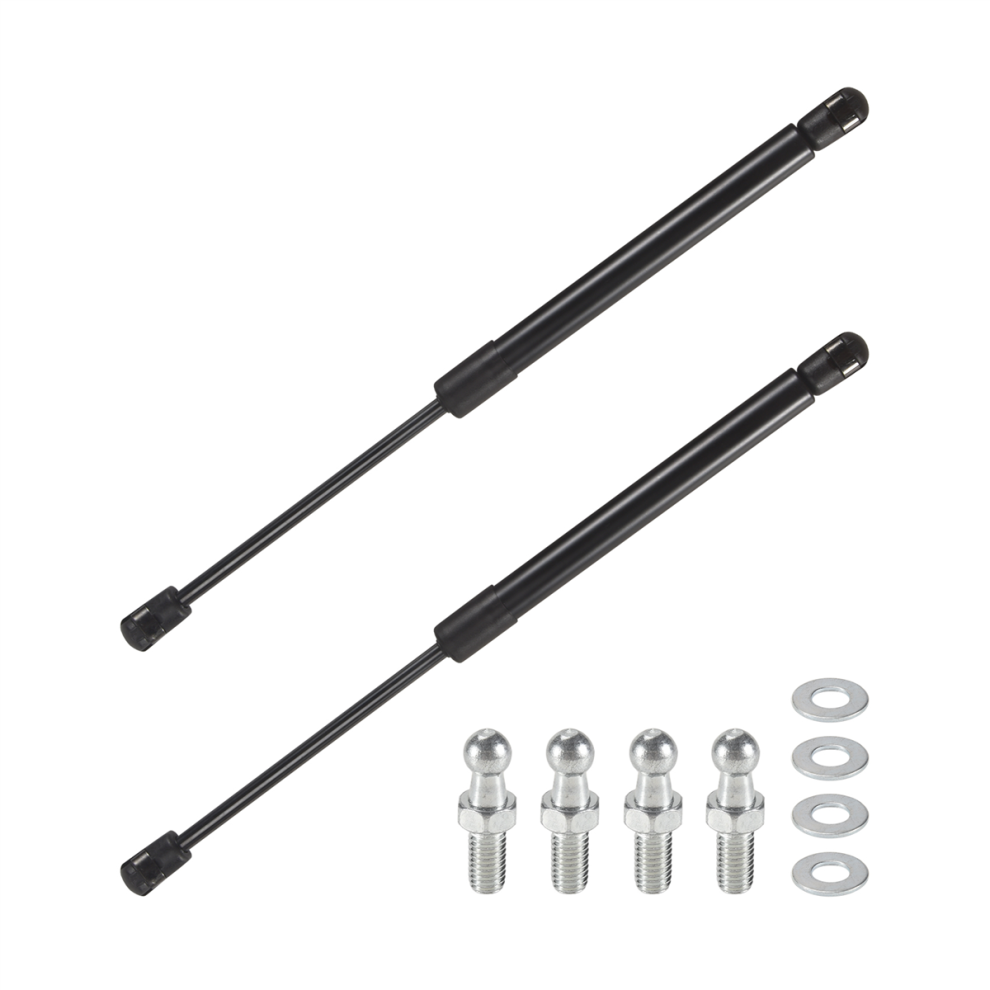

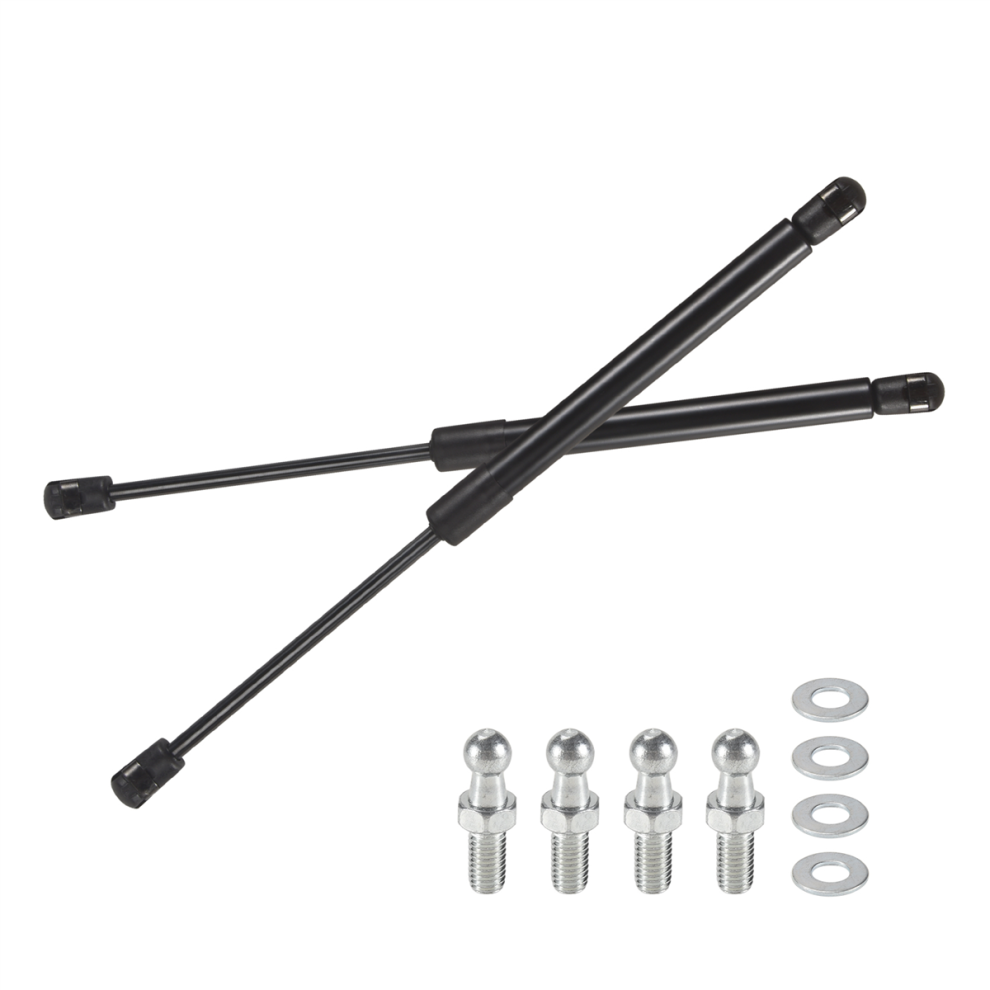

2 x front hood gas lif supports
1 Bag x Ball Screws

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
