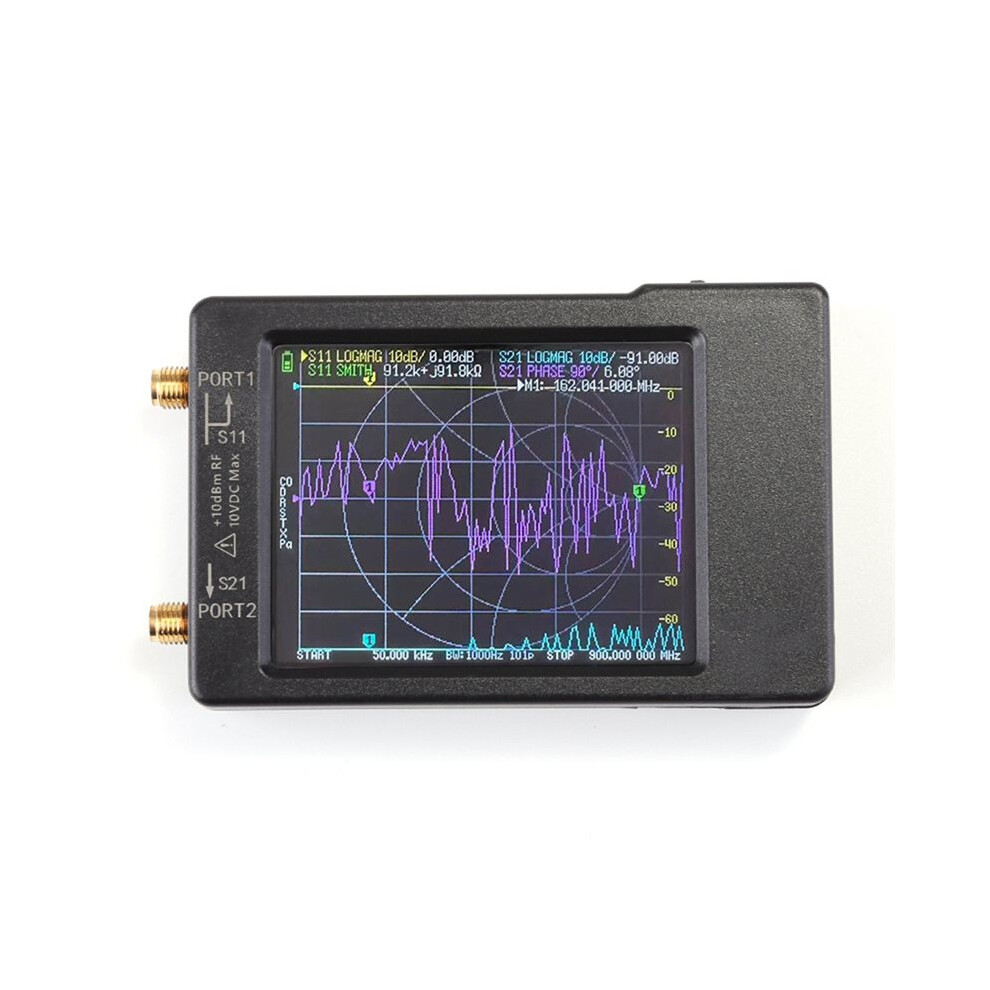

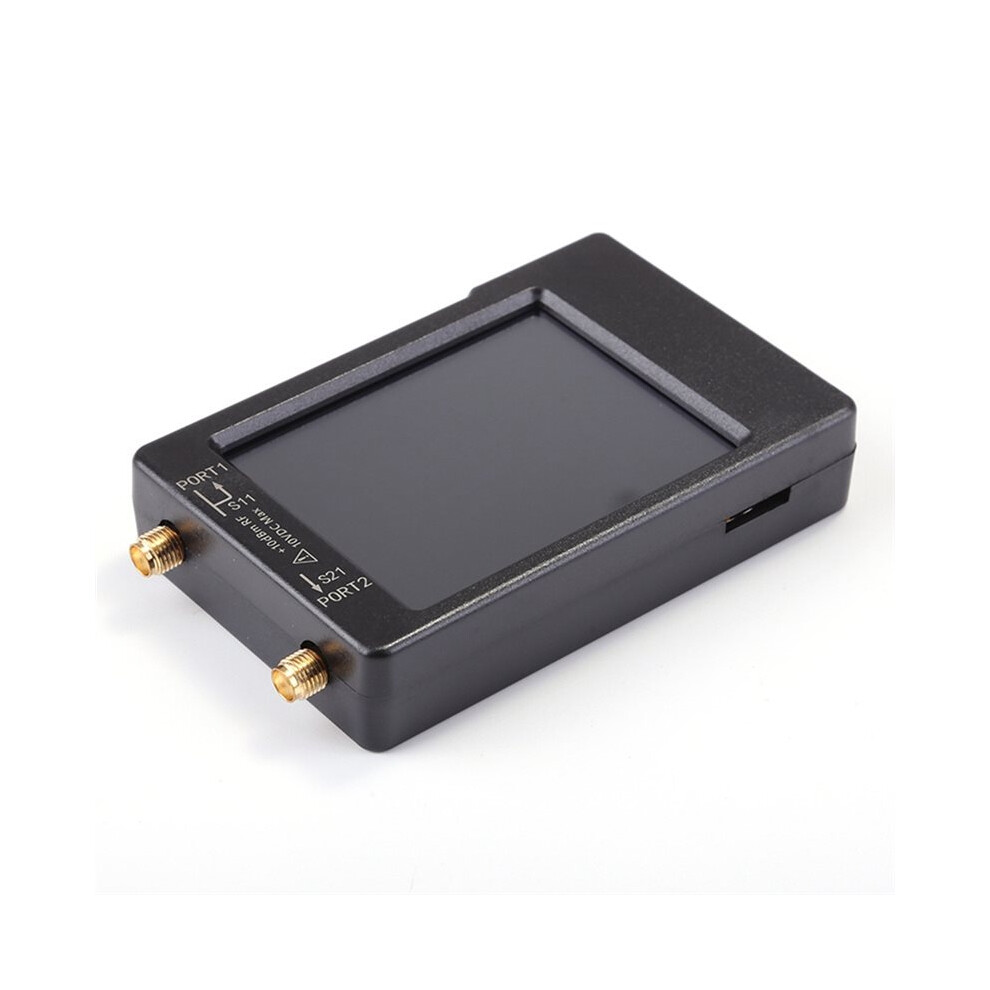

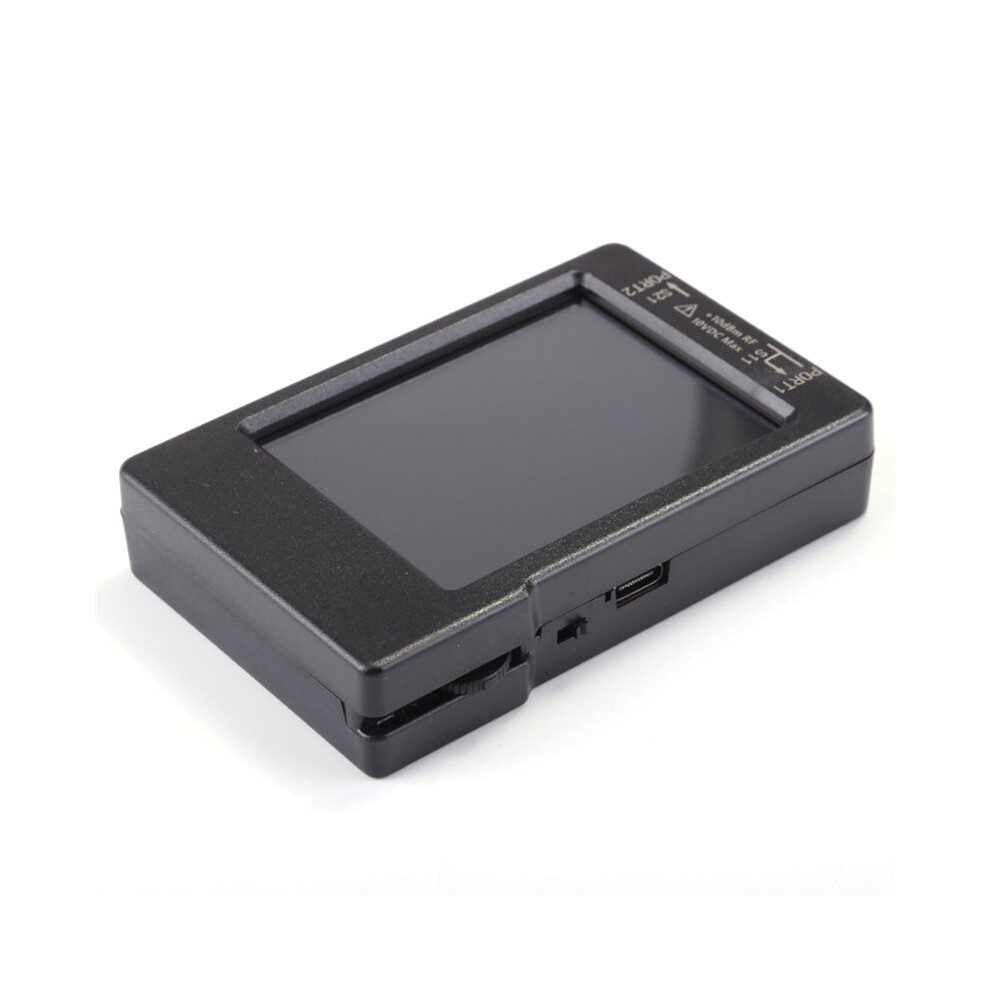

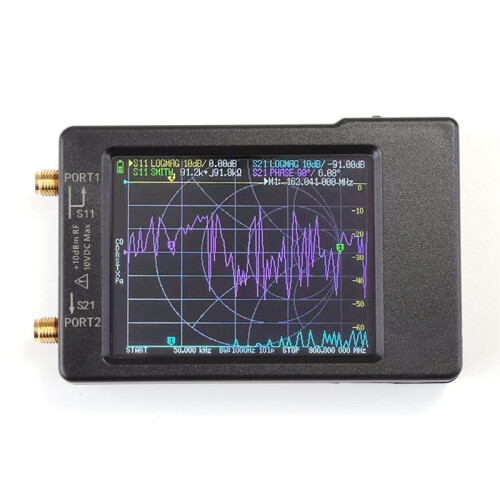

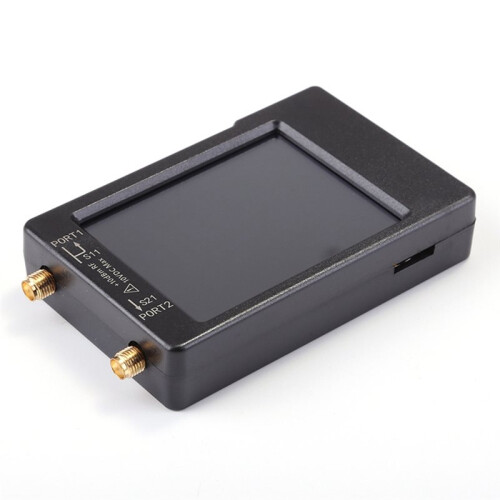

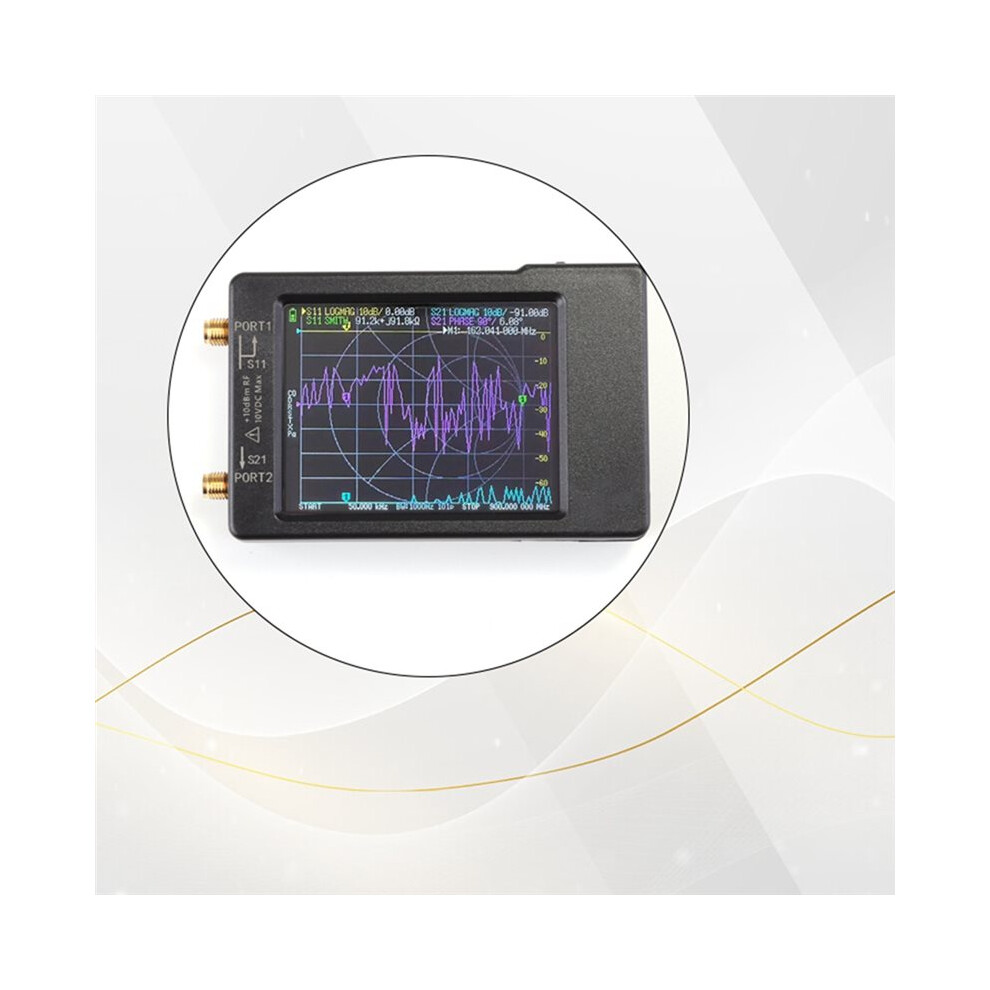

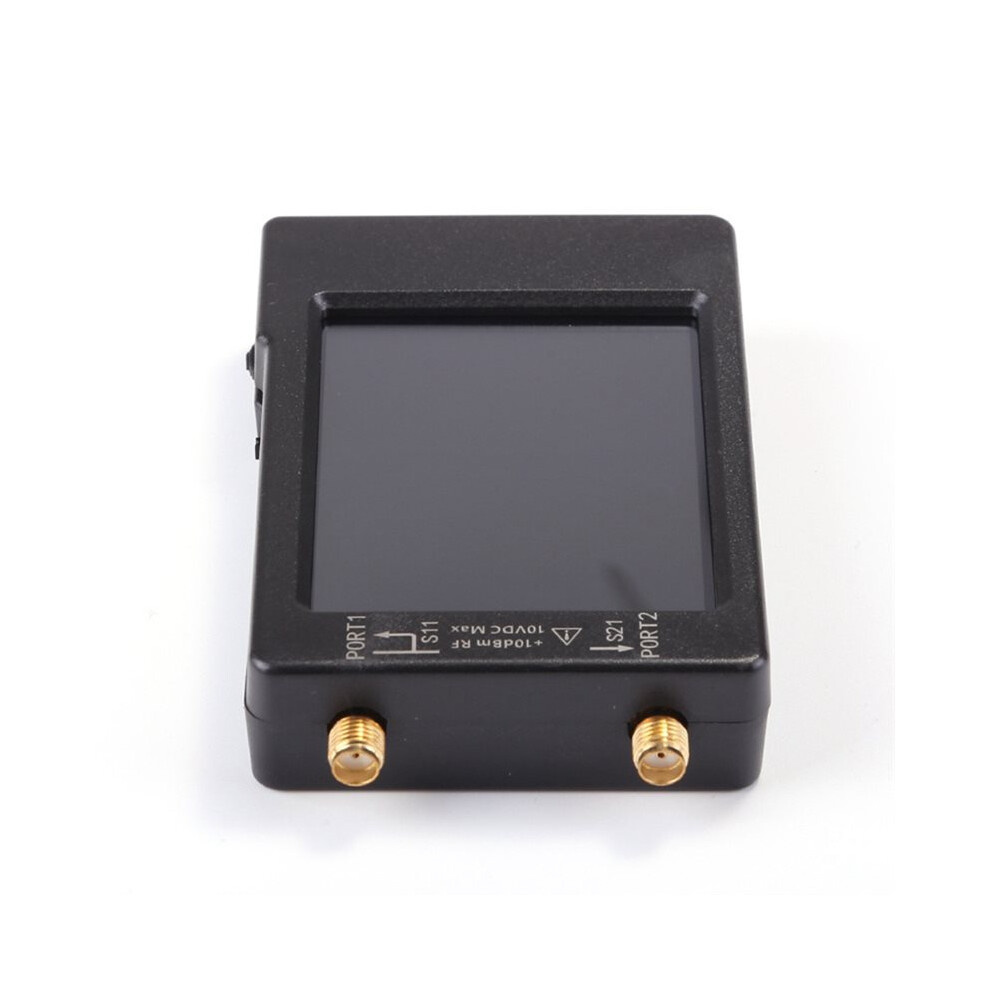

For H4 Vector Network Analyzer 10kHz-1.5GHz Antenna Analyzer MF//VHF/UHF with 4inch Touch Screen

For H4 Vector Network Analyzer 10kHz-1.5GHz Antenna Analyzer MF//VHF/UHF with 4inch Touch Screen Description

Frequency range: 10kHz - 1.5GHz
Measurement range: 70dB (50k-300MHz) / 60dB (300M-900MHz) / 40dB (0.9G-1.5GHz)
RF output: 0dBm (2dB, fundamental frequency)
Frequency accuracy: Less than 2ppm
Port VSWR: Less than 1.1

Display screen: 3.95-inch TFT (480x320)
Touchscreen: Maximum 401 scan points (unlimited for PC connection)
Power supply: USB Type-C / Built-in 2000mAh lithium battery
Full-band coverage: Supports MF/HF/VHF/UHF, meeting measurement needs from shortwave to ultra-high frequency.
Multi-mode analysis: S-parameters, VSWR, phase, group delay, chart, -domain reflectometry.
High precision and stability: Frequency stability Less than 0.5ppm, fundamental output accuracy 2dB.
Portable design: Built-in battery for extended battery life, with a Type-C interface for worry-free field operations.
High-efficiency scanning: Scanning speed Greater than 600 points/second (RBW=4000Hz), supports 8 markers + 4 trajectory displays.
(The product printed words may vary depending the batch, but this does not affect use)
Color: Black
Material: Metal+Plastic

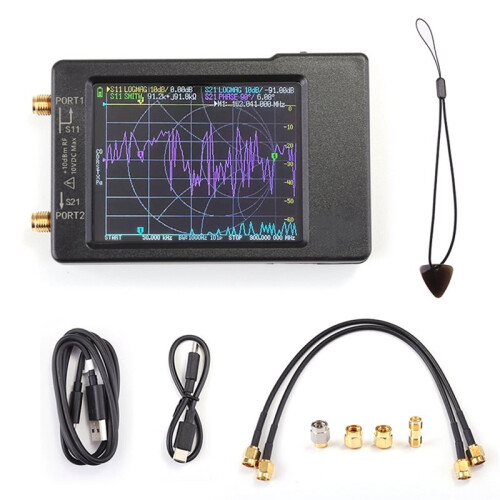

Package Contents:
1 x -H4 host (including 2000mAh battery)
1 x USB Type-C data cable
1 x Type-C to Type-C data cable (25cm)
2 x SMA male-to-male RF wire (RG316, 15cm)
1 x SMA calibration kit (O/S/L, male)
1 x SMA female-to-female connector
1 x stylus+lanyard
