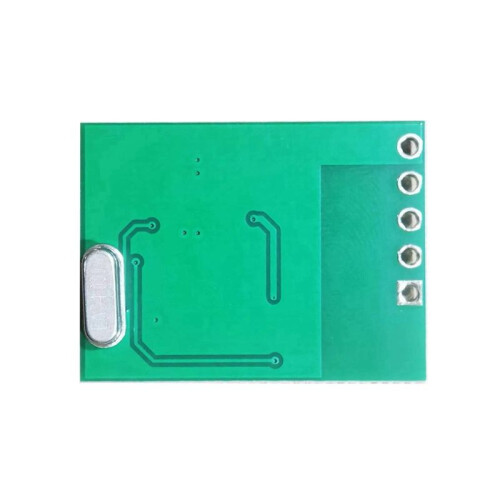

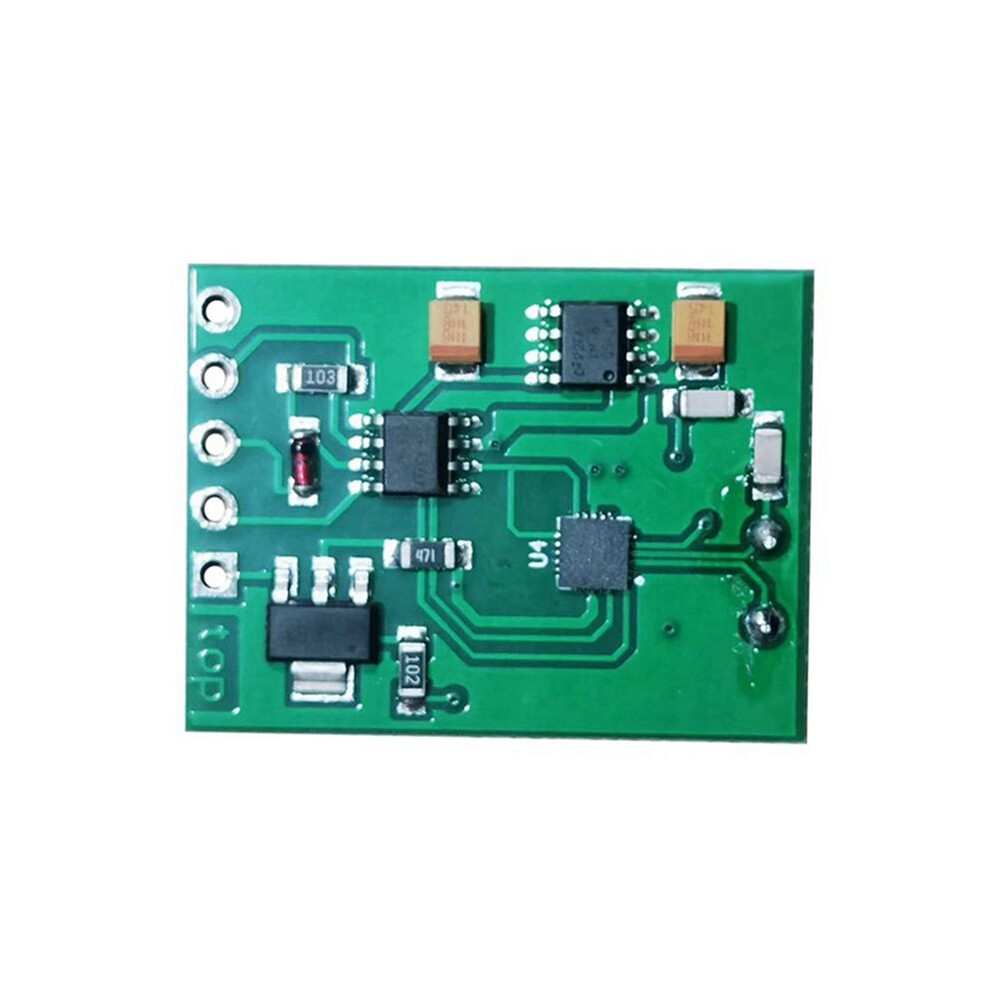

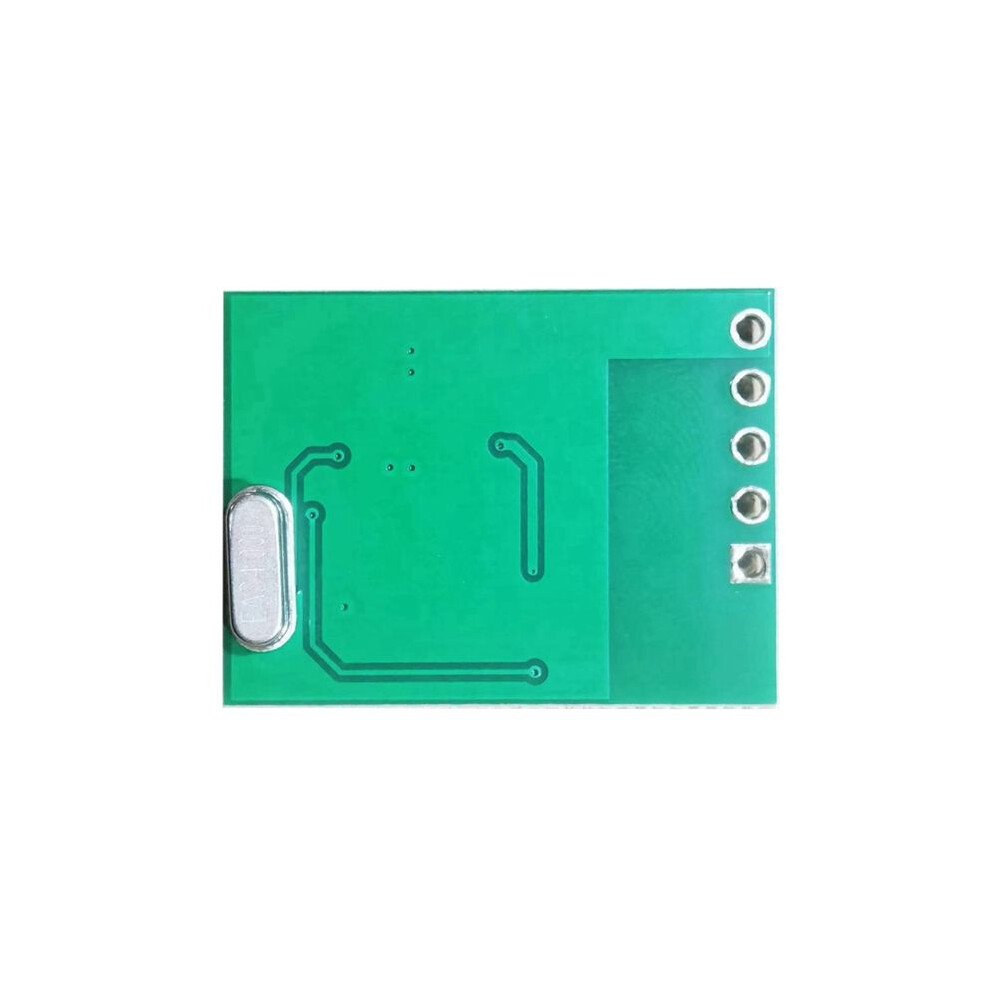

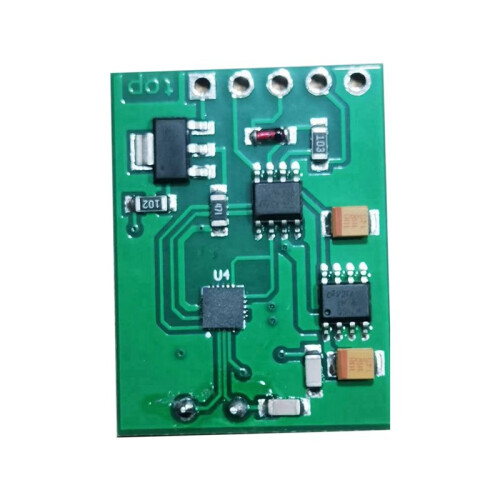

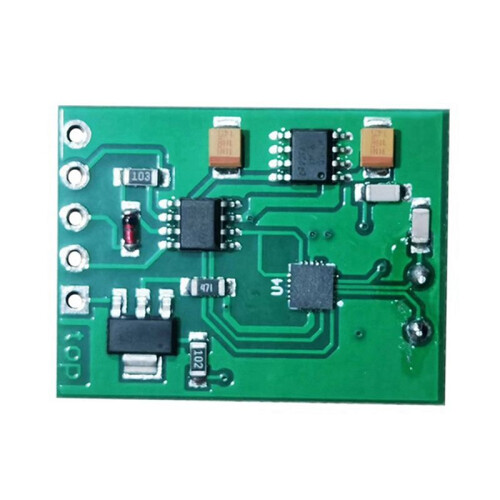

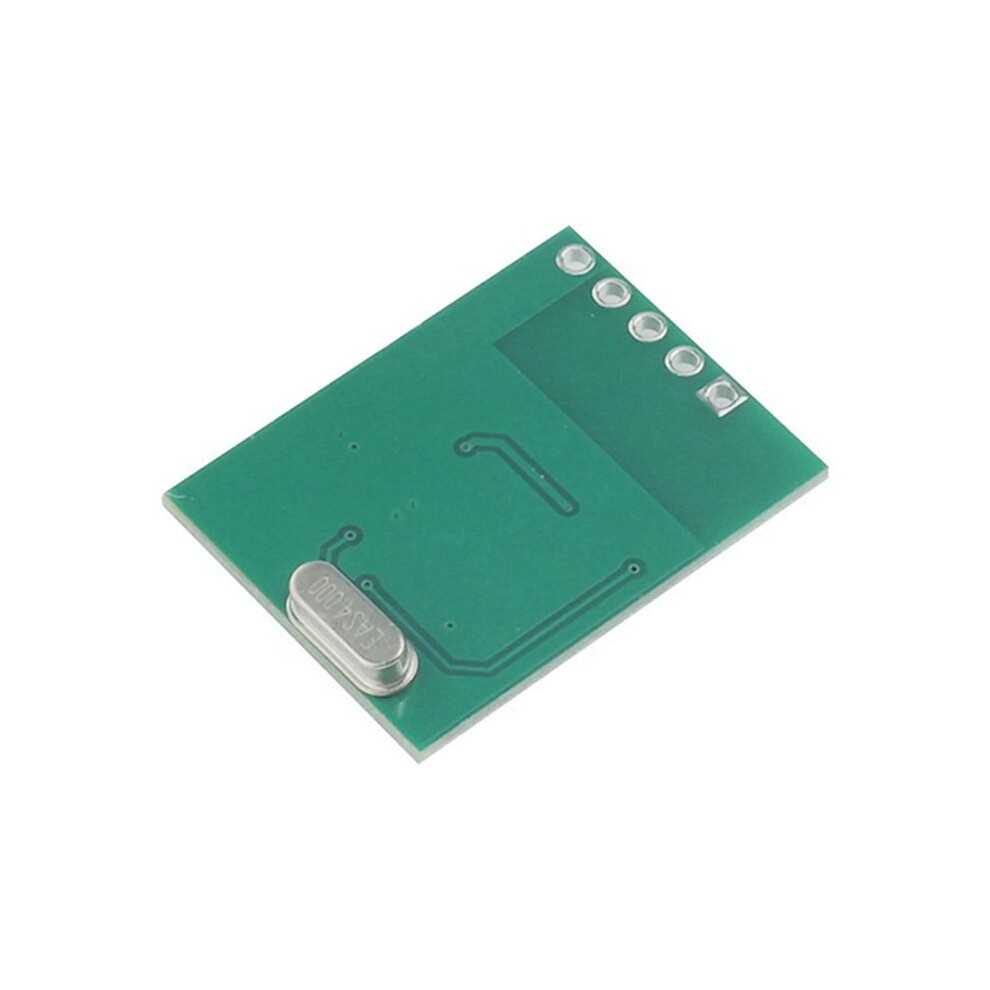

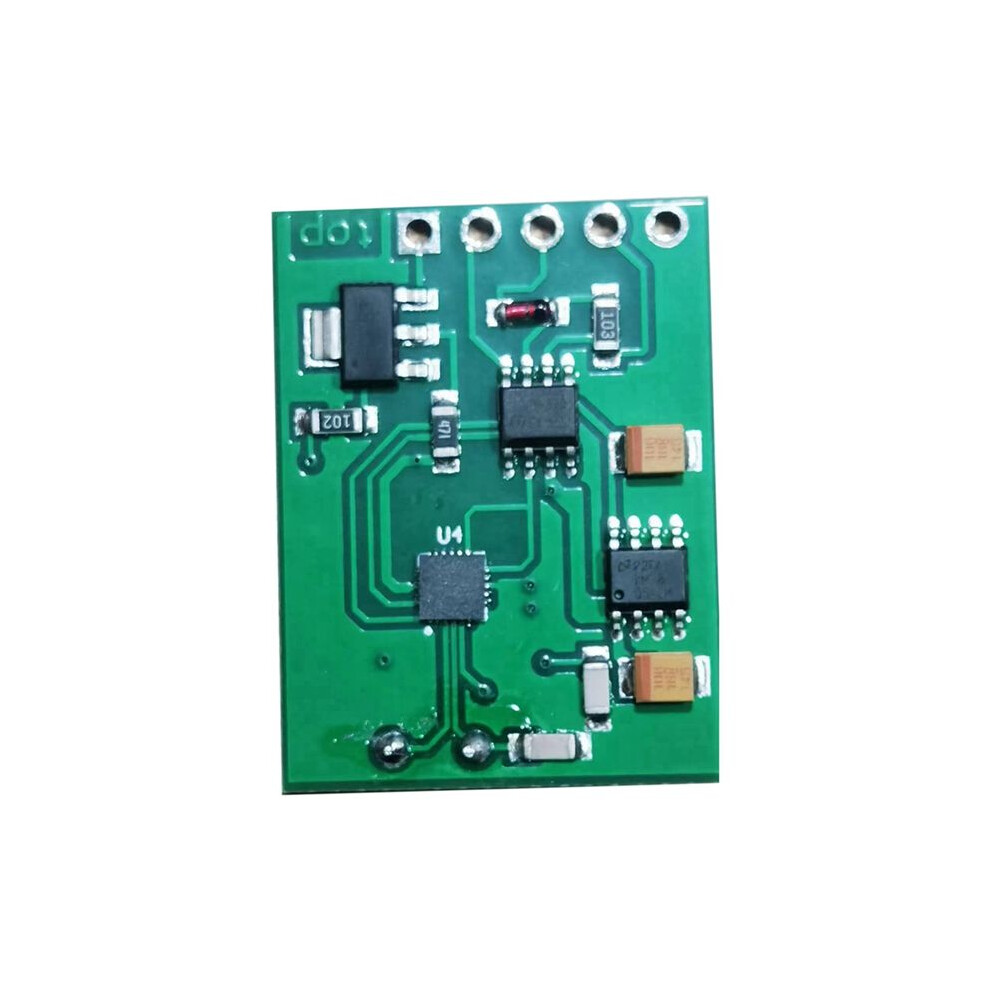

For IMMO Bikes Immobilizer Emulator for Motorcycles,Scooters Regular Immobilizer

For IMMO Bikes Immobilizer Emulator for Motorcycles,Scooters Regular Immobilizer Description

The emulator of an immobilizer for motorcycles and scooters For Yama-ha.
Works with all motorcycles and scooters For Yama'ha from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work the instrument panel.

Description:
For emulator installation in the case of a regular immobilizer:
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.
Specification:
Black (2 pcs.) GND
Red with a green strip BATT (+12v)
Red with a white strip IGN (+12v)
LED (+5v)
Yellow with a strip K- Immo-ECU
Note:
Installation guide not included, we strongly recommend you seek professional installation.
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Colour:As Shown
Material:PCB

Package Contents:
1 * Immobilizer Emulator for
