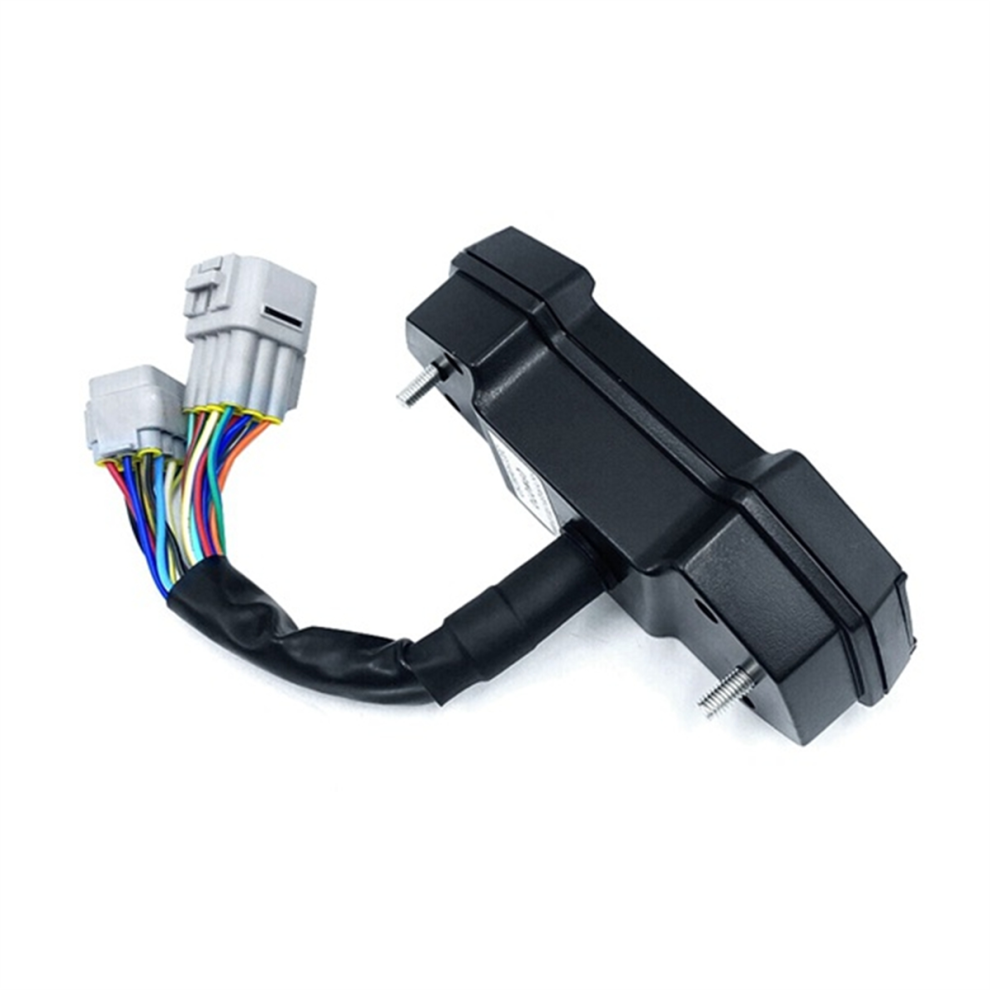

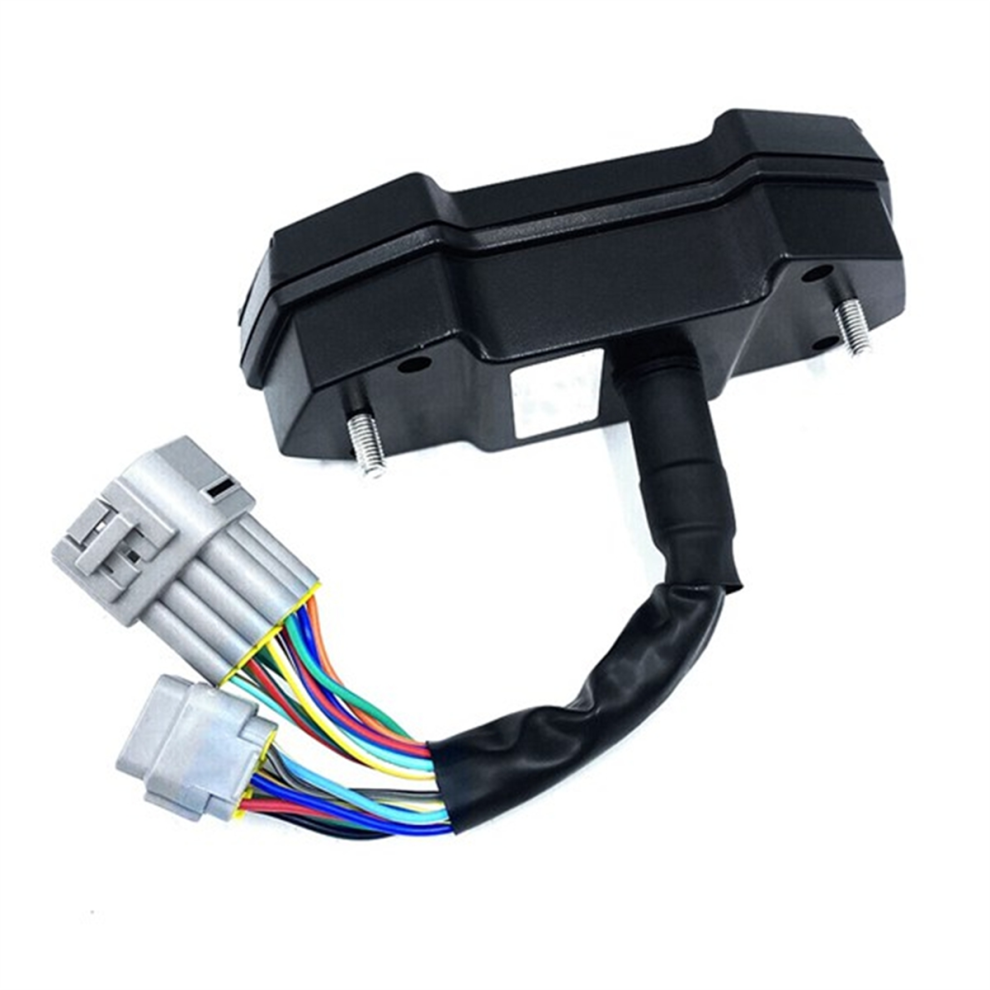

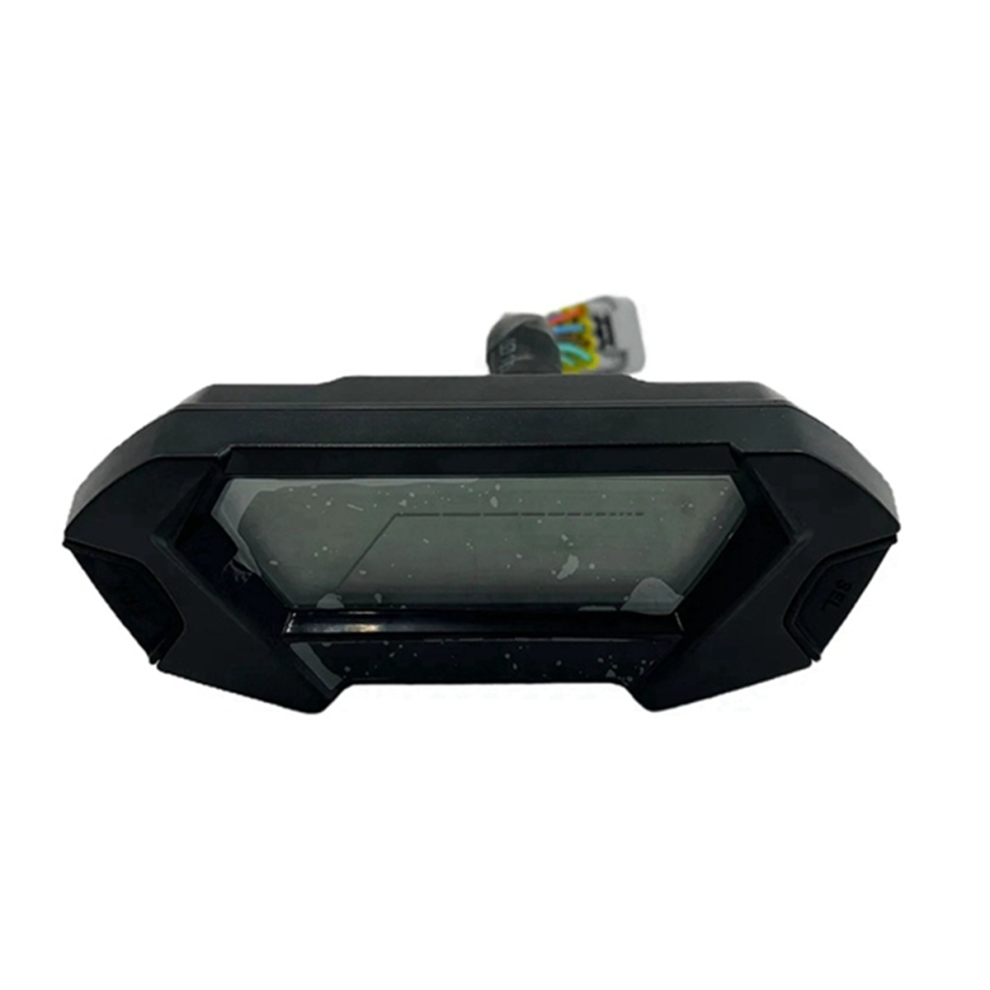

for LCD Dashboard For ATV CForce 520L 520S CF500AU Part

for LCD Dashboard For ATV CForce 520L 520S CF500AU Part Description

1.Tail Lights On. Illuminates when the headlight switch is in this position.
2.High On. Illuminates when the headlight switch is in this position.
3.Park Shift . Illuminates when the shift is shifted to the Park position.
4.Neutral Shift Illuminates when the shift is shifted to the Neutral position.
5.EPS Fault (This ATV is not equipped with EPS).

6.EFI Fault. This indicator illuminates when a malfunction occurs in the electronic injection system.
7.Speed Limit Override. This indicator illuminates when the override switch on the left control is pressed. Use caution when using the override button.
8.Gear Position "R-H-L". This instrument panel section displays the following letters corresponding to the gear selection: 'R' = Reverse; 'H' = High gear; 'L' = Low gear.
9.Engine temperature. This instrument panel section displays the current coolant temperature, 'C' for low, 'H' for high, 'Too low' and 'Too high' are both abnormal. Idle the vehicle when it is too cold to warm the engine, and park the vehicle when it is too hot to prevent the coolant from boiling. Keep the coolant temperature within the normal range.
10. gauge. This instrument panel section displays the current gas remaining in the tank. 'F' means full. 'E' means reserve . When the indicator enters the red zone, the remaining can last (on level ground at low speed) up to 50 km (31 mi). must be added as soon as possible.
attery voltage, 'L--H-8'.Dashboard brightness (8 levels).

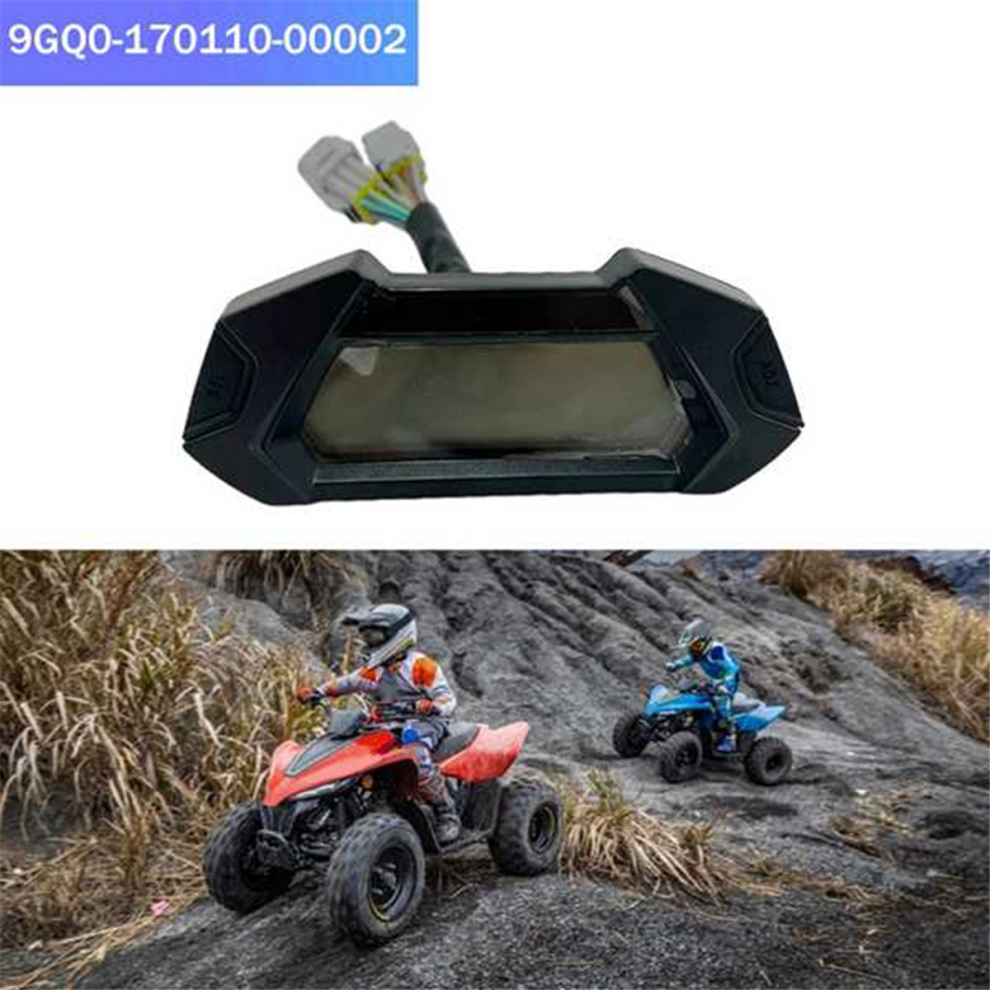

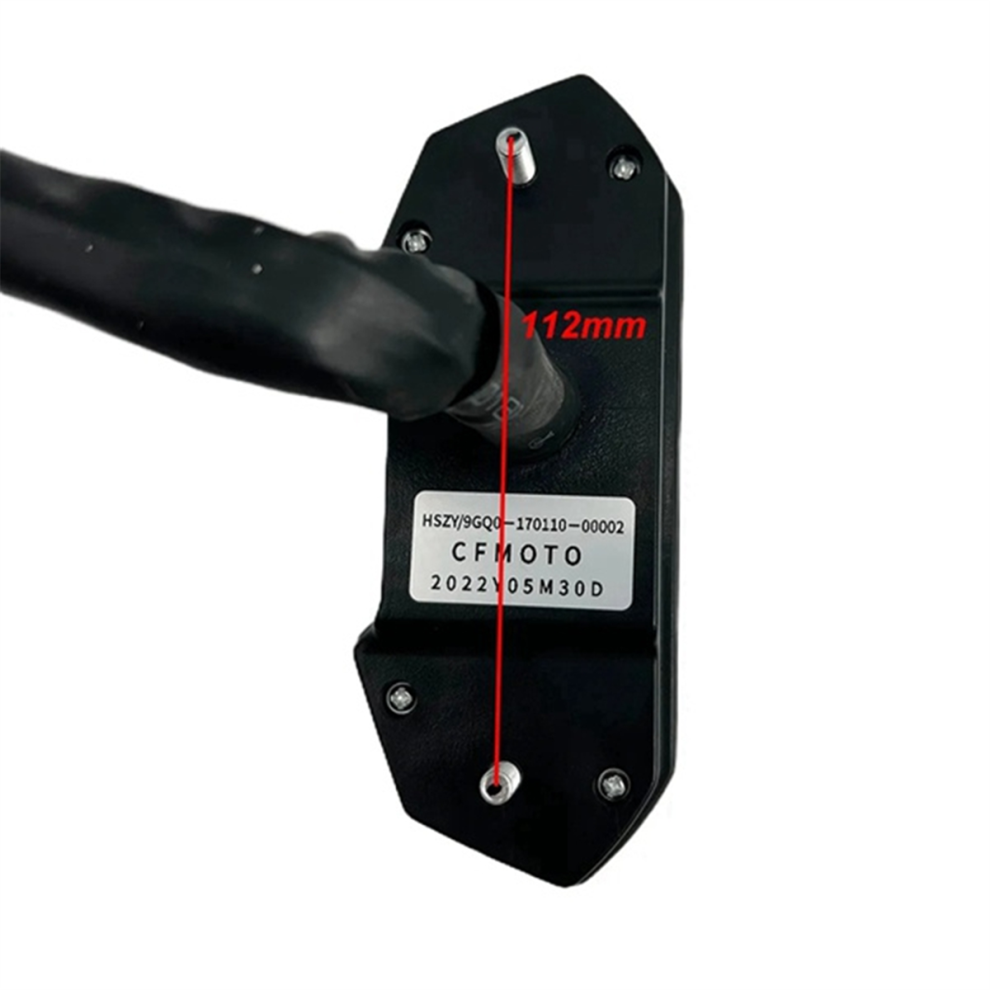

for lists the part number as 9GQ0-170110-00002

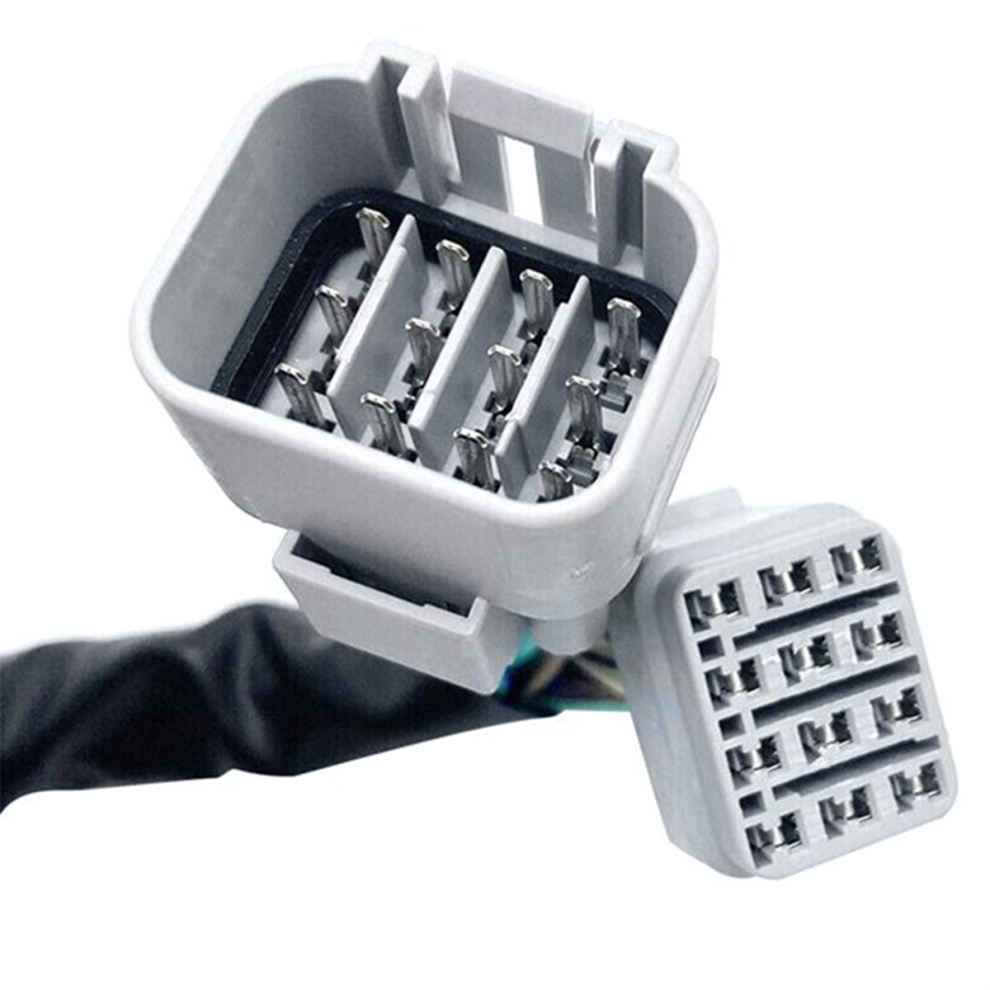

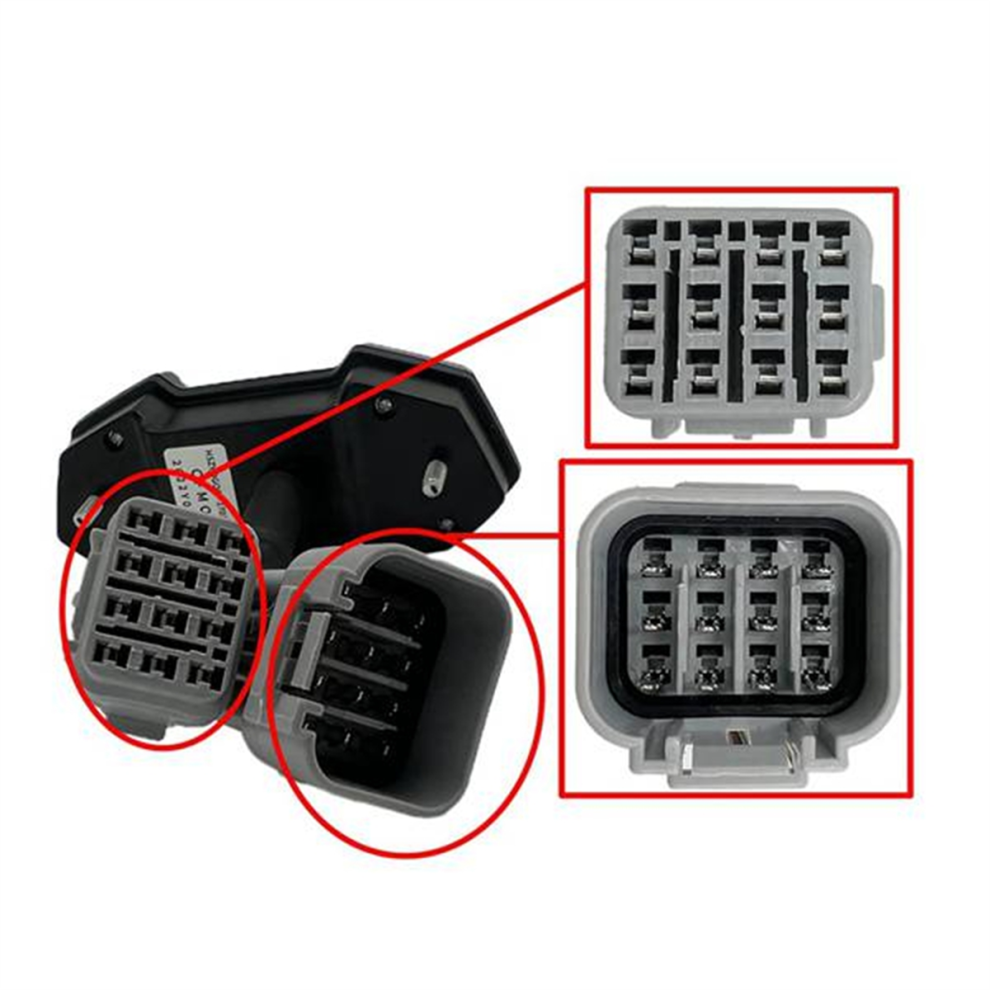

Plug: 12+12
Colour:Black
Material:Plastic

Package Contents:
1x for LCD Dashboard

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
