For LINKFLOW 915M TX Module DIY RC FPV Quadcopter Drone Parts

For LINKFLOW 915M TX Module DIY RC FPV Quadcopter Drone Parts Description

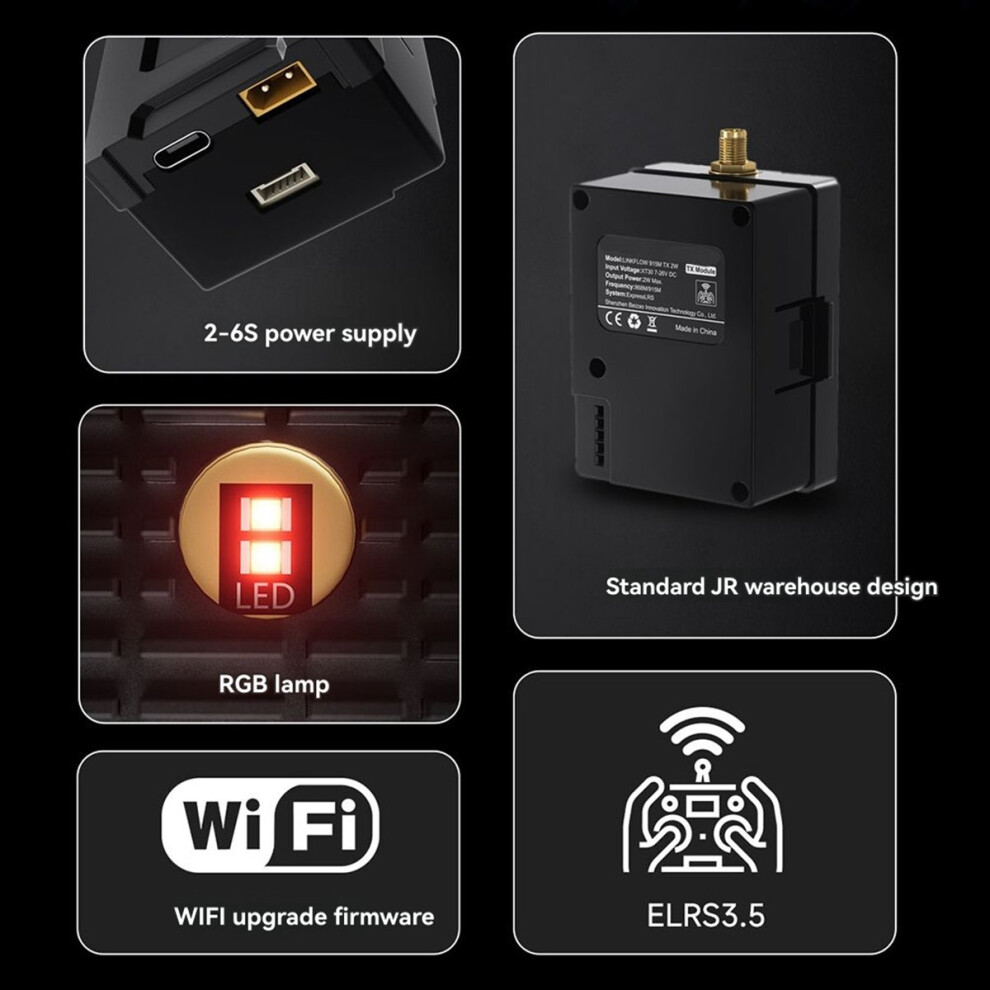

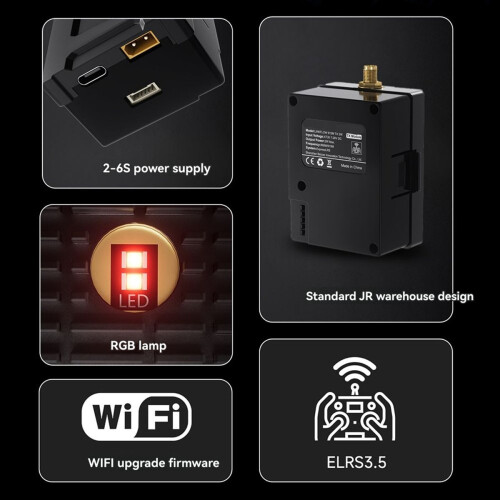

1. Next-gen ExpressLRS TX module that features a standard JR bay design
2. Supports 868/915MHz with up to 2000mW output power

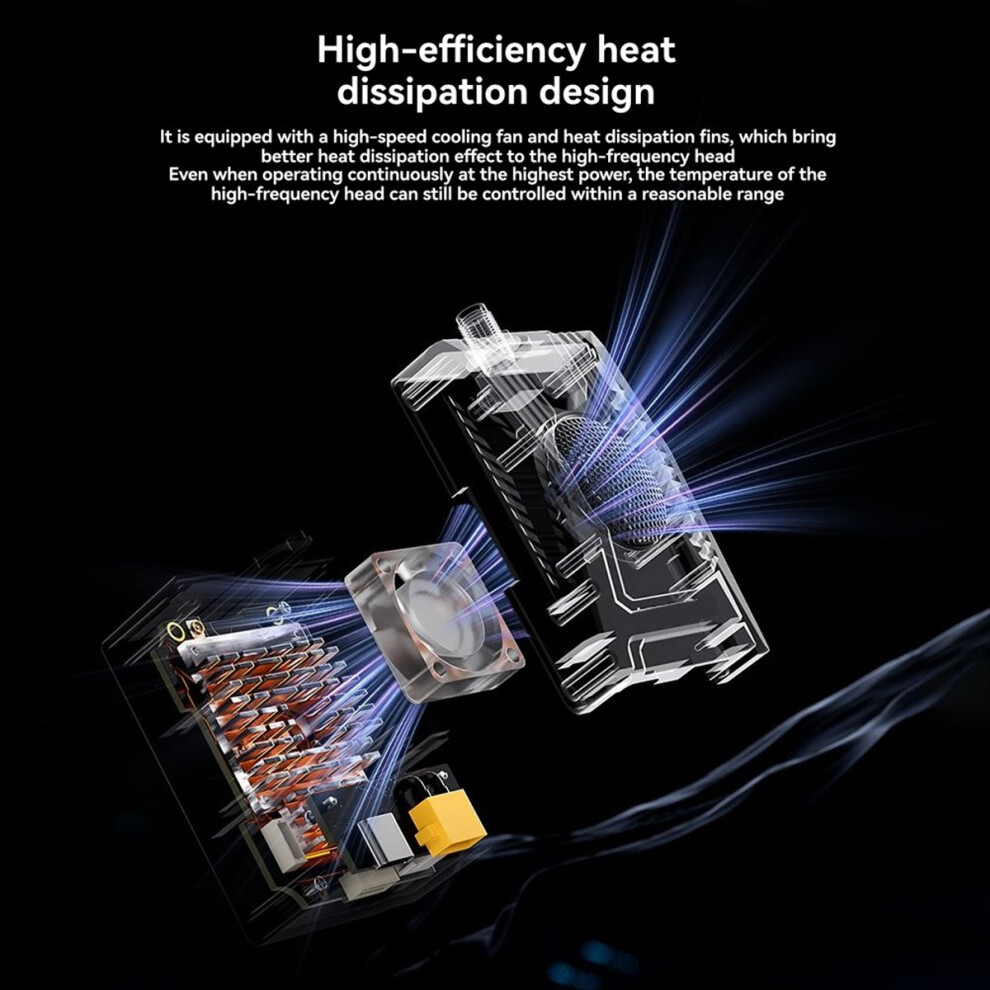

3. Active cooling with a built-in high-speed fan
4. Equipped with a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures

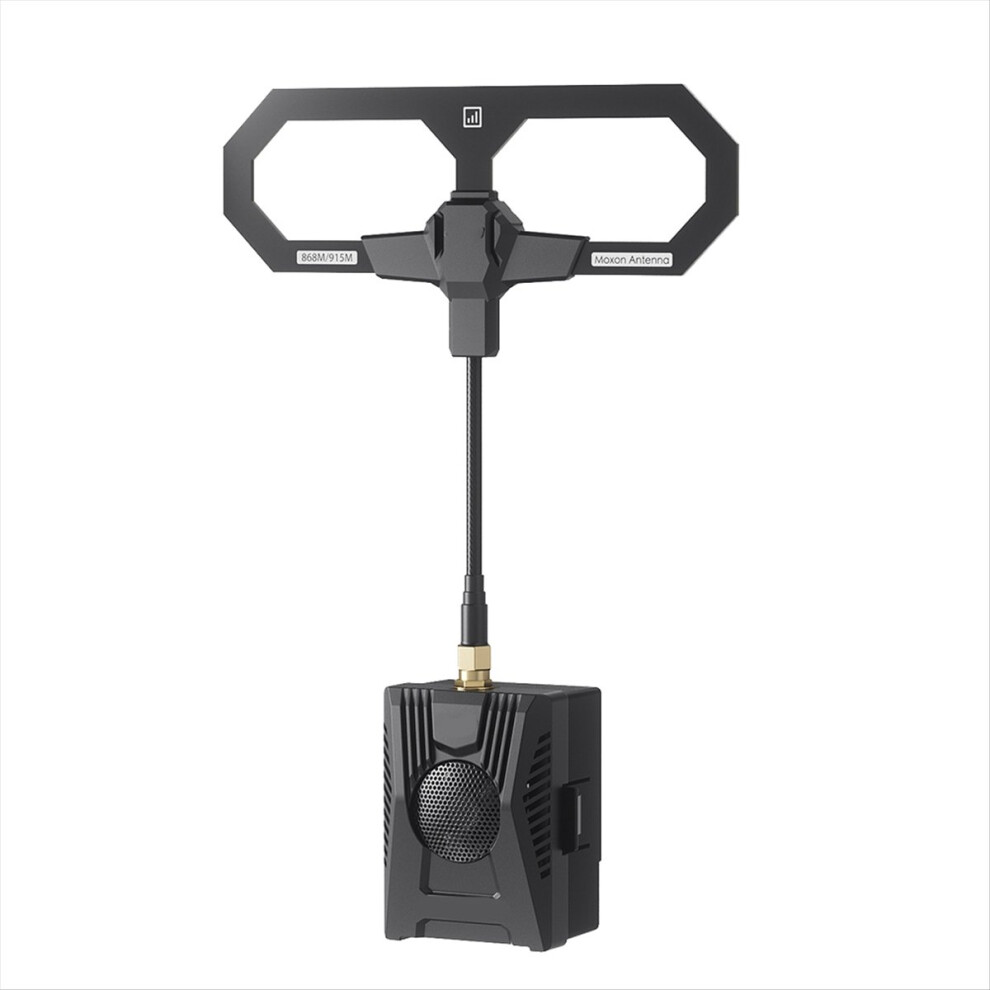

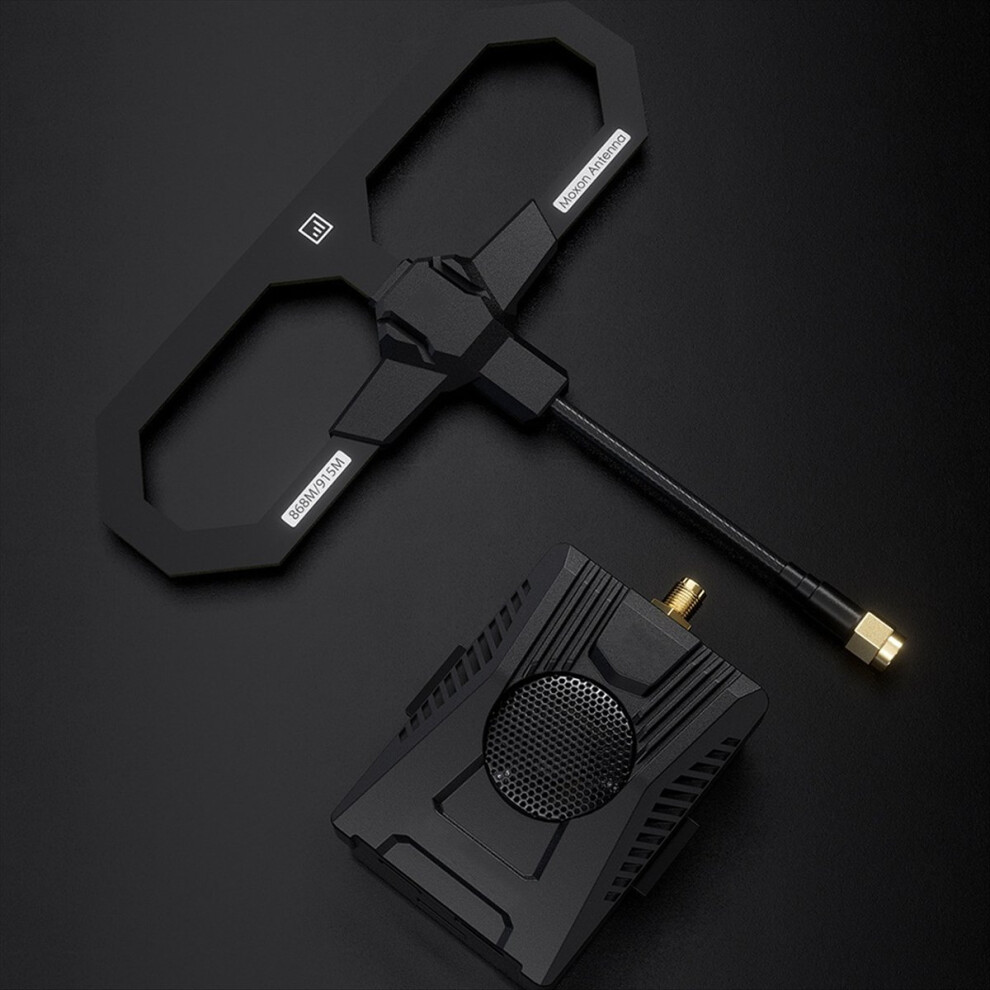

5. Custom Moxon antenna for enhanced signal transmission

Integrated backpack chip enables direct peripheral connectivity
Dedicated UART port for relay setups or high-power receivers
Runs on external 2-6S power
RGB status indicator
Easy firmware updates via USB or WiFi
Module Type: JR-Bay
Main Chip: ESP32
Backpack Chip: ESP8285
Chip: SX1276
Power: 2000mW
Oscillator: TCXO
Refresh Rate:25Hz-200Hz
Antenna Connector: SMA
Power Supply: 2-6S
Firmware: LINKFLOW 900M TX
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Color: Black
Material: plastic

Package Contents:
1 x LINKFLOW 915M TX Module
1 x 915MHz Moxon Antenna
1 x GH1.25 3pin connection cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
