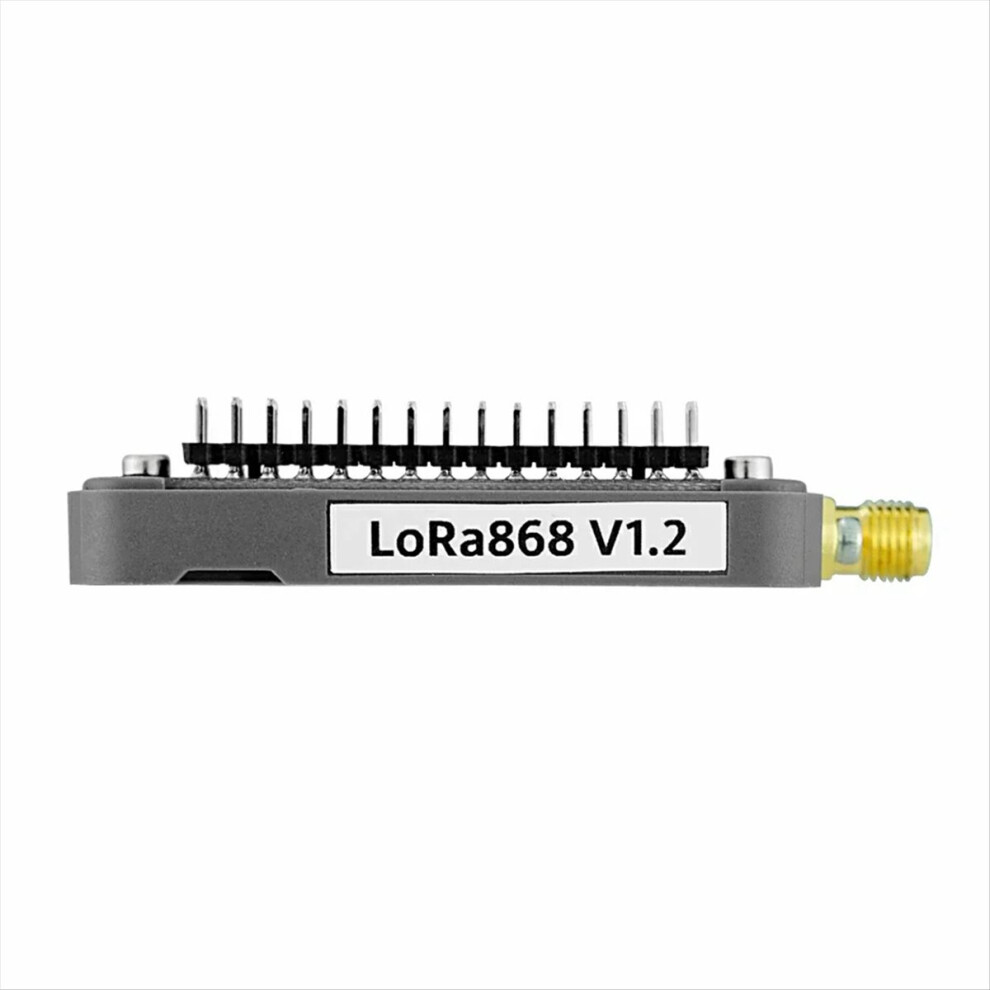

For LoRa 868Mhz Communication Module V1.2 with External Antenna SX1262 Solution Long Distance

For LoRa 868Mhz Communication Module V1.2 with External Antenna SX1262 Solution Long Distance Description

1. Module LoRa868 v1.2 is a LoRa communication module (operating at 868 MHz) in the stackable module series.
2. It uses the E22-900M22S module (chip SX1262) and supports LoRa modulation technology, offering strong anti-interference performance and long-range communication.
3. It meets FCC, CE, RoHS international standards and operates in the ISM license-free 868 MHz band.

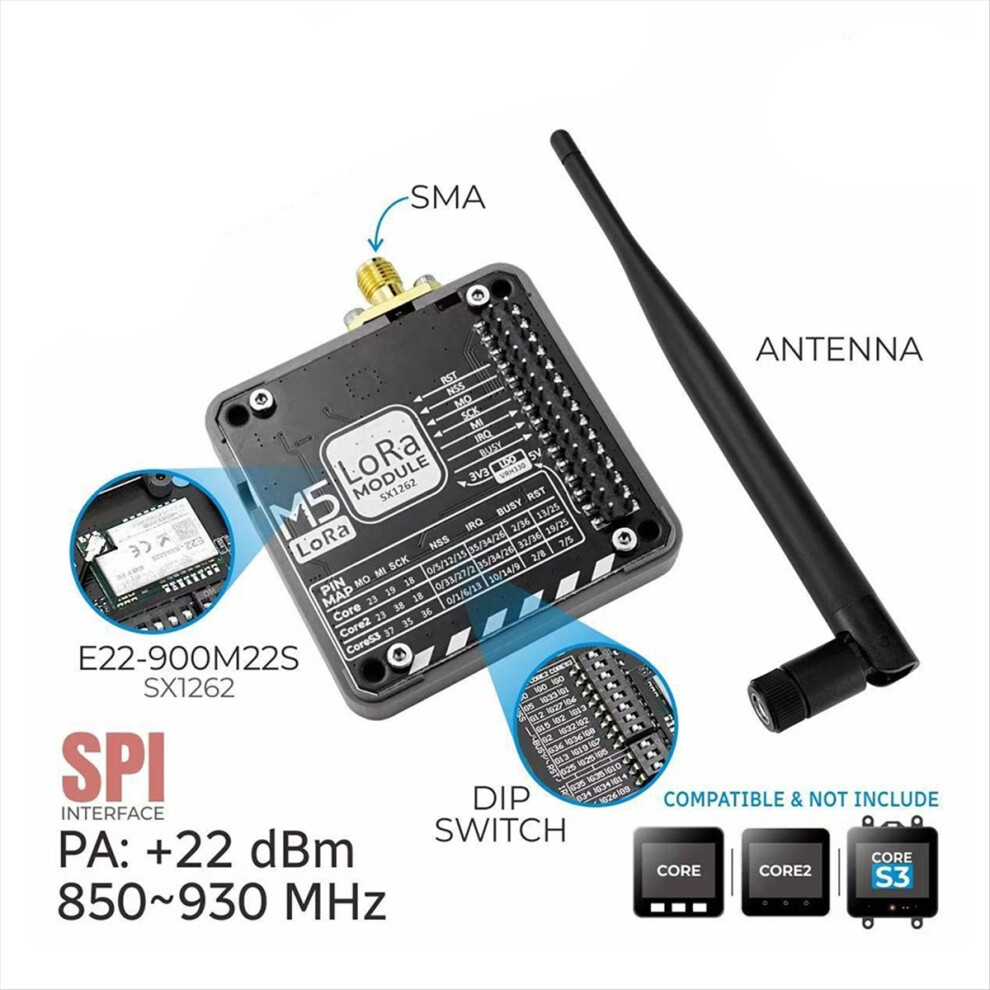

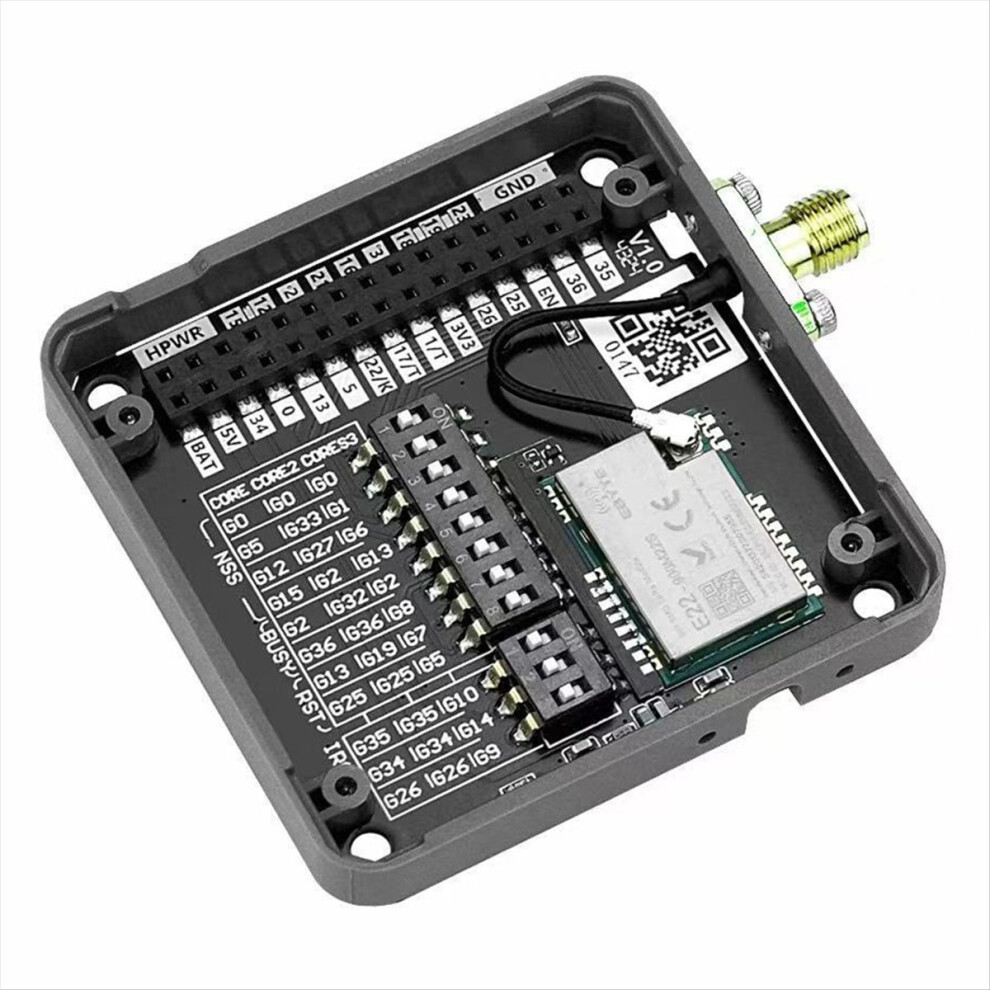

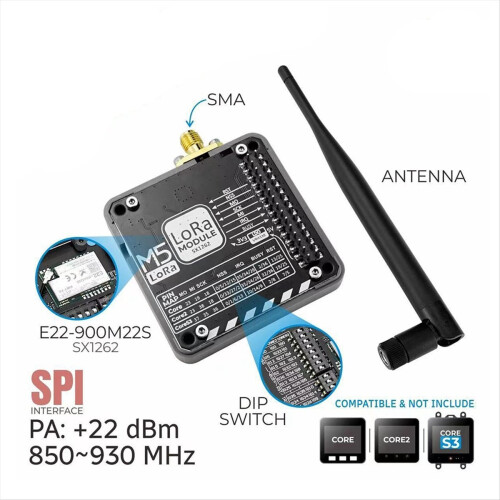

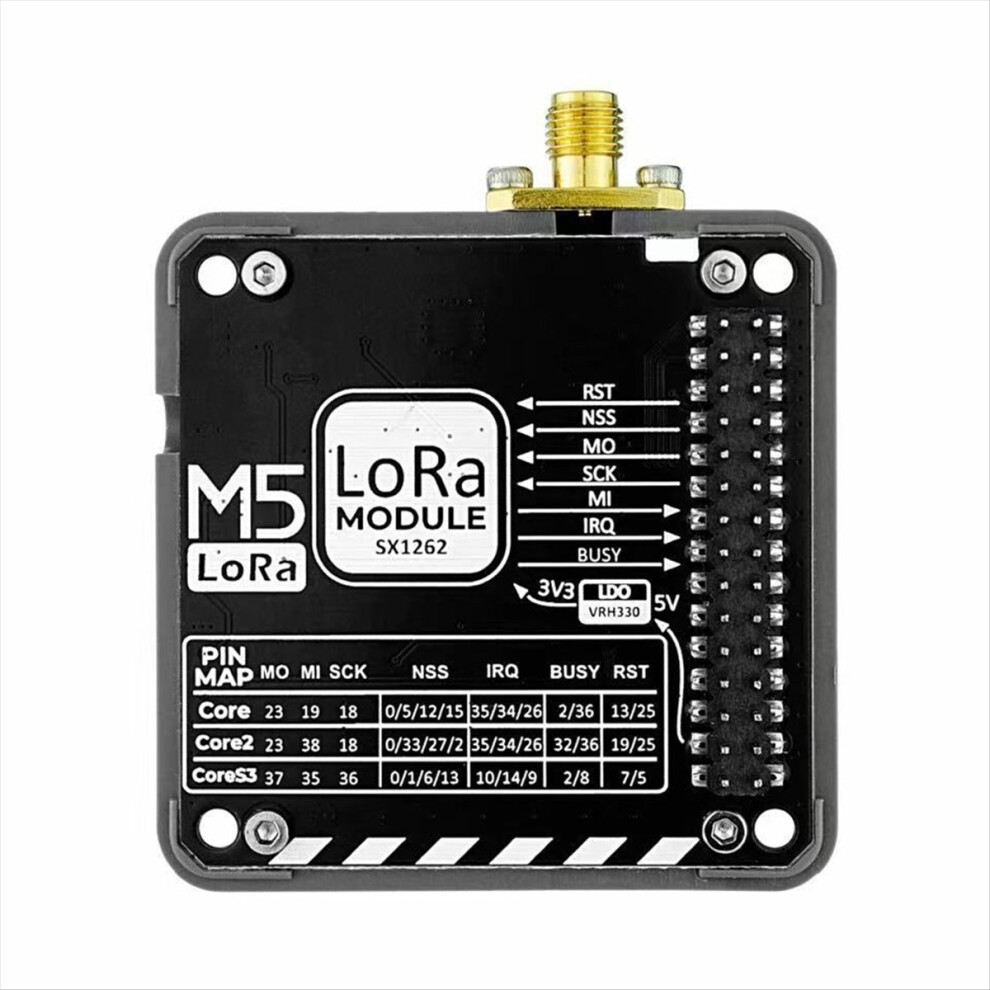

4. The module communicates via SPI interface, comes with an external SMA antenna, and features DIP switches for flexible selection of NSS, BUSY, , lines, supporting multiple stacks simultaneously for greater customization.
5. Ideal for remote monitoring, smart cities, smart homes, industrial automation, IoT devices, and other applications.

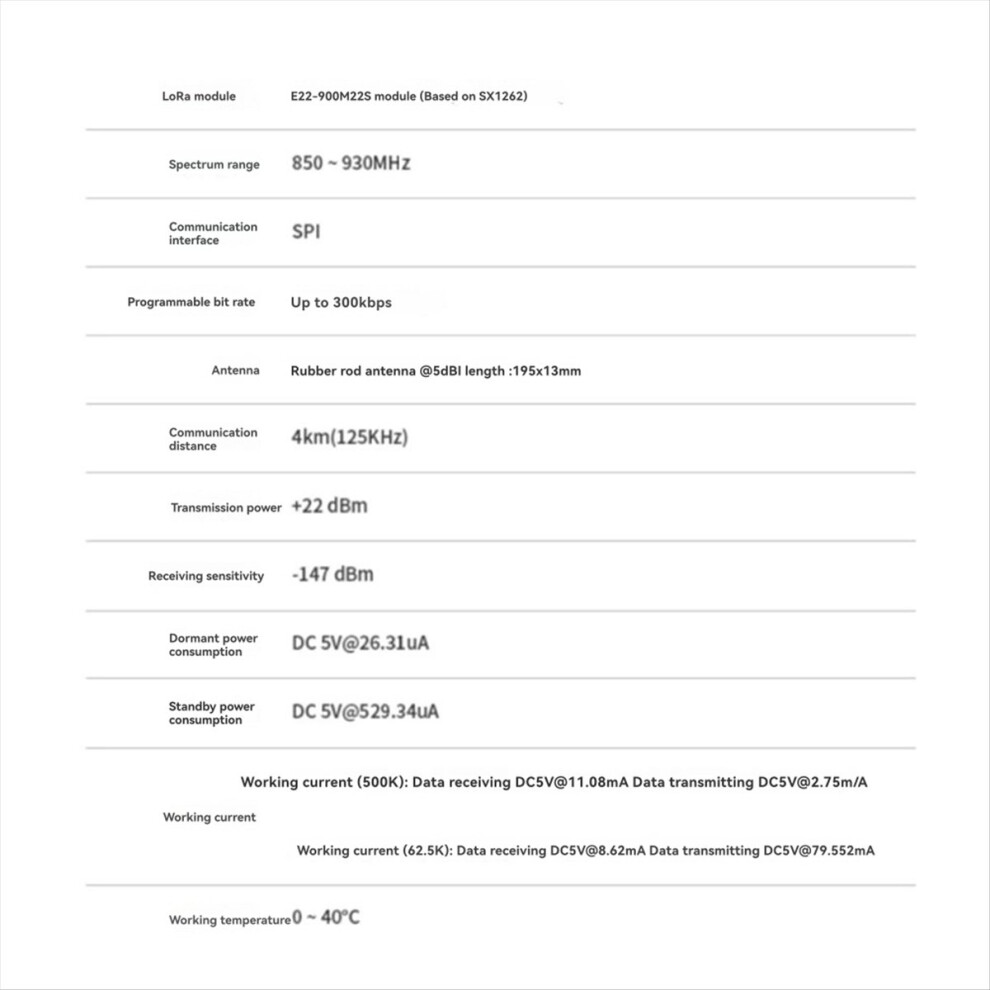

LoRa Module:E22-900M22S module (based on SX1262)
Frequency Range:850 - 930 MHz
Communication:SPI
Max Data Rate:Up to 300 kbps
Antenna:Rubber rod antenna @ 5 dBi, Size: 195 x 13 mm
Communication Range:4 km (125 kHz)
Transmit Power:+22 dBm
Receive Sensitivity:-147 dBm
Sleep Current:DC [email protected] µA
Standby Current:DC [email protected] µA
Operating Current(500K): receive DC 5V @ 11.08 mA transmit DC 5V @ 2.75 mA
Operating current (62.5K): receive DC 5V @ 8.62 mA transmit DC 5V @ 79.52 mA
Operating Temp:0 - 40
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Color:Black
Material:PCB

Package Contents:
1 x Module LoRa868 v1.2
1 x External SMA antenna

Only the above package content, other products are not included.
