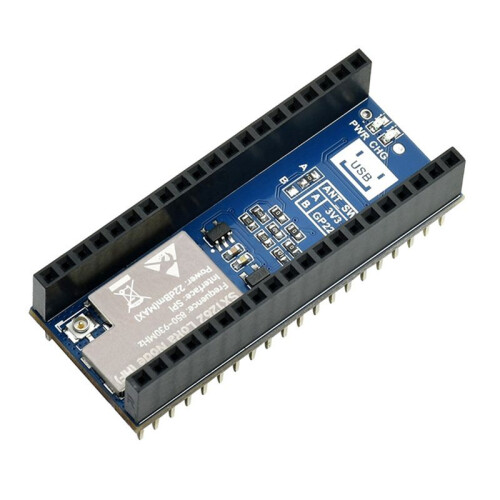

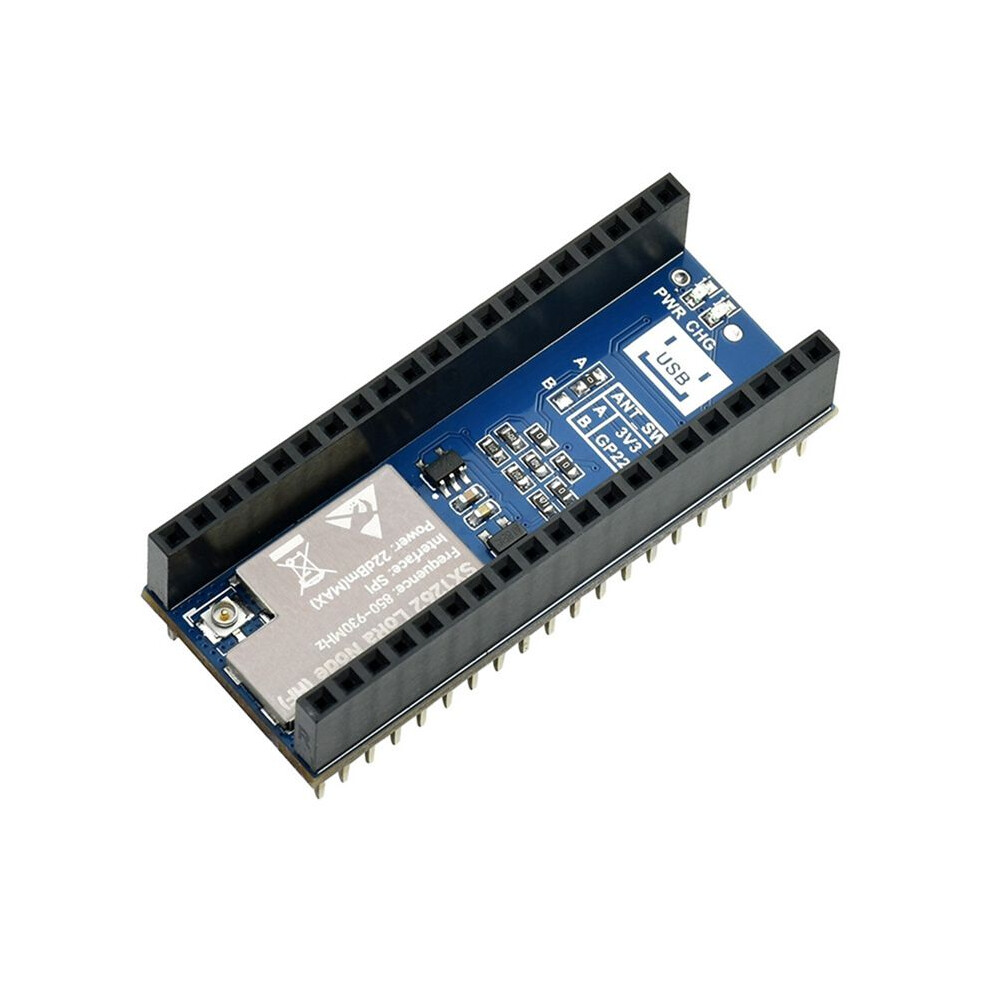

For LORA Node Expansion Board SX1262 410-525MHz Module Support LoRaWAN Protocol

For LORA Node Expansion Board SX1262 410-525MHz Module Support LoRaWAN Protocol Description

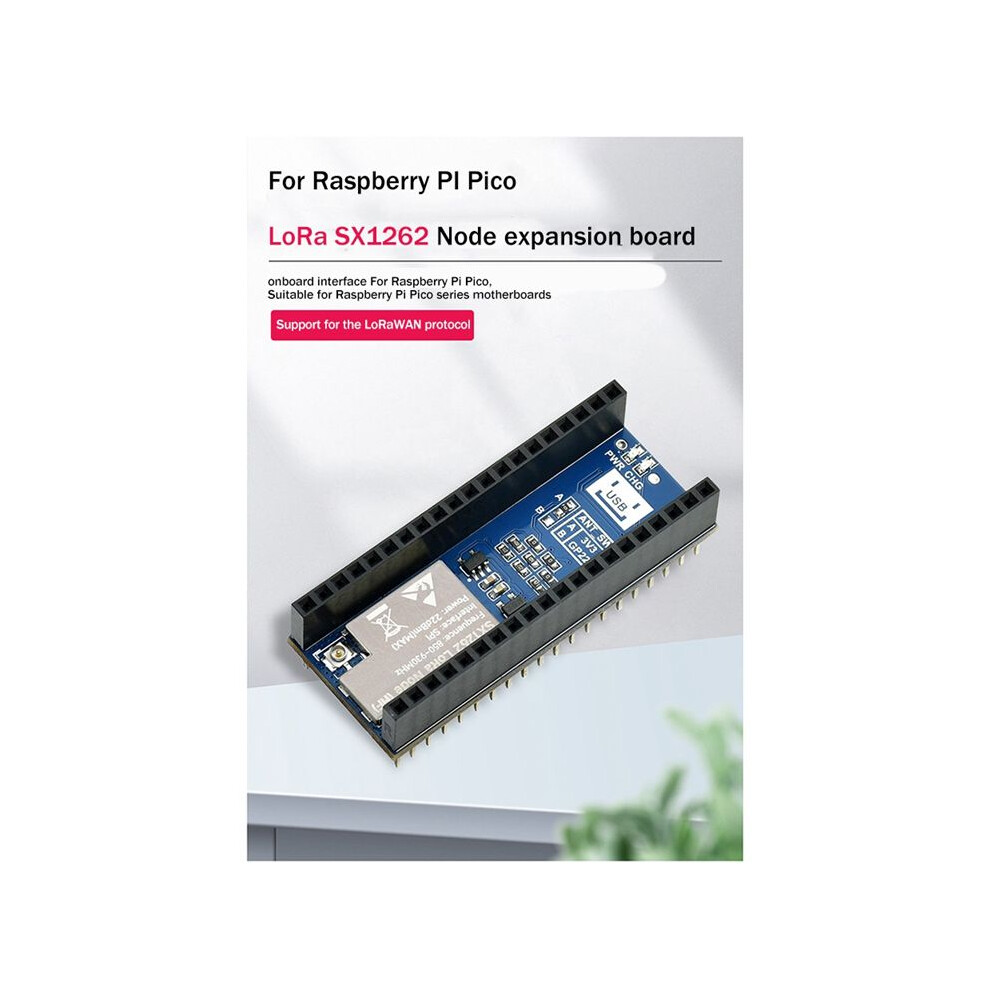

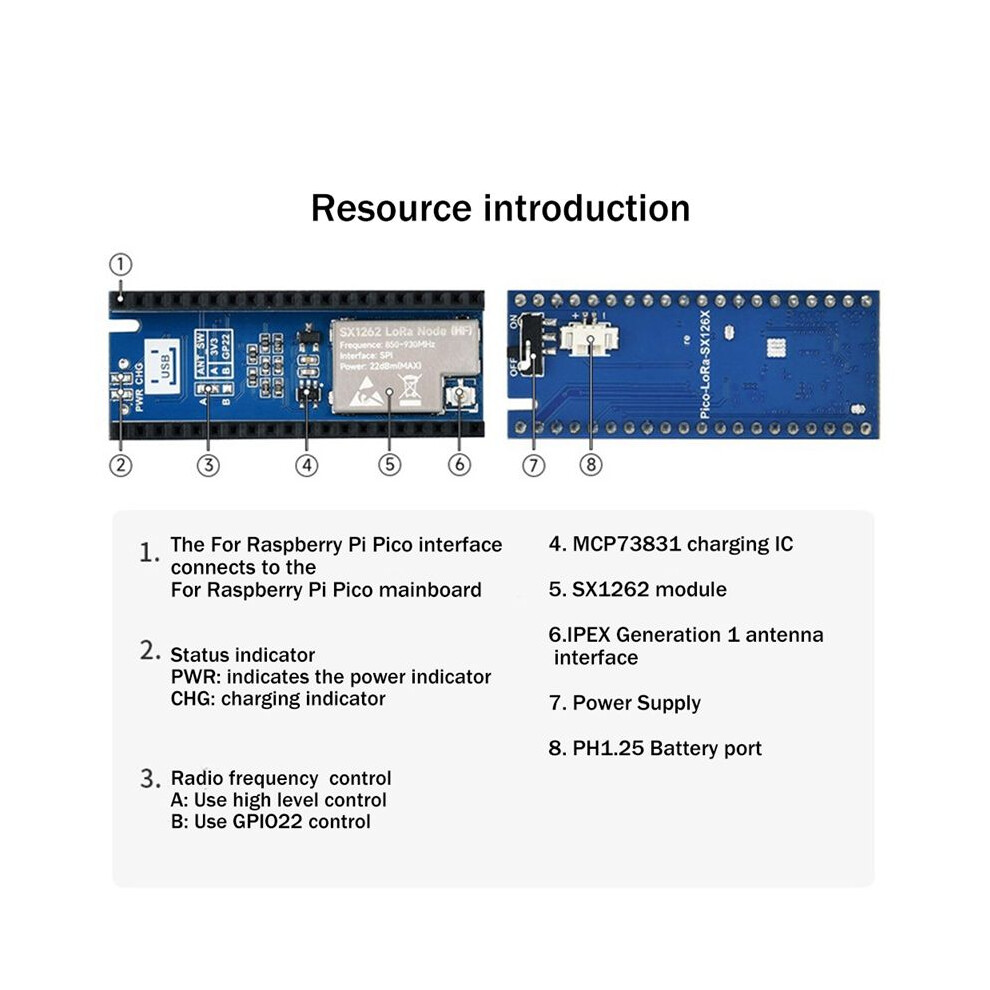

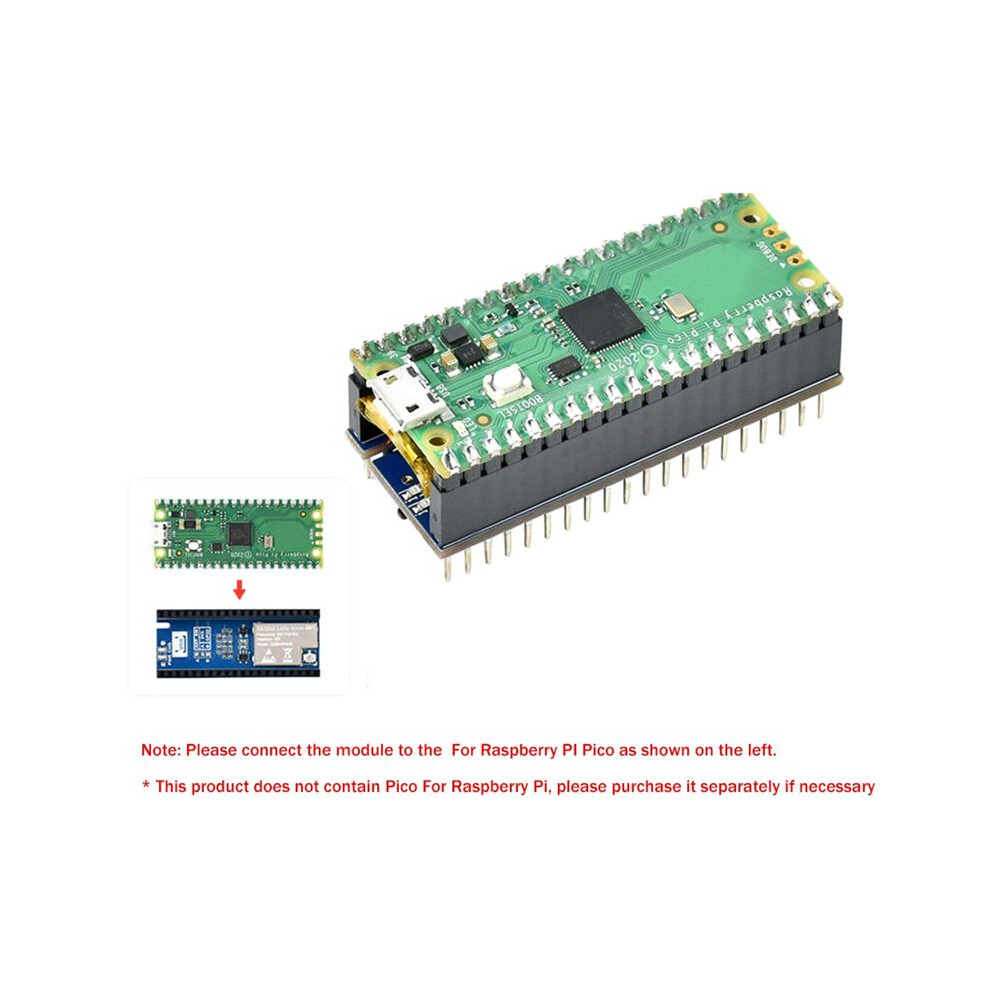

Onboard interface, suitable for series motherboards
Support LoRaWAN protocol, applicable to a wide range of frequency bands
Active temperature-compensated crystal oscillator is used to long-term stable operation in high and low temperature harsh environments
Support FSK, GFSK, LoRa modulation, excellent anti-blocking and ultra-long-distance communication characteristics

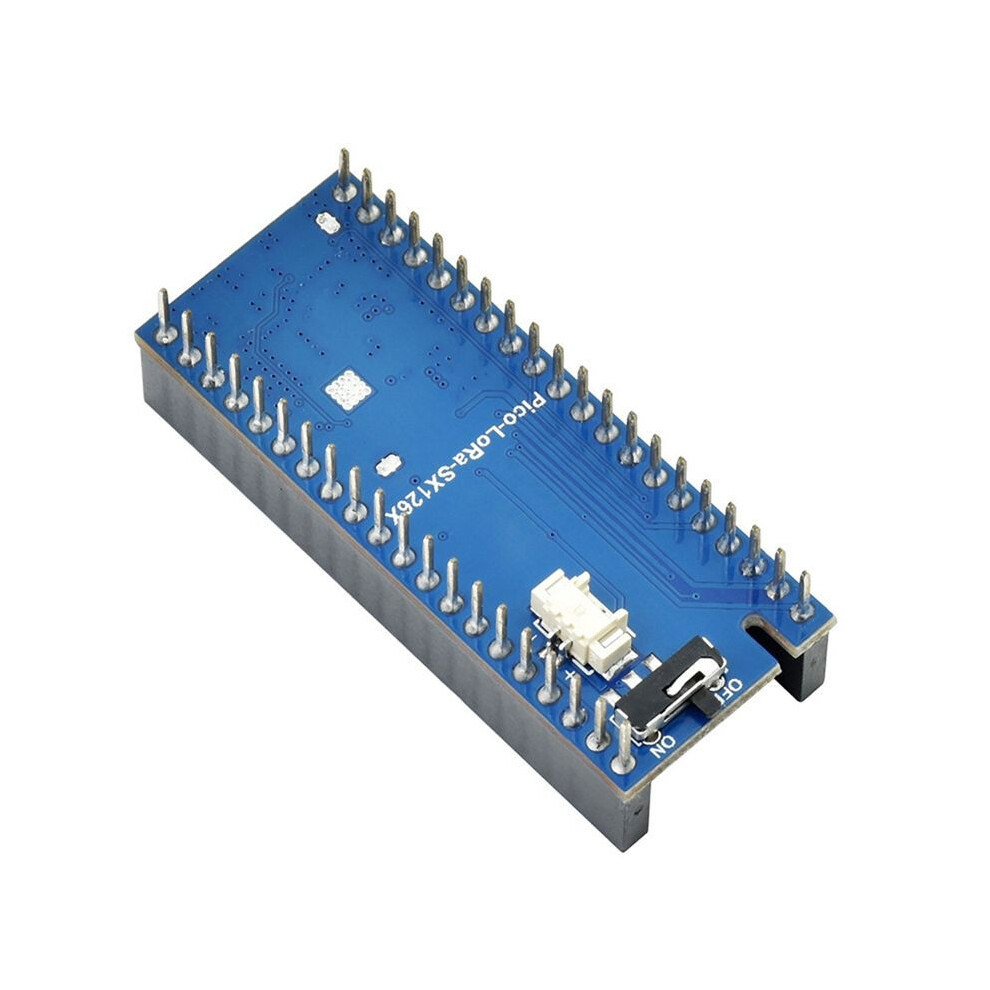

Onboard PH1.25 battery holder and charging IC, which can be connected to lithium battery for charging and discharging

High receive sensitivity down to -148 dBm and programmable transmit power up to 22dBm
Supports preamble detection, with , up to 256 bytes packet engine
chip:SX1262
Transmission power:22dBm
Transmit current:107mA@22dBm
Receive current:5.3mA@125KHz
Signal modulation:LoRa/(G)FSK
Operating voltage:3.3V

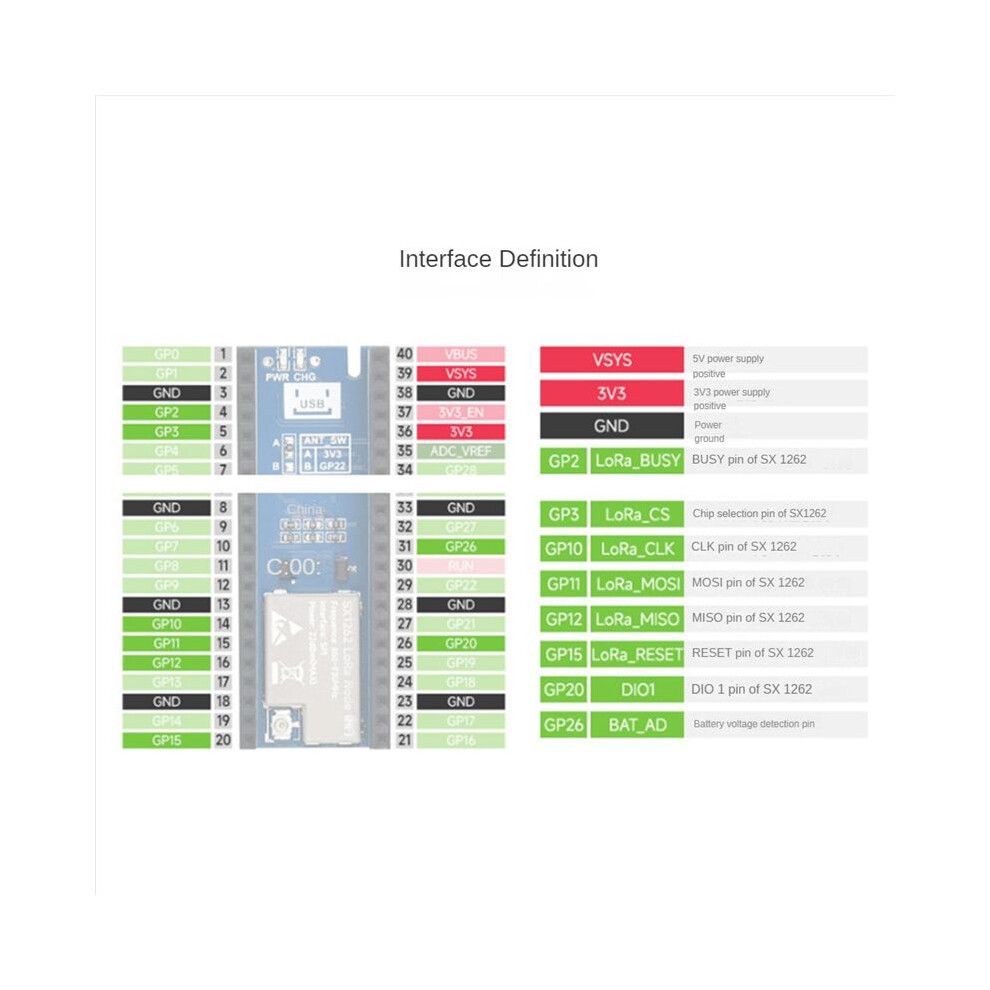

Communication interface:SPI
Working temperature:-40 - 85
Rechargeable lithium battery:3.7V 600mAh
Working frequency band:433M(410-525MHz)
Colour:Blue
Material:PCB

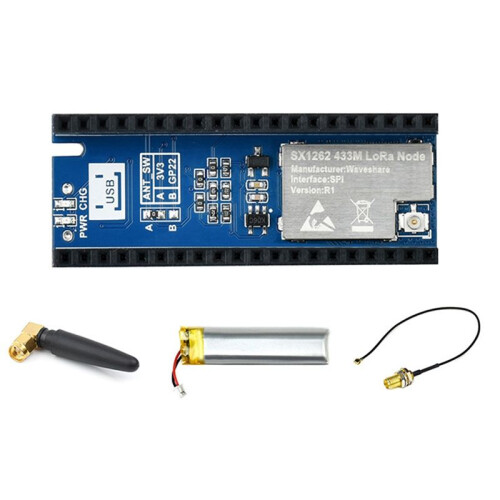

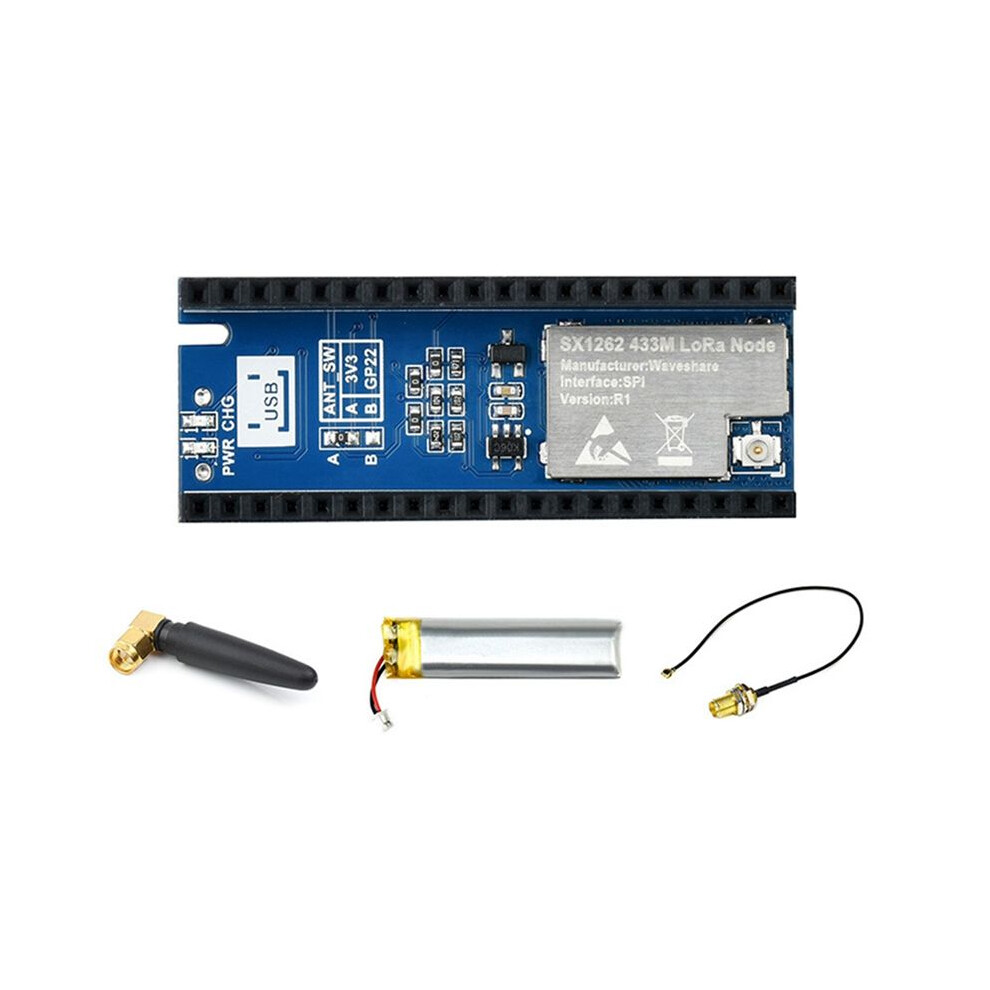

Package Contents:
1 * Expansion Board
1 * Lithium Battery
1 * Antenna
1 * IPEX1 Generation To SMA Conversion Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
