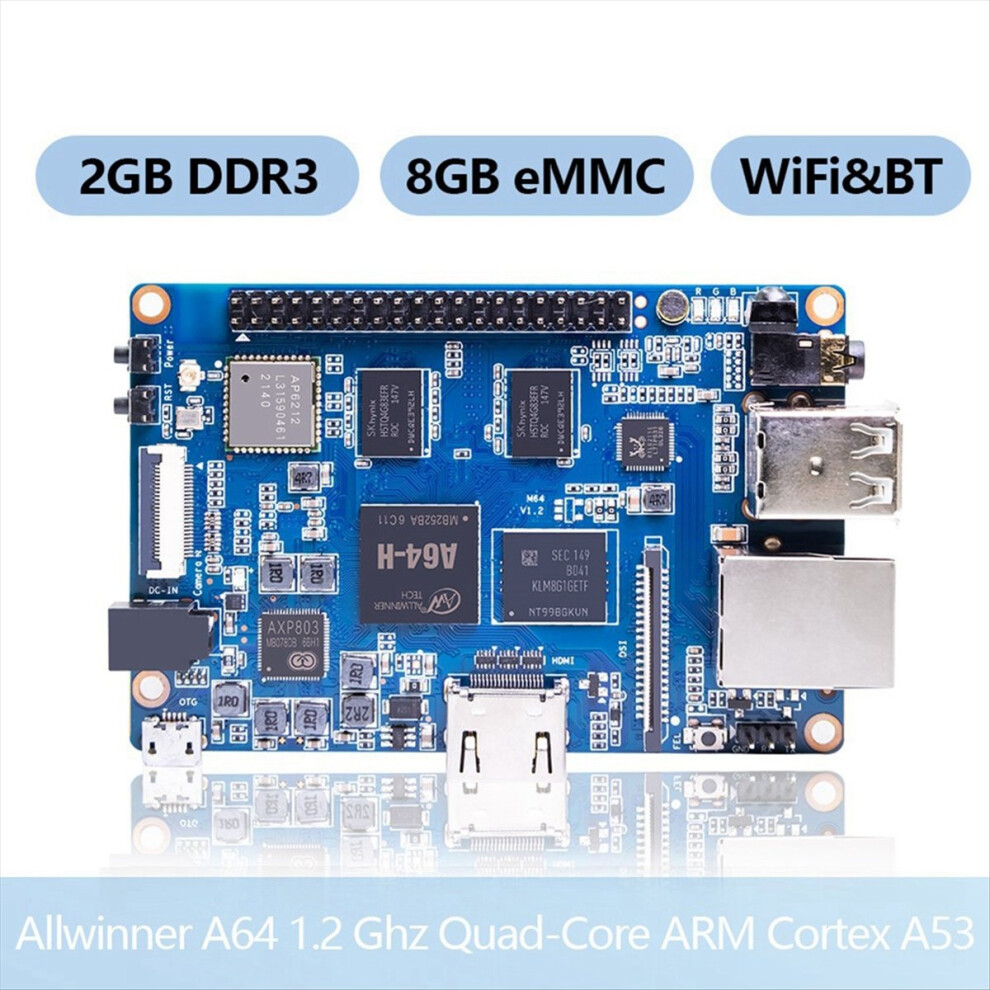

For -M64 Development Board&Heat Sink A64 2GB DDR3

For -M64 Development Board&Heat Sink A64 2GB DDR3 Description

for -M64 is equipped with Allwinner A64 1.2Ghz quad-core ARM A53 64-bit processor, GPU uses dual-core 500MHz Mali-400MP2, with a throughput of 1.1gpixel, making its graphics capabilities far higher than the performance level of X-Box. for -M64 is powered by the latest 64-bit quad-core ARM A53 CPU, which can provide 20%~30% higher performance than other 32-bit open source development boards.
Main features
Allwinner A64 1.2 Ghz quad-core ARM A53 64-bit high-performance processor
2GB DDR3 memory
8G eMMC storage

Color: Blue
Material: PCB
10/100/1000Mbps Gigabit Ethernet port
Onboard WiFi (AP6212) & Bluetooth
MIPI LCD display interface
Camera interface
specifications
CPU master: Allwinner 64 Bit Quad Core ARM A53 1.2 GHz CPU GPU: Dual core Mafi 400 MP2 GPU
Memory: 2GB LPDDR3(shared with GPU)
wired network port: 10/100/1000 Mbit/s Ethernet +Wi-Fi 802.11b/g+Bluetooth 4.0
Video Input(s): module A input connector allows for the connection of a designed camera module
Video Output(s): 1080p capable port and multi-channel
audio output (NO H/X265 capabilities)
Audio Input(s) :On board microphone
Audio Output(s):3.5mm jack and
USB ports :USB 2.0 PORT (x2), USB OTG (x1)
IR infrared control: IR infrared control interface
Switches: Reset,Power and U-boot
LED: Power Status and 8P8C
Power Supply: 5 volt @2A via DC Power and/or Mcro USB (OTG)
Dimensions & Weight: 92x60mm,48g
Supported: Systems Android and Linux
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.

Package Contents:
1 x Development Board
1 x Heat Sink Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
