For Max Linux RV1106 Rockchip AI Board ARM -A7/RISC-V for (D)

For Max Linux RV1106 Rockchip AI Board ARM -A7/RISC-V for (D) Description

[Highly Integrated And Powerful Performance]
Integrates CPU, NPU, ISP And Other Processors. Single-core ARM -A7 32-bit core with integrated NEON and FPU. Built-in Rockchip self-developed 4th generation NPU, features high computing and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths. Integrated with built-in POR, audio codec and PHY

[Note]
Do not include Camera
[Overview]

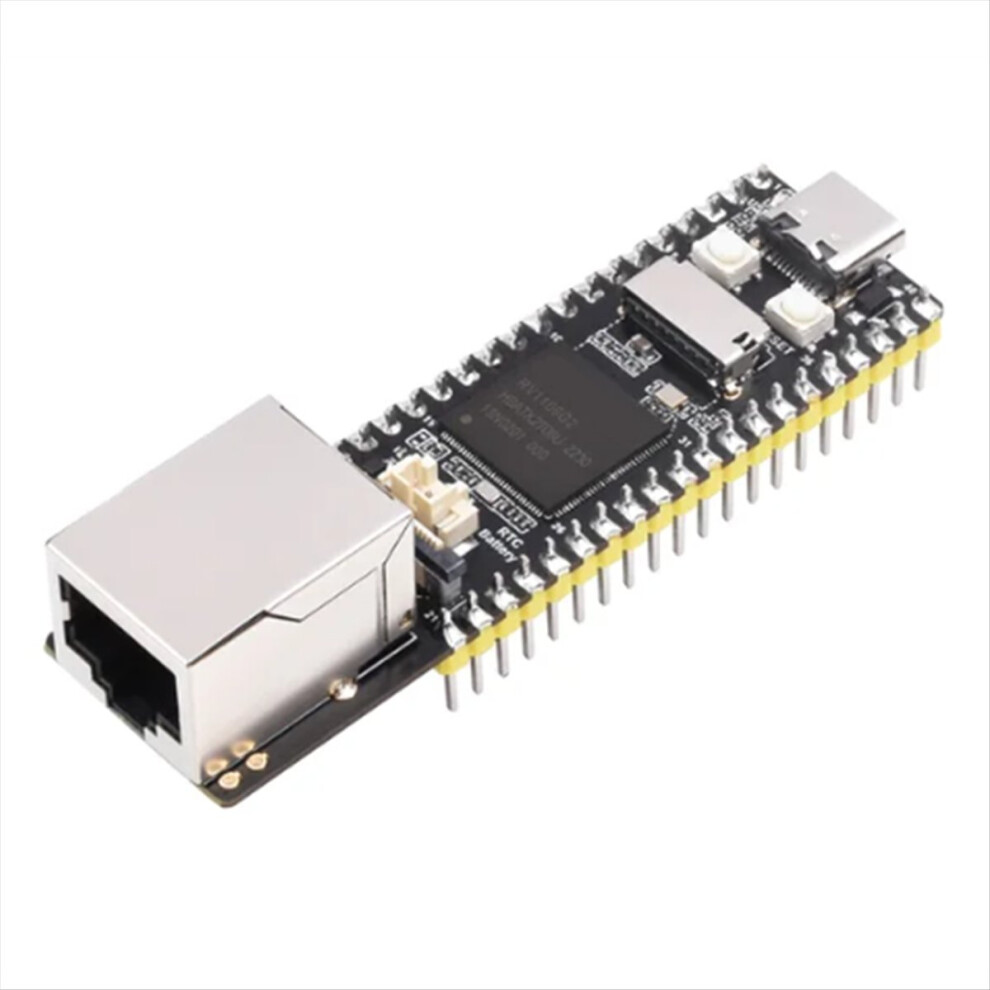

for Max is a cost-effective Linux Micro-developmentboard,based on the Rockchip RV1106 chip to provide a simple andefficient development platform for developers; Supports a variety of interfaces including MIPI ,GPIO, UART,SPI, 12C, USB, etc.,which is convenient for developing and debugging quickly.
[Specifications]
Processor : [email protected]
NPU : 0.5TOPS, supports int4, int8 and int16
ISP : Input 5M @30fps (Max)
Memory : Max : 256MB DDR2
color: Black
Material: PC+metal
USB : USB 2.0 Host/Device
Camera : MIPI 2-

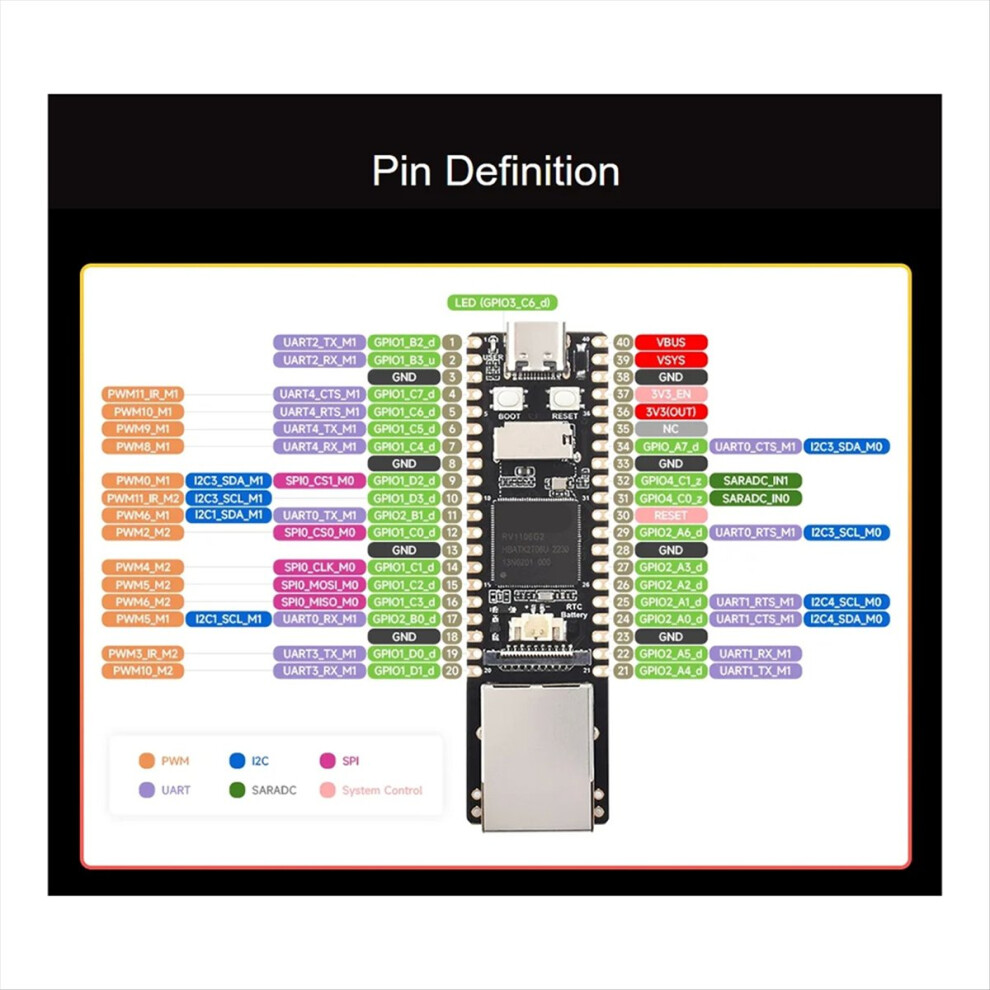

GPIO : 26 x GPIO pins
Ethernet port : 10/100M Ethernet controller and embedded PHY

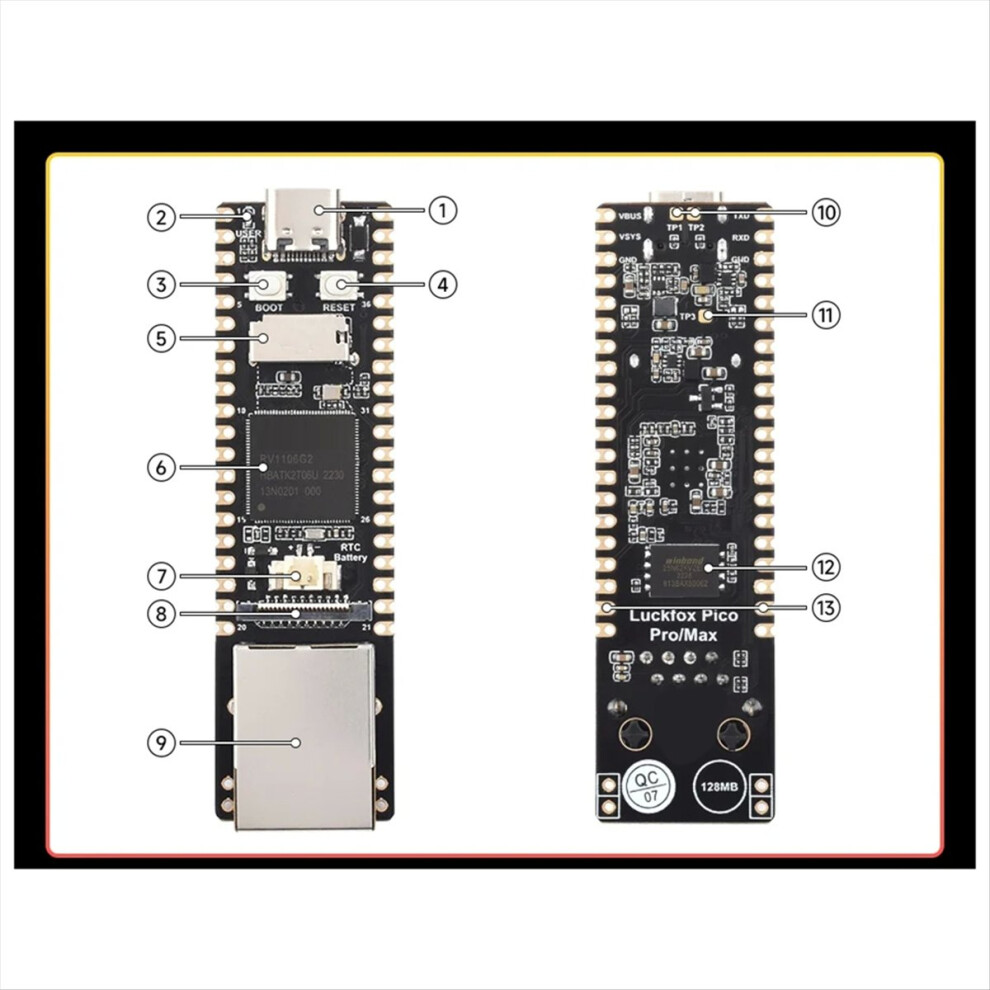

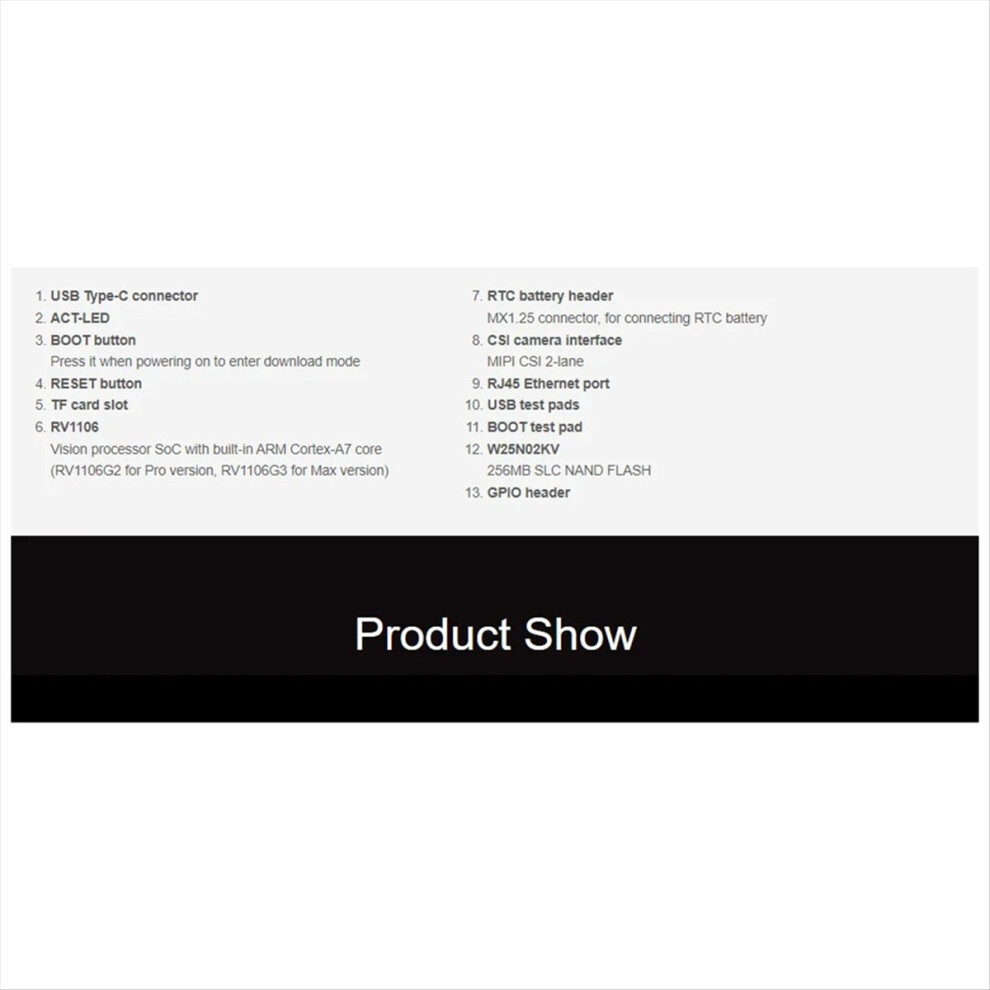

1. USB Type-C connector
2. ACT-LED
3. BOOT button : it when powering on to enter download mode
4. RESET button

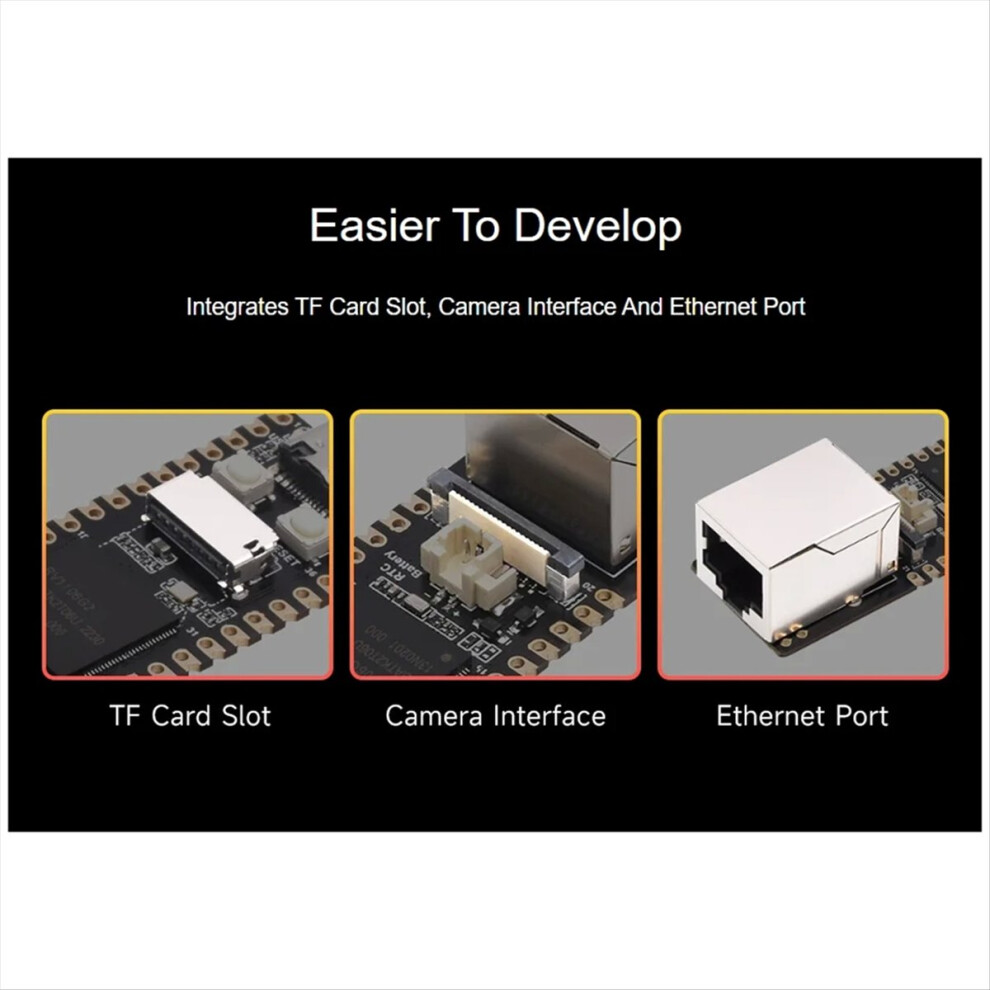

5. TF card slot
6. RV1106 : Vision processor SoC with built-in ARM -A7 core (RV1106G3 for Max version)
7. RTC battery header : MX1.25 connector, for connecting RTC battery
8. camera interface : MIPI 2-
9. RJ45 Ethernet port
10. USB test pads
11. BOOT test pad
GPIO header
D Style: For Max 256MB welding

Package Contents:
1 x Development board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
