For Nano ENC28J60 Ethernet Shield V1.0 for Compatible 3.0 RJ45 Network Module

For Nano ENC28J60 Ethernet Shield V1.0 for Compatible 3.0 RJ45 Network Module Description

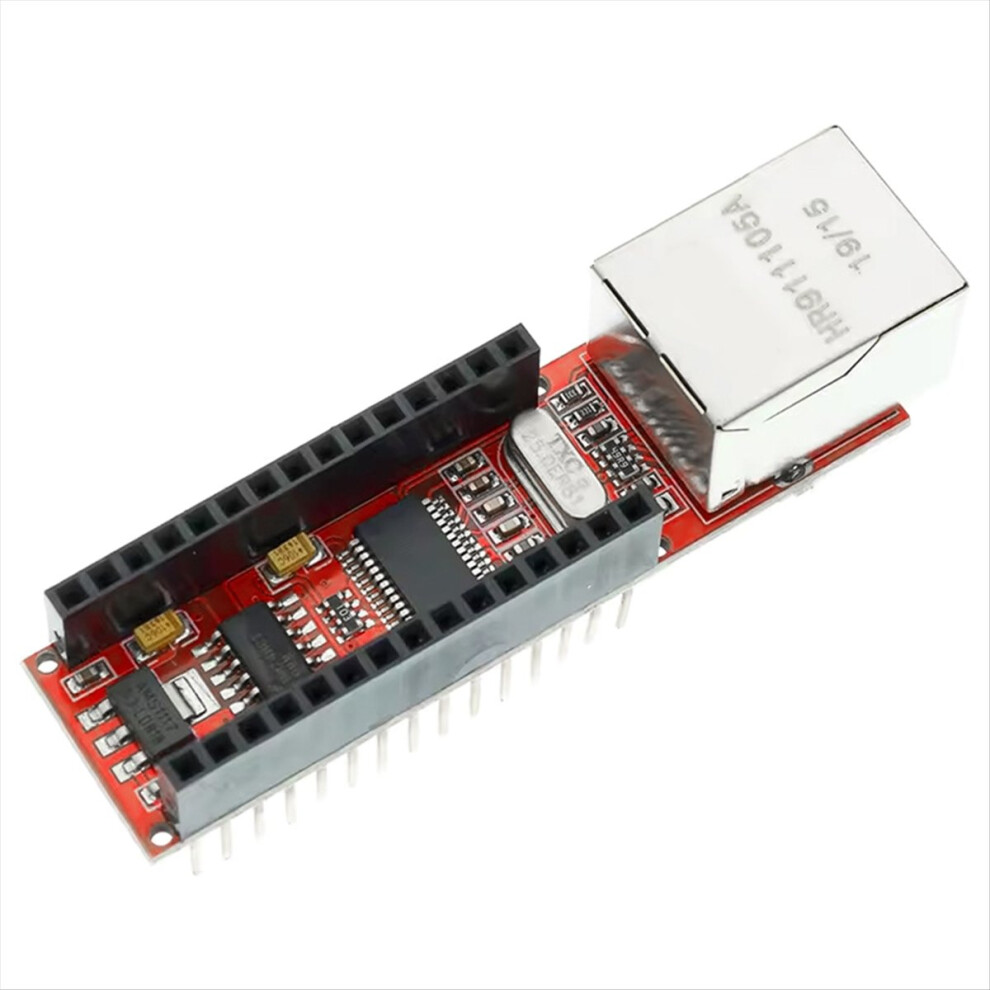

chip board ENC28J60-I/SO.
the board 25MHZ crystal.

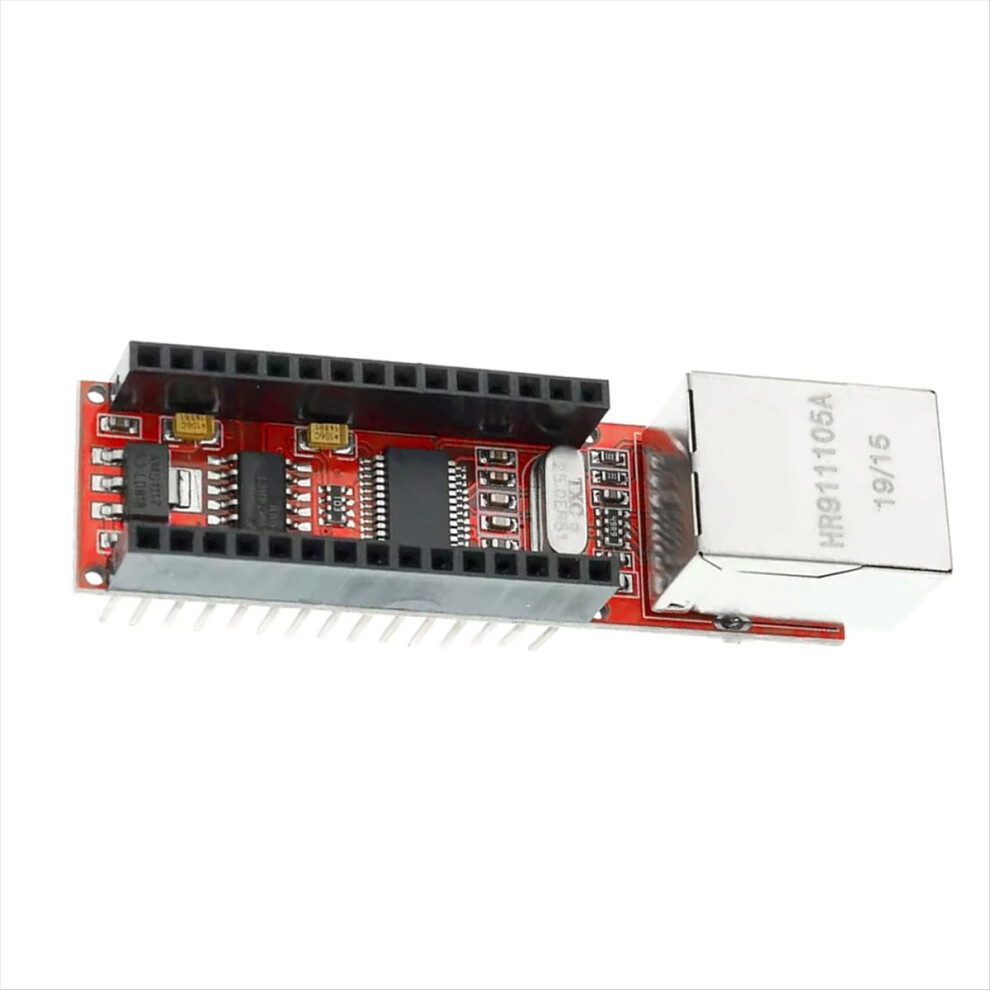

interface board HR911105A.
3.3 V power supply pin.

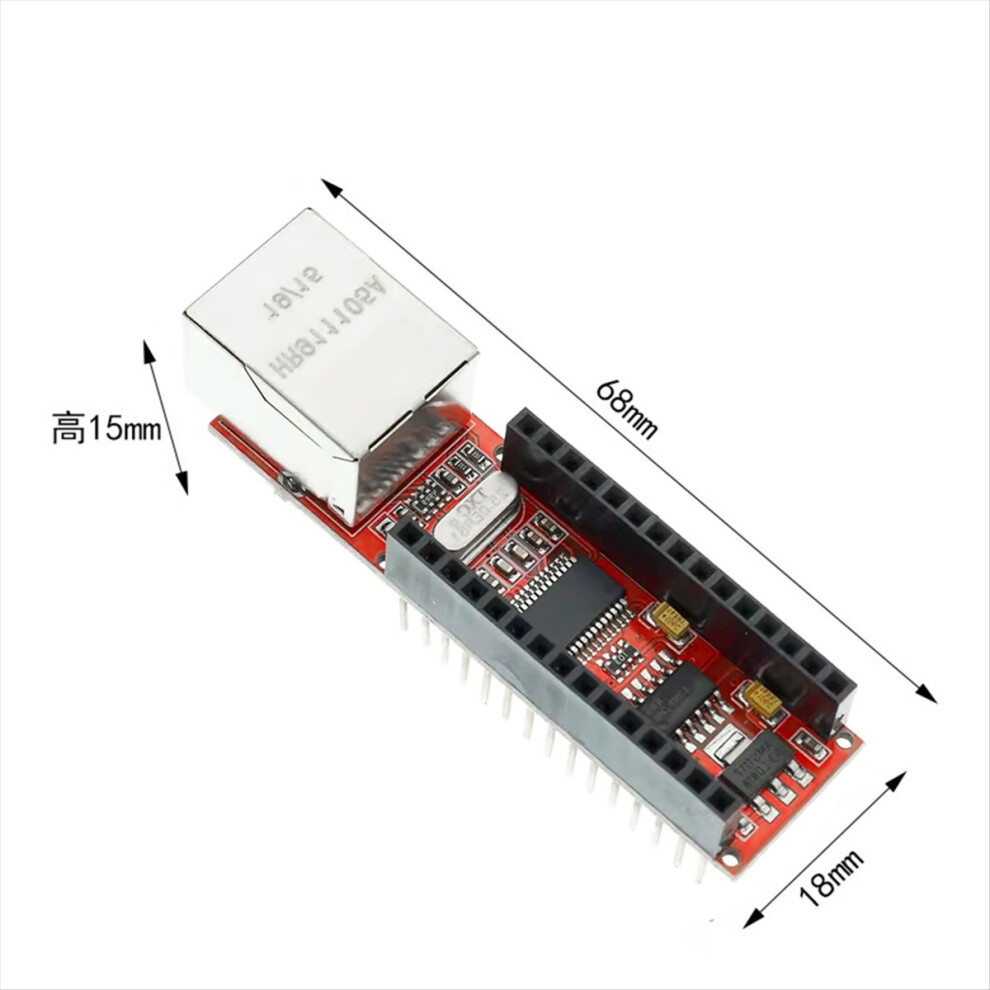

PCB size: 63x18x15mm

Positioning hole diameter: 3.1mm
Weight: about 17g
PCB with Ethernet connector: 67x18x17 mm
PCB bottom pins: 9.5mm
Compatible with Nano Ethernet driver: ENC28J60
Colour:As Shown
Material:PCB
Debug reminder:
1, the IP address of the computer to a network segment and module such as IP module 192.168.1.2, IP computer set: 192.168.1.3; 192.168.1 is the 3 section;
2, cable connected to the mouth of the computer network module and mouth; (that is, the cable network 1 3,2 , and then do not understand that there are pictures Baidu);
3, the module and the MCU connection should pay attention to the connection of each line is reliable (the is not even connected to the good);
4, and the MCU port IO to confirm that is right;
5, the program recompile, download, confirm whether to download! STM32 and 51 IO
Due to different batches, there may be differences in product appearance and printed text, which not affect use
