for NMEA Buffer 1 in 4 Out Marine Serial Line

for NMEA Buffer 1 in 4 Out Marine Serial Line Description

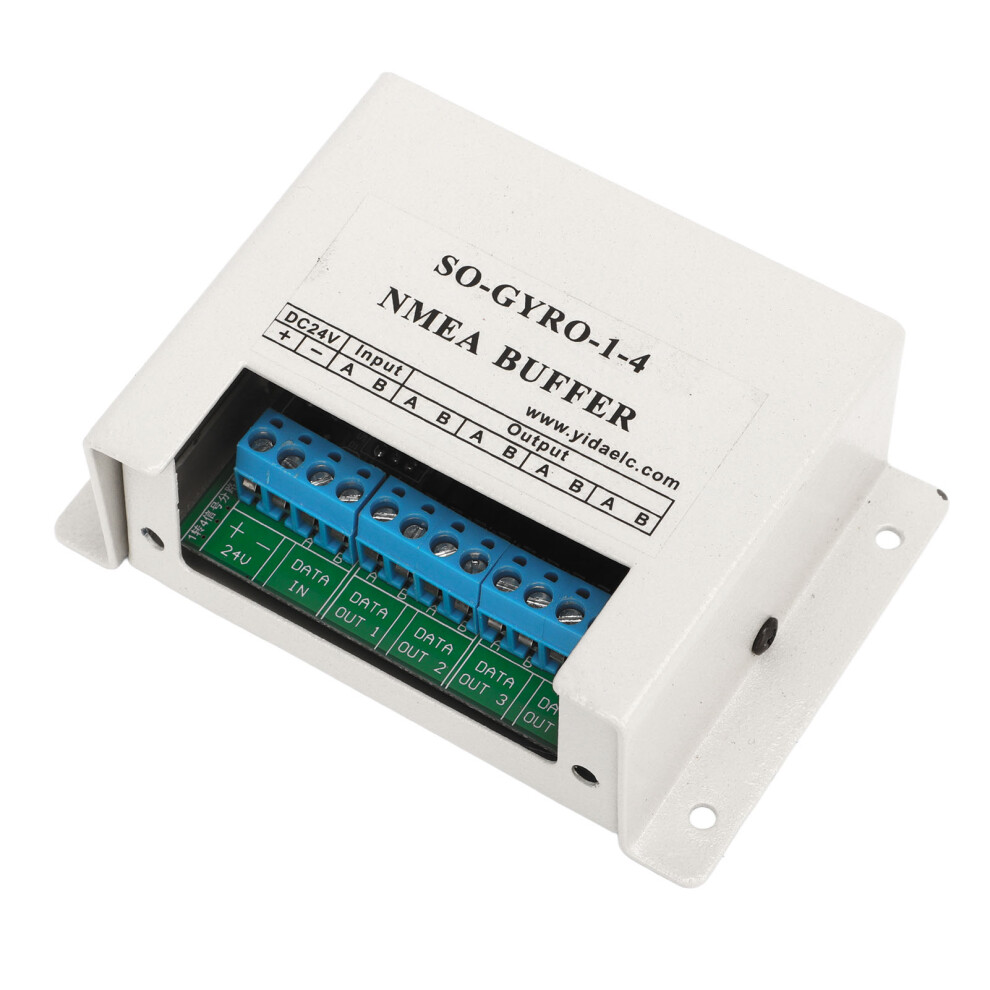

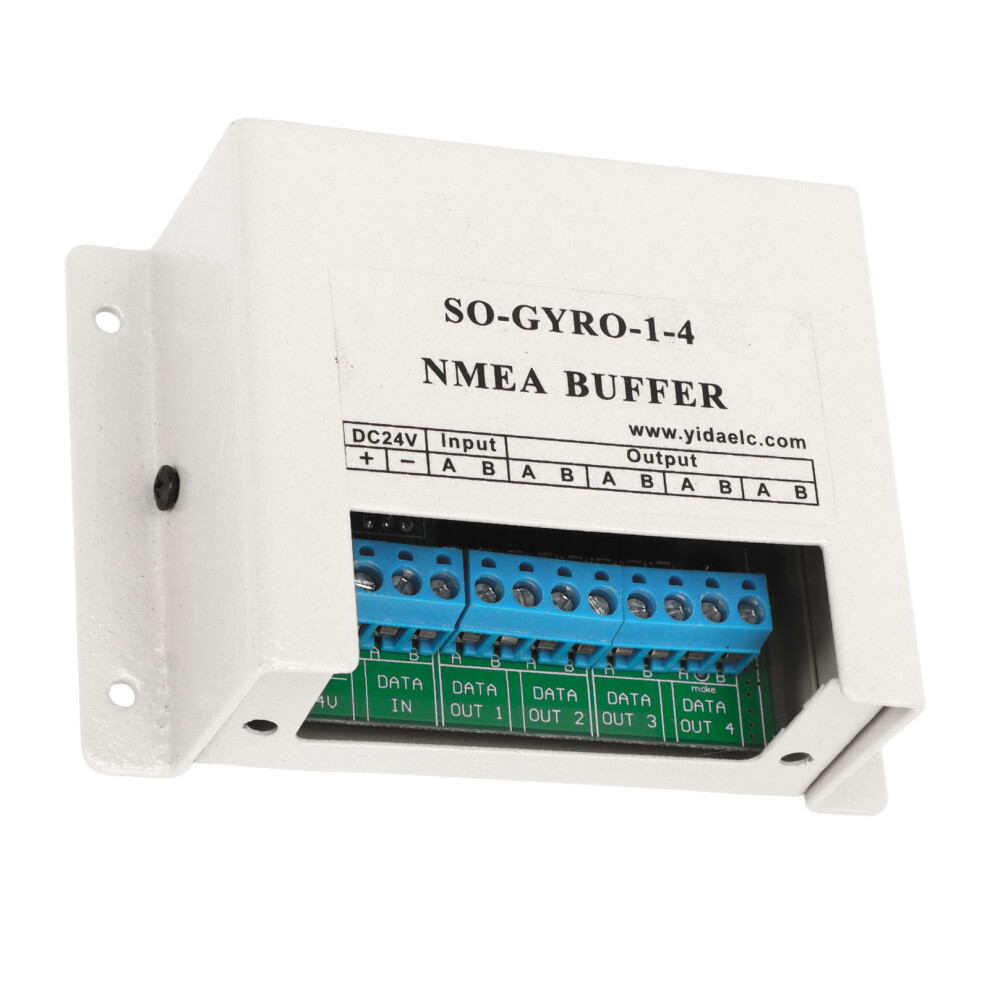

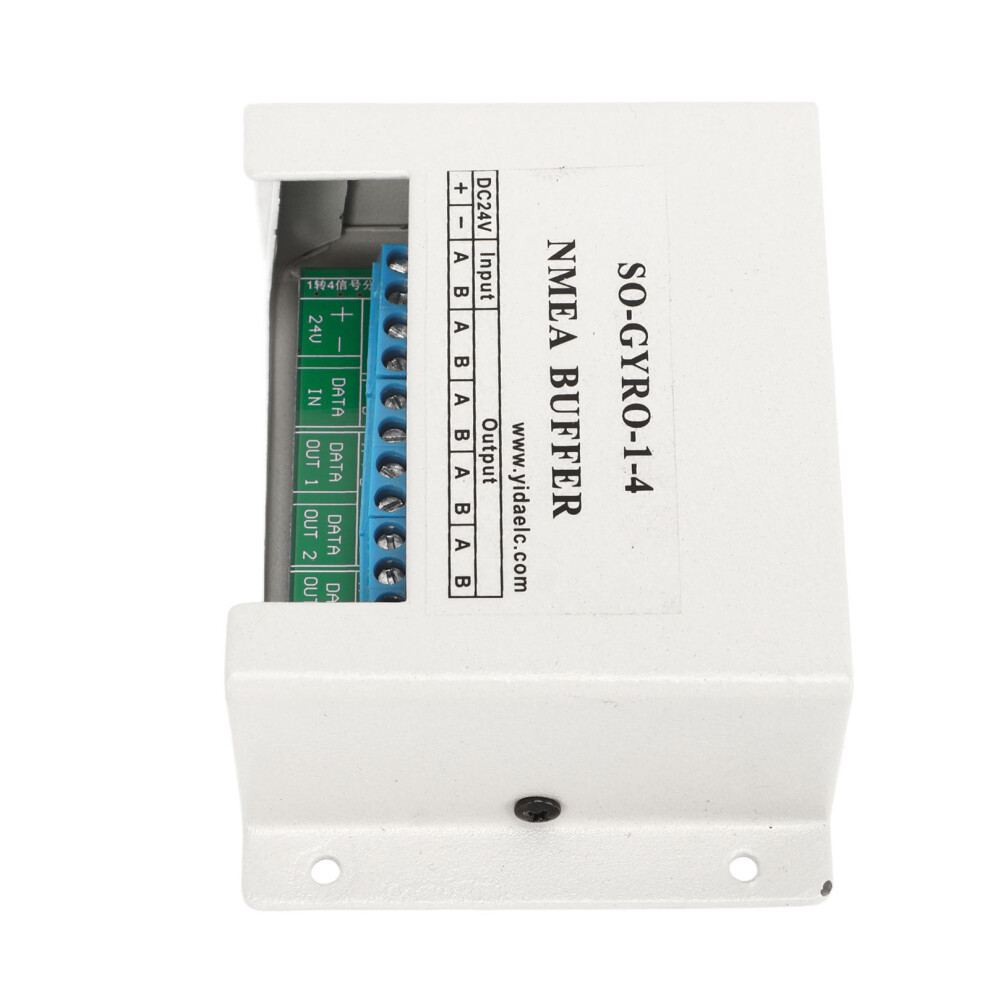

for NMEA Buffer 1 in 4 Out Marine Serial Line Splitter Isolating Buffer Converter Interface for 24V Circuit Systems



1、Input Signal: 4 input ports, supports up to 115,200bps, selectable auto manual switching by external switch, selectable primary secondary input by external switch. 2、Safe Operation: The marine serial line splitter supports over voltage protection, over current and surge voltage protection, reverse input and over current protection. 3、Practical: There are wiring instructions at the wiring area to prevent wiring errors, and pluggable screw terminals for quick and easy installation and diagnostics. 4、Design: Galvanic isolation of Each output group, input, main circuits and power, selectable RS232, RS422, TTL on 8 output port. 5、Durable Material: Made of aluminium alloy shell, anti rust treatment, will not be oxidized and corroded by seawater or air, long term durability.



Item Type: Marine Serial Line Splitter Material: Aluminium alloy Input Signal: 4 input ports, galvanic isolation, supports up to 115,200bps, selectable auto manual switching by external switch, selectable primary secondary input by external switch 8 Way Output Ports: Support RS232/RS422/ TTL Signal(Selectable by jumper) Input Power: Reverse Input and Over Current Protection Input Power: DC 24V (DC 18~32V), 0.5A（Electronic Fuse, No Replacement Required） Temperature: -0.5C ~ +55C(-59~131) Humidity: 95%



1 x Marine Serial Line Splitter
